Excellent color mixing effect

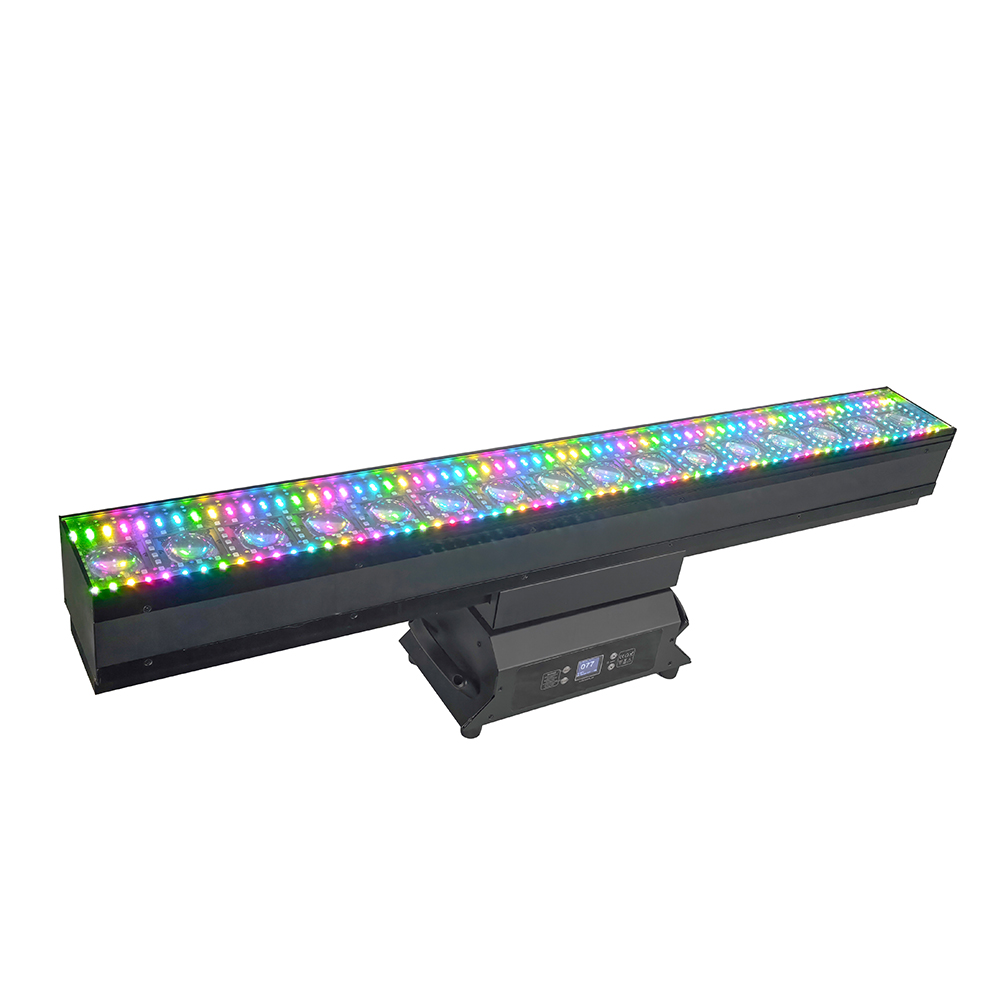

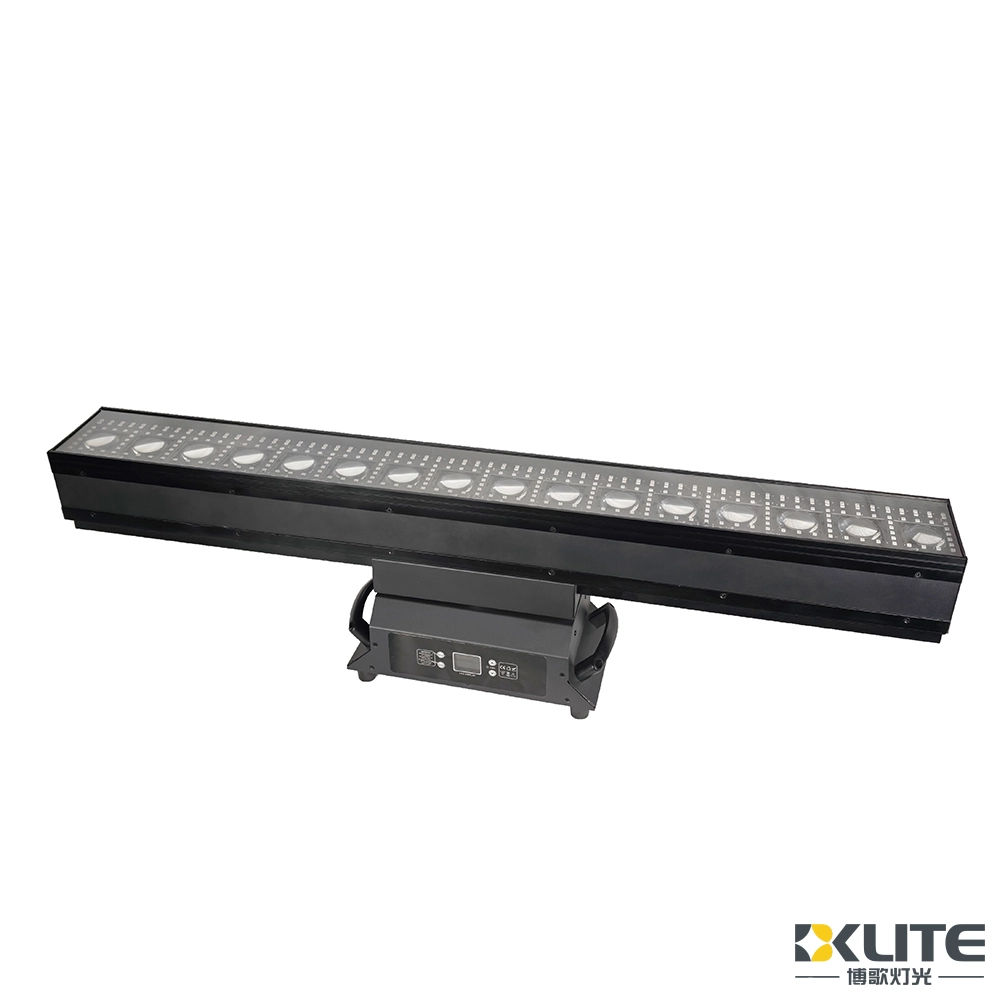

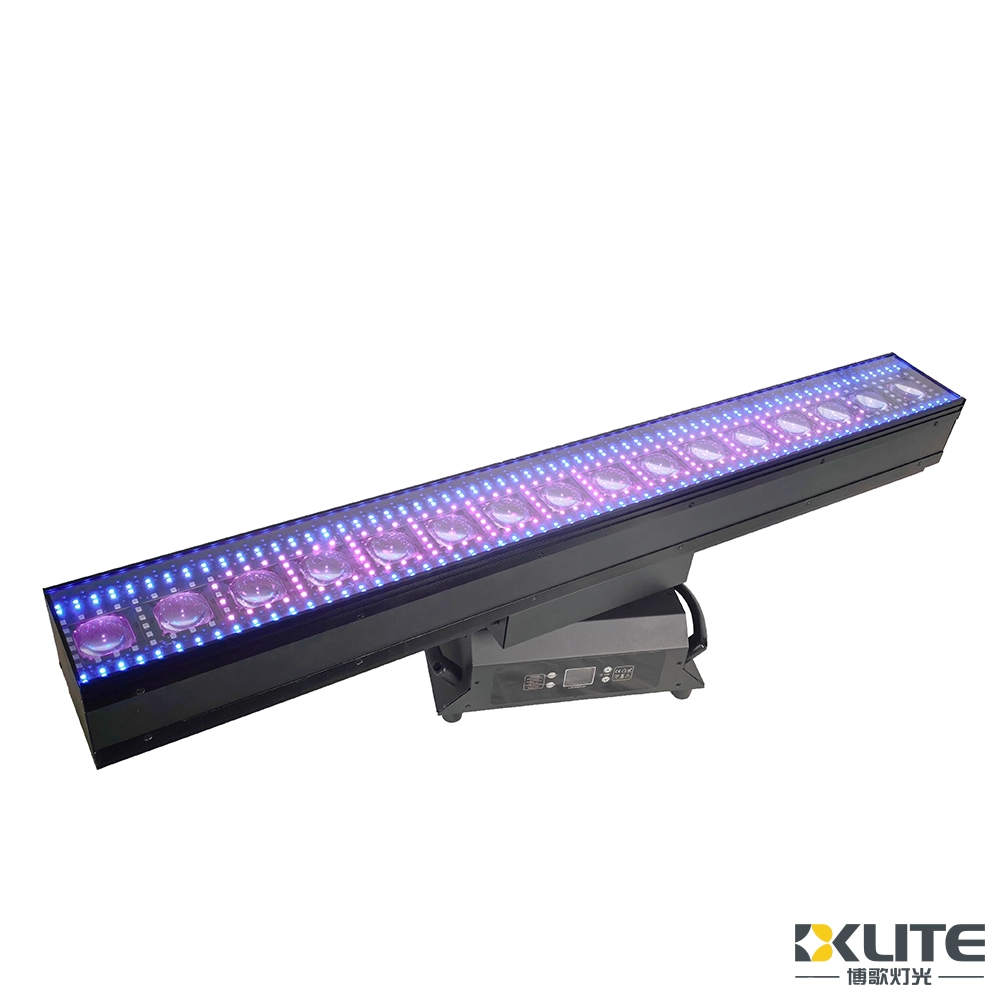

16x40W RGBW 4in1 LED Beam Wash Moving Head Light with 458pcs 0.5W RGBW LEDs Effect Light
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKlite 16×40W beam‑wash moving‑head bar is an IP20 indoor fixture designed for large club shows, concert stages, live performances, TV galas and rental events. It pairs 16 individual 40W RGBW main LEDs with abundant auxiliary RGBW effect beads, producing punchy beams, broad colour washes and spectacular cascading waterfall light curtain effects.
Brand
BKlite
Power
650W
Light source
16 pcs 40W high brightness 4in1 LED
Input voltage
AC100-240V 50/60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
User Manual of 16x40w led moving head light.pdf
Key features
- • Full pixel mapping delivers vivid waterfall curtain effects via individual pixel control.
- • 16pcs 40W high-power RGBW LEDs with individual pixel control for custom programming.
- • Extra side auxiliary LEDs create gorgeous dynamic effects.
• Multi-function: Beam, Wash, Swing & built-in macros.
Waterproof rating
IP20
Light source
16 pcs 40W high brightness 4in1 LED
Power
650W
Mode
DMX512, RDM, Master-Slave, Sound activated, Auto
Tilt
360° infinite rotation
Video
More Parameters
| Specification | Details |
| Voltage | AC100-240V 50/60Hz |
| Max Power |
650W
|
| Light Source |
16 pcs 40W high brightness 4in1 LED Outer leds: 458pcs 0.5W RGBW leds |
| Tilt |
360° infinite rotation |
| LED Lifetime | 50,000 hours |
| Beam Angle |
4°
|
| Strobe |
1-25 times/second
|
| Dimmer |
0-100% linear dimmer |
| Channel Modes |
29CH/133CH/178CH
|
| Control Mode |
DMX512, RDM, Master-Slave, Sound activated, Auto
|
| IP Rate |
IP20
|
| Net Weight |
18KG
|
| Gross Weight | 21.7KG |
| Fixture Size |
120*18.5*30.8cm
|
| Packaging Size |
128*40*28cm
|
Product Details
Dimensions Accessores
Photometrics
Light source
•16 pcs 40W high brightness 4in1 LED
Outer leds: 458pcs 0.5W RGBW leds
•LED expected lifespan：50,000 hours
Control and procedure
•Four touch buttons
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
-
•User manual
•Power cord
•Signal cable•Safety rope
