Behind the Production: IP65 Profile 1000W LED Beam Wash Spot 4-in-1 Moving Head Light with Framing System

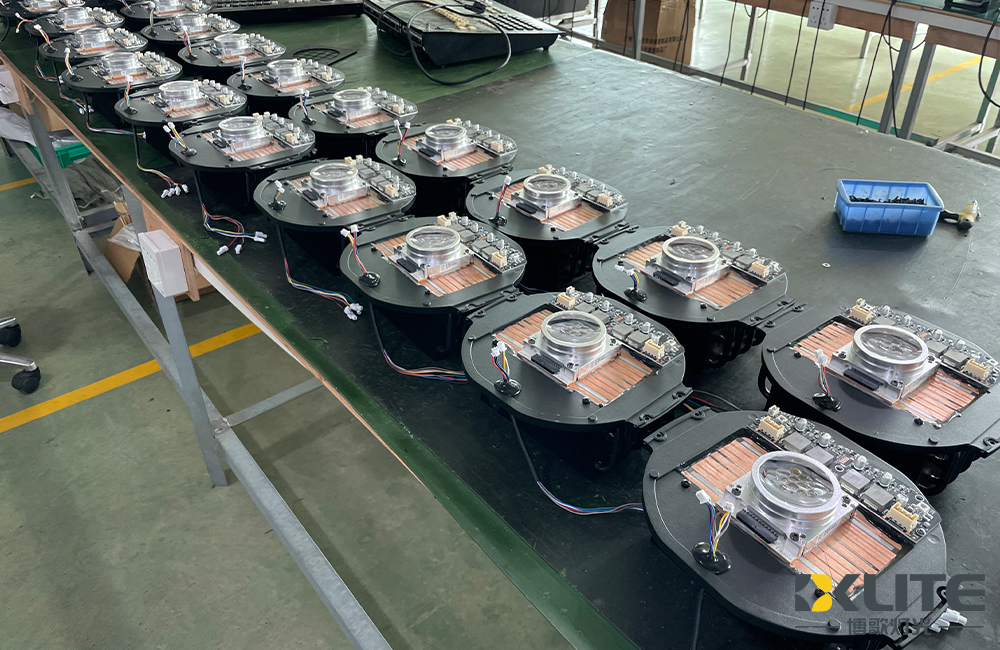

1.LED Light Source and Optical Module Production

For a 1000W LED moving head, the light source is one of the most important components because it directly influences output, optical performance, color rendering, beam quality, and overall fixture efficiency.

A professional LED optical module typically needs precise positioning of:

•LED source

•Lens

•Heat dissipation components

•Circuit connections

•Mounting structures

•Optical alignment components

During production,these components need to be assembled accurately to ensure that the light source and optical system work together correctly.

2.Precision Mechanical Components for Dynamic Movement

A moving head needs multiple mechanical systems to control different functions.These may include mechanisms for:

•Pan and Tilt movement

•Zoom

•Framing

•Color selection

•Gobo positioning

•Optical effects

•Internal component positioning

The precision of these mechanical assemblies can directly influence the smoothness, accuracy, and repeatability of the fixture.

For professional stage lighting, movement is not simply about making the fixture move quickly.It is also about achieving: Accuracy + Smoothness + Repeatability + Stability.These characteristics are particularly important for programmed lighting shows where multiple moving heads need to work together.

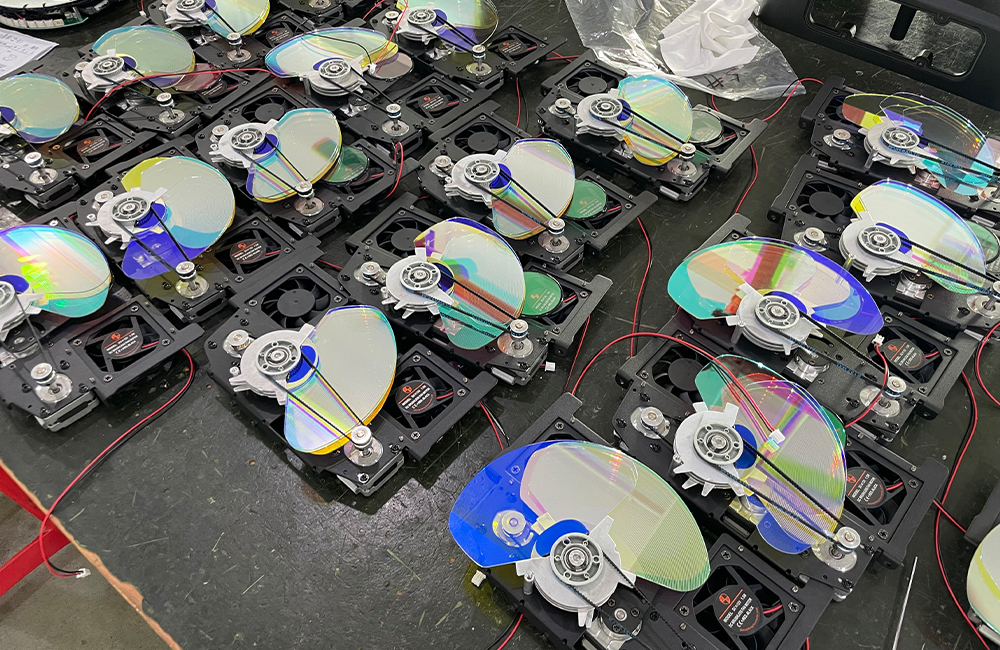

3.Optical and Color System Assembly

Optical components such as color filters, dichroic elements, and other light-control components play an important role in professional moving-head fixtures.The color and optical system allows the fixture to create different visual effects while maintaining controlled light output.For a multifunctional fixture, optical components need to work together with:

• •LED light source
• •Lens system
• •Zoom mechanism
• •Color system
• •Gobo system
• •Framing system

• This integrated design allows one moving head to perform multiple lighting functions without requiring separate fixtures for every effect.

•

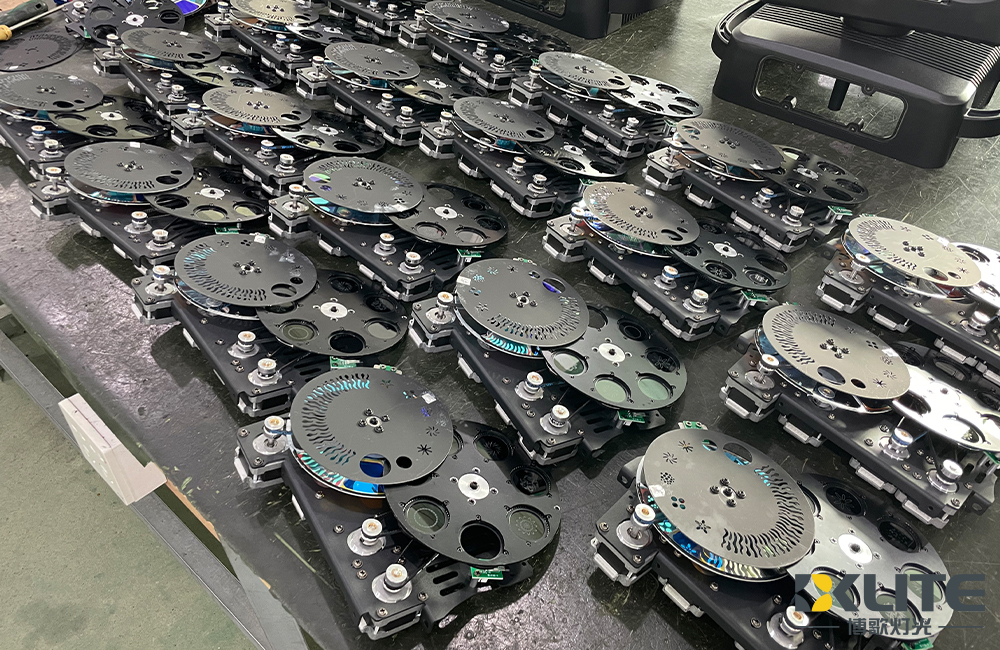

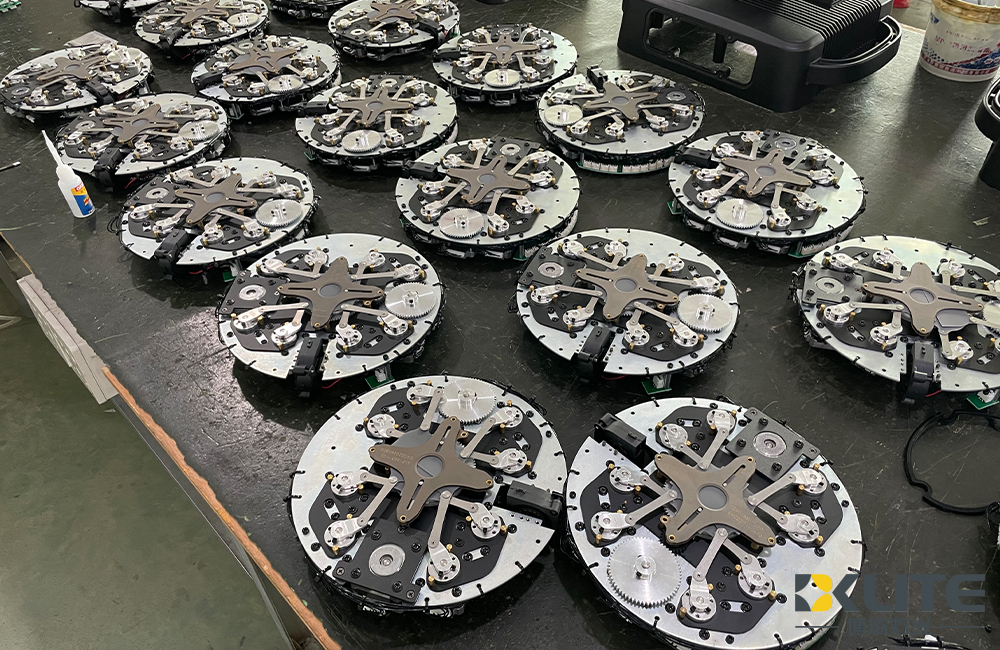

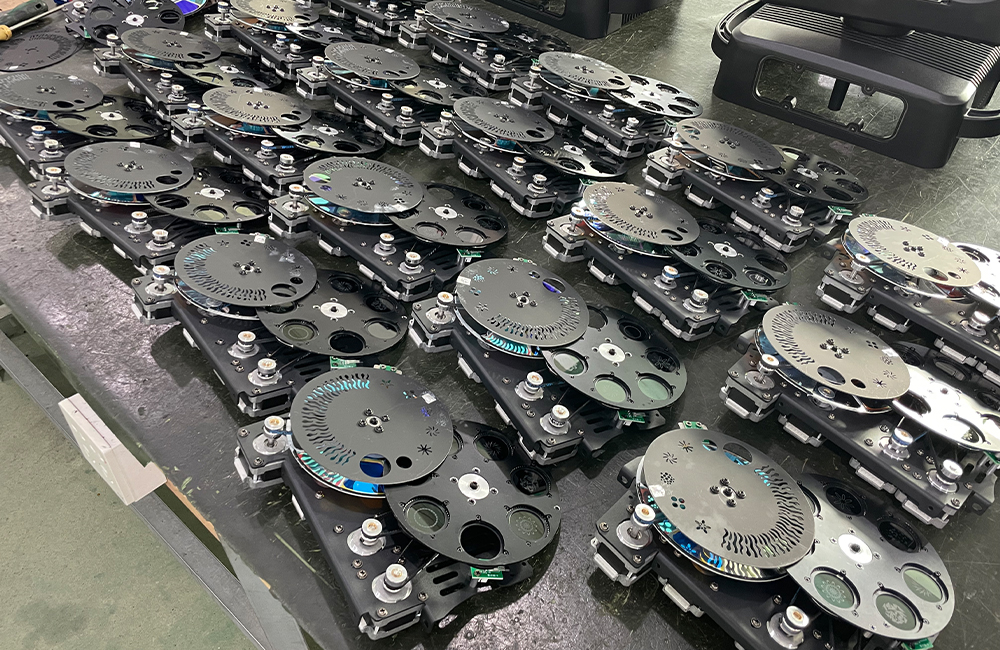

• 4.Gobo and Framing System Components

• The gobo system can be used to project patterns and textures, while the framing system allows the projected light to be shaped.A framing system is particularly valuable in professional stage lighting because it provides greater control over the shape and position of the light.This makes the framing system an important feature for theaters, concerts, TV productions, and high-end event lighting.

•

• 5.Beam, Wash, Spot and Framing in One Fixture

• Beam Mode: Designed for concentrated aerial effects and powerful beams.
• Spot Mode: Suitable for projection effects, gobos, colors, and visual patterns.
• Wash Mode: Provides broader illumination and colorful stage coverage.
• Framing Mode: Provides precise beam shaping and allows the light to be controlled around specific areas of the stage.
• This multifunctional design can simplify fixture selection for lighting designers and production teams while expanding programming possibilities.

•

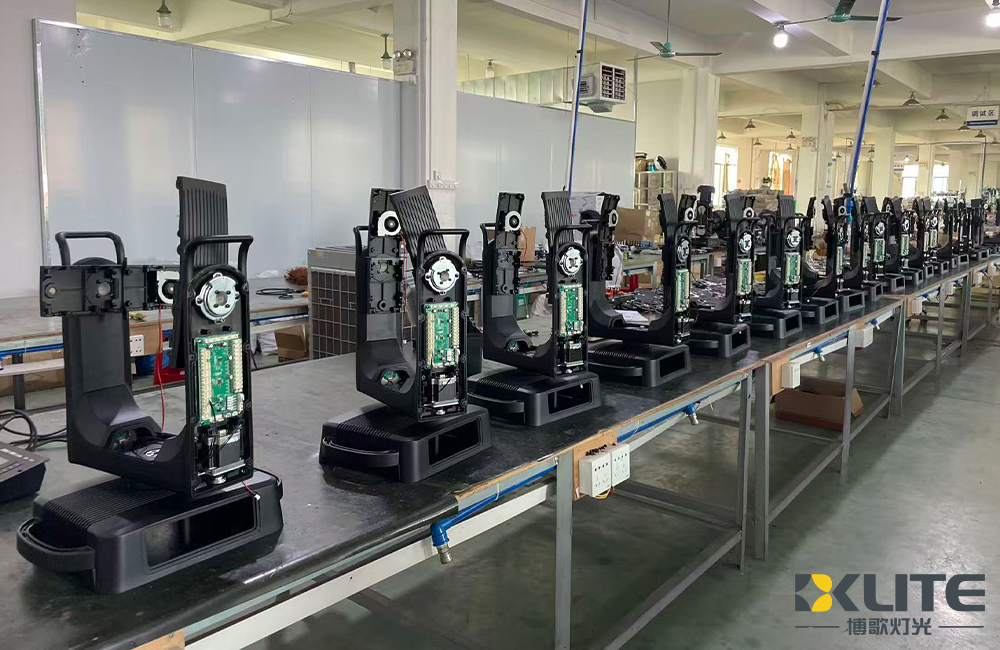

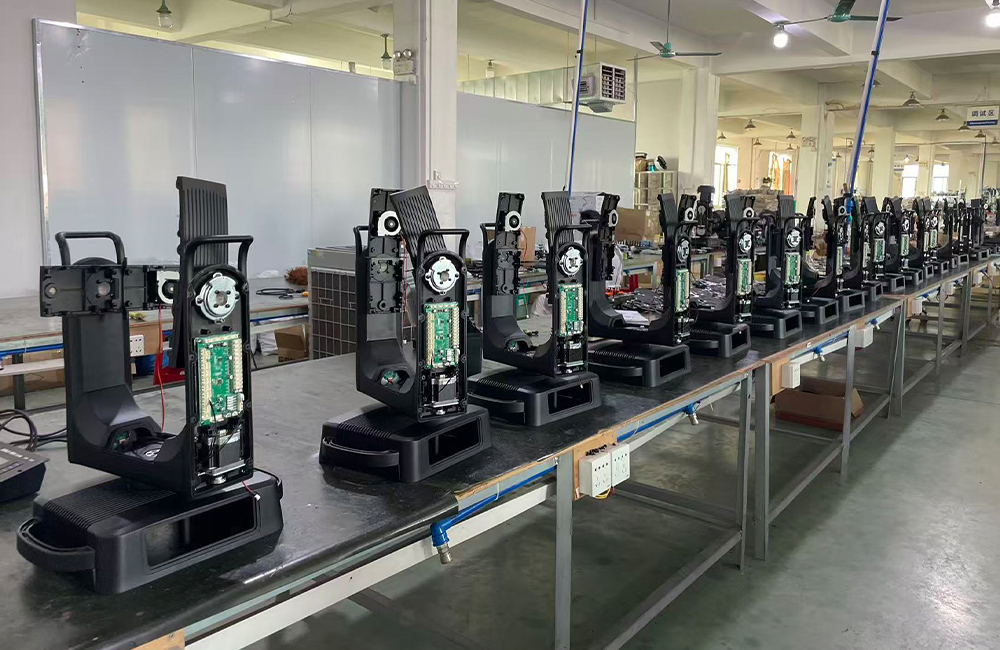

• 6.BKLite Production: Turning Components into Professional Lighting

• The production images show that professional stage lighting manufacturing is a combination of optics, mechanics, electronics and precision assembly.

  From the preparation of LED and optical modules to the assembly of mechanical systems, every component contributes to the final performance of the moving head.For BKLite, manufacturing is not simply about producing a lighting fixture.It is about developing a complete lighting solution that can meet the requirements of professional stage productions.

  The Profile 1000W LED Beam Wash Spot 4-in-1 Moving Head Light with Framing System brings multiple functions together in one fixture: Beam + Wash + Spot + Framing

• Combined with professional optical and mechanical systems, this type of fixture provides lighting designers with a flexible platform for creating complex stage effects.
