Excellent color mixing effect

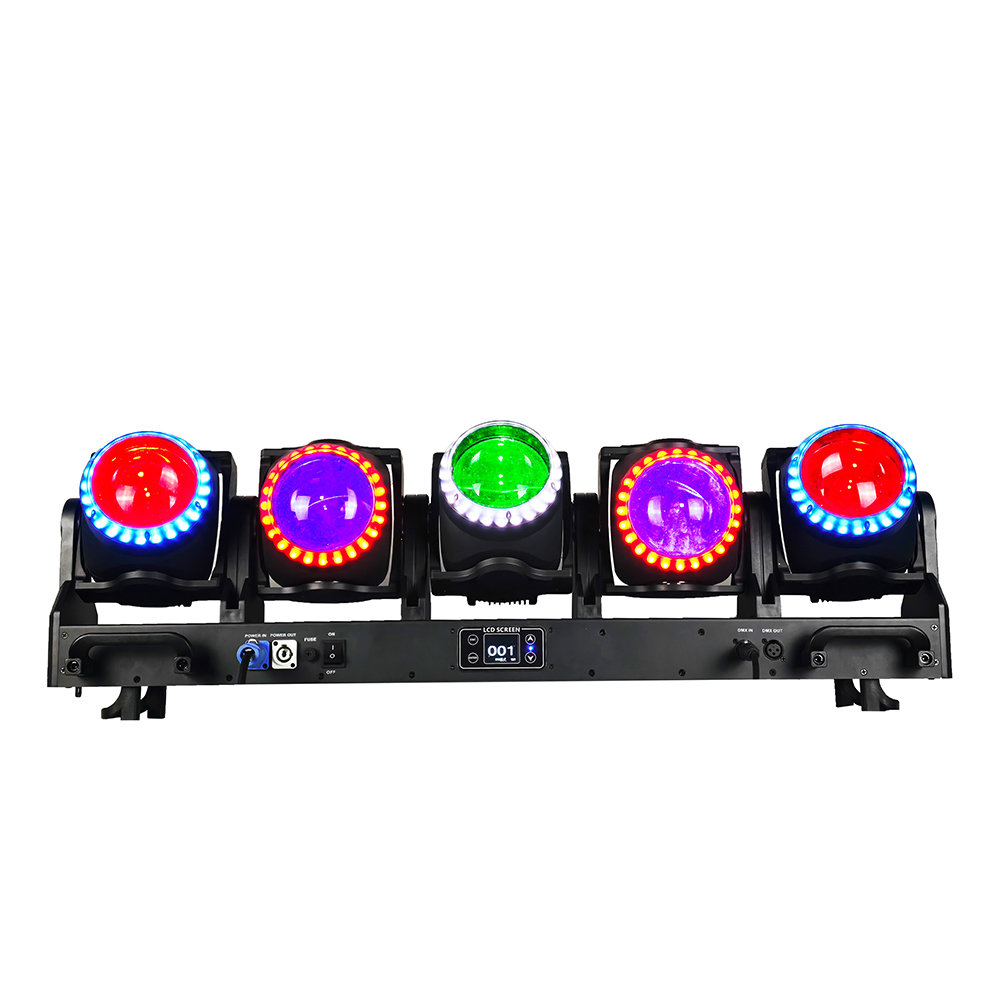

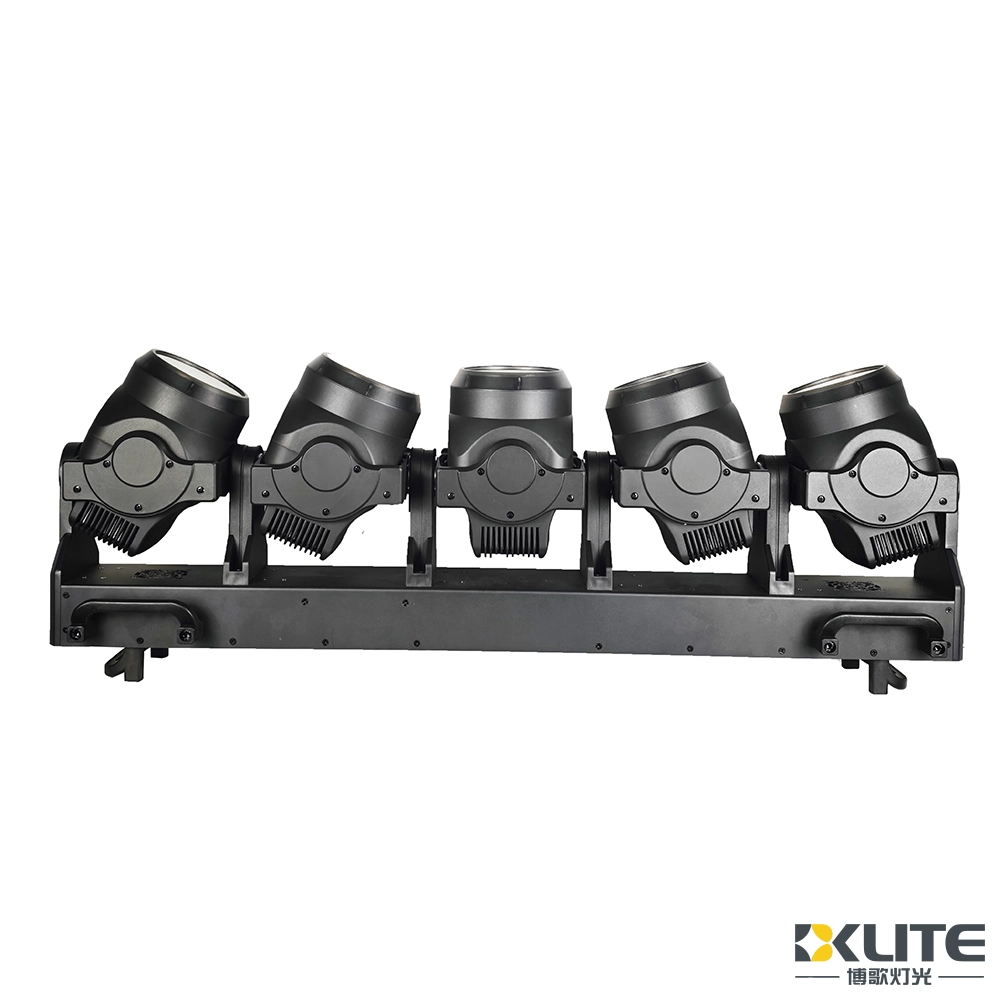

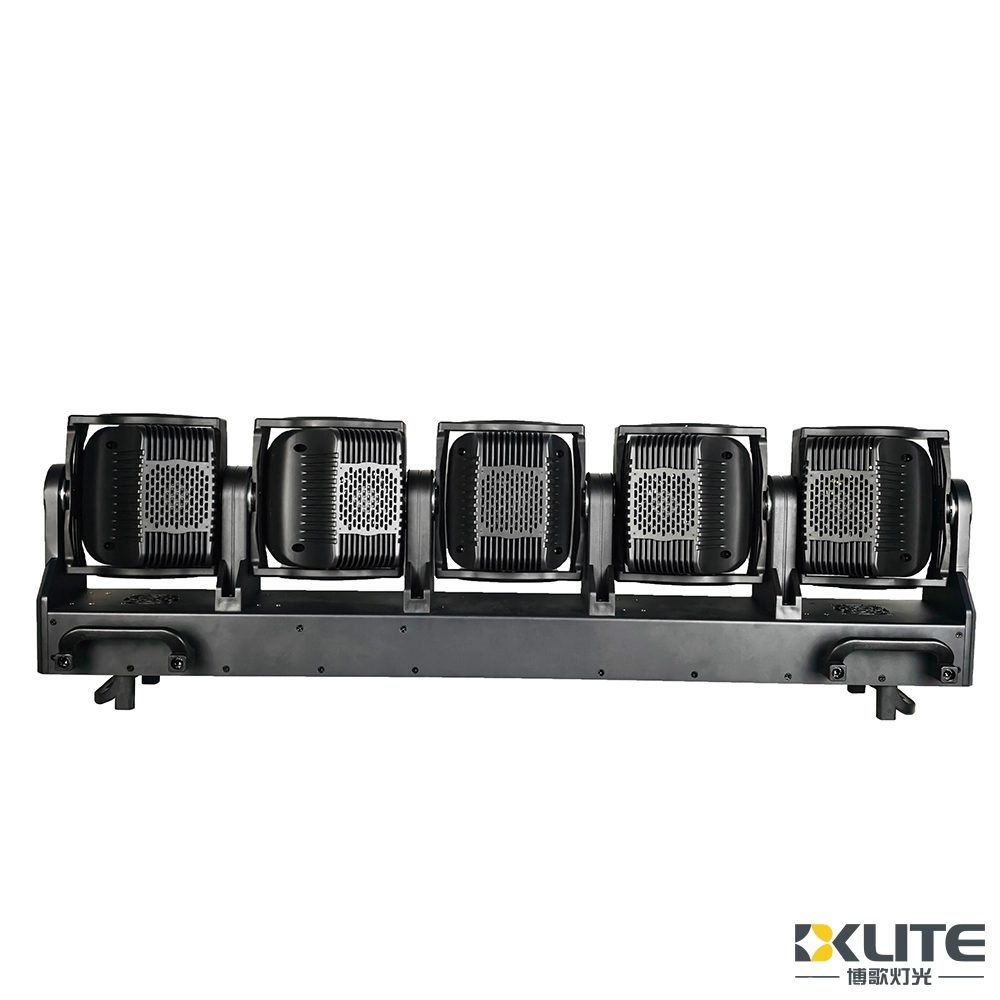

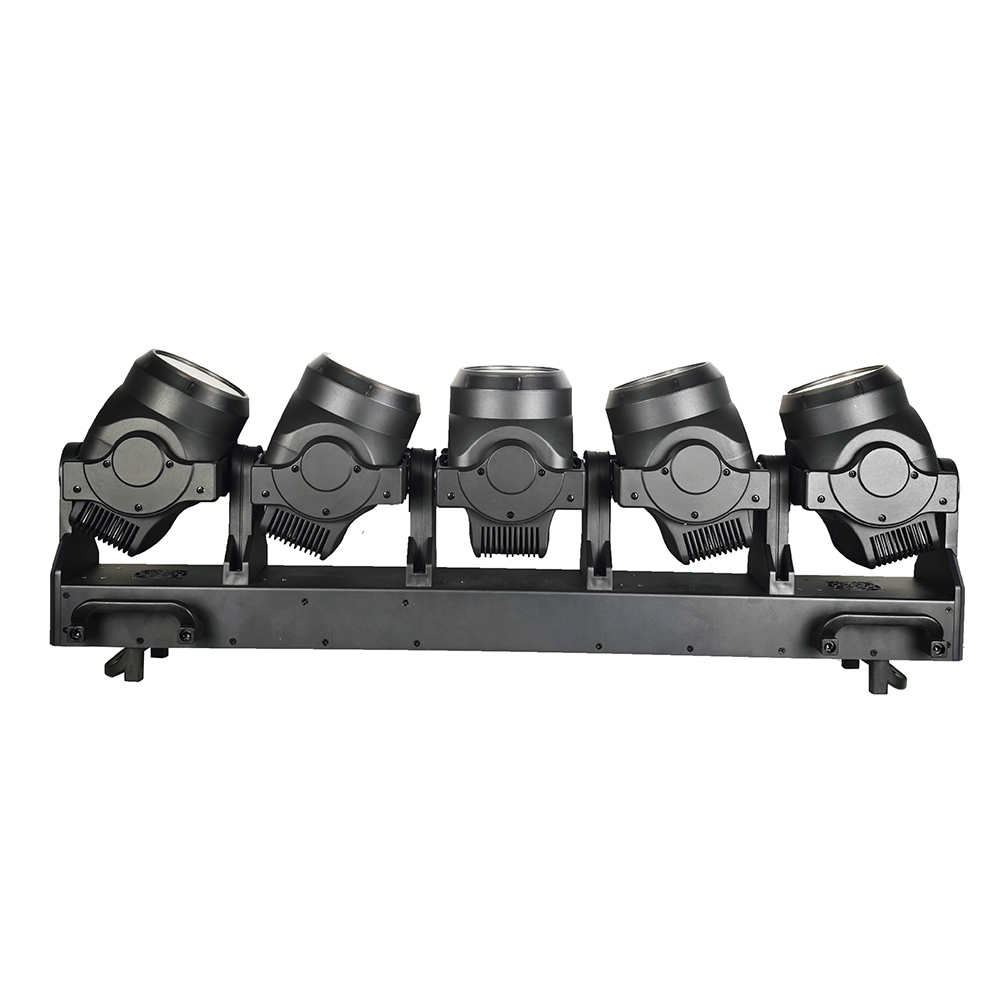

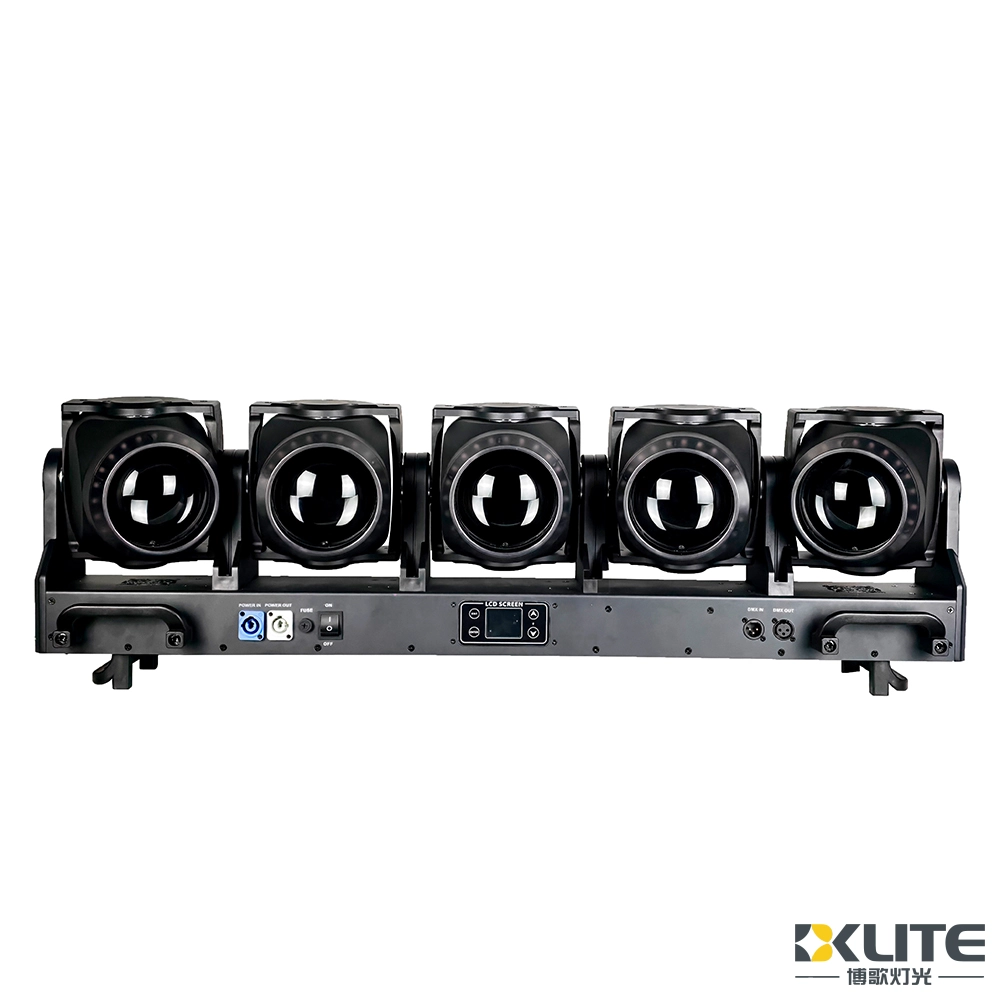

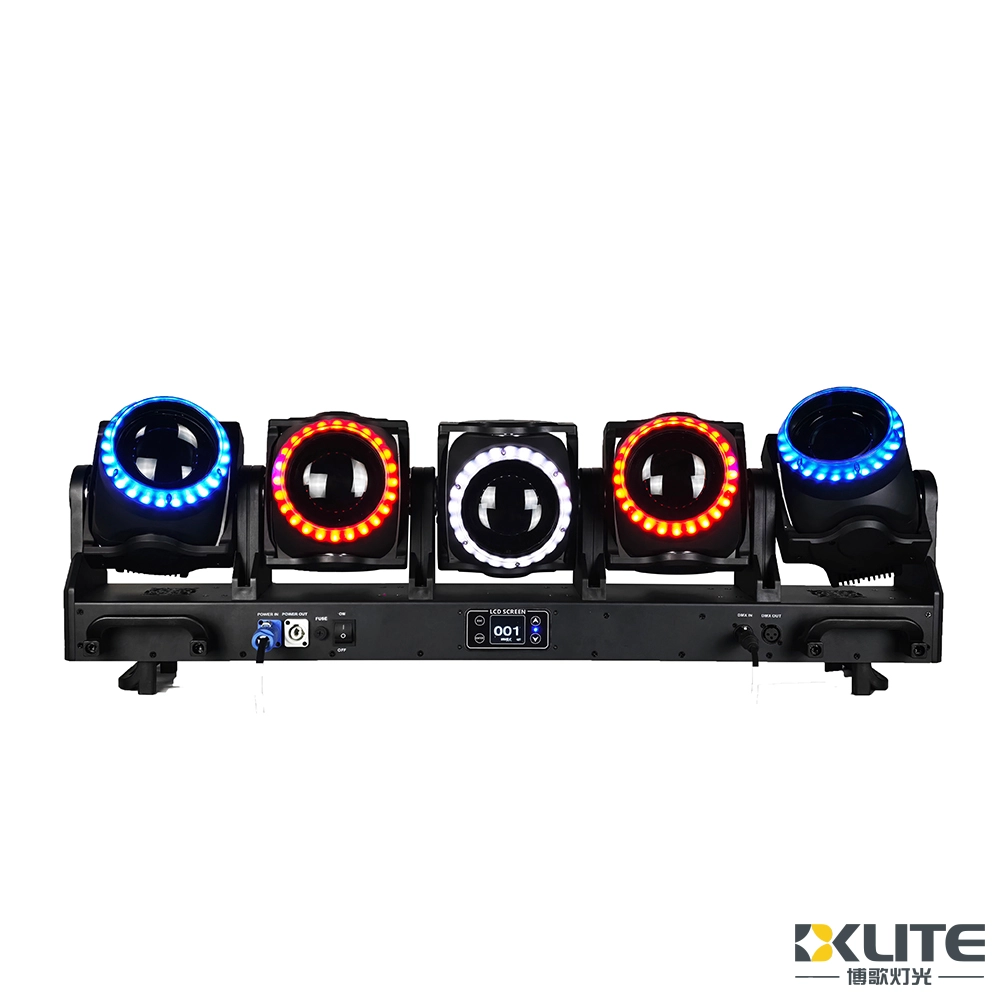

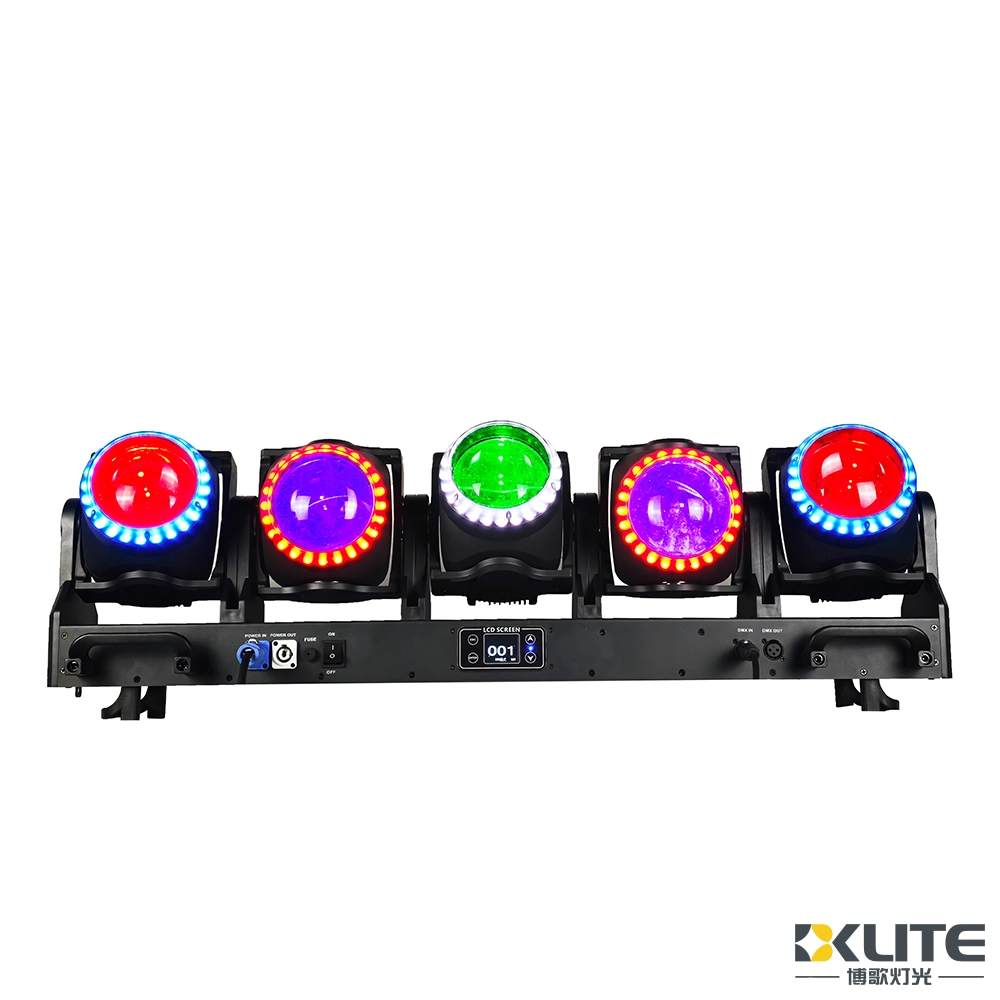

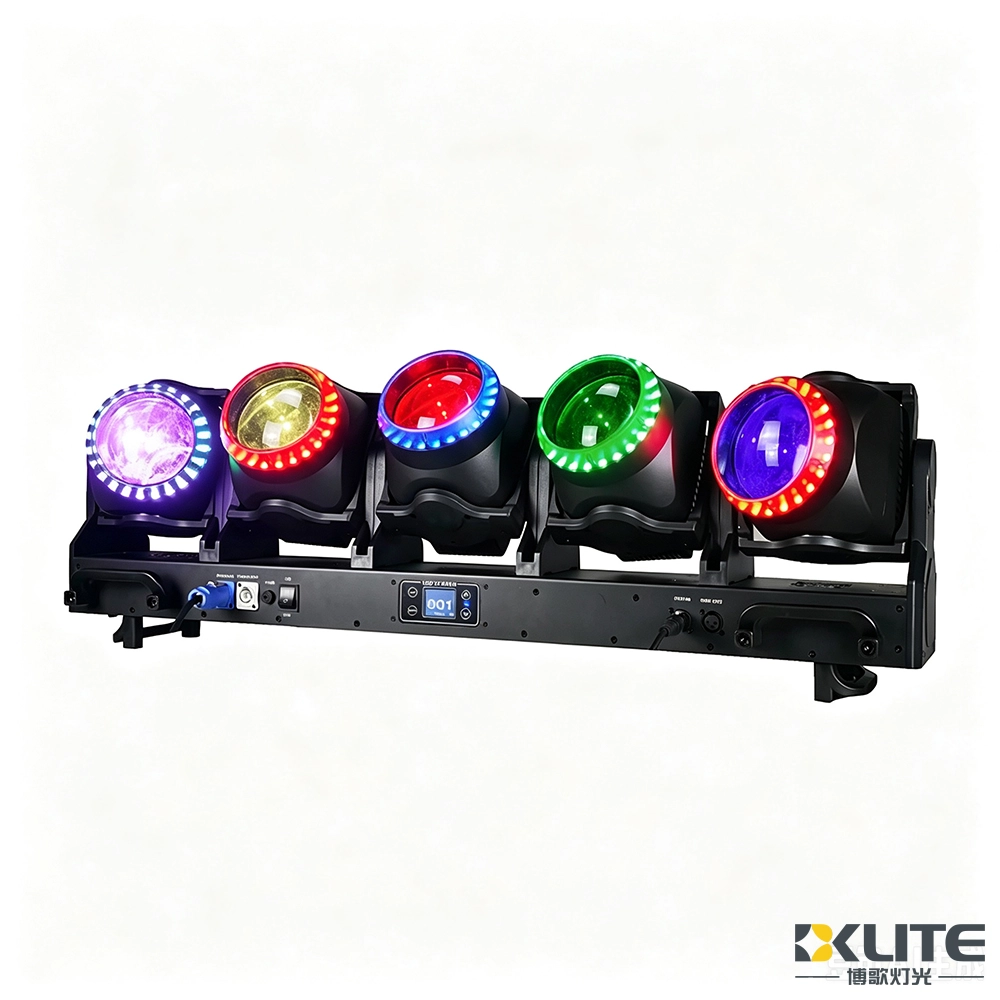

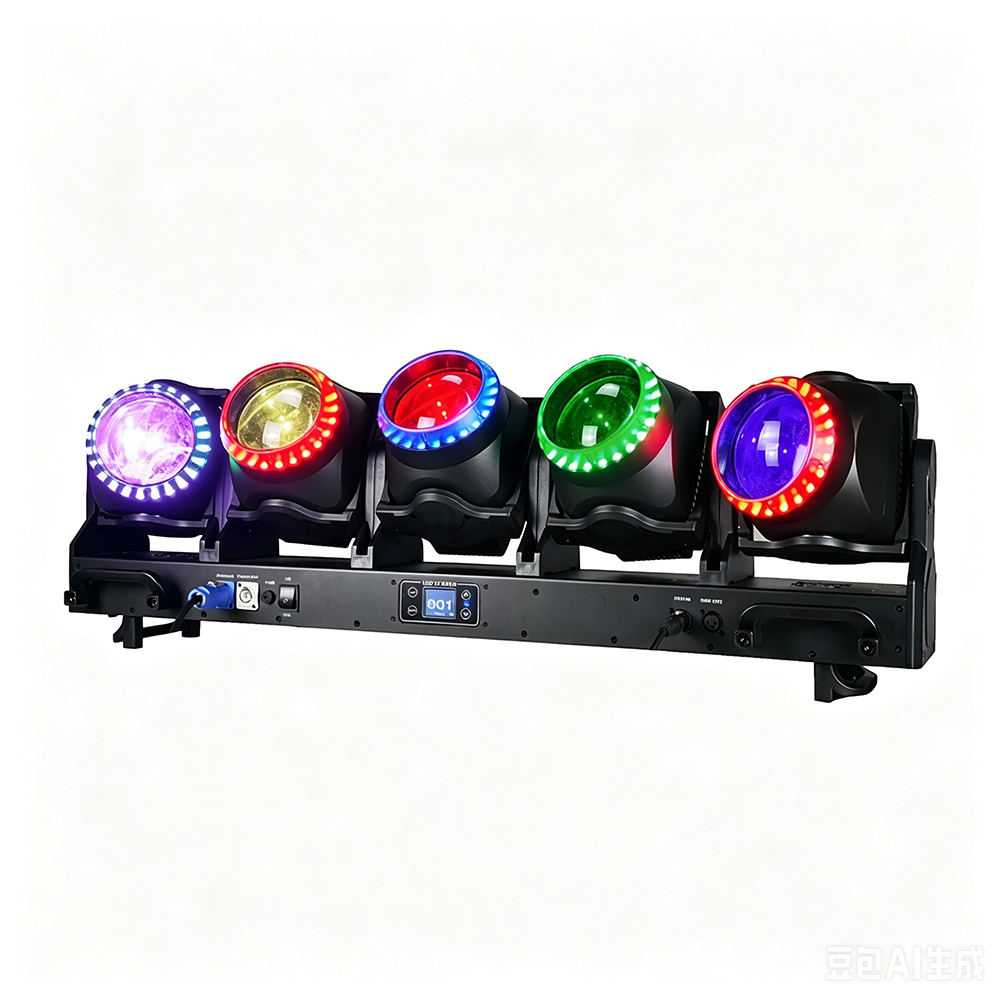

IP20 Zoom 5x120W RGBL LED Beam Wash Bar Moving Head Light ( Version B)
With more than 15 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKlite BK‑LB5120Z is an IP20 indoor zoom beam‑wash bar designed for concerts, club shows, DJ performances and wedding events. It comes with 5×120W RGBL LED heads plus individual RGB outer rings, generating sharp aerial beams, smooth color‑temperature shifts and lively ring chase sequences for rich layered stage visuals.
Brand
BKlite
Model No.
BK-LB5120Z
Power
750W
Light source
5pcs 120W RGBL LEDs
Input voltage
AC100-240V 50/60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
User manual of 5x120w rgbl 4in1 led beam bar moving head light.pdf
Key features
• Powerful 5×120W RGBL output delivers intense brightness, sharp beam effects, and rich saturated colors that stand out on any stage.
• Each head features an individually controllable RGB LED ring, creating dynamic pixel chases and visually striking lighting effects.
• Motorized zoom range from 4° to 32° allows smooth transition from tight aerial beams to wide wash coverage in one versatile fixture.
• Advanced RGBL color mixing with linear CTO adjustment ensures vibrant colors, natural whites, and precise color temperature control.
• Indoor professional design, smooth 0–100% dimming, and high-speed strobe performance make it ideal for concerts, clubs, bars, DJ shows, weddings and indoor stage events.
Light source
5 x 120W RGBL LEDs
Power
750W
Mode
DMX-512, Auto, Sound activated,Master-slave
Scanning system
60° / 220°
Video
More parameters
| Specification | Details |
| Voltage | AC110-240V 50/60Hz |
| Max Power | 750W |
| Light Source |
Main Light: 5 x 120W RGBL LEDs Outer Circle: 120 x 0.5W RGB LEDs |
| Pan | 60° |
| Tilt | 220° |
| LED Lifetime | Average 50,000 hours |
| Zoom Angle | 4-32° |
| Strobe | 1-25 times per second |
| Dimmer | 0-100% linear dimmer |
| Channel Modes | 21CH/41CH /71CH/75CH/85CH/170CH 6 channel modes |
| Control Mode |
DMX-512, Auto, Sound activated,Master-slave |
| IP rating | IP20 |
| Fixture Size | 1003×225×349.5mm |
| Carton size | 108x43x29cm (1pc/ctn) |
| Net Weight | 24.5KG |
| Gross Weight | 28.5KG |
| Flight Case Size | 115x55x58cm（2in1） |
| Gross Weight | 84KG |
Product Details

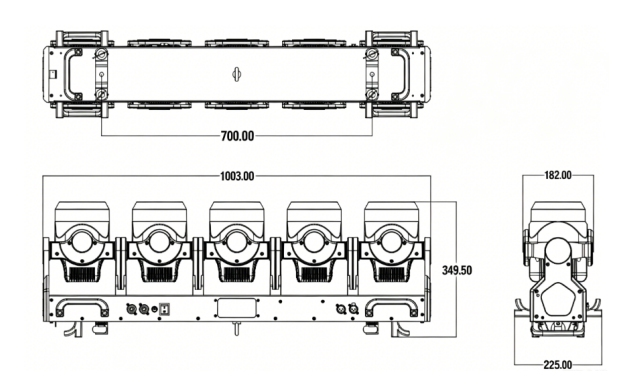

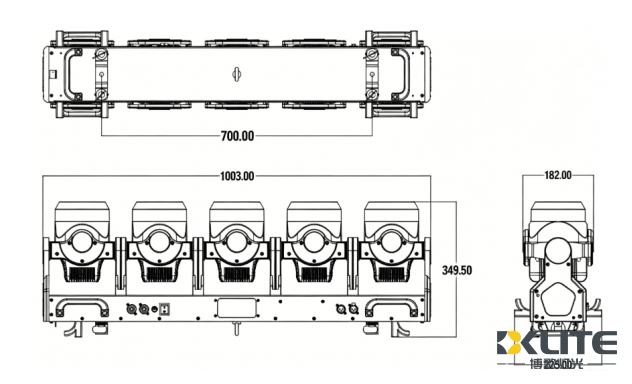

Dimensions Accessores

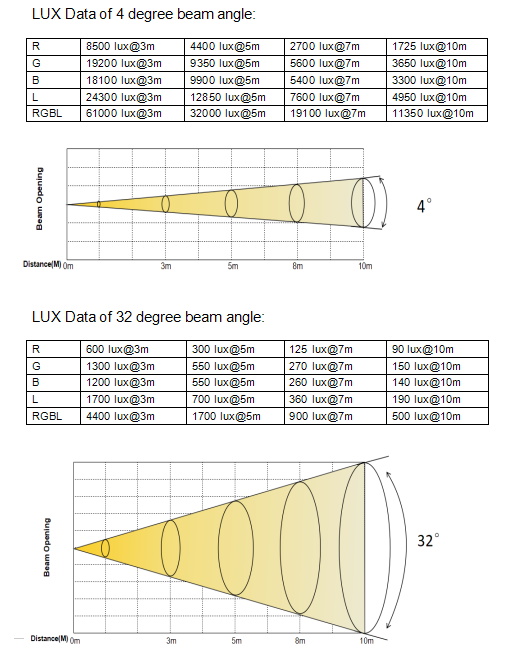

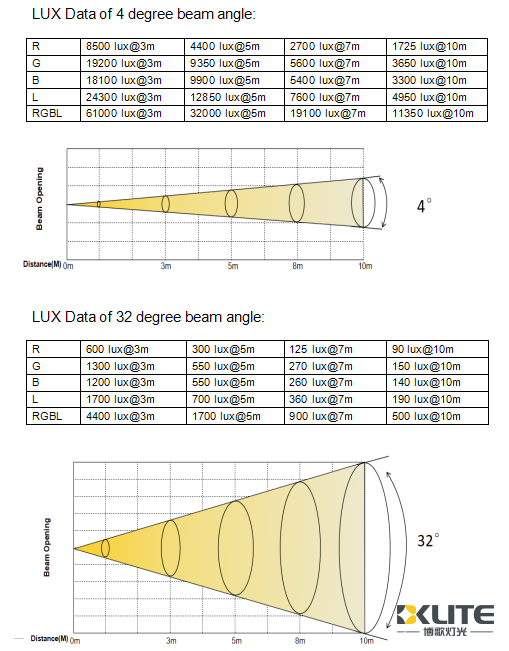

Photometrics
Light source
•Lighting luminous flux 61000 lumens
•LED expected lifespan：50,000hour
Control and procedure
•Four touch keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
-
•User manual
•Power cord
•Signal cable•Safety rope
