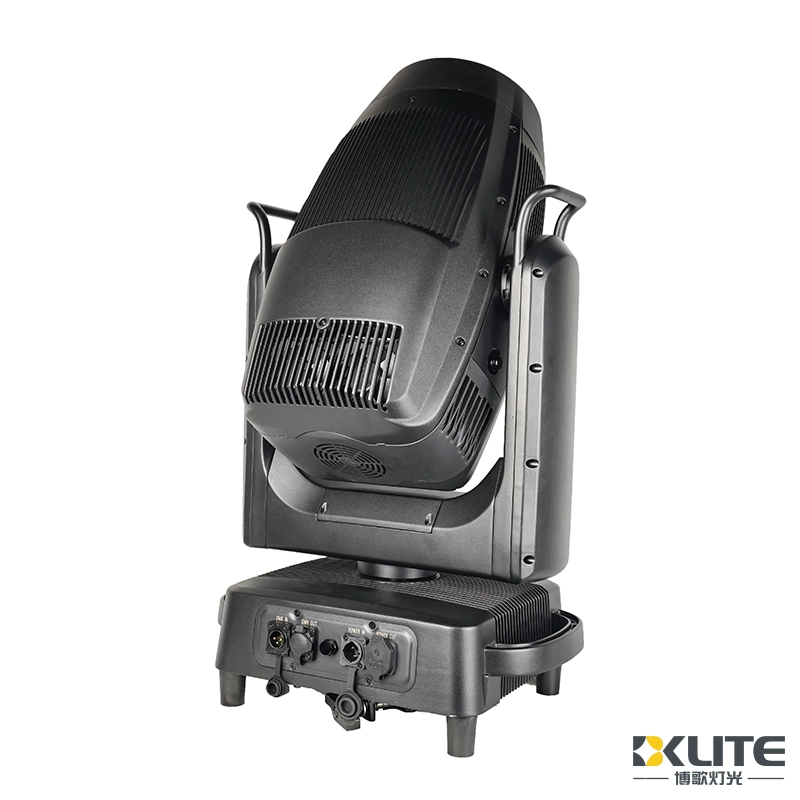

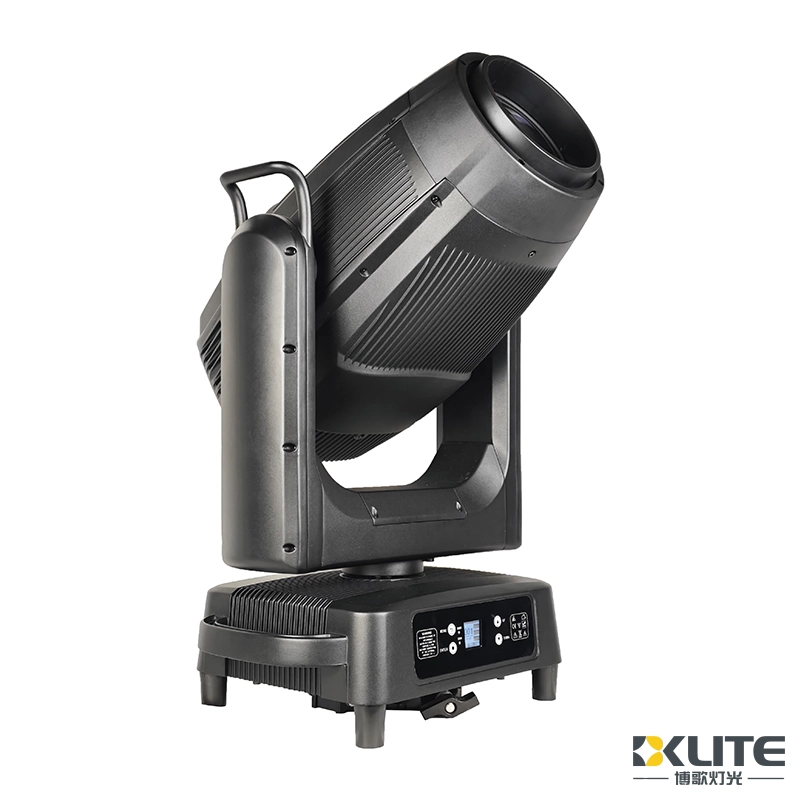

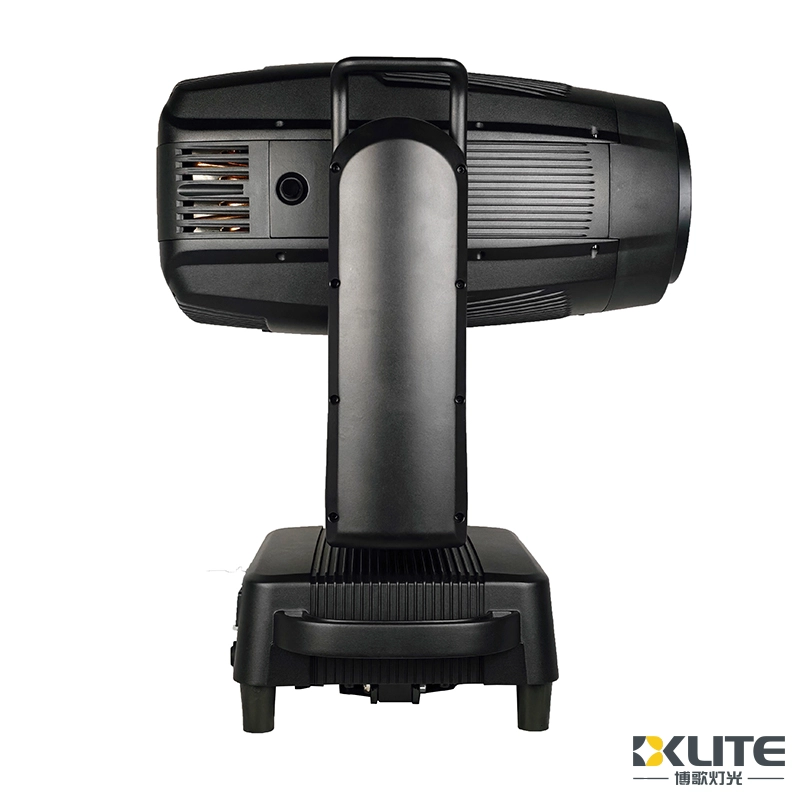

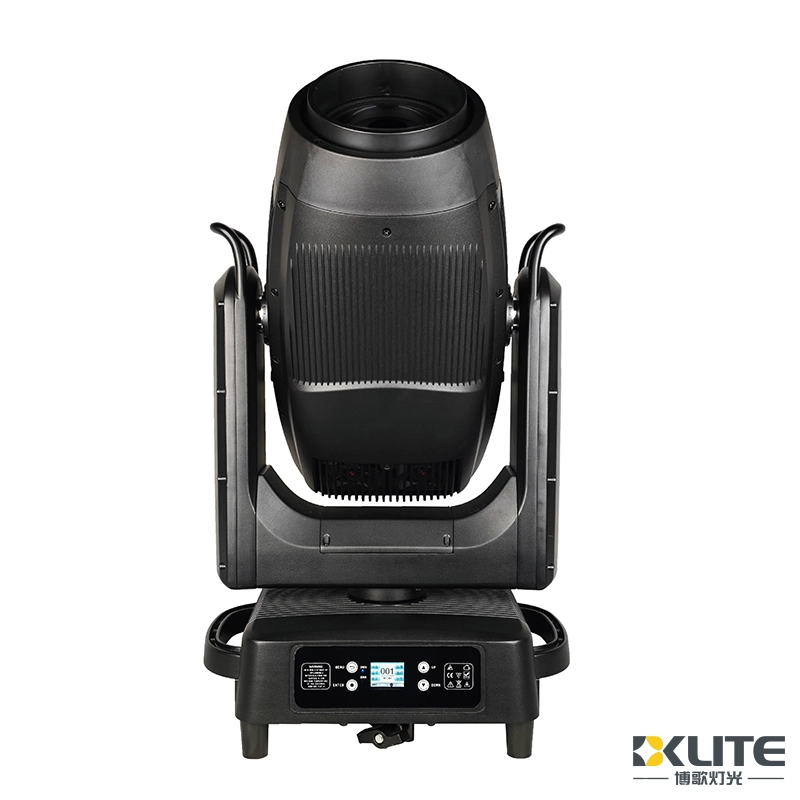

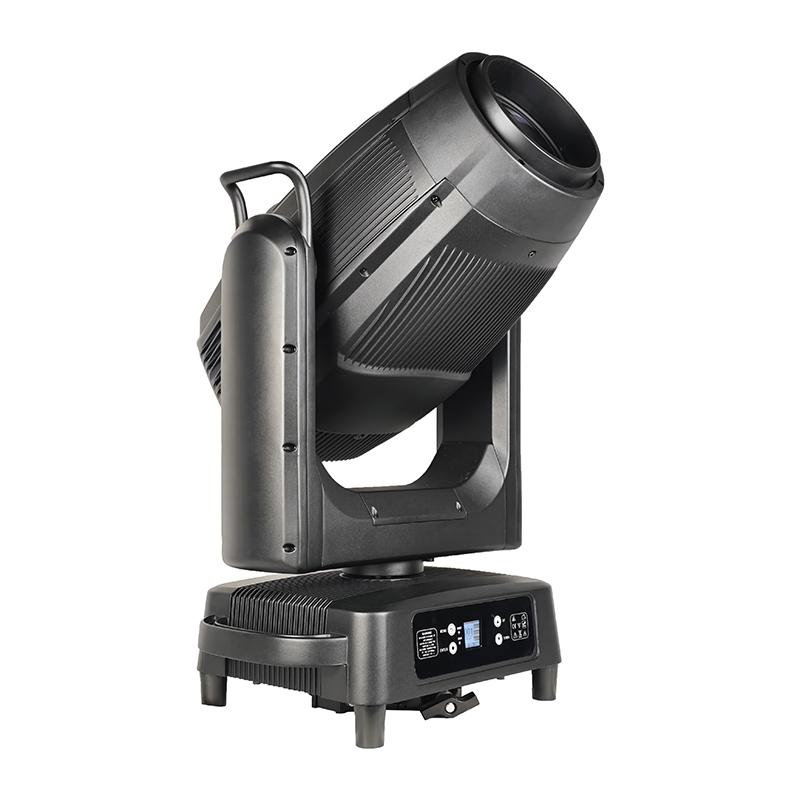

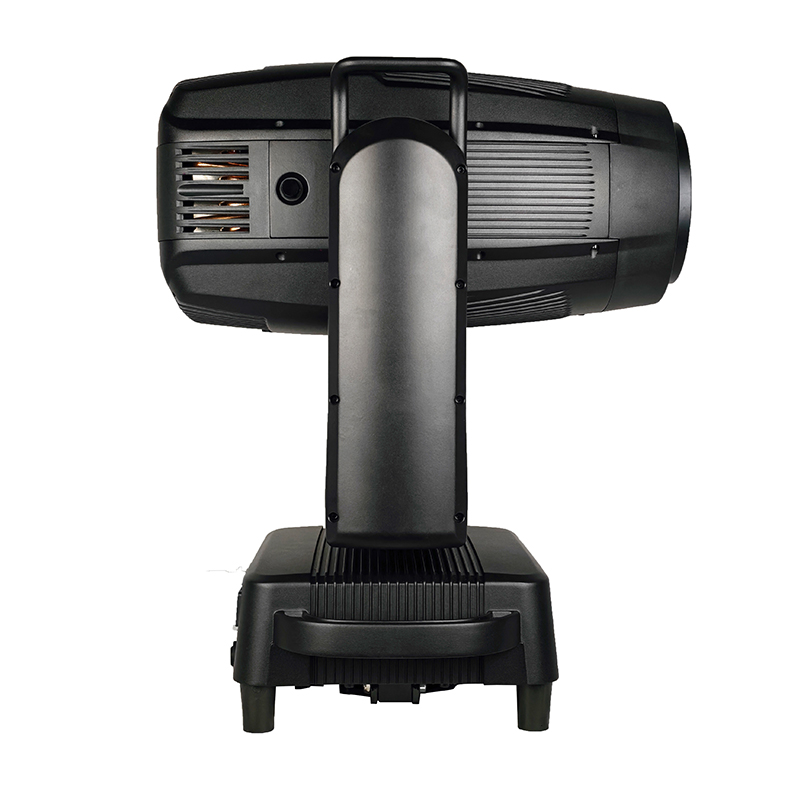

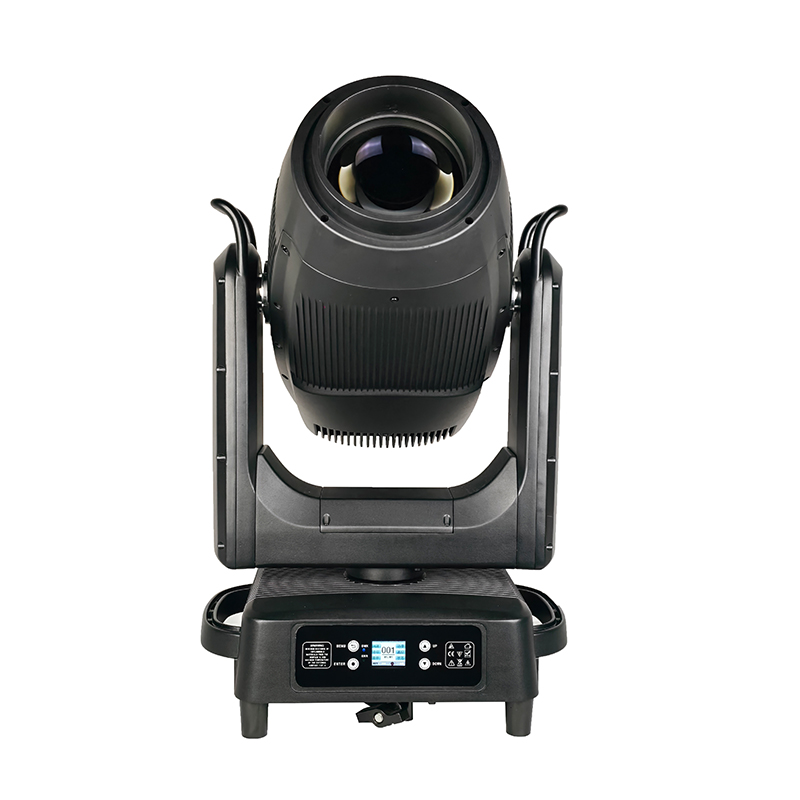

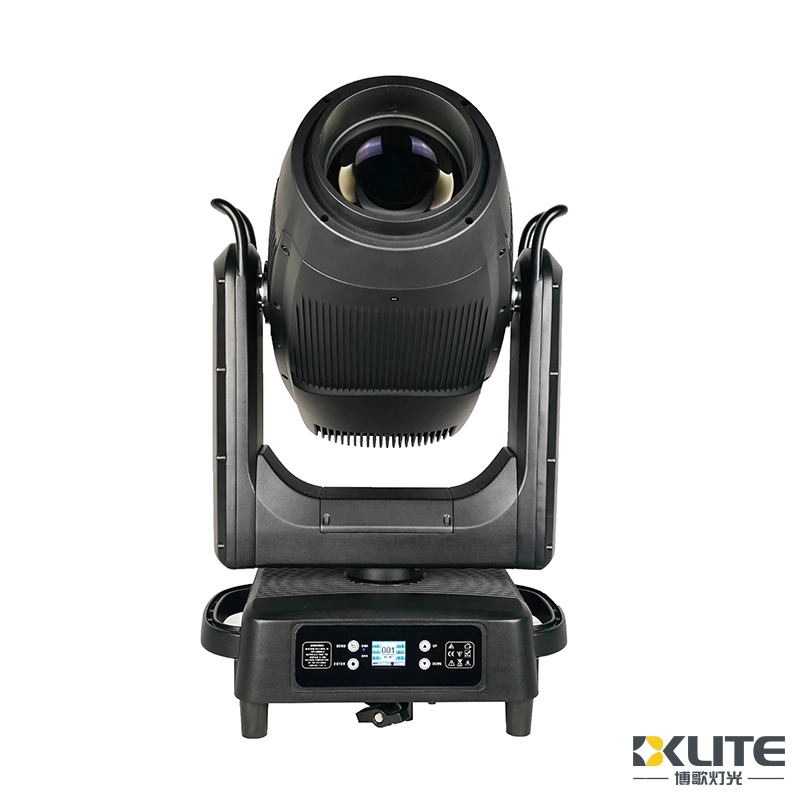

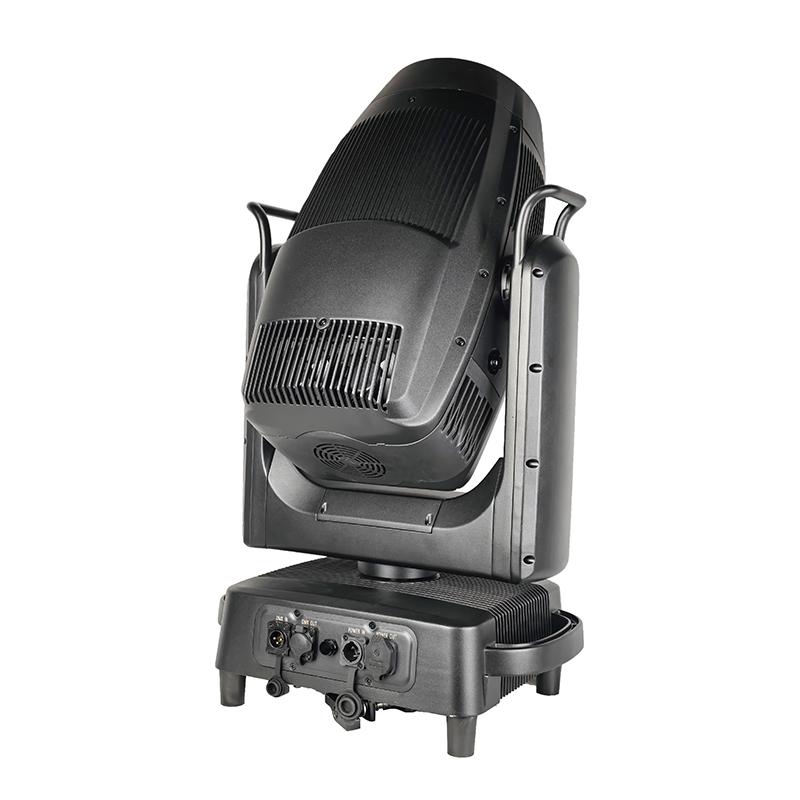

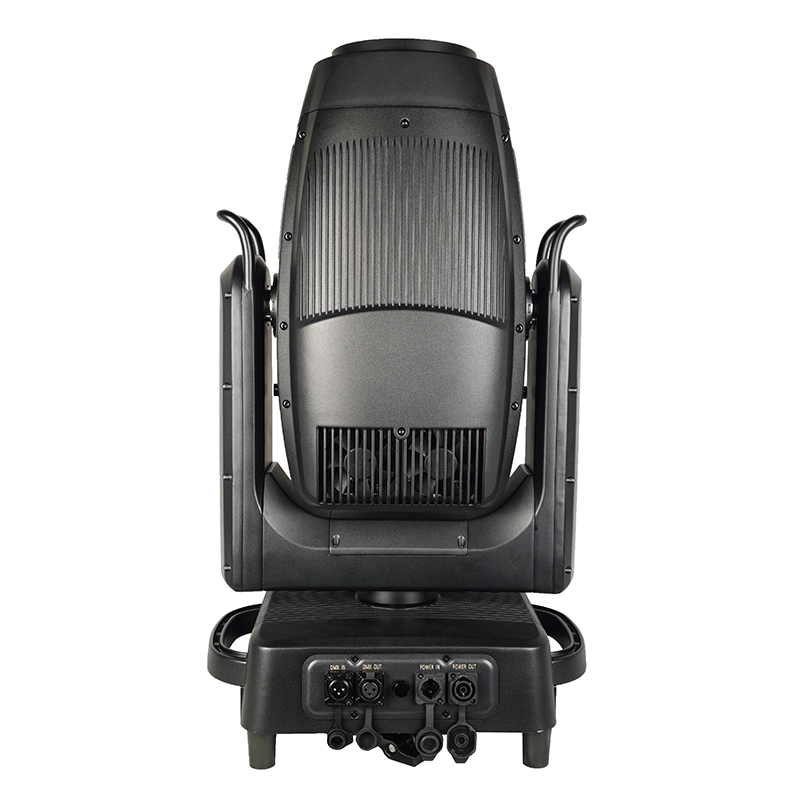

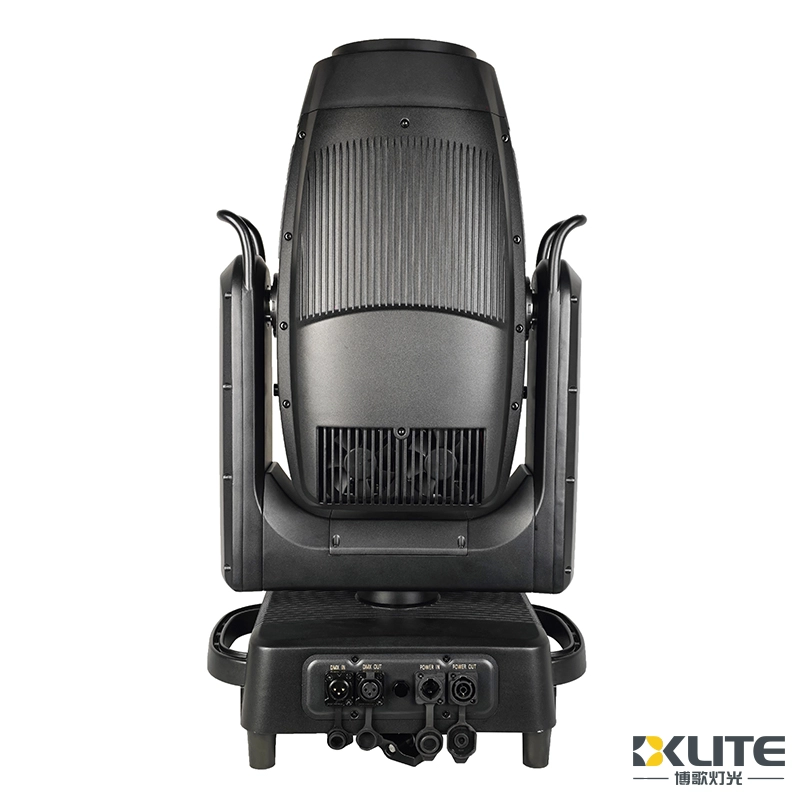

IP65 Waterproof Profile 1000W LED Beam Wash Spot 3in1 Moving Head Light With Framing

With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKLITE IP65 Waterproof Profile moving head is a high‑power 3‑in‑1 beam wash spot fixture with framing system designed for large‑scale outdoor concerts, theatre performances and outdoor touring events. Featuring 1000W high‑brightness LED source, 4.5°‑50° motorized zoom and precise motor‑driven framing shutters, it delivers accurate beam shaping, spot projection and soft wash lighting effects for professional stage applications.

Brand

BKlite

Light source

High brightness 1000W LED, color temperature 8000K

Input voltage

AC100-240V 50-60HZ

Waterproof rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

IP65 Profile 1000w LED 4in1 Framing user manual.pdf

Key features

• 1000W High‑Bright LED Source: 20000‑hour lifespan, dual‑mode CRI, CMY & CTO color adjustment for rich color output.

• Precision Framing & Rich Optic Effects: 130° rotatable framing system, supports zoom, iris, frost, prism and multiple gobos.

• Silent High‑Accuracy Pan‑Tilt & Smart Cooling: 540° Pan / 270° Tilt 16‑bit scan with magnetic encoding; intelligent temperature and multi‑mode noise control including full‑silent mode.
• IP65‑Rated 3‑in‑1 Multi‑function Output: Integrates Beam, Wash and Spot effects with professional framing shutter system. IP65 waterproof housing supports large‑scale indoor productions and various outdoor events.

• Applications: Outdoor festivals, open‑air concerts, large theatres, TV studios, live shows, event rental projects, large‑scale performances, large‑venue church special events, high‑ceiling grand ballroom galas, corporate outdoor events.

Waterproof rating

IP65

Light source

1000W LED

Power

1200W

Mode

DMX512, Auto, RDM, Master/Slave

Tilt

540° + 16-bit fine/270° + 16-bit fine

Excellent color mixing effect

Video

More parameters

Specification	Details
Input Voltage	AC100‑240V, 50/60Hz
Rated Power	1200W
Light Source	High‑brightness 1000W LED, Color Temperature 8000K
Lifespan	20000 hours
CRI	Ra＞75 in standard mode; Ra＞90 in high‑CRI mode
Control Mode	DMX512, RDM, Master‑Slave
Channel Mode	34 channel mode
Fixed Colors	6 colors + open, with half‑color function and bidirectional rotating rainbow effect
Color Mixing System	CMY color mixing system for rich color combinations and gradient effects
Color Temperature Adjustment	CTO linear adjustment from 2800K‑5800K
Prism Wheel	Rotatable 4‑facet prism wheel; delivers dynamic simulated effects such as flickering flame and flowing water
Fixed Gobos	5 fixed gobos + open + flowing‑water effect wheel
Rotating Gobos	5 plug‑gable rotating gobos + 1 water‑wave gobo; supports autorotation, flowing‑water and shaking effects; gobo wheel positionable
Framing System	The beam framing system adopts 8 cutting motors and 4 corner-cutting vanes to realize fast, smooth and quiet cutting. The whole system supports bidirectional rotation. By accurately controlling the chopping vanes, it can produce arbitrarily oriented light profiles such as triangles, rhombuses and rectangles, with a rotation range of 130°.
Frost Angle	10‑40°
Iris System	Smooth adjustment from 5%‑100%
Zoom System	4.5°‑50° linear focusing
Dimming System	Electronic dimming 0‑100% linear adjustment. Adjustable dimming curve with dimming frequency 1.2K‑25K. Macro‑command dimming for stable, flicker‑free smooth output.
Electronic Strobe System	1‑25Hz; random strobe and pulse strobe optional.
Optical System	High‑definition high‑precision optical system. 7°‑50° smooth and quiet linear motor‑driven zoom with ultra‑fine focus adjustment.
Pan‑tilt system	Pan: 540°+16-bit; Tilt: 270°+16-bit. The X‑Y axes are driven by high‑speed silent 60 three‑phase motors, equipped with high‑precision magnetic encoding positioning device for fast, quiet and high‑accuracy scanning performance. It supports auto error‑correction reset function, pan/tilt fine‑step control, and pan/tilt reverse function.
Sleep Function	Advanced remote sleep function. The fixture automatically enters sleep mode upon signal loss for improved stability and safety.
Display	1.77‑inch LCD screen, Chinese / English language support, 180° rotatable. Displays fixture parameters, working hours, sensor fault alerts and temperature readings.
Cooling System	High‑thermal‑conductivity copper‑tube heat sink with intelligent fan convection technology. Fan speed auto‑adjusts according to fixture temperature. Built‑in overheat protection and intelligent temperature‑noise balancing module.
Housing	High‑temperature‑resistant plastic + die‑cast alloy material
Noise Control	Three selectable noise modes plus linear noise control; full‑silent operation available.
Accessories	Integrated folding rotating yoke hook as standard accessory.
Net Weight	28.6kg
Fixture Dimensions	40x27x71.5cm

Product Details

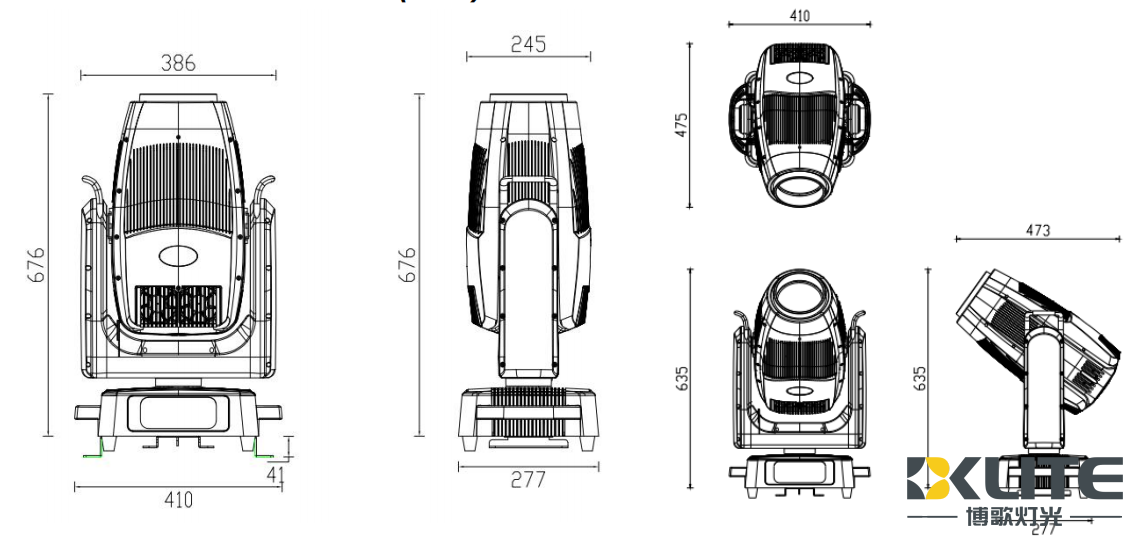

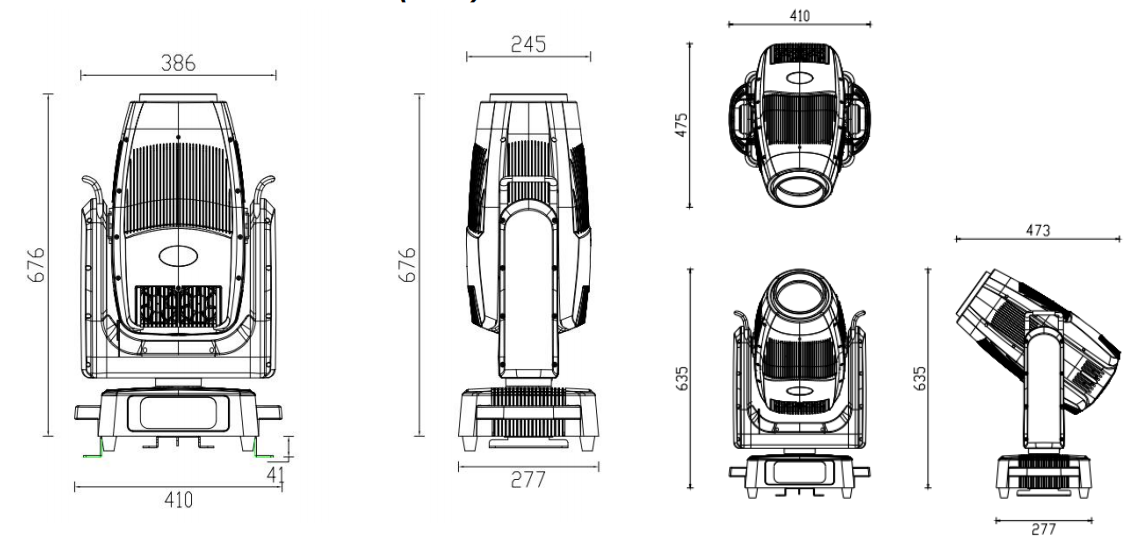

Dimensions

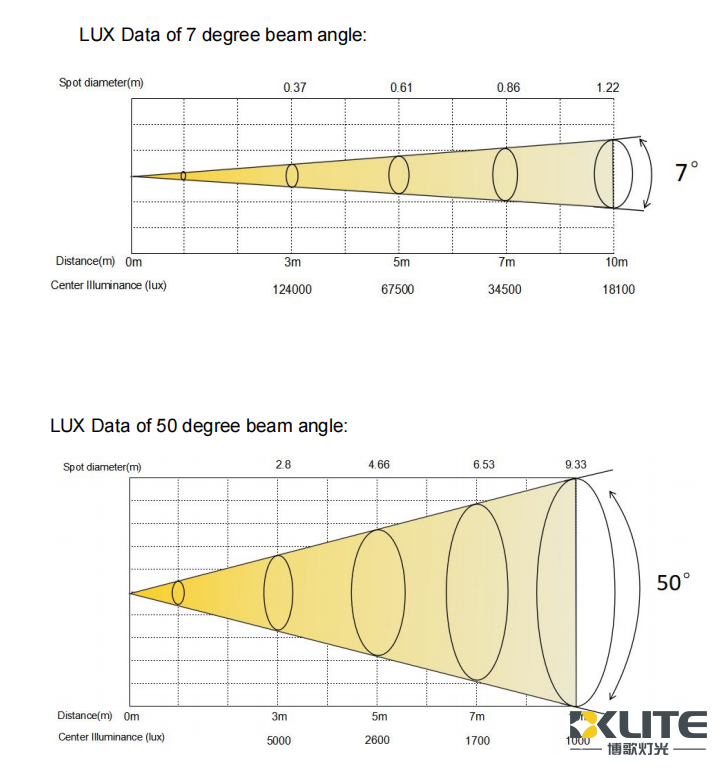

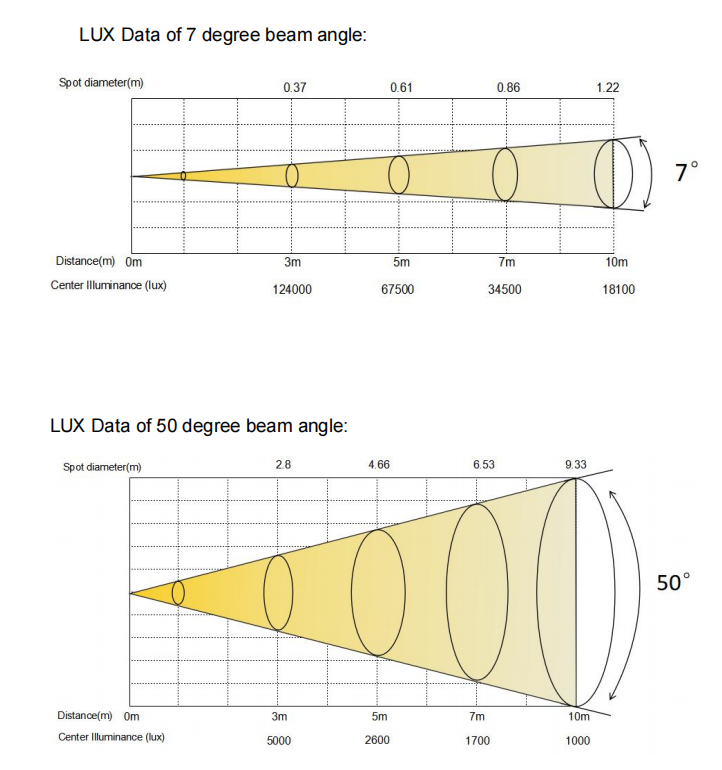

Photometrics

Light source

•Lighting luminous flux 124,000 lumens
•LED expected lifespan：50,000hour

Control and procedure

•Four touch keys
•1.77 inch LCD screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
