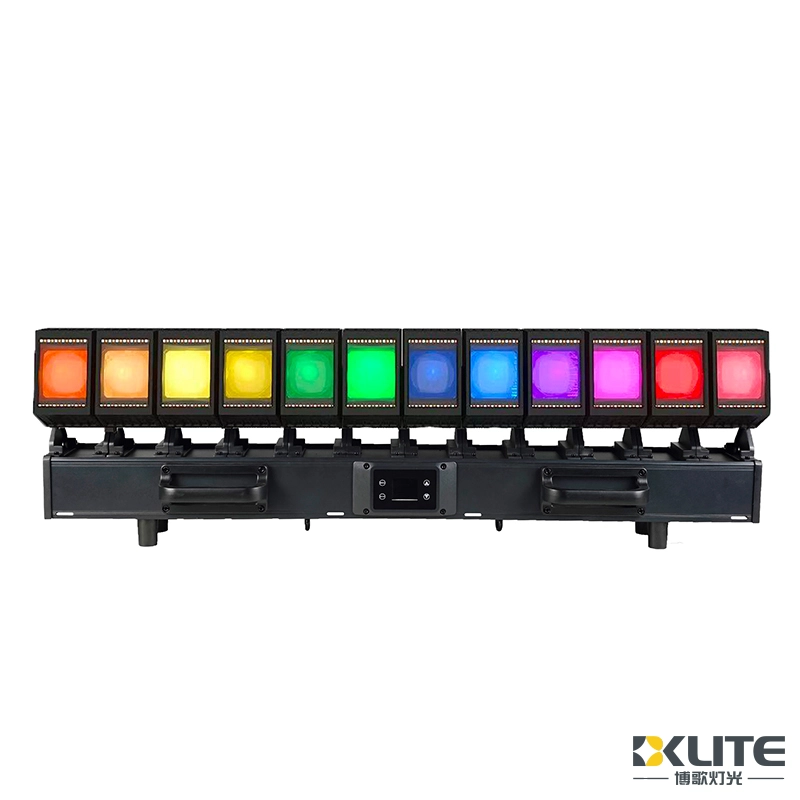

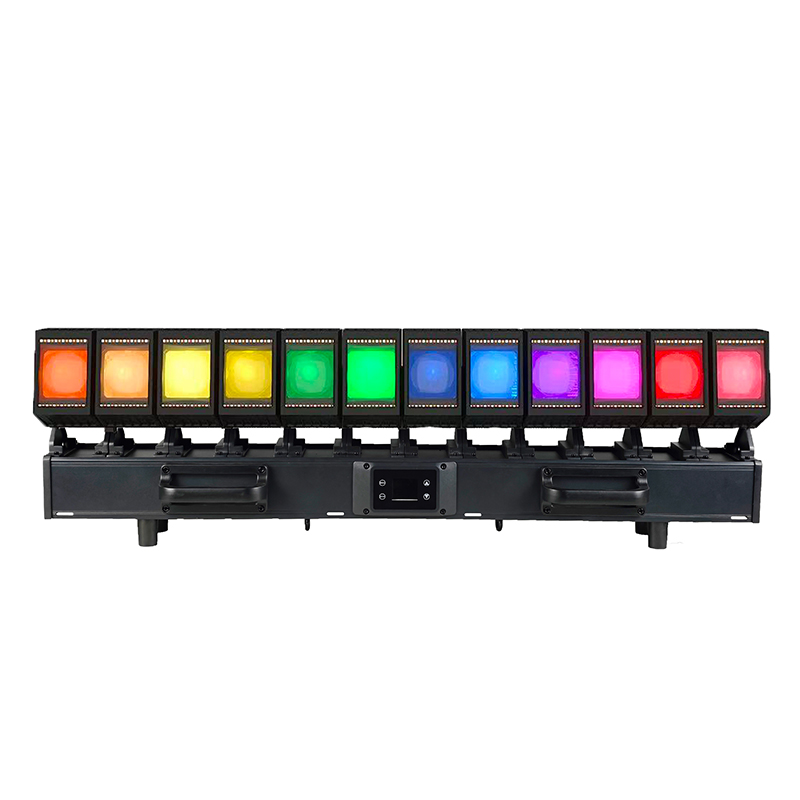

Excellent color mixing effect

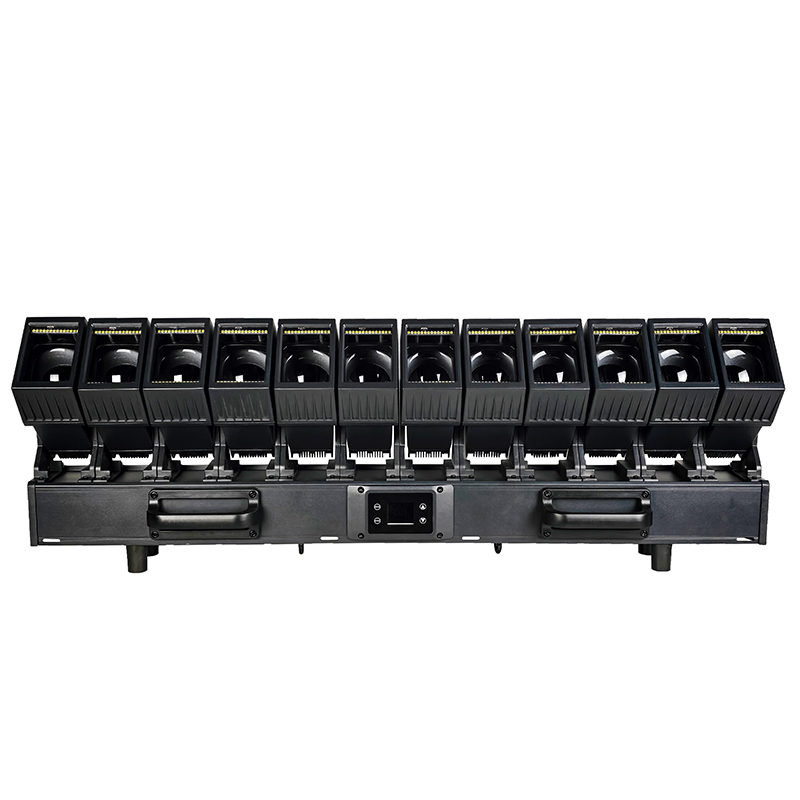

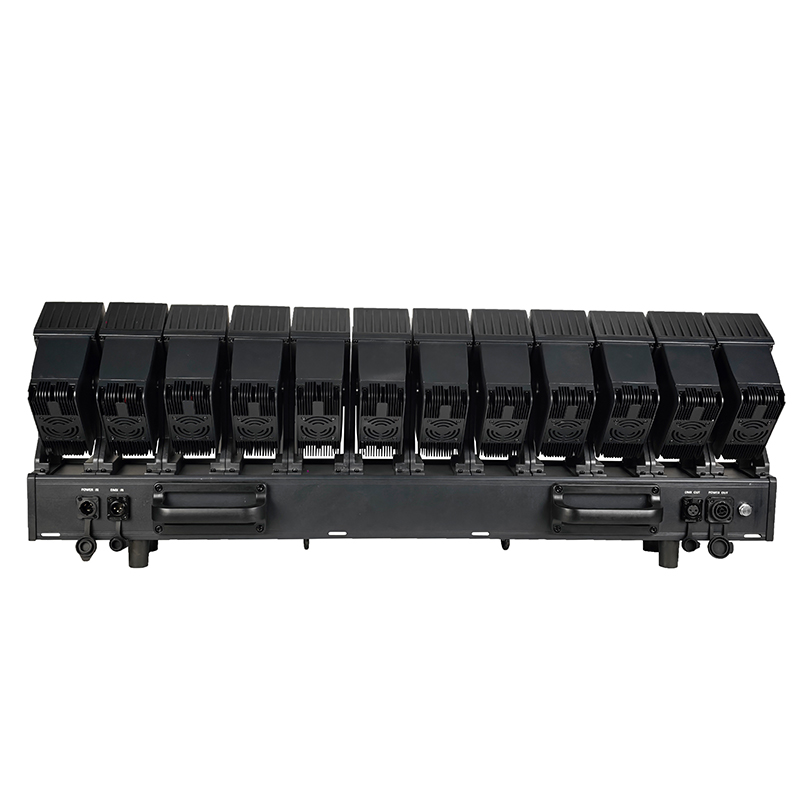

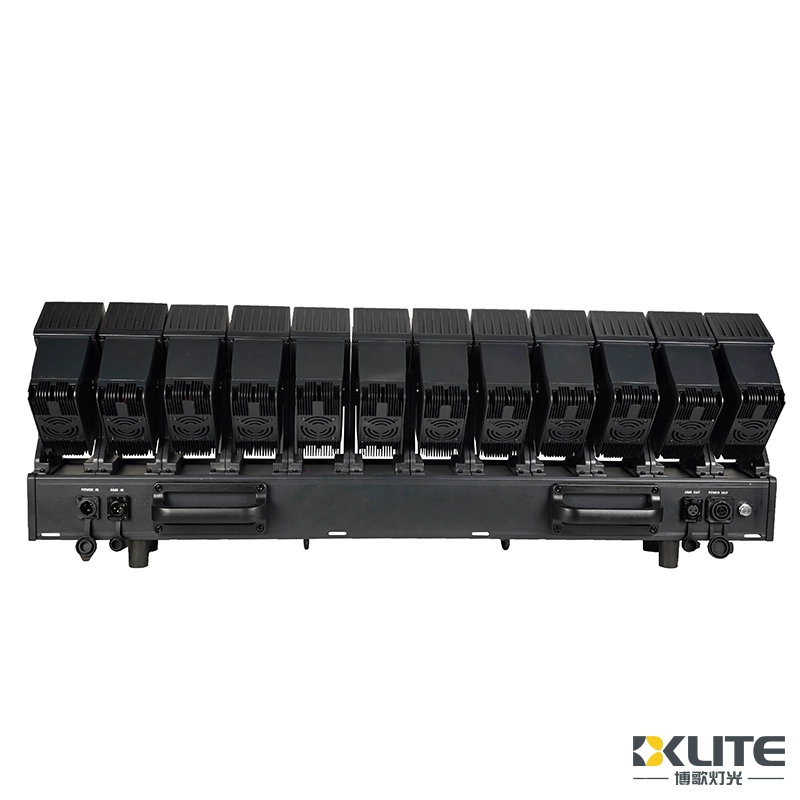

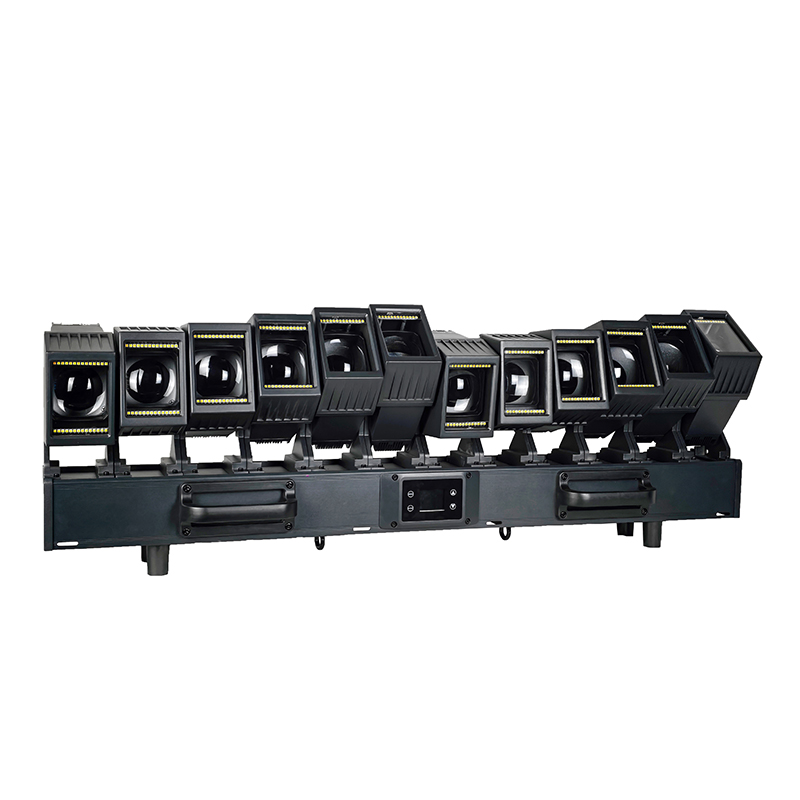

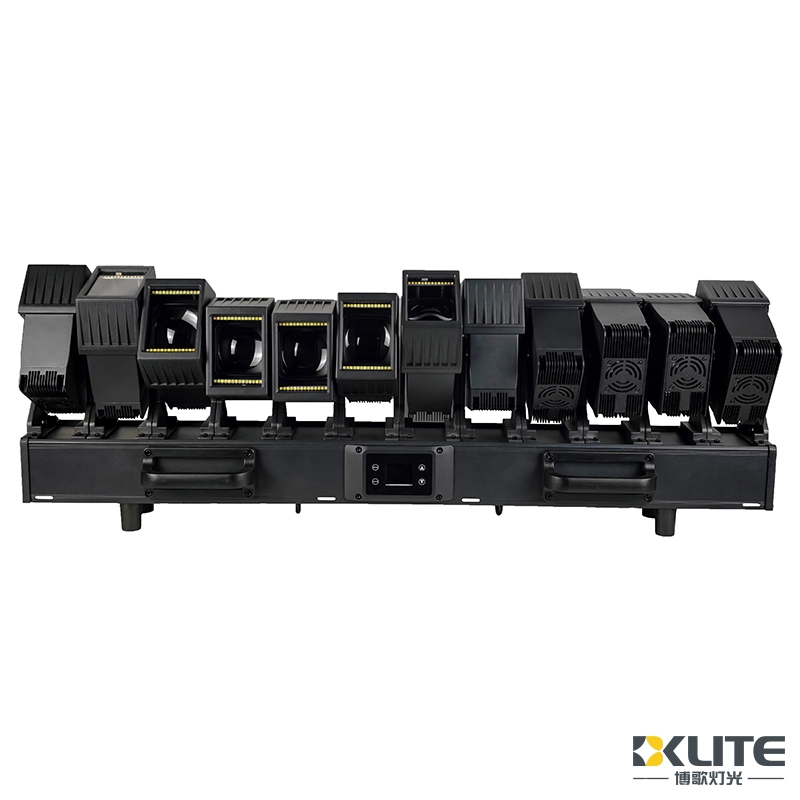

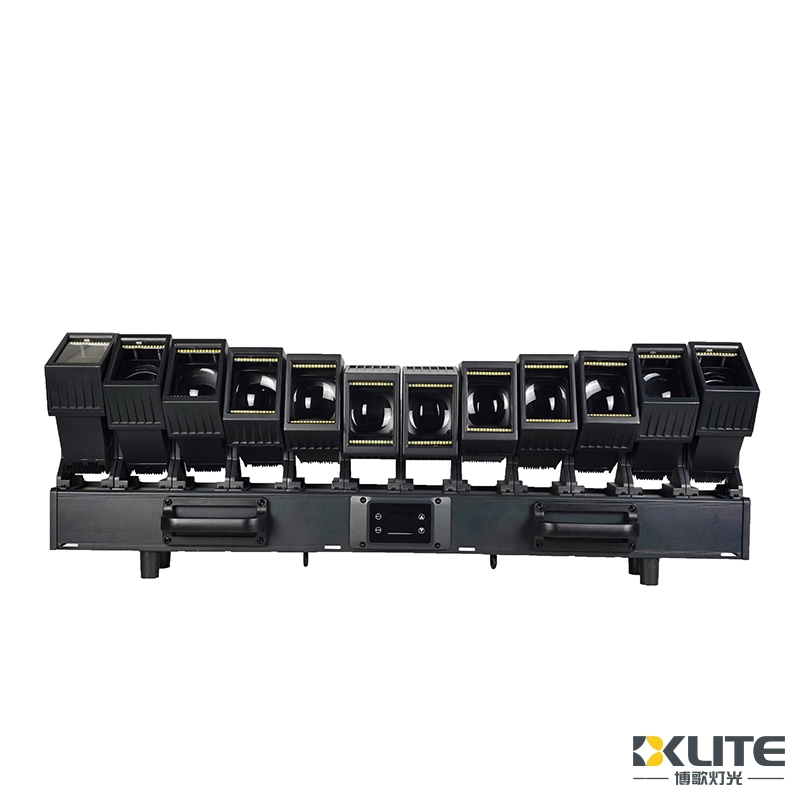

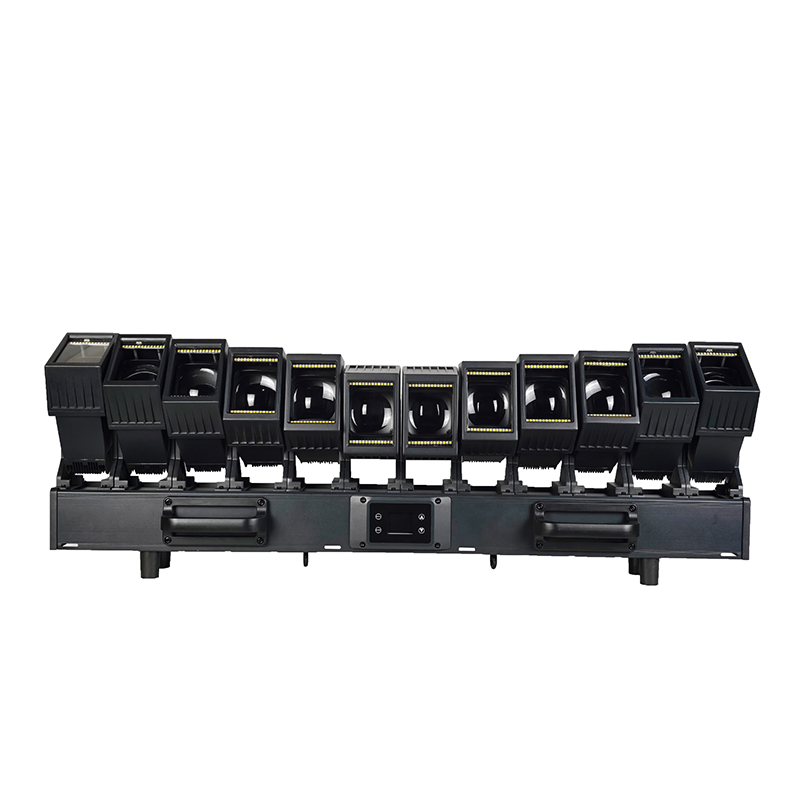

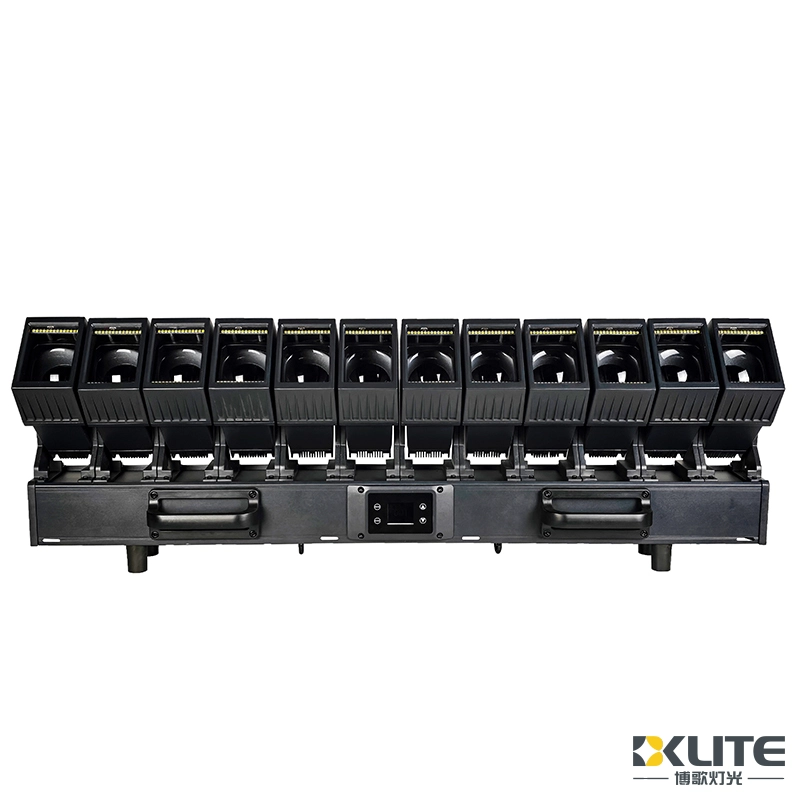

IP65 Waterproof Zoom 12x60W RGBW 4in1 LED Beam Wash Bar Moving Head Light With LED Ring
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKLITE IP65 Zoom Moving Bar is a pixel‑mappable bar‑type moving head designed for indoor shows, outdoor concerts and live production events. Featuring 12 individually tilt‑controllable 60W RGBW 4in1 LEDs, 4°‑16° zoom and decorative effect LED ring, it delivers dynamic beam, wash and vivid pixel animation effects for professional stage applications.
Brand
BKlite
Power
800W
Light source
12pcs 60W 4in1 LEDs
Input voltage
AC100~240V 50 / 60 HZ
Waterproof rating
IP65
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
12x60W LED Beam Wash Bar User Manual.pdf
12x60w with led ring library.zip
Key features
• Fully pixel mappable.

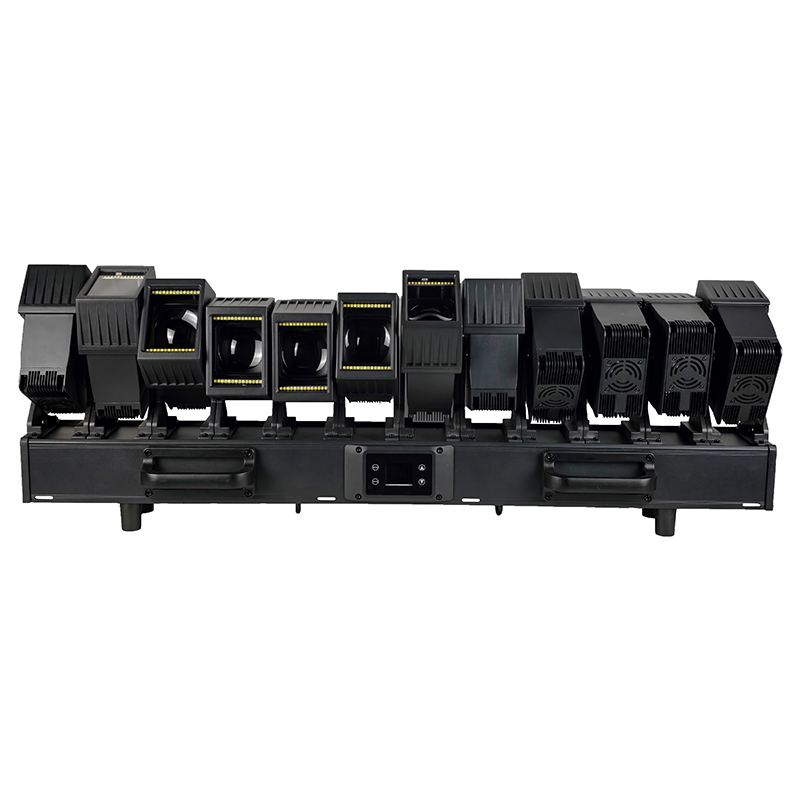

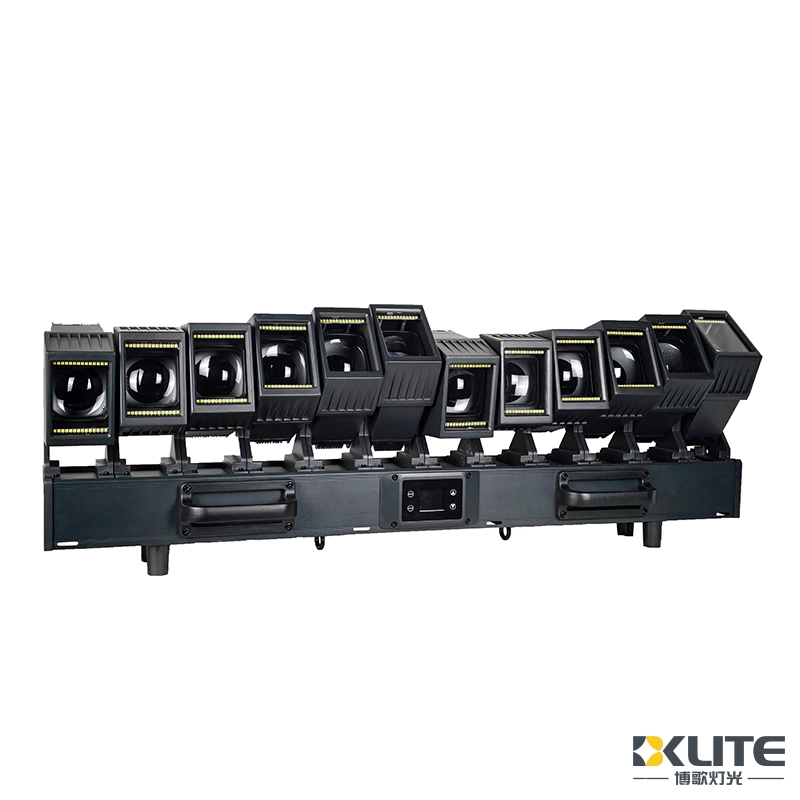

• 12 individually controllable tilting heads.
• With a extra LED ring for eye-candy effect,LED ring with macro effect.
• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects.
• Single swing + wash + beam + auto reset + Tilt automatic staggering
• It is a high-brightness outdoor LED stage light. Suitable for all types of indoor shows, concerts, theater, or outdoor events.
Channels
20CH/53CH/101CH/155CH/
169ACH/169BCH/179CH/227CH
Light source
12 * 60W 4in1 LEDs
Power
800W
Mode
DMX512,auto, master-slave, sound, with RDM function.
IP Rate
IP65
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 12 * 60W (800W) |
| LED Source | 12 * 60W 4in1 LEDs |
| Beam Angle | 4°-16° |
| Control Mode | DMX512,Auto, Master-slave, Sound, with RDM function. |
| DMX Channels |
20CH/53CH/101CH/155CH/169ACH/169BCH/179CH/227CH eight channel modes |
| Strobe | 1-30Hz |
| Dimmer | 32bit 0~100% Linear dimming |
| Display | LCD display with touch buttons |
| IP Rate | IP65 |
| Fixture Dimensions | 1030x220x345mm |
Product Details

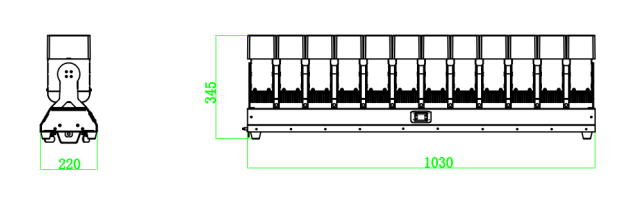

Dimensions
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
Tags
Outdoor waterproof stage light
Outdoor waterproof stage light
IP65 outdoor 12x60w pixel bar light
IP65 outdoor 12x60w pixel bar light
Waterproof 12pcs 60w moving head light
Waterproof 12pcs 60w moving head light
