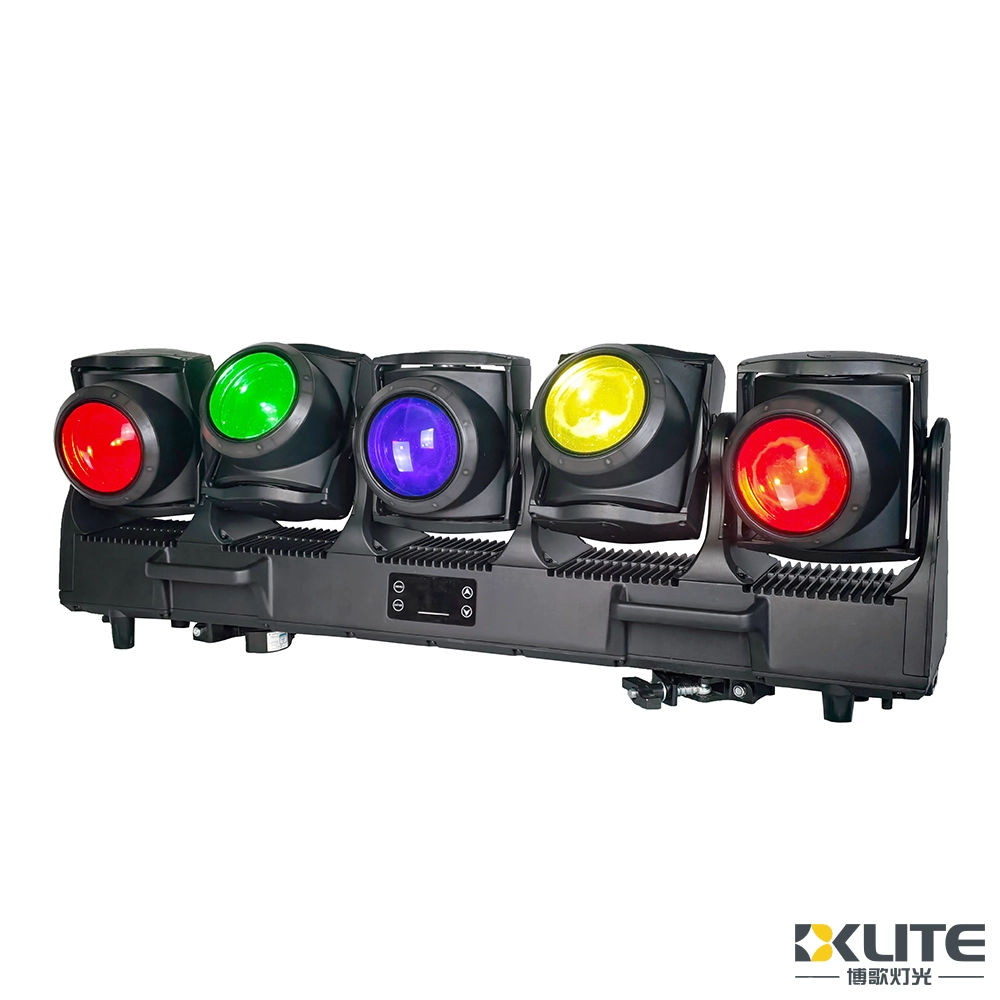

5x120w waterproof beam wash bar moving head light

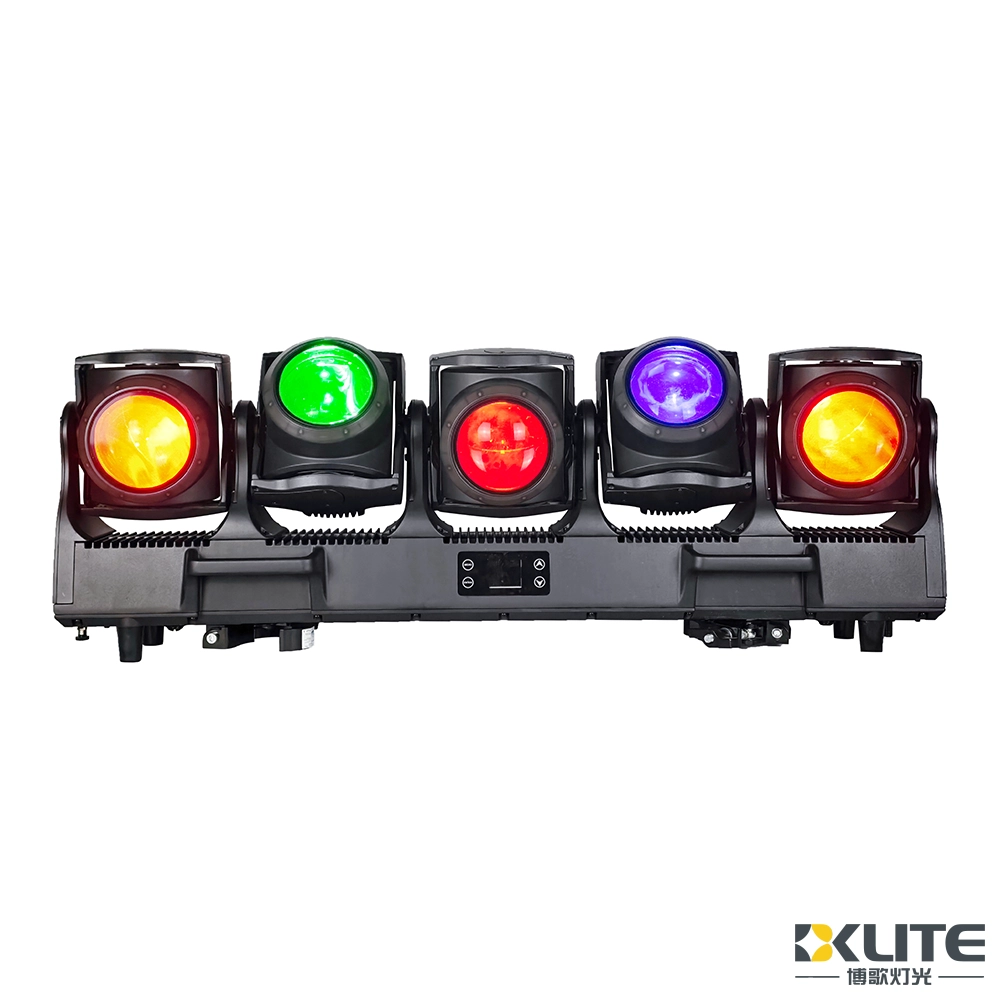

IP65 waterproof 5 heads 120w tornado moving head light

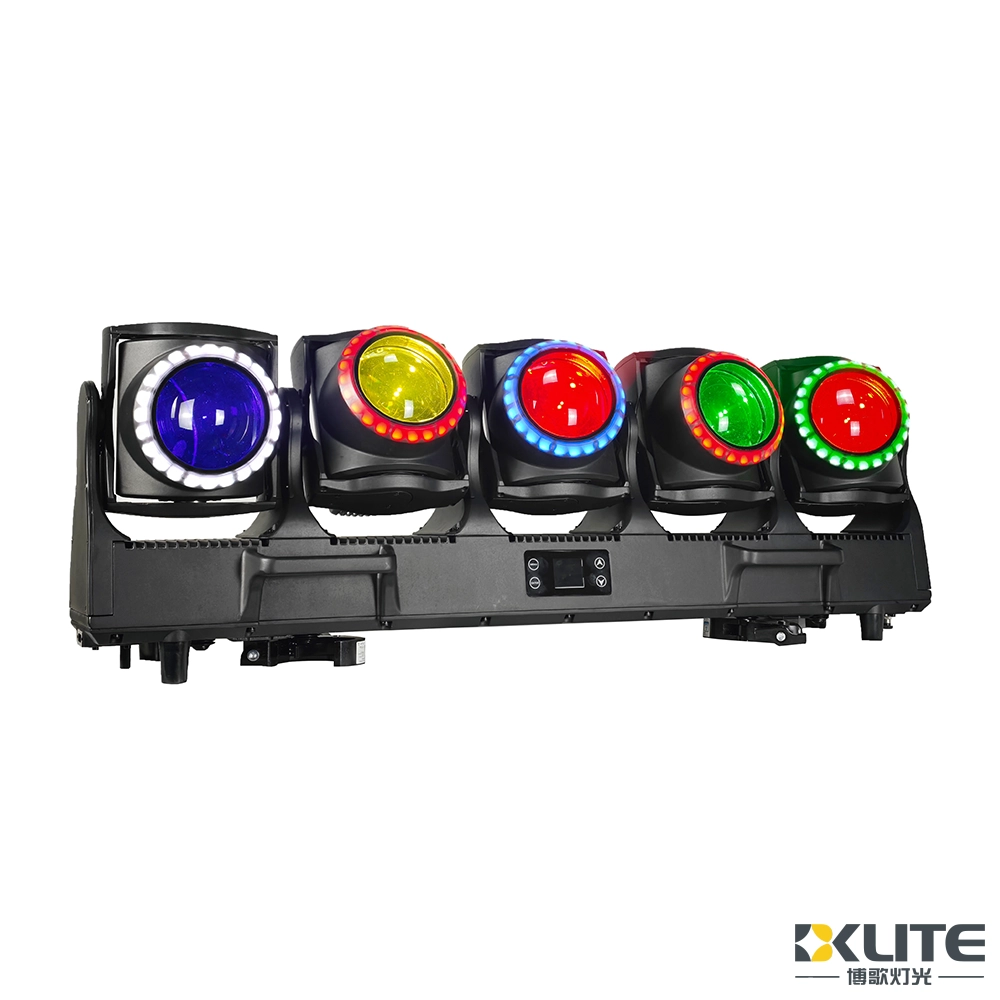

Ourdoor waterproof 5pcs 120w bar moving head light

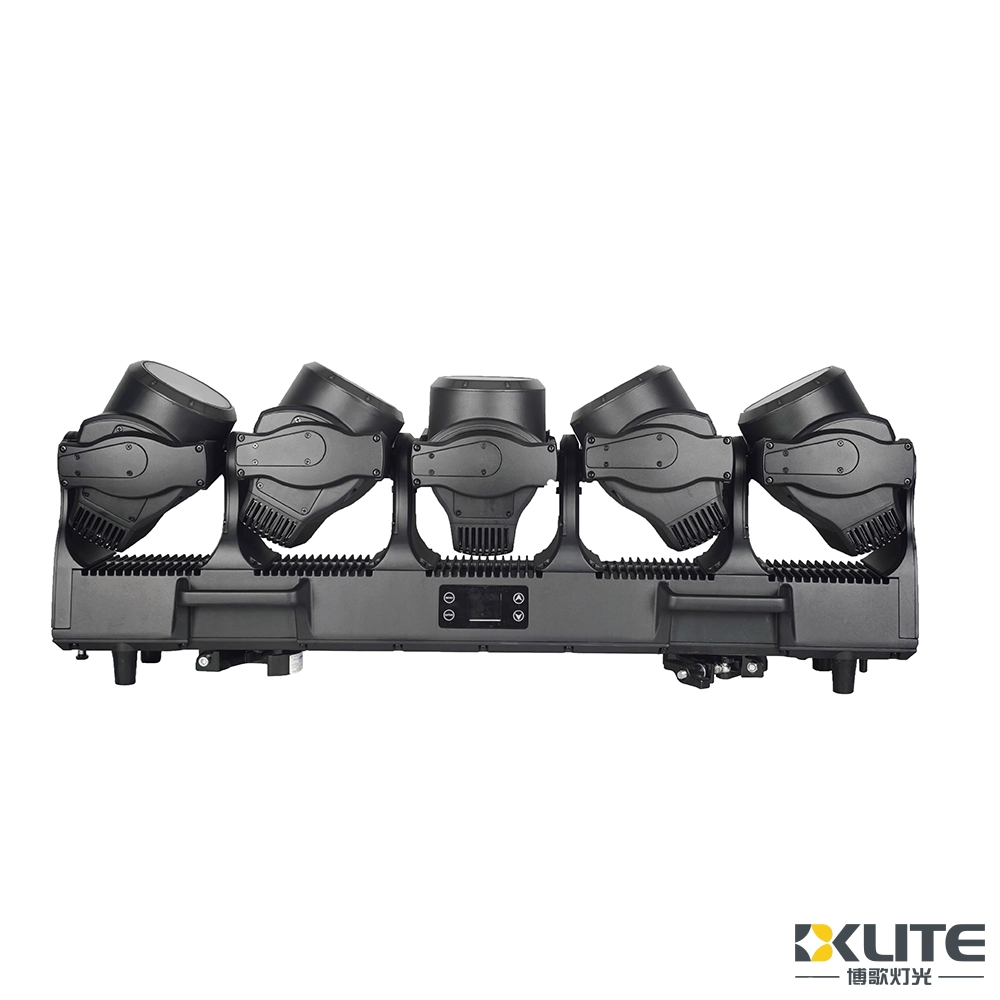

Outdoor concert lighting 5x120w moving head

IP65 Zoom 5x120W RGBL 4in1 LED Beam Wash Bar Moving Head Light with LED Ring

With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKLITE IP65 Zoom Beam‑Wash Bar moving head is a high‑power outdoor bar‑shaped fixture built for large‑scale concerts, touring shows and architectural lighting. Featuring 5 high‑output 120W RGBL LEDs with individual controllable RGB LED rings, 4°‑32° motorized zoom and linear CTO color temperature adjustment, it delivers sharp beam, broad wash and dynamic ring chase effects for all‑weather professional lighting applications.

Brand

BKlite

Model No.

BK-LB5120Z IP

Power

780W

Light source

5pcs 120W RGBL LEDs

Input voltage

AC100-240V 50/60Hz

Waterproof rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

User manual of IP65 5x120w rgbl 4in1 led beam bar moving head light.pdf

Key features

• Powerful 5×120W RGBL output delivers intense brightness, sharp beam effects, and rich saturated colors that stand out on any stage.

• Each head features an individually controllable RGB LED ring, creating dynamic pixel chases and visually striking lighting effects.

• Motorized zoom range from 4° to 32° allows smooth transition from tight aerial beams to wide wash coverage in one versatile fixture.

• Advanced RGBL color mixing with linear CTO adjustment ensures vibrant colors, natural whites, and precise color temperature control.

• IP65-rated construction, smooth 0–100% dimming, and high-speed strobe performance make it ideal for concerts, festivals, touring, and outdoor installations.

Waterproof rating

IP65

Light source

5 x 120W RGBL LEDs

Power

780W

Mode

DMX-512, Auto, Sound activated,Master-slave

Excellent color mixing effect

5x120w bar moving head light beam effect

5 heads 120w moving head light wash effect

5 heads 120w moving head light with led ring

Video

More parameters

Specification	Details
Voltage	AC100-240V 50/60Hz
Max Power	780W
Light Source	Main Light: 5 x 120W RGBL LEDs Outer Circle: 120 x 0.5W RGB LEDs
Pan	60°
Tilt	220°
LED Lifetime	Average 50,000 hours
Zoom Angle	4-32°
Strobe	1-25 times per second
Dimmer	0-100% linear dimmer
Channel Modes	21CH/41CH /71CH/75CH/85CH/170CH 6 channel modes
Control Mode	DMX-512, Auto, Sound activated,Master-slave
IP rate	IP65
Fixture Size	1019206.5352.5mm
Carton size	108x43x29cm (1pc/ctn)
Net Weight	29KG
Gross Weight	34KG
Flight Case Size	114x55x61cm（2in1）
Gross Weight	90KG

Product Details

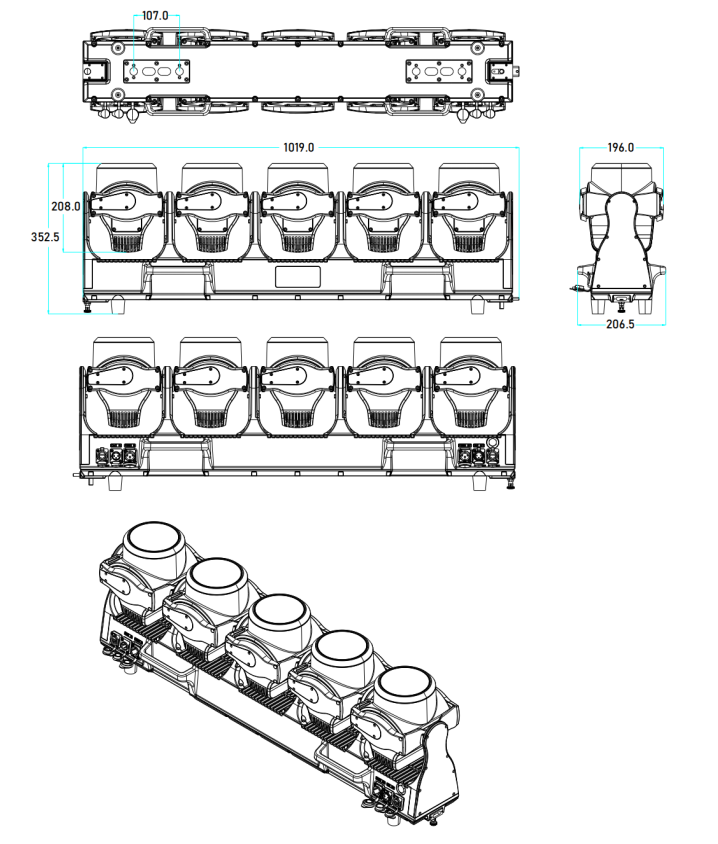

Dimensions Accessores

Photometrics

Waterproof Performance Test

Light source

•Lighting luminous flux 61000 lumens
•LED expected lifespan：50,000hour

Control and procedure

•Four touch keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
