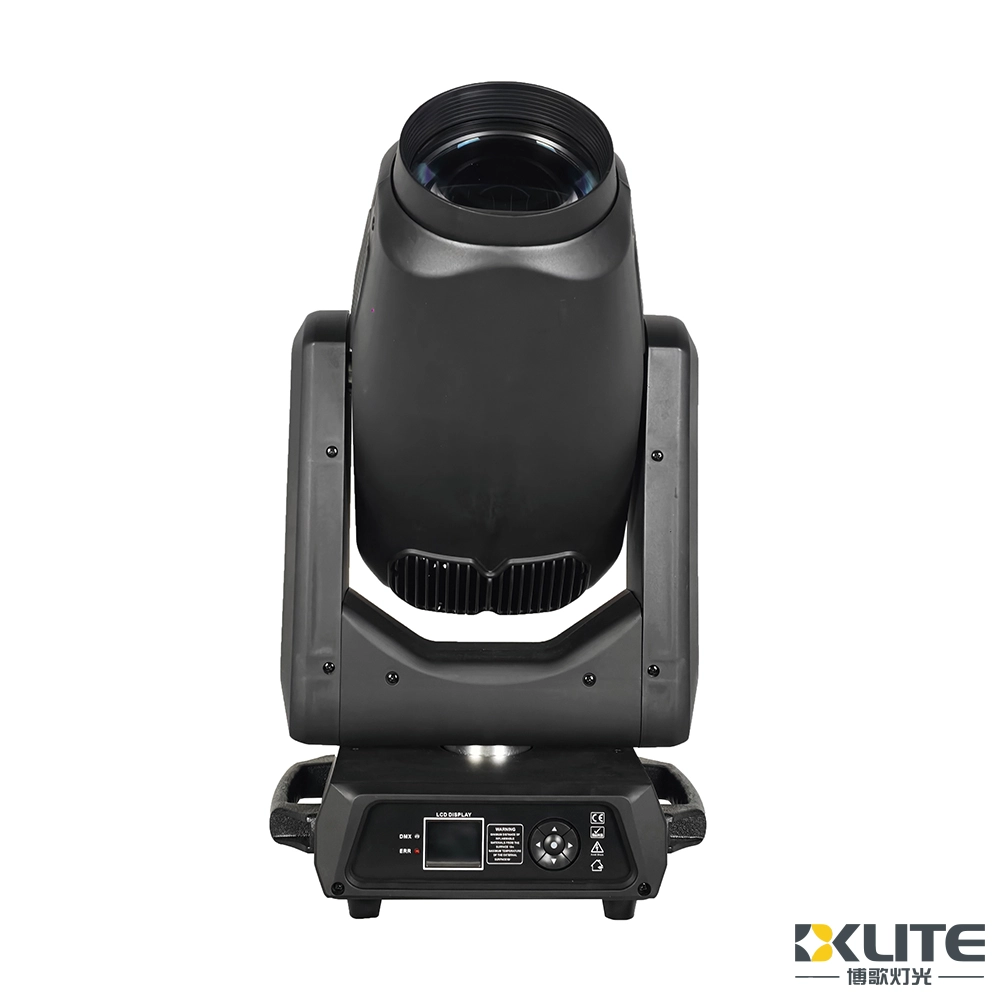

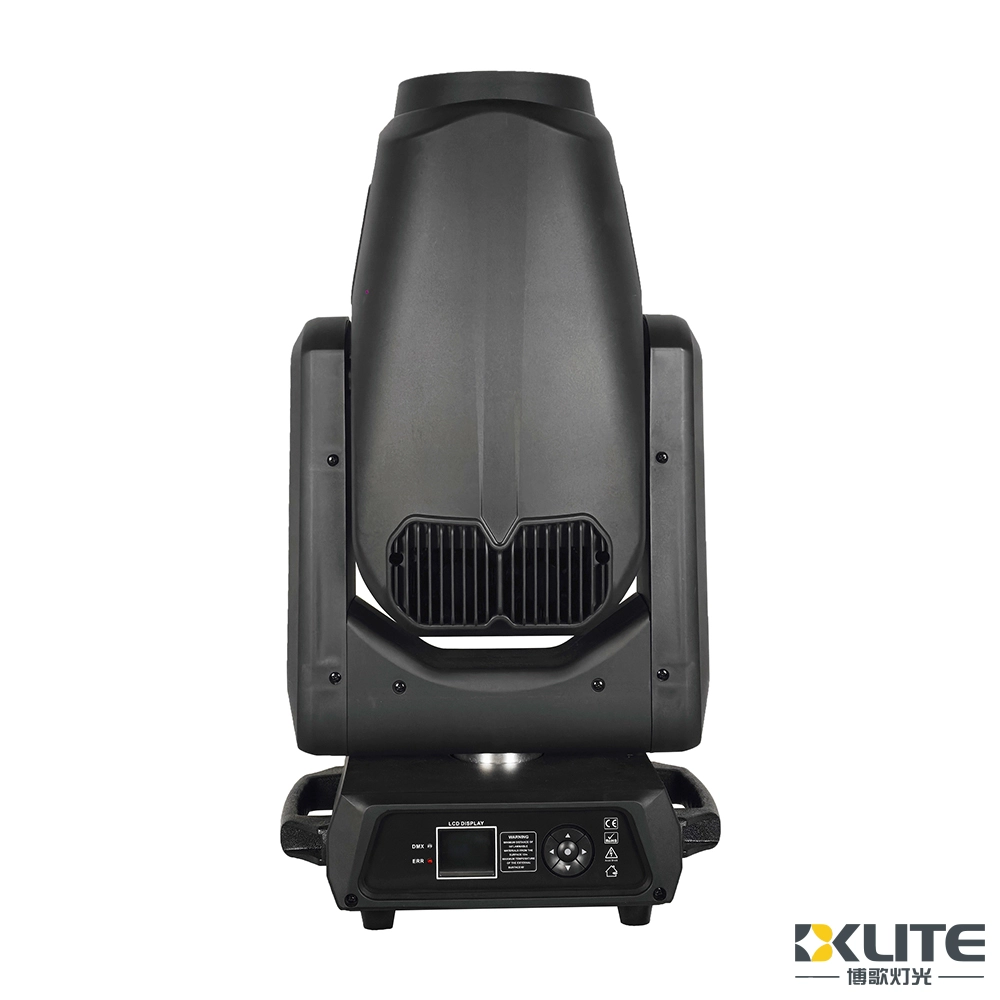

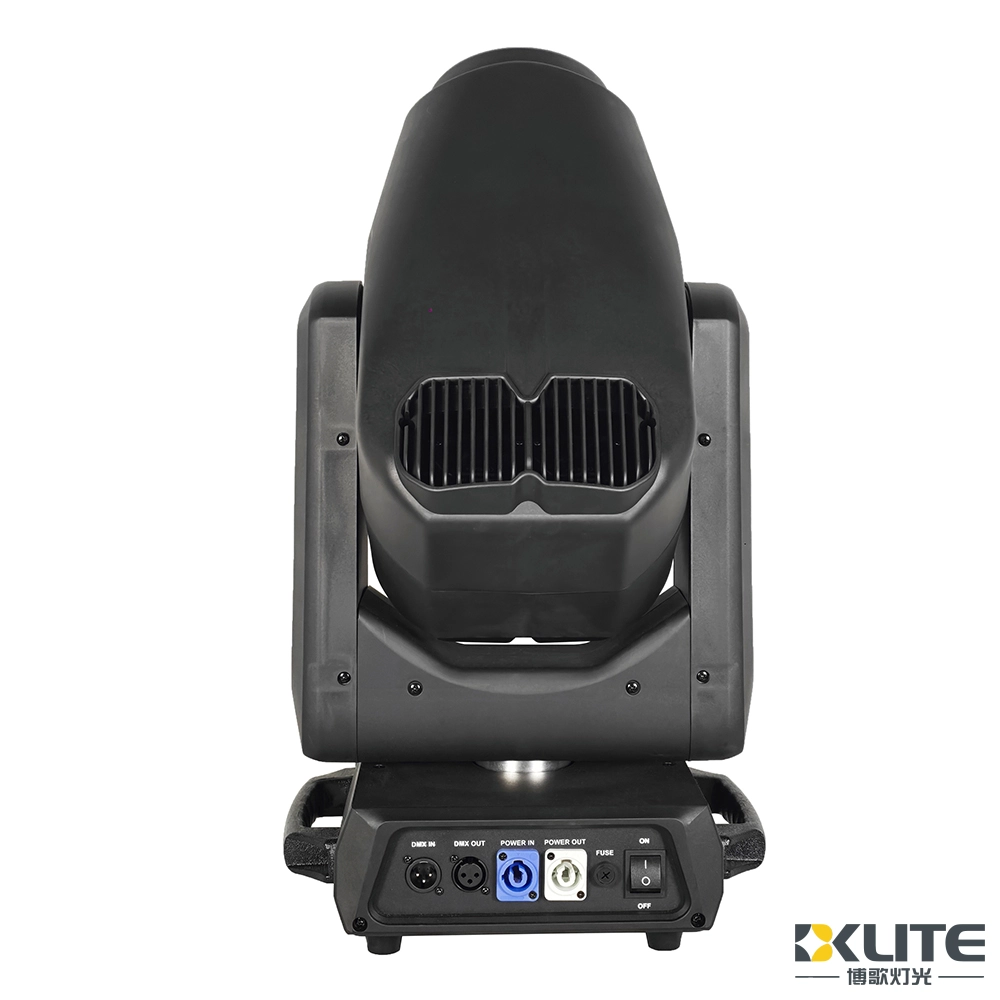

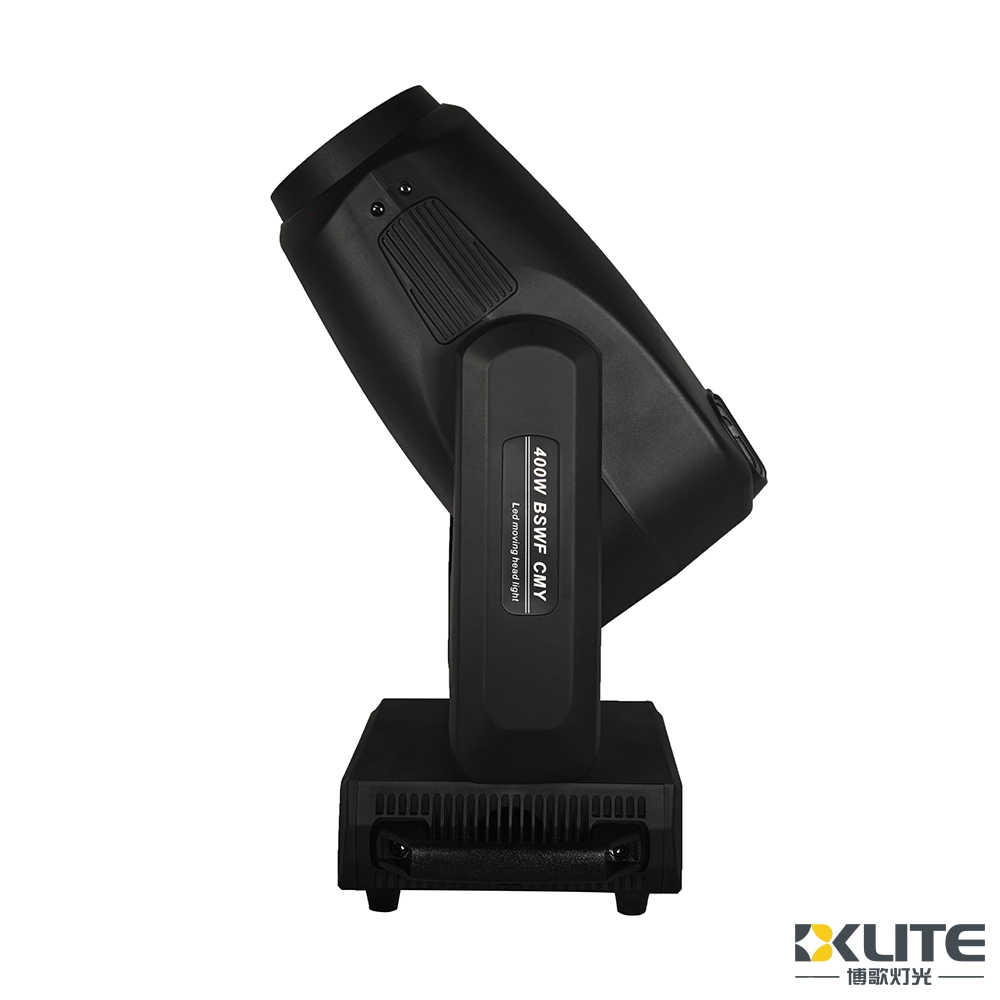

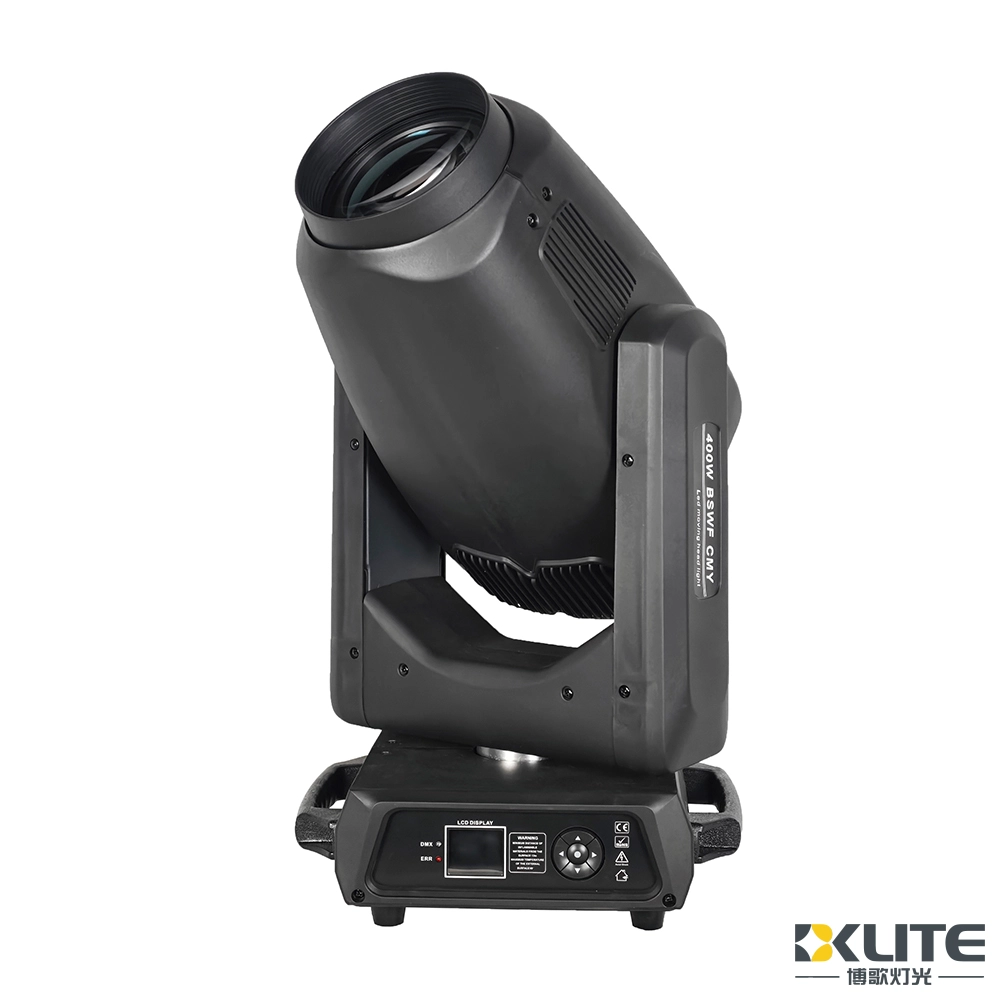

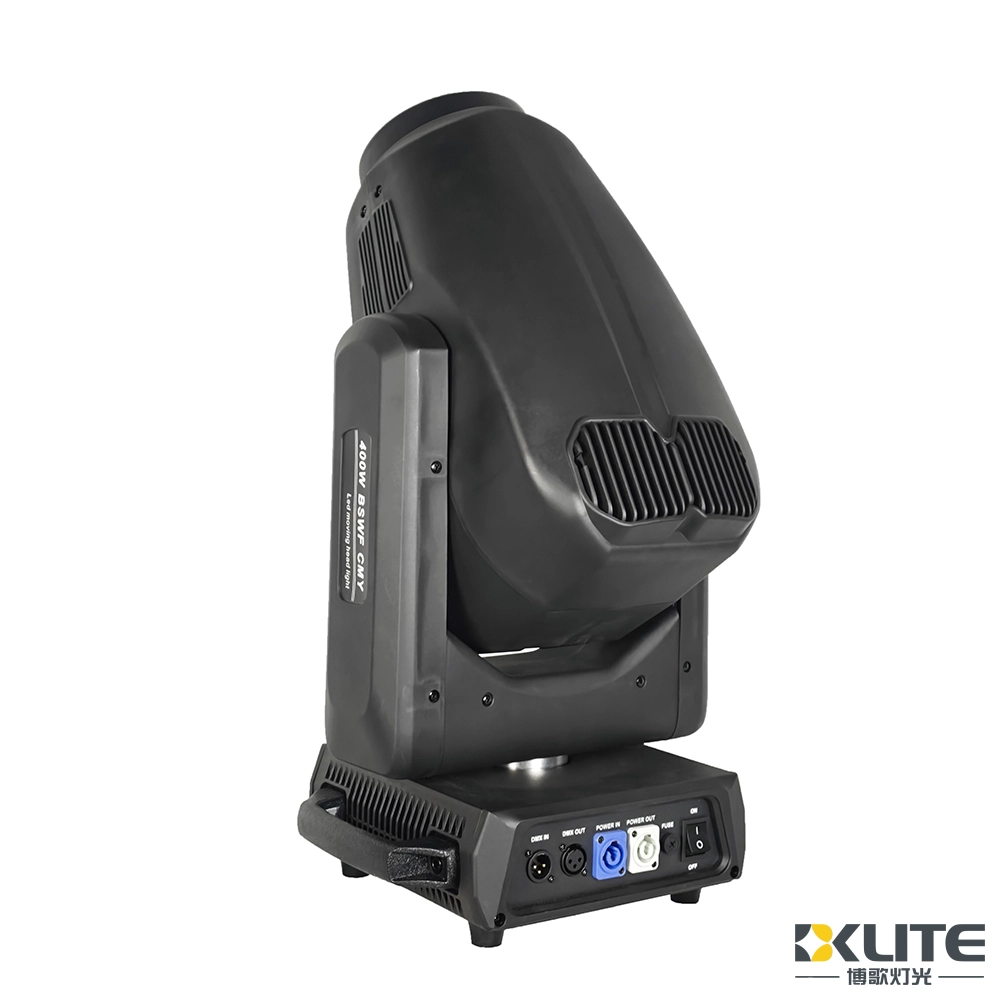

Mini Profile 400W LED Beam Wash Spot 3in1 Moving Head Light With Framing System

With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKlite Mini 400W BSW Profile is a compact IP20 hybrid moving‑head designed for medium‑sized theatres, banquet halls, DJ shows, rental events and church performances. Packing beam, spot, wash and framing cutting functions within a smaller footprint, it outputs sharp beam streaks, clean cut‑out light shapes and blended colour washes for versatile indoor show lighting.

Brand

BKlite

Power

500W

Light source

400W high-brightness LED module

Input voltage

AC100-240V 50/60Hz

Waterproof rating

IP20

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

Mini 400W LED BSW Framing user manual.pdf

Key Features

• All-in-one moving head light combining beam, wash, spot and framing functions.
• Independent linear CMY stepless color mixing system matched with CTO for rich color effects.
• Equipped with dual gobo wheels and dual prisms to deliver diverse pattern and beam special effects.
• Multimode intelligent control with error auto-correction.

Power

500W

Light source

400W high brightness LED module

Channels

36 Channels

Mode

DMX512, RDM, Auto, Master-Slave, Sound-activated

Scanning system

540° /270°

Excellent color mixing effect

Video

More parameters

Specification	Details
Voltage	AC100-240V 50-60Hz
Power	500W
LED Source	400W high-brightness LED module

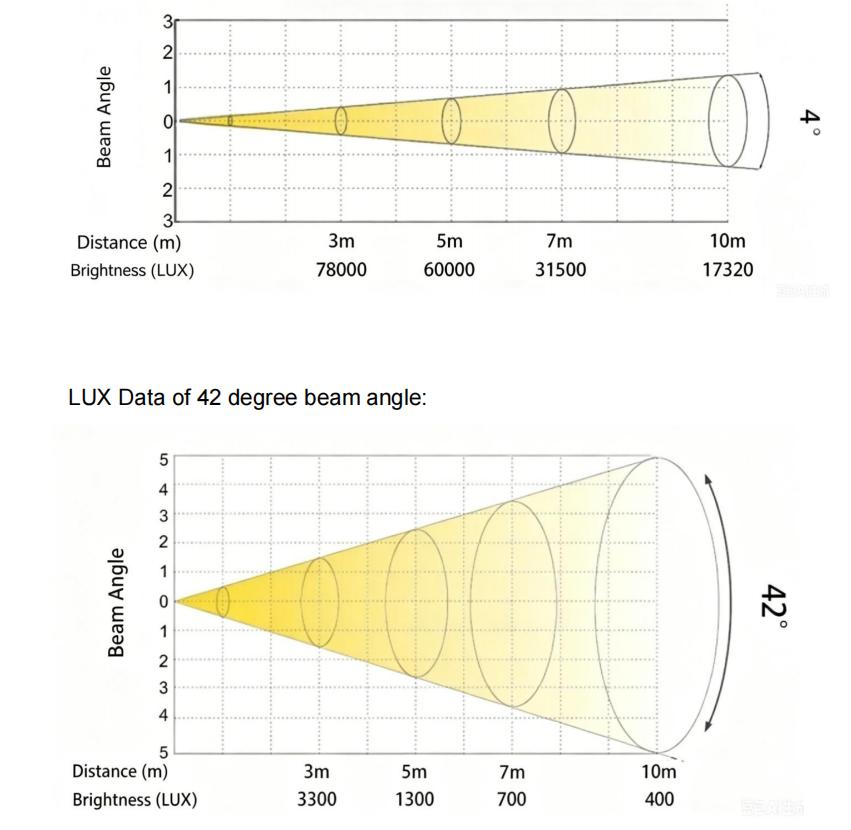

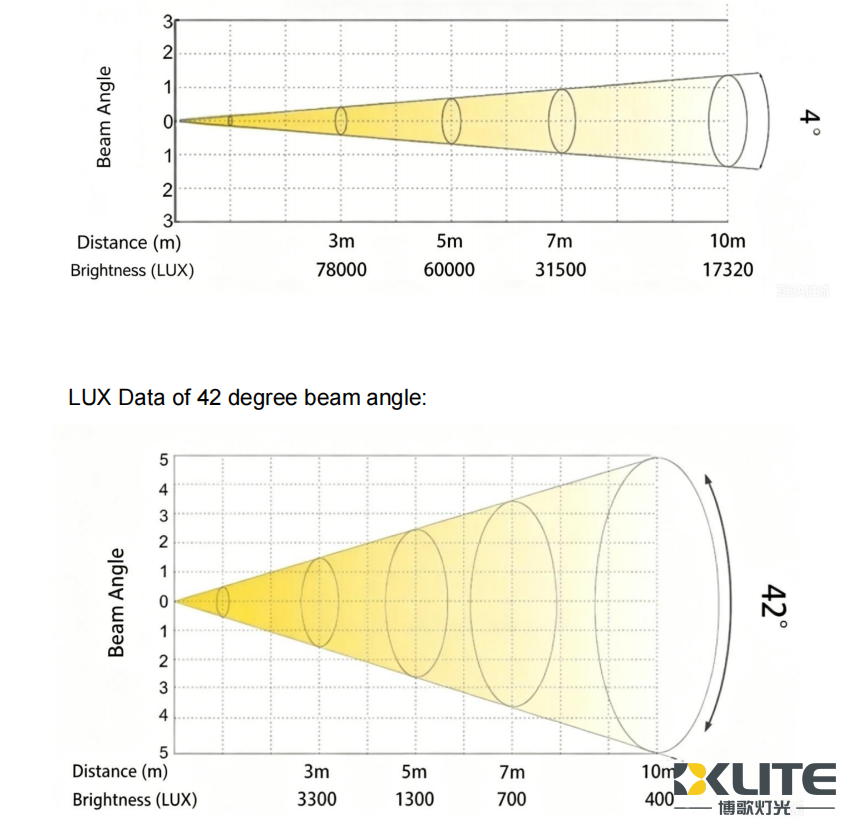

Zoom Range	4°-42°
Strobe	0-20Hz/s with multi strobe effects
Control Mode	DMX512, RDM, Auto, Master-Slave, Sound-activated
DMX Channels	36 DMX channels
Dimmer	0-100% linear dimmer
Pan/Tilt	540° + 16-bit fine/270° + 16-bit fine
Framing Wheel	8 controllable shutter blades to shape beams into triangles, diamonds, rectangles and more at any angle.
Color Wheel	1 color wheel with 6 colors + open + linear CTO; supports semi-color and bidirectional flow, color conversion, and semi-color rainbow effects
Rotating Gobo Wheel	1 rotating gobo wheel with 7 interchangeable gobos + open. Each gobo can rotate clockwise/counterclockwise with shake effect, and the wheel features forward/reverse scrolling with variable speed control.
Fixed Gobo Wheel	1 fixed gobo wheel with 9 gobos + open. Each gobo comes with shake effect; the wheel supports forward/reverse scrolling at adjustable speeds.
Frost	Uniform linear soft frost effect adjustable from 0% to 100%.
Prism	3 facet prism + 5-row array prism
Intelligent Fan Speed Control Design	Built-in intelligent fan speed regulation. The fixture automatically reduces power under high-temperature conditions, with the main fan running at low speed.
Focus	Electric focus
Automatic Error Correction	Photoelectric homing system for both pan and tilt. The fixture can automatically correct and reset position after accidental collision or position error.
Housing Material	Features stylish design with injection-molded heat-resistant fireproof engineering plastic.
IP Rating	IP20

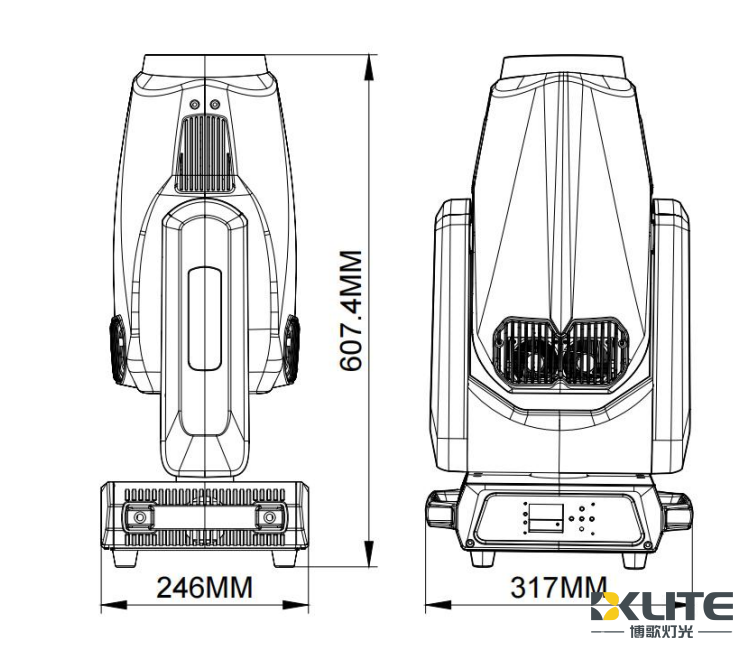

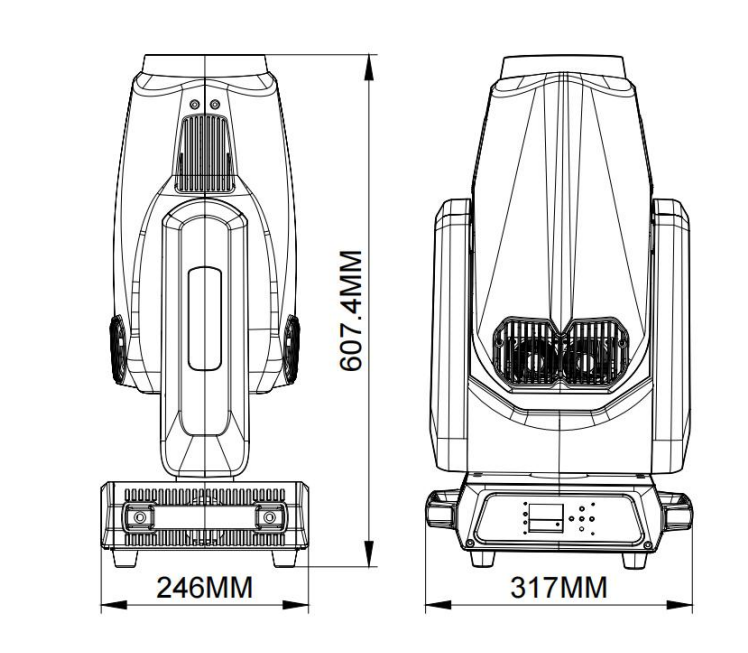

Fixture Dimension	607317246MM
Net Weight	17.5 KG
