Excellent color mixing effect
400W LED Beam Wash Spot 3in1 Moving Head Light With CMY+CTO (Private Mold)
BK-SP400 PRO is a 400w beam moving head light that integrates multiple powerful functions.It suitable for Stage performances, Concert halls,Theatres, Nightclubs and bars,Corporate events,Wedding venues etc.
Brand
BKlite
Model No.
BK-SP400 PRO
Power
550 W
Light source
400W high brightness white LED
Input voltage
AC100-240V 50/60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
English manual 带CMY和CTO的400W LED三合一英文说明书.pdf
400W LED Light library.zip
Key Features
• BK-SP400 PRO is a moving head light that integrates beam, wash, spot, and cutting functions in one
• Pure color, uniform spot, color plate, glass gobo plate, CTO.
• While perfectly presenting the 4 functions of beam, spot, wash and profile, it also has an independent CTO system and CMY system
• It also features rotating gobos, fixed gobos, iris, zoom system and rotating prism.
Channels
21 DMX Channel with RDM
Light source
400W high brightness white LED
Power
550W
Mode
DMX512,RDM, Master/slave
Scanning system
540° /270°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 550W |
| LED Source | 400W high brightness white LED |
| Zoom | 6° - 38° |
| Strobe | 0-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 21 DMX Channel with RDM |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Color wheel | Full CMY color mixing system with lienar CTO color+8 basic colors |
| Static gobo wheel | 7gobos+open with shake effect and bi-direction rotaion |
| Roteion gobo wheel | 7gobos+open with shake effect and bi-direction rotaion |
| Frost | With frost to make soft wash effect |
| Prism | 3 facet prism with bi-direction rotaion |
| Pan/Tilt | 540° + 16-bit fine/270° + 16-bit fine |
| Display | with 2.8 inch touch display |
| IP Rate | IP20 |
| Fixture Dimension | 396*290*694mm |
| Net Weight (N.W.) | 25KG |
Product Details
Dimensions Accessores

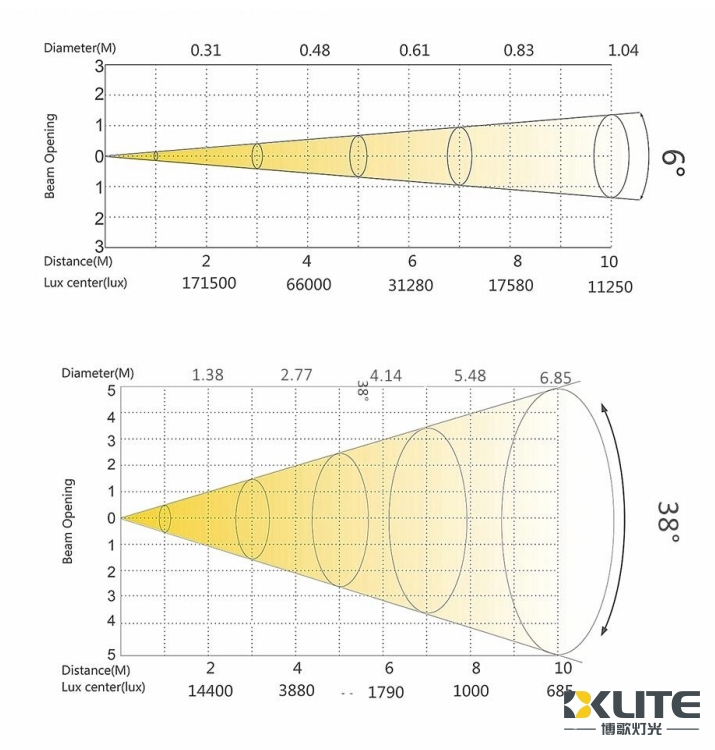

Photometrics
Light source
•Light source:400W high brightness white LED
•Lighting color temperature:6800K
•Lighting luminous flux 171500 lumens
•LED expected lifespan：20,000hour
Control and procedure
Channel: 21 DMX Channel with RDM
Control protocol:DMX512,RDM
Display: With 2.8 inch touch display
Colour and pattern
olor wheel：Full CMY color mixing system with linear CTO color+ 8 basic colors
Static gobo wheel：7 gobos+open with shake effect and bi-direction rotation
Rotation gobo wheel：7 gobos+open with shake effect and bi-direction rotation
Other effects
Frost：With frost to make soft wash effect
Prism：3 facet prism with bi-direction rotation
Focus: Electric focus
Factory configuration
•Directions for use
•Power cord
•Signal cable
Tags
3in1 Moving Head Light With CMY+CTO
3in1 Moving Head Light With CMY+CTO
Beam Wash Spot 3in1 Moving Head Light
Beam Wash Spot 3in1 Moving Head Light
400W Moving Head Light With CMY CTO
400W Moving Head Light With CMY CTO
