Excellent color mixing effect

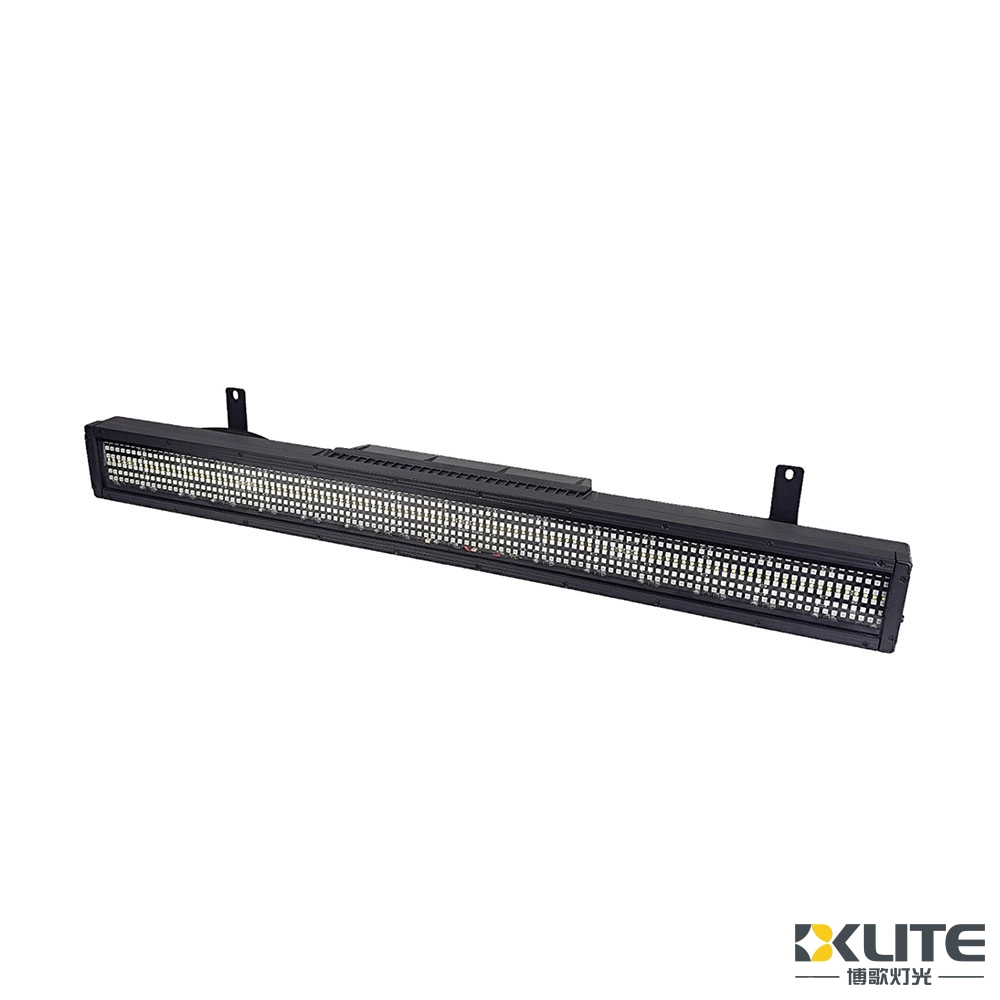

IP66 672pcsx0.5w RGB 112pcsx3w CW LED strobe bar light
Pixel-level precision,individual zone control for complex patterns;
IP66 waterproof connectors + metal construction;
-
Simplified rigging with 8.1kg lightweight design;
-
Energy-smart 420W output with smooth 0-100% dimming;
- Best for:Stadium Shows&Theme Parks &Permanent Installations&Concert Stages&Outdoor festivals (weatherproof).
-
-
Brand
BKlite
Model No.
BK-STROBE BAR IP
Power
420W
Light source
672pcsx0.5 RGB LED 112pcs x3WCW LED
Input voltage
AC100-240V 50-60HZ
Waterproof rating
IP66
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
Manual of ip66 led strobe bar light no frost 1.pdf
Features
•32 RGB LED zones with individual control
•16 CW LED zones with individual control
•Outstanding color mixing effect
Water proof
IP66
Channels
7CH/15CH/17C/21CH/33CH...
Light source
672 × 0.5W RGB LEDs, 112 × 3W CW LEDs
Power
420W
Mode
DMX512
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50/60Hz |
| Power | 420W |
| Light Source | 672 × 0.5W RGB LEDs, 112 × 3W CW LEDs |
| Control Mode | DMX512, Auto, Master-Slave, Voice Control, RDM Function |
| Channel Modes | 7CH / 15CH / 17CH / 21CH / 33CH / 39CH / 65CH / 68CH / 70CH / 112CH / 117CH |

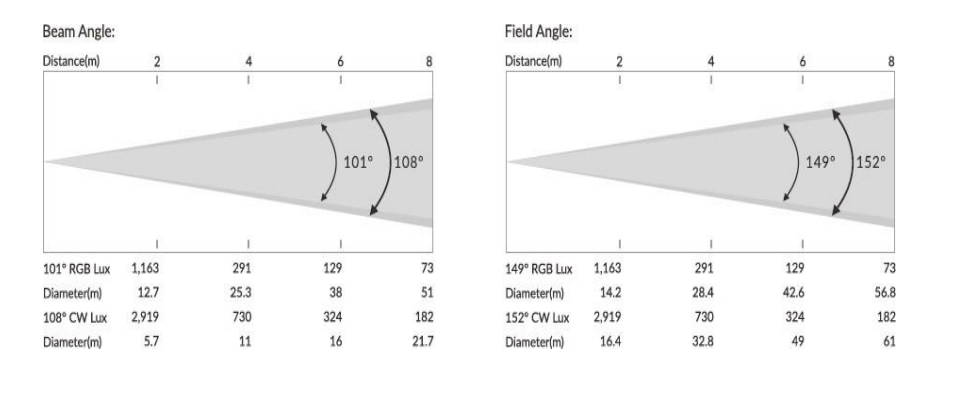

| Beam Angle | 101° (RGB), 108° (CW), 149° |
| Field Angle | 152° (CW) |
| Dimmer | 0-100% smooth dimming; High output strobe effect |
| Operating Temperature | -30°C to 50°C |
| Strobe Frequency | 1-30Hz |
| Appearance | Metal, Black |
| Power In/Out | Waterproof Power Connector In/Out |
| Connection | DMX512 |
| IP Grade | IP66 |
| Net Weight (N.W.) | 8.1KG |
| Features | 32 RGB LED zones with individual control, 16 CW LED zones with individual control, Outstanding color mixing effect |
| Safety Rope | Hanging points |
| Packaging | Carton (2-in-1) & Flight Case (4-in-1) |
| Fixture Dimensions | 482 × 178 × 243mm |
| Net Weight | 11.2kg |
Product Details
Dimensions Accessores
Photometrics
Light source
•Lighting luminous flux 167,500 lumens
•LED expected lifespan：5000hour
Control and procedure
•Four touch keys
•OLED display
•Software upgrade: upgrade software via DMX connection
Work environment
•Maximum ambient temperature: 60°C
•Maximum surface temperature: 65°C
•Lowest working temperature: -30°C
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•Directions for use
•Power cord
•Signal cable
