IP20 Bee Eye Zoom 19x40w RGBW 4IN1 LED Beam Wash Moving Head Light with LED Ring

IP20 Bee Eye Zoom 19x40w RGBW 4IN1 LED Beam Wash Moving Head Light with LED Ring

As one of the leading stage lighting equipment suppliers with 14+ years of experience, BKLite launched a new Bee Eye K15 19x40 LED wash light BK-BY1940Z. .

Designed with a simple and sleek appearance, the WASH moving head light is compact, lightweight, and highly portable.

With multiple color effect macros and dynamic effect macros.

Our wash light can be used for versatile lighting options with amazing effect.

It is very good for your lighting projects.

Powerful and shoots very far distances.

Brand

BKlite

Model No.

BK-BY1940Z

Power

850W

Light source

19x40W high power RGBW 4 in 1 LEDs

Input voltage

AC100V～240V 50-60HZ

Waterproof rating

IP20

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY

Special Points

•Each LED can be controlled individually. With unique honeycomb designed lens

•The front lens can rotate without limitation in forward and reverse direction to create amazing effects

•Can be used as beam, wash or effect light use (Kaleido effects)

•With a extra LED ring for eye-candy effect, LED ring with macro effect

•Pure aluminum casting waterproof housing, suitable for all kinds of environments.

Channels

21/26/36/43/78/119 six channel mode

Light source

19x40W high power RGBW 4-in-1 LEDs

Power

850W

Mode

DMX512,RDM, Master/slave

Scanning system

540° /220°

Excellent color mixing effect

Video

More parameters

Specification	Details
Voltage	AC100-240V 50-60Hz
Power	850W
LED Source	19 × 40W high-power RGBW 4-in-1 LEDs
Zoom	7° - 45°
Strobe	0-25Hz
Control Mode	DMX512, Sound-activated, Master/Slave
DMX Channels	21CH/26CH/36CH/43CH/78CH/119CH
Dimmer	0-100% linear dimmer with 4 dimmer curves
Pan	540° + 16-bit fine
Tilt	220° + 16-bit fine
Display	LCD display with touch buttons
IP Rate	IP20
Fixture Dimension	434 × 260 × 577 mm
Net Weight (N.W.)	15.2KG
Gross Weight (G.W.)	18.7KG (1pc/ctn)
Package Dimension	480 × 380 × 570 mm (1pc/ctn)

Product Details

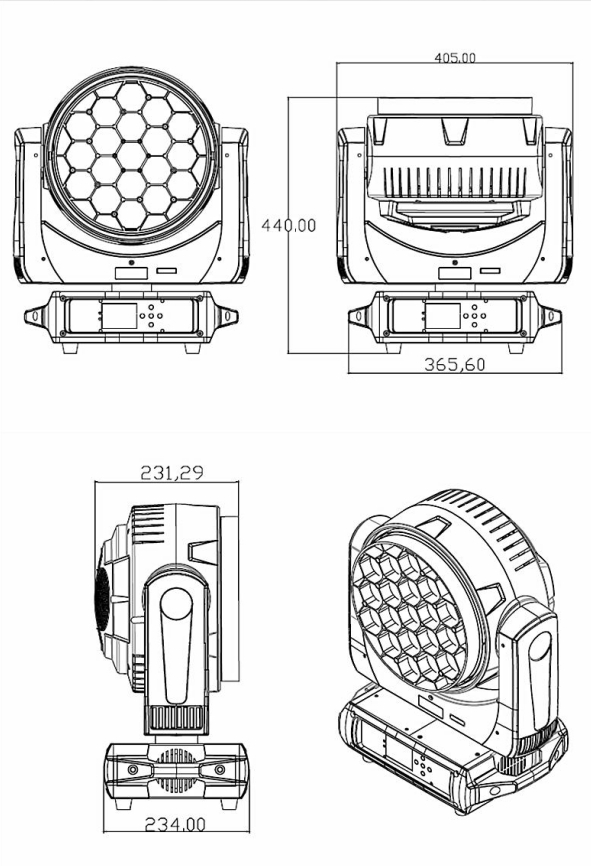

Dimensions Accessores

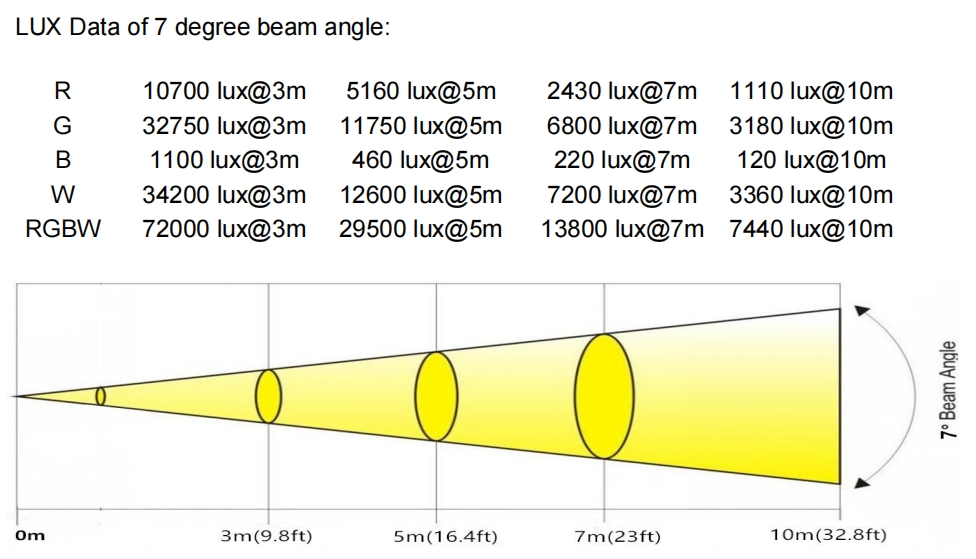

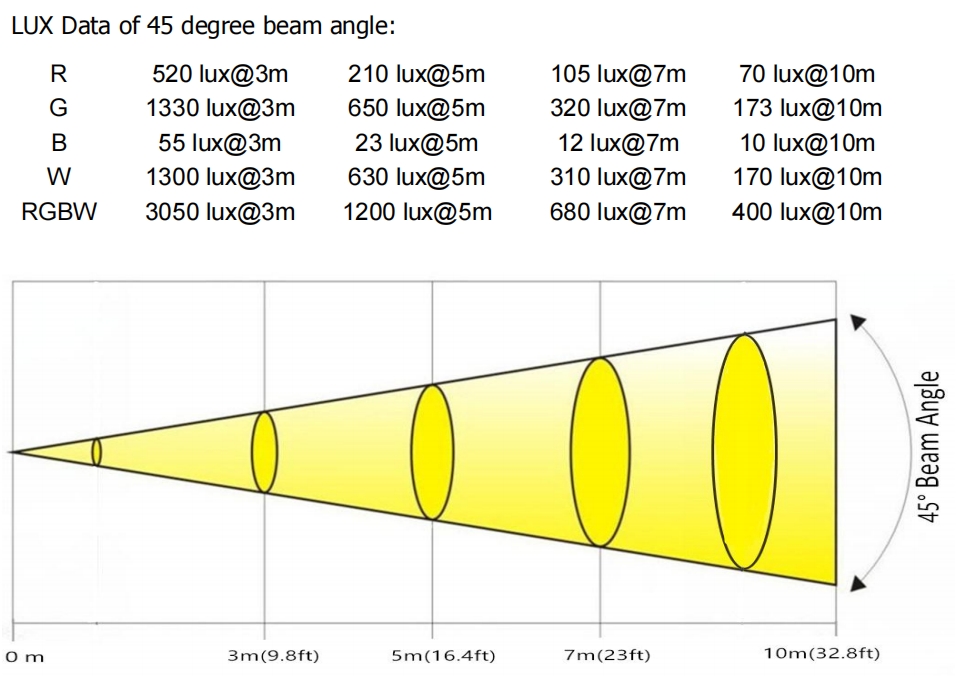

Photometrics

light source

• Lighting luminous flux 129,000 lumens

• LED expected lifespan：5000hour

Control and procedure

• Five mechanical keys

• Display: LCD display with touch buttons

• The equipment usage and lighting time, equipment temperature, channel data, and software version information can be queried through the fixture menu.

• Upgrade files can be uploaded via the DMX interface

Work environment

• Maximum ambient temperature: 40°C

• Maximum surface temperature: 65°C
