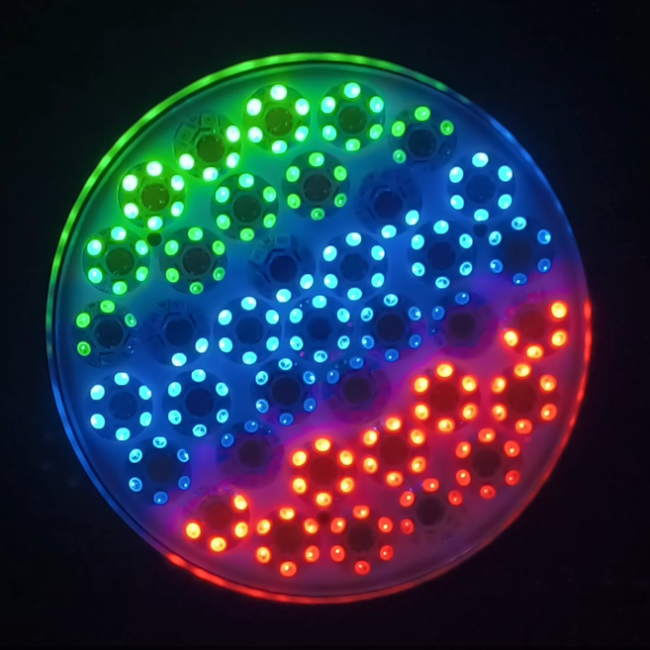

Excellent color mixing effect

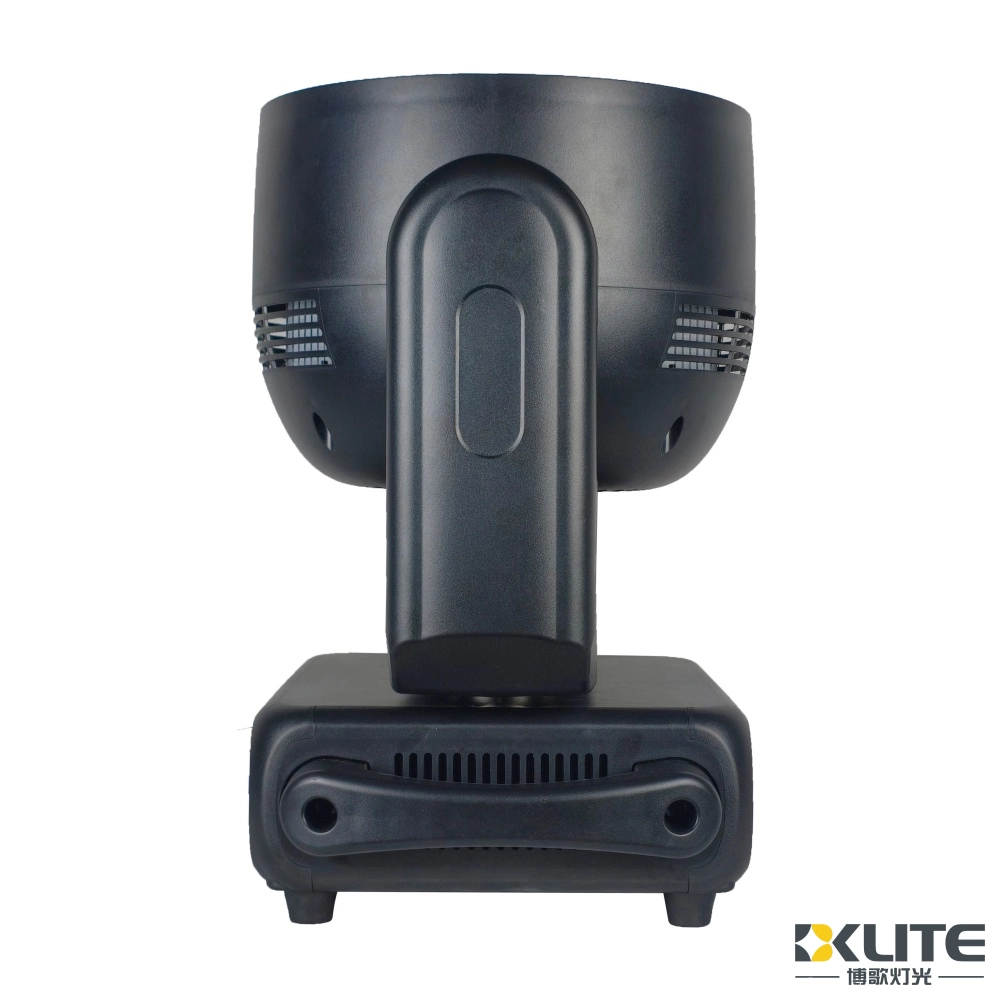

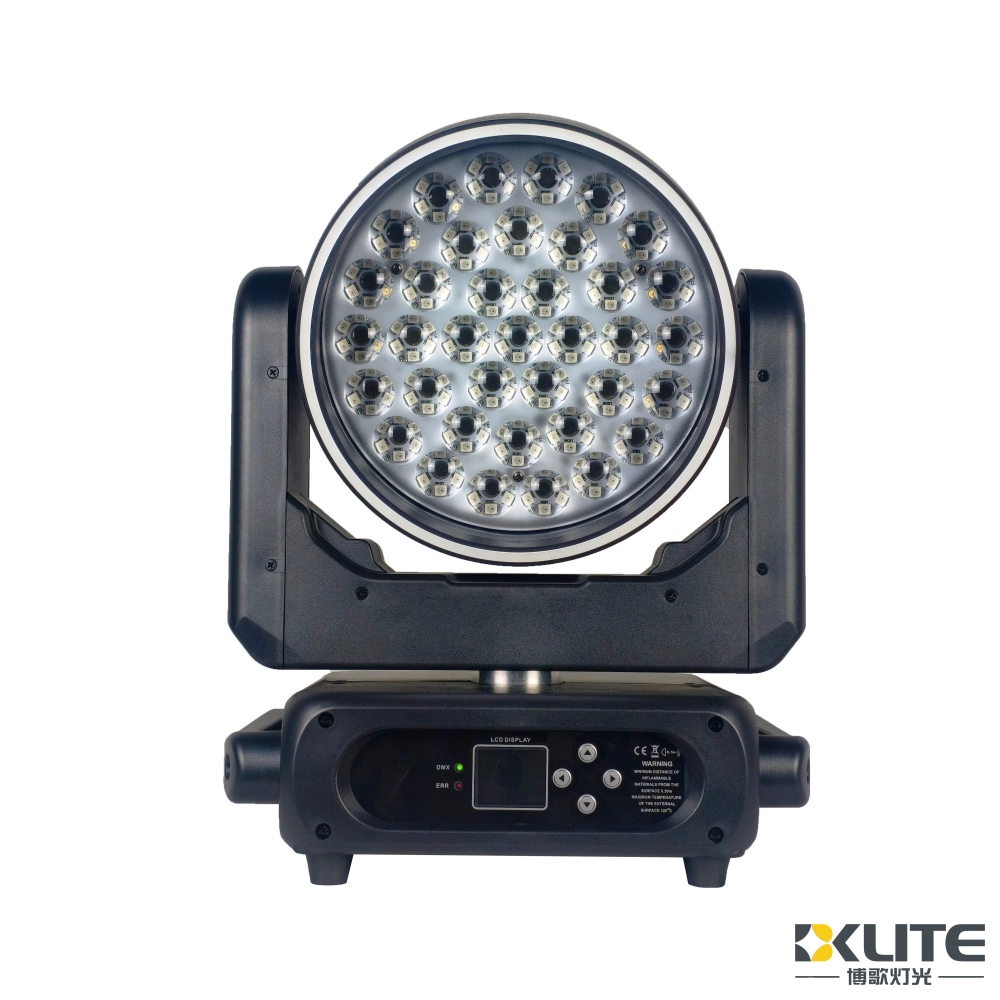

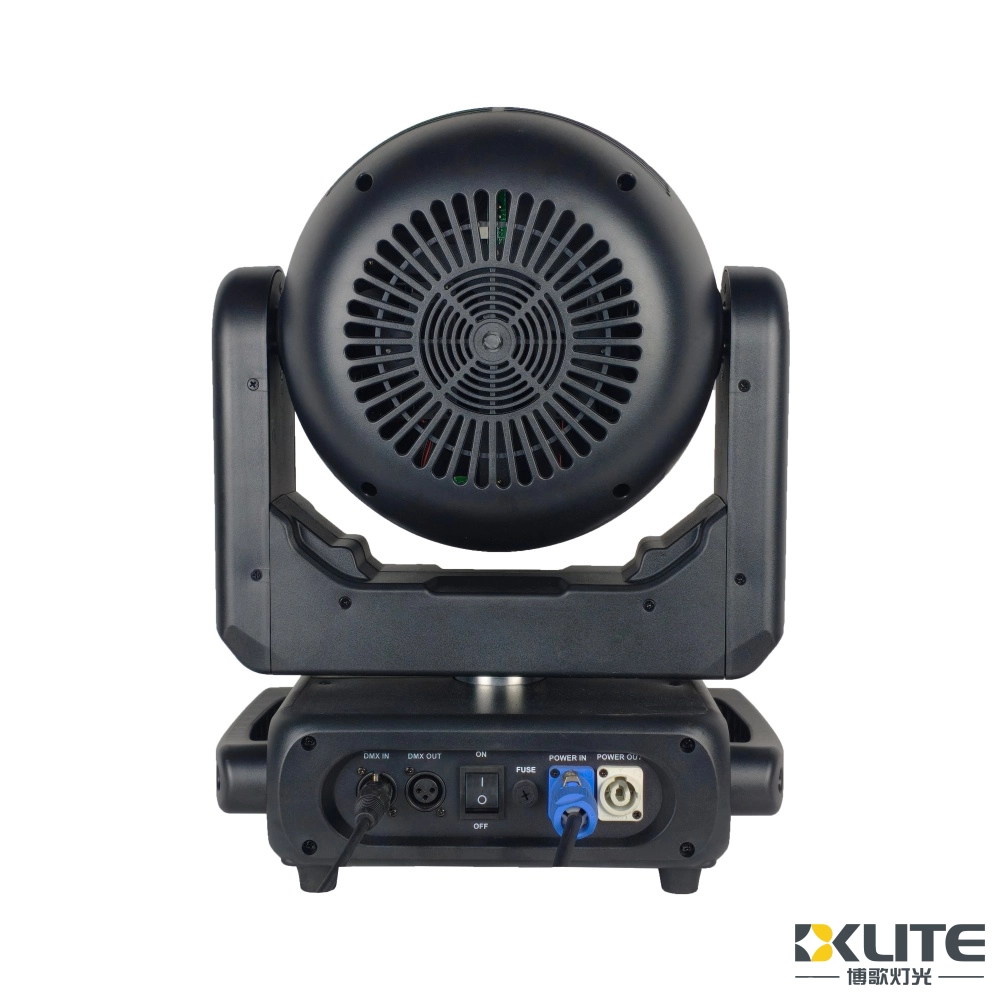

37x15W RGBW 4in1 LED Pixel Zoom Wash Moving Head Light With LED Ring
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China.

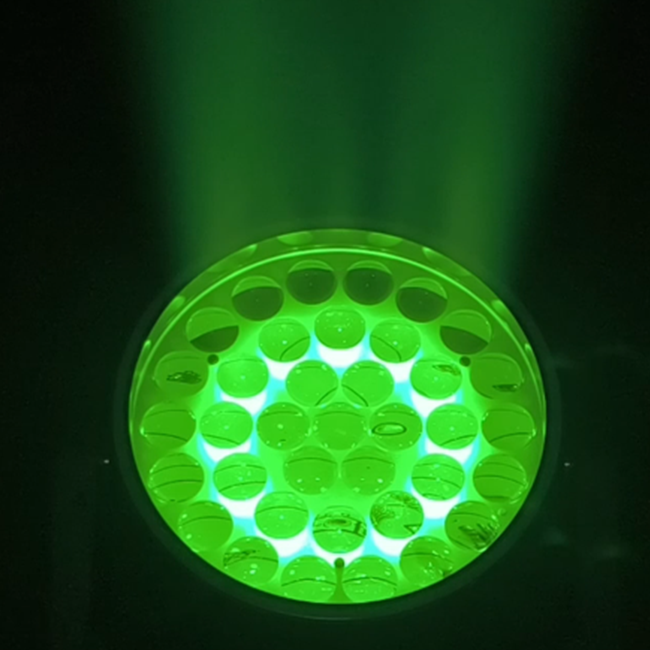

The BKlite 37×15W pixel zoom wash moving‑head is an IP20 high‑end stage fixture designed for large concerts, nightclub shows, TV broadcast sets, festival events and premium rental productions. Built with individually‑controllable Osram LEDs, 360° rotating front lens plus abundant auxiliary RGB background LEDs and macro‑effect outer ring, it delivers precise pixel animations, soft colour washes, immersive halo background glows and dynamic ring‑light sequences for multi‑layered immersive stage atmospheres.
Brand
BKlite
Power
600W
Light source

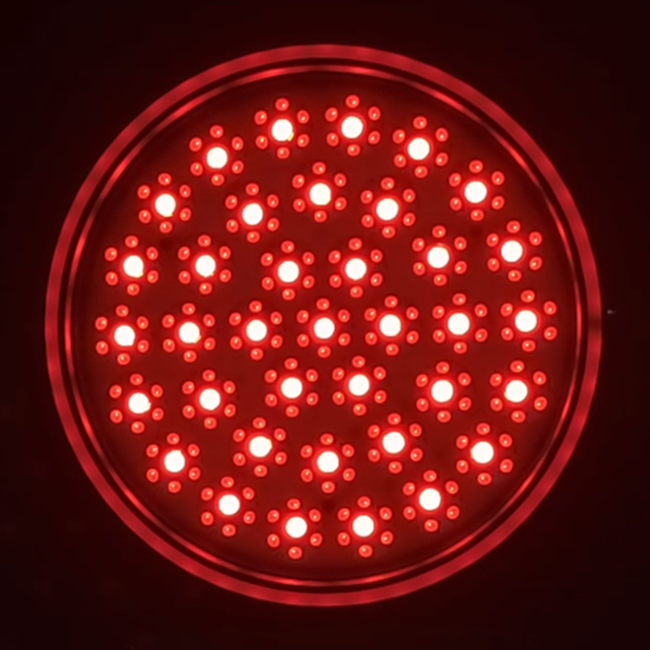

37pcs 15W Osram RGBW 4 in 1 LEDs
Input voltage
AC100V～240V 50-60HZ
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
37x15W LED Wash Moving Head Light User Manual(1).pdf
Key features
• Individual Pixel Control: Each LED can be independently addressed and programmed for intricate, detailed lighting effects.
• 360° Infinite Lens Rotation: The front lens rotates freely in both directions, enabling seamless, dynamic beam movement and pattern morphing.

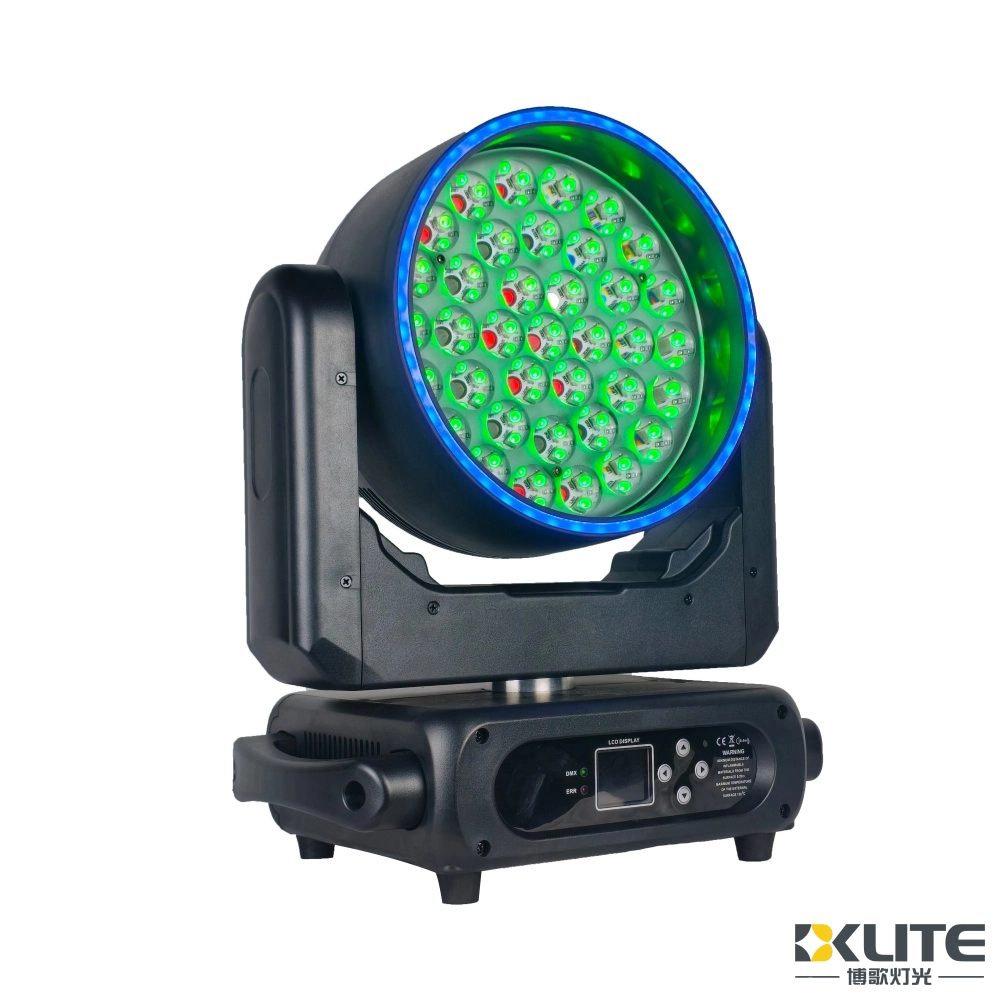

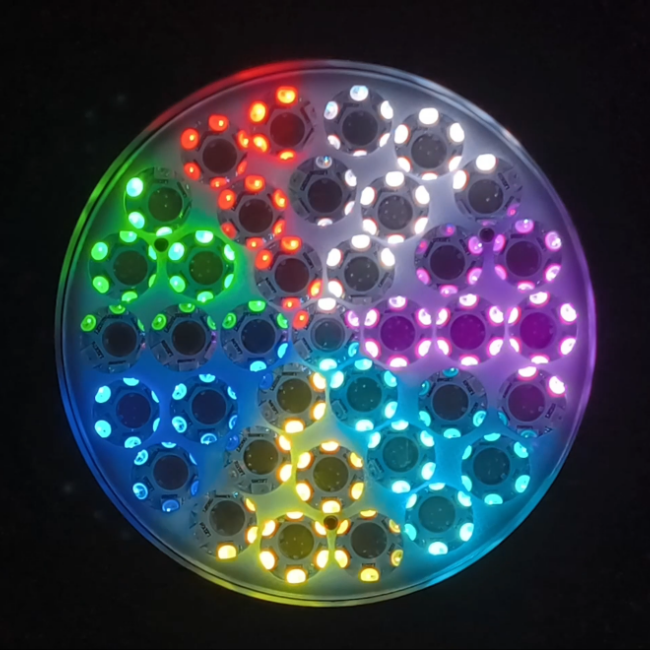

• Enhanced Ambient Illumination: Features 222pcs 0.2W RGB auxiliary LEDs to create rich color washes and atmospheric depth.

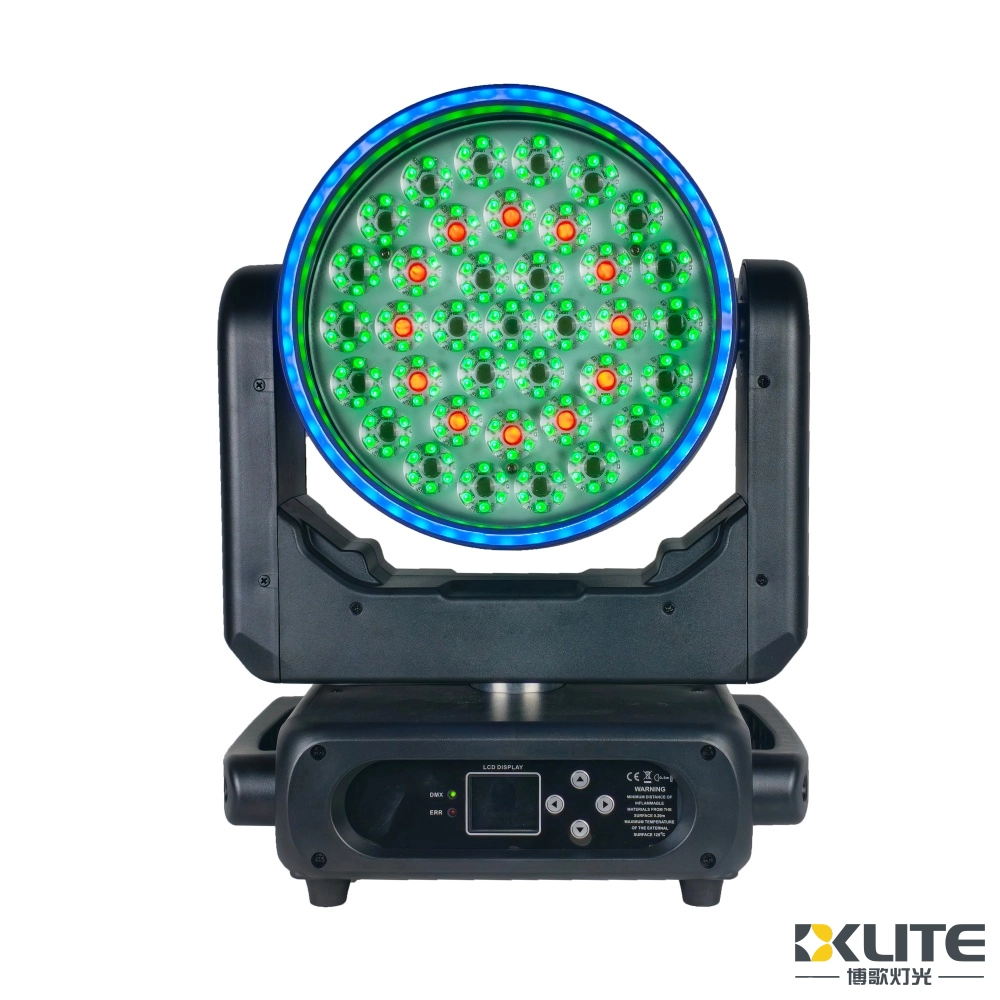

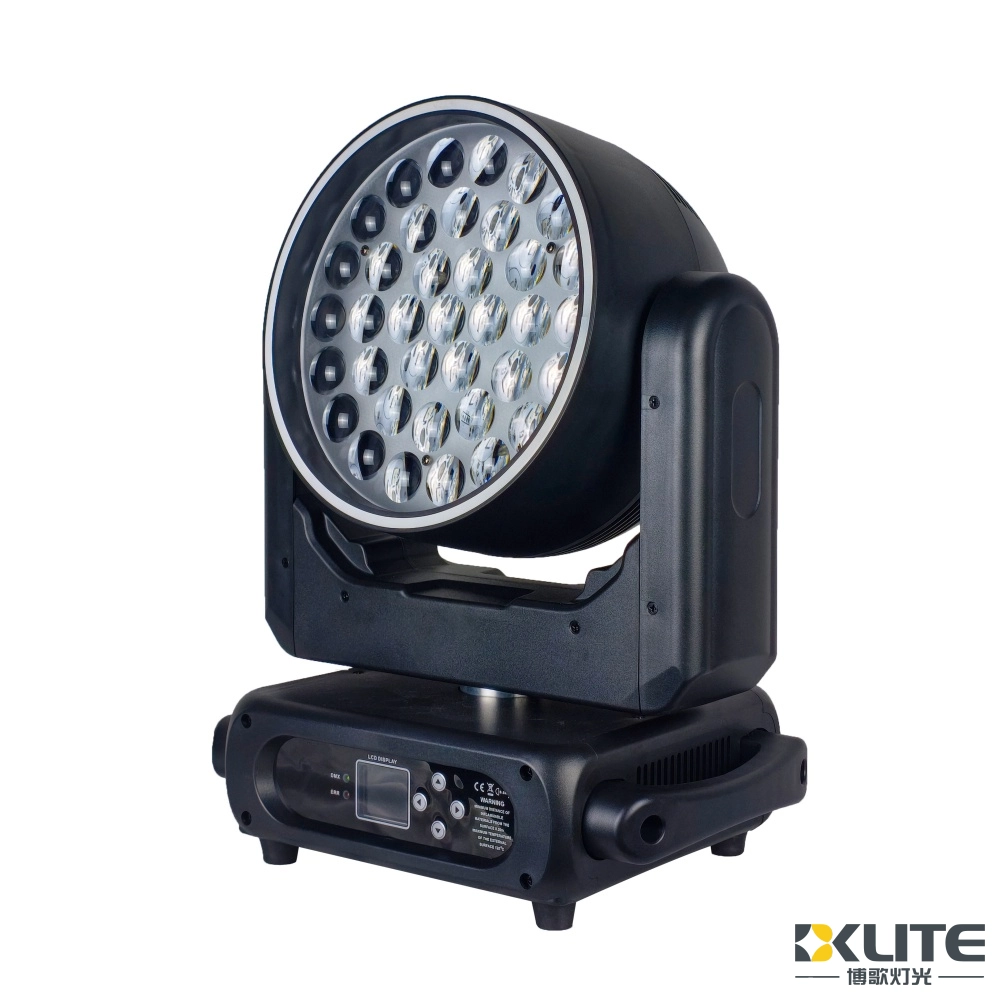

• LED Ring with Macro Effects: An eye-catching outer ring equipped with macro functionality delivers stunning visual accents and focal points.
Channels
25CH / 40CH / 48CH
Light source
37x15W OSRAM RGBW 4-in-1 LEDs
Power
600W
Mode
DMX512,Auto,Master/slave,Sound-actived
Scanning system
540° /270°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 600W |
| LED Source |
37PCS 15W OSRAM RGBW 4-in-1 LEDs 222PCS 0.2W RGB internal auxiliary light |
| Zoom | 13° - 52° |
| Pan | 540° |
| Tilt | 270° |
| Strobe | 0–20 times/second, with multiple strobe effects |
| Control Mode | DMX512,Auto,Master/slave,Sound-actived |
| DMX Channels | 25CH / 40CH / 48CH |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Pan | 540° + 16-bit fine |
| Tilt | 250° + 16-bit fine |
| Display | Chinese / English |
| Temperature Control | Intelligent temperature management, automatic adjustment of cooling fan speed and overheat protection |
| IP Rate | IP20 |
| Fixture Dimension | 355 * 245 * 410mm |
Product Details

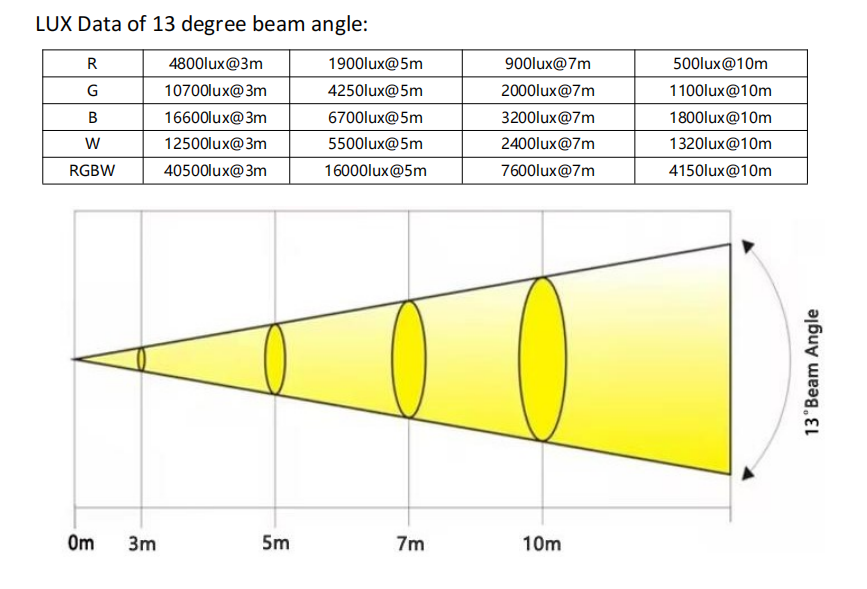

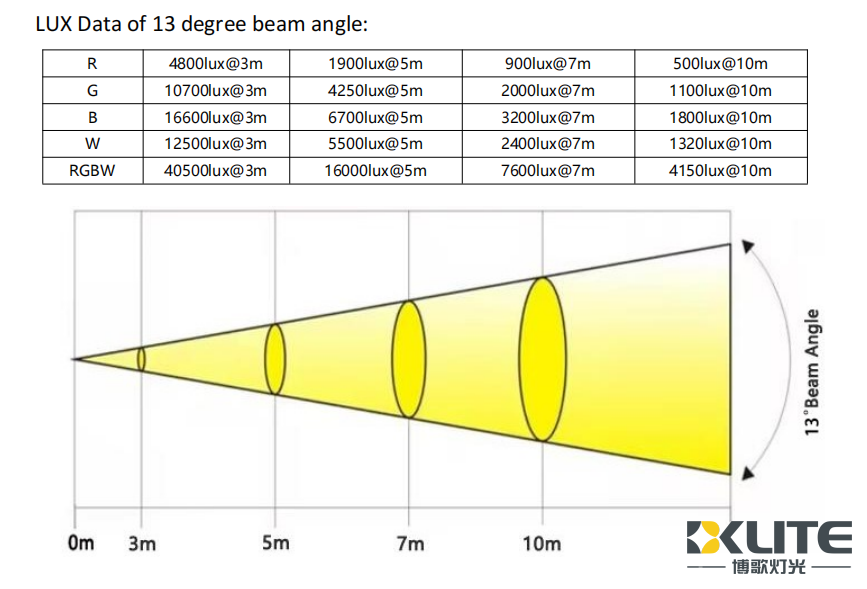

Photometrics

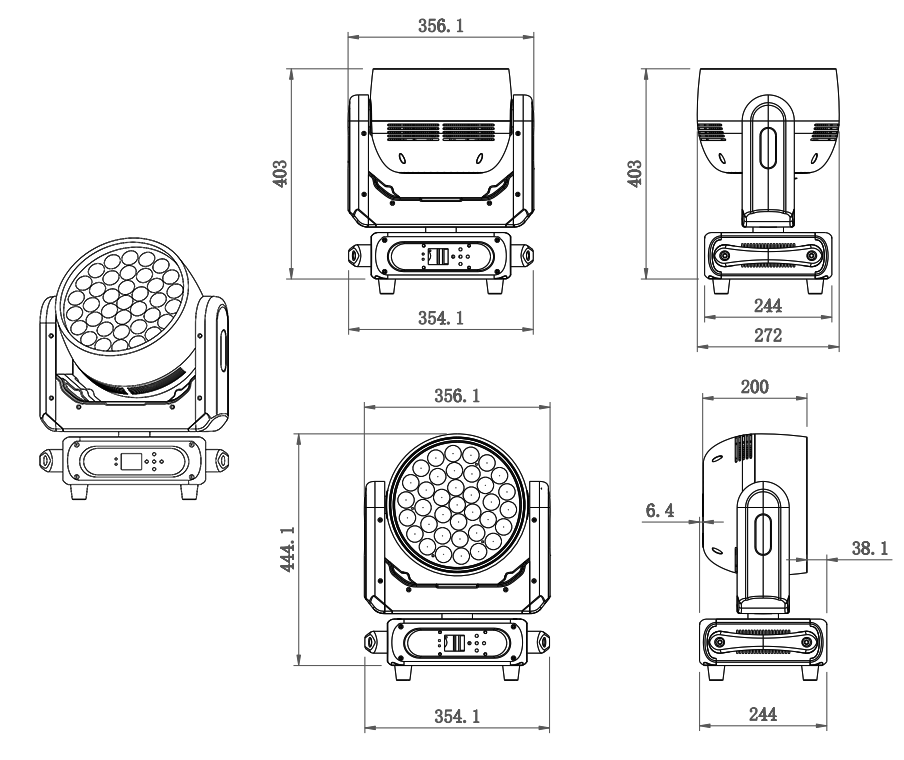

Dimension
Light source
•Lighting luminous flux 405,00 lumens
•LED expected lifespan：50,000hour
Control and procedure
•Four mechanical keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
