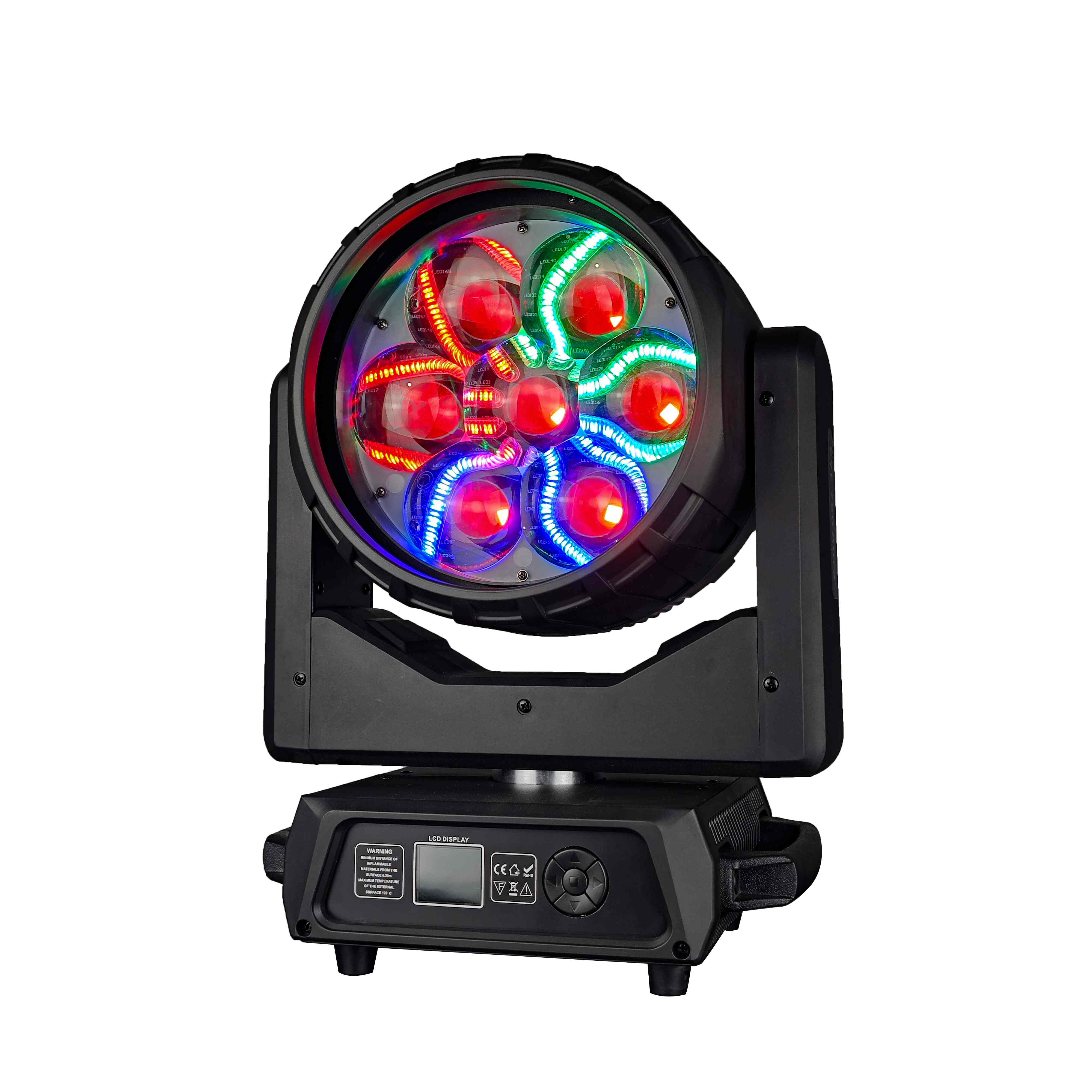

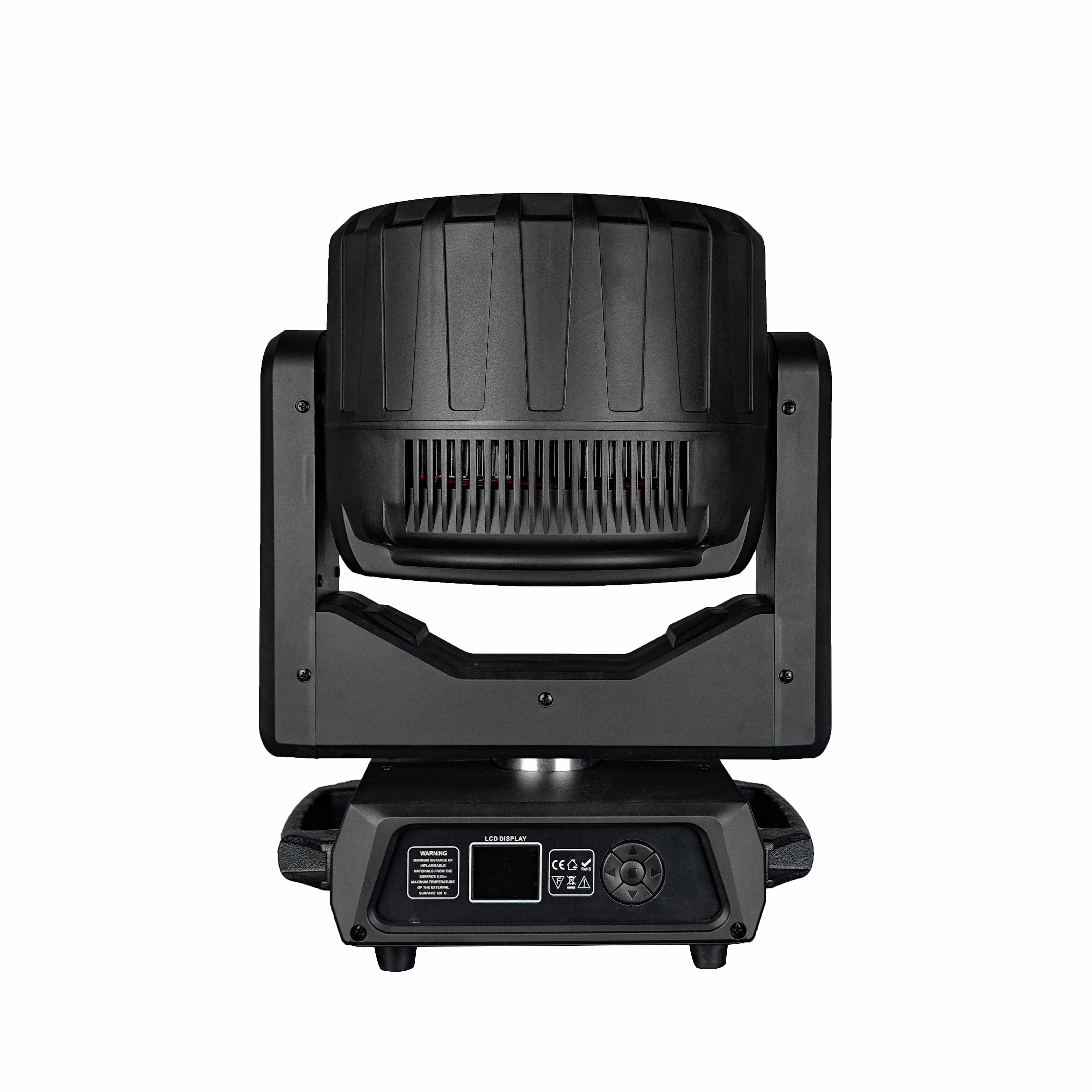

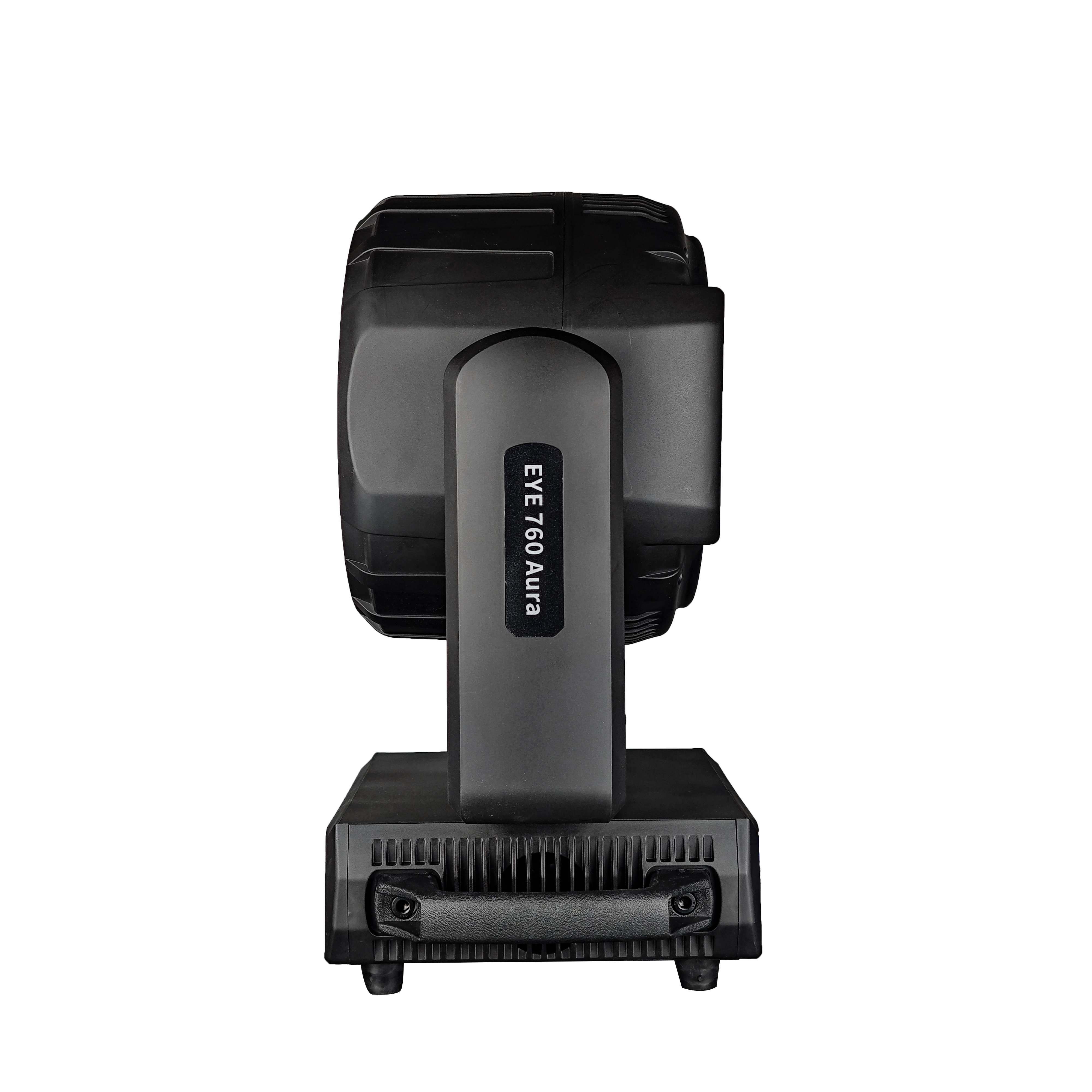

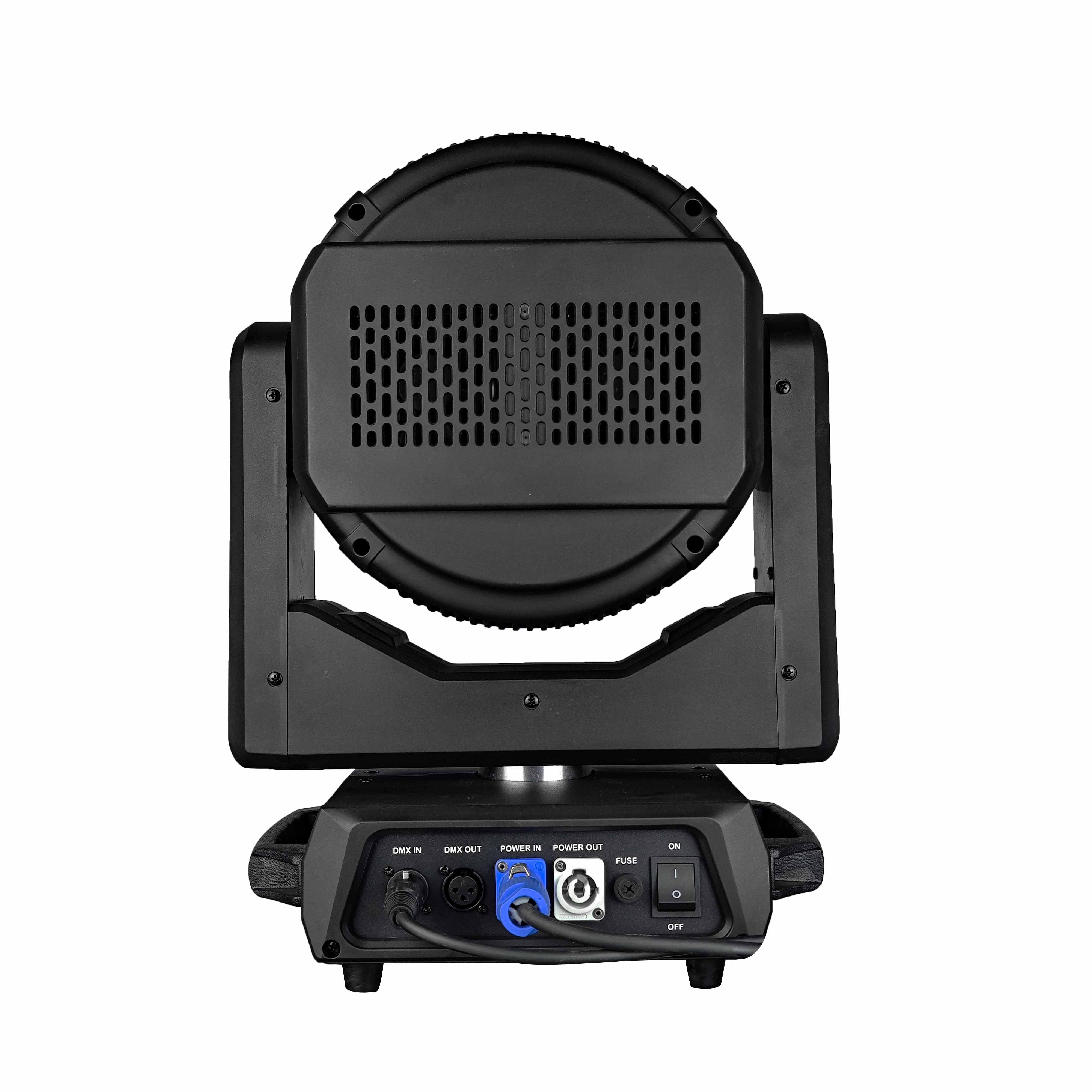

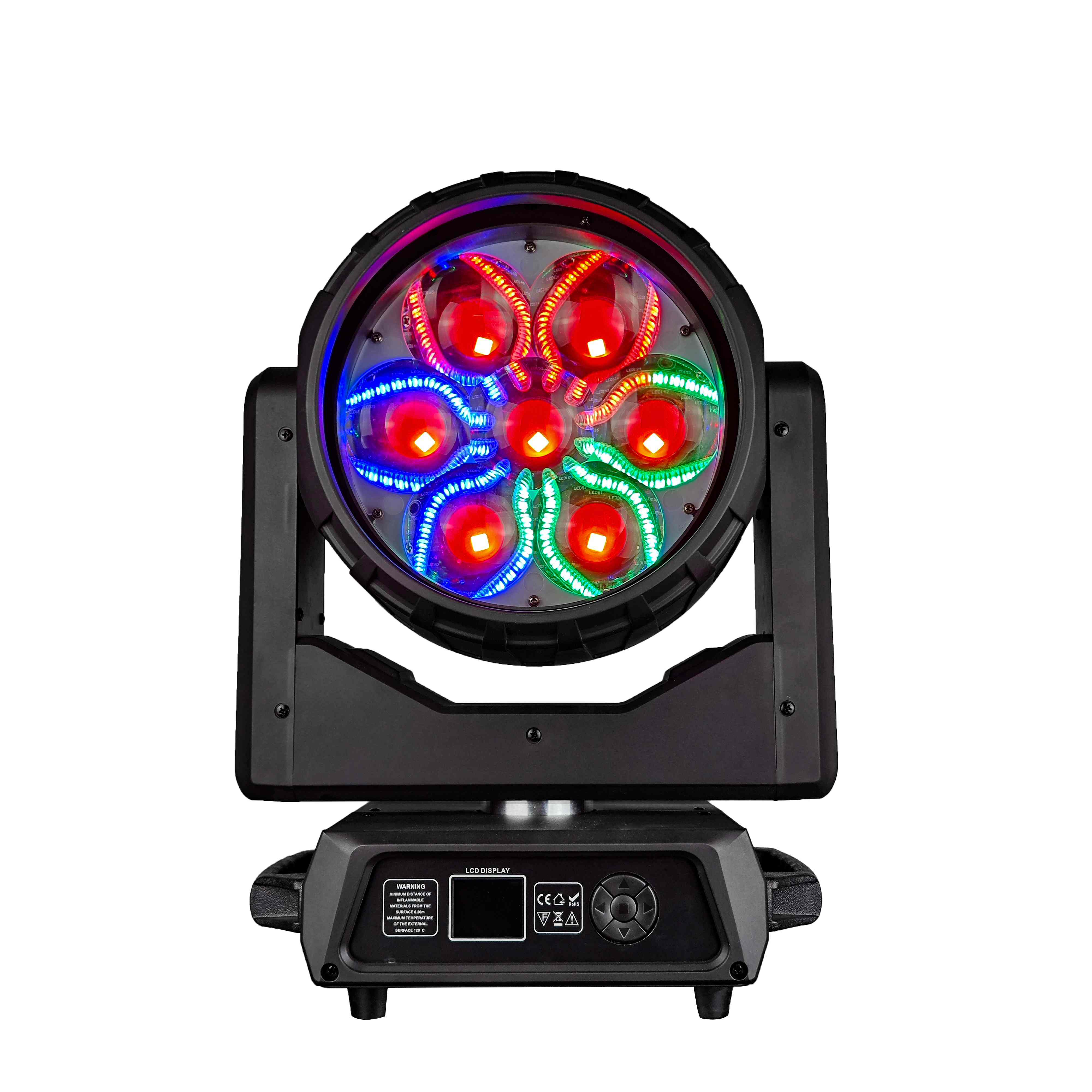

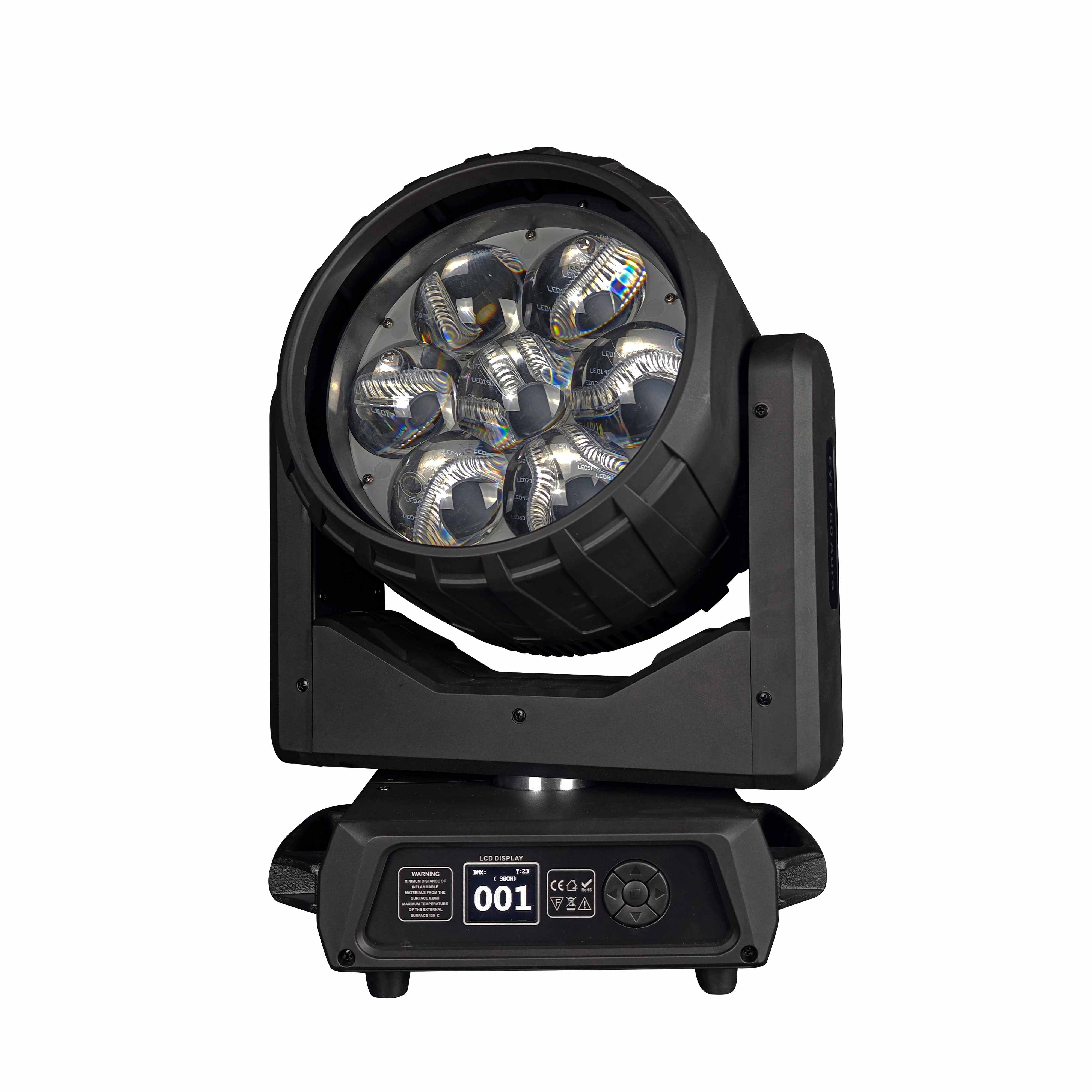

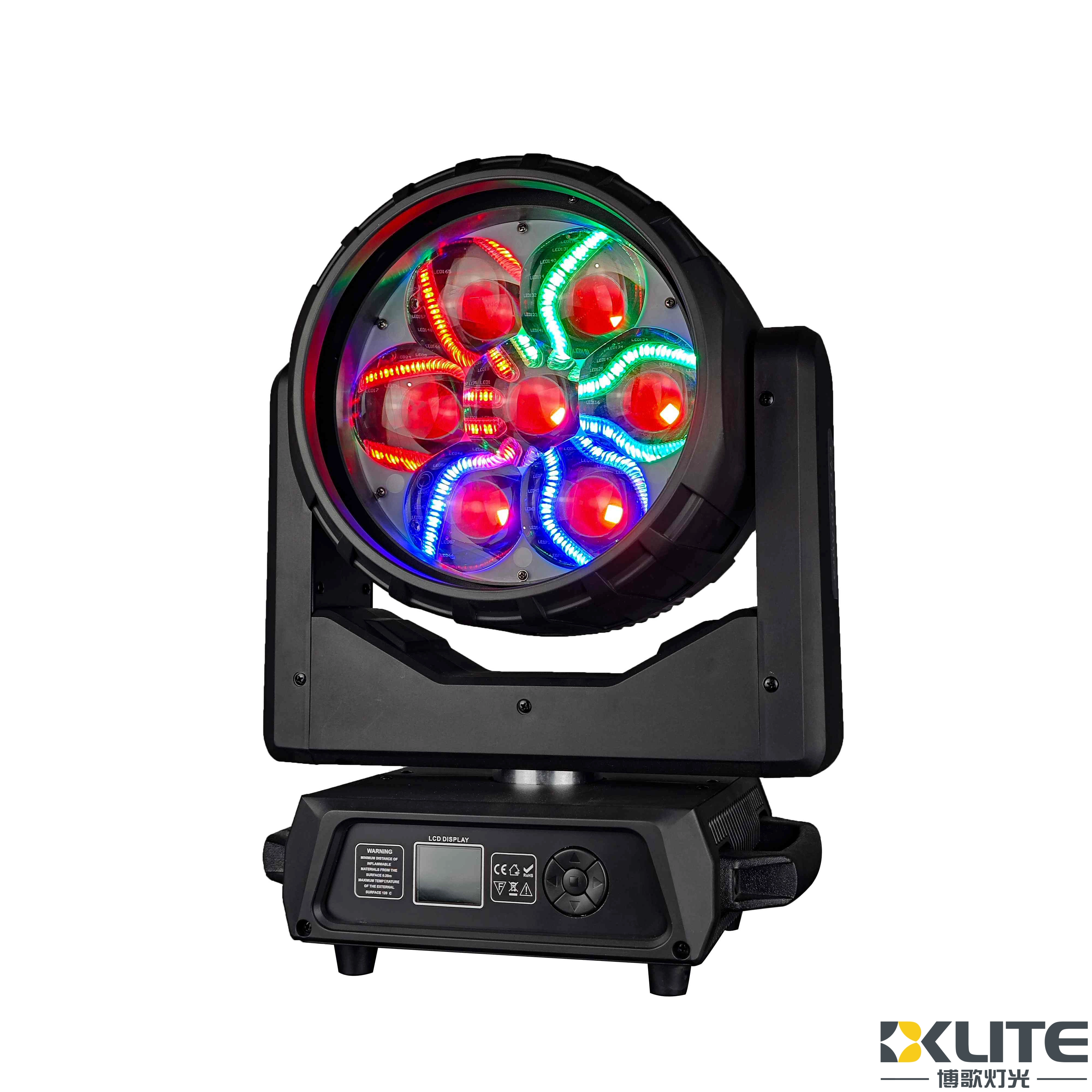

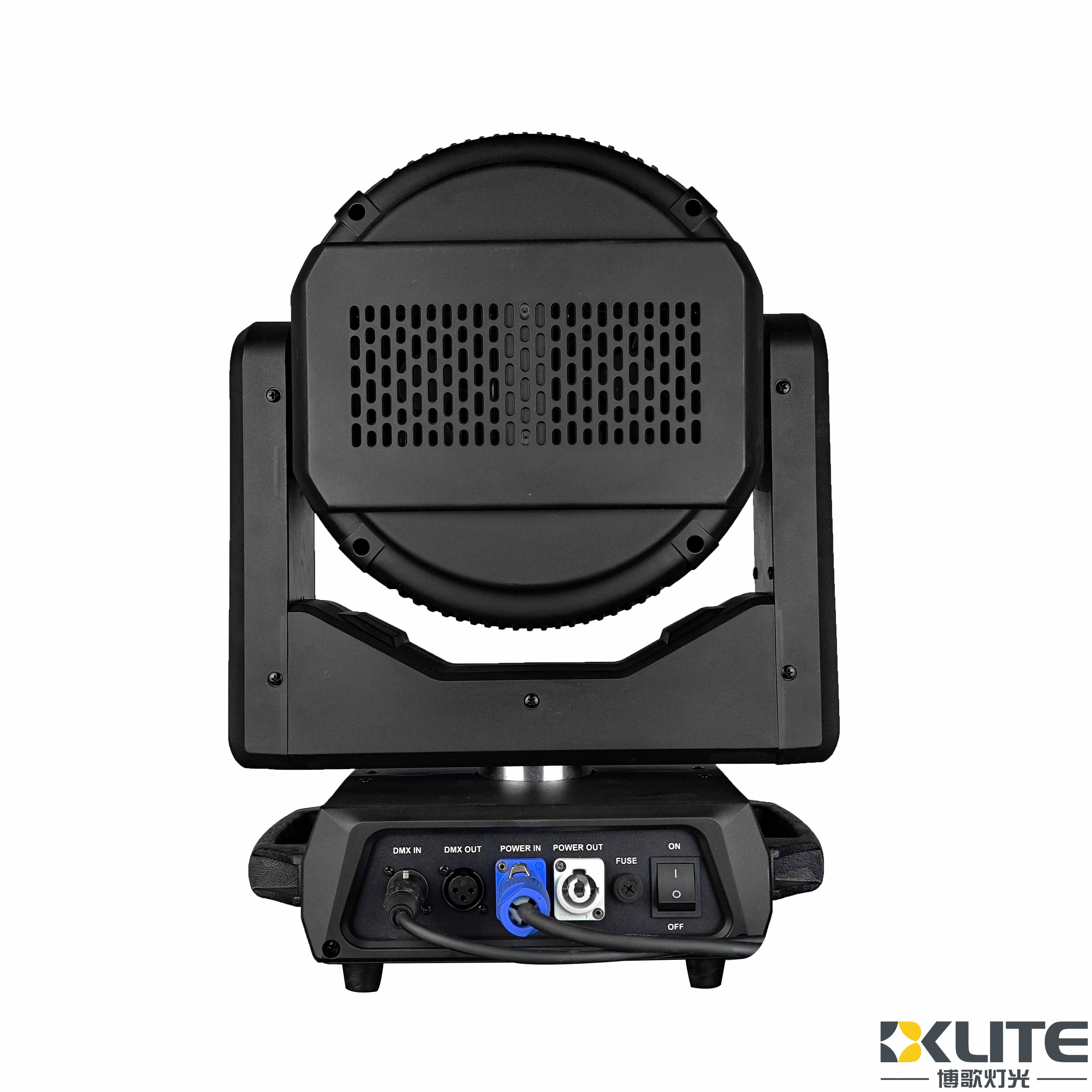

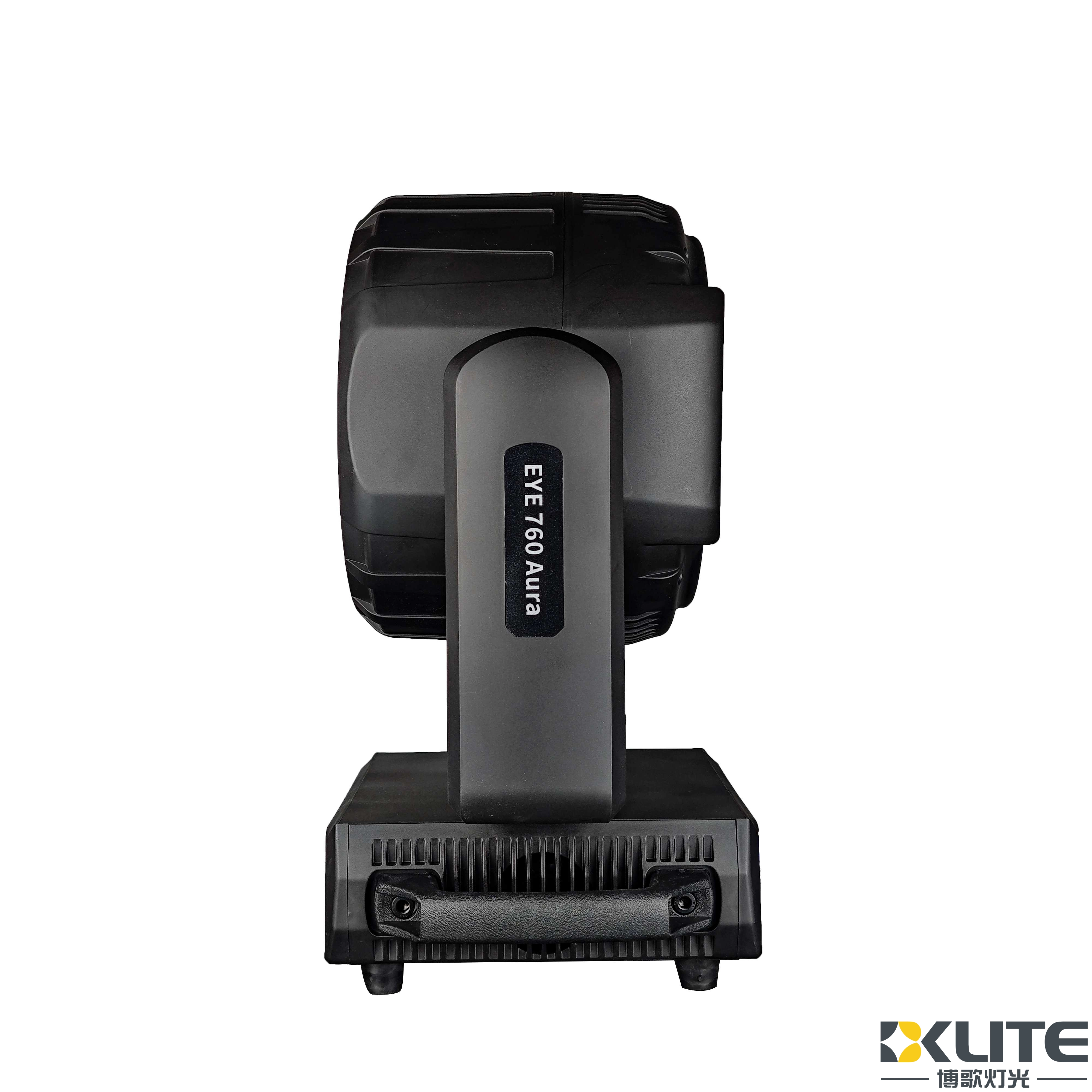

IP20 Bee Eye Zoom 7x60w rgbw 4in1 LED Beam Wash Moving Head Light with LED Effect Light

As one of the leading stage lighting equipment suppliers with 14+ years of experience, BKLite launched a new bee eye 7x60 LED wash light BK-BY760Z .

Designed with a simple and sleek appearance, the WASH moving head light is compact, lightweight, and highly portable.

With multiple color effect macros and dynamic effect macros.

our wash light can be used for versatile lighting options with Arua effect.

It is very good for your lighting projects.

Powerful and shoot very far distance.

Brand

BKlite

Model No.

BK-BY760Z

Power

550w

Light source

7x 60W（4in1 RGBW）high brightness LEDs

Input voltage

AC90-240v 50-60HZ

Waterproof rating

IP20

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY

IP20 7x60W B eye user manual.pdf

IP20 bee eye 760 Light library.zip

Key Features

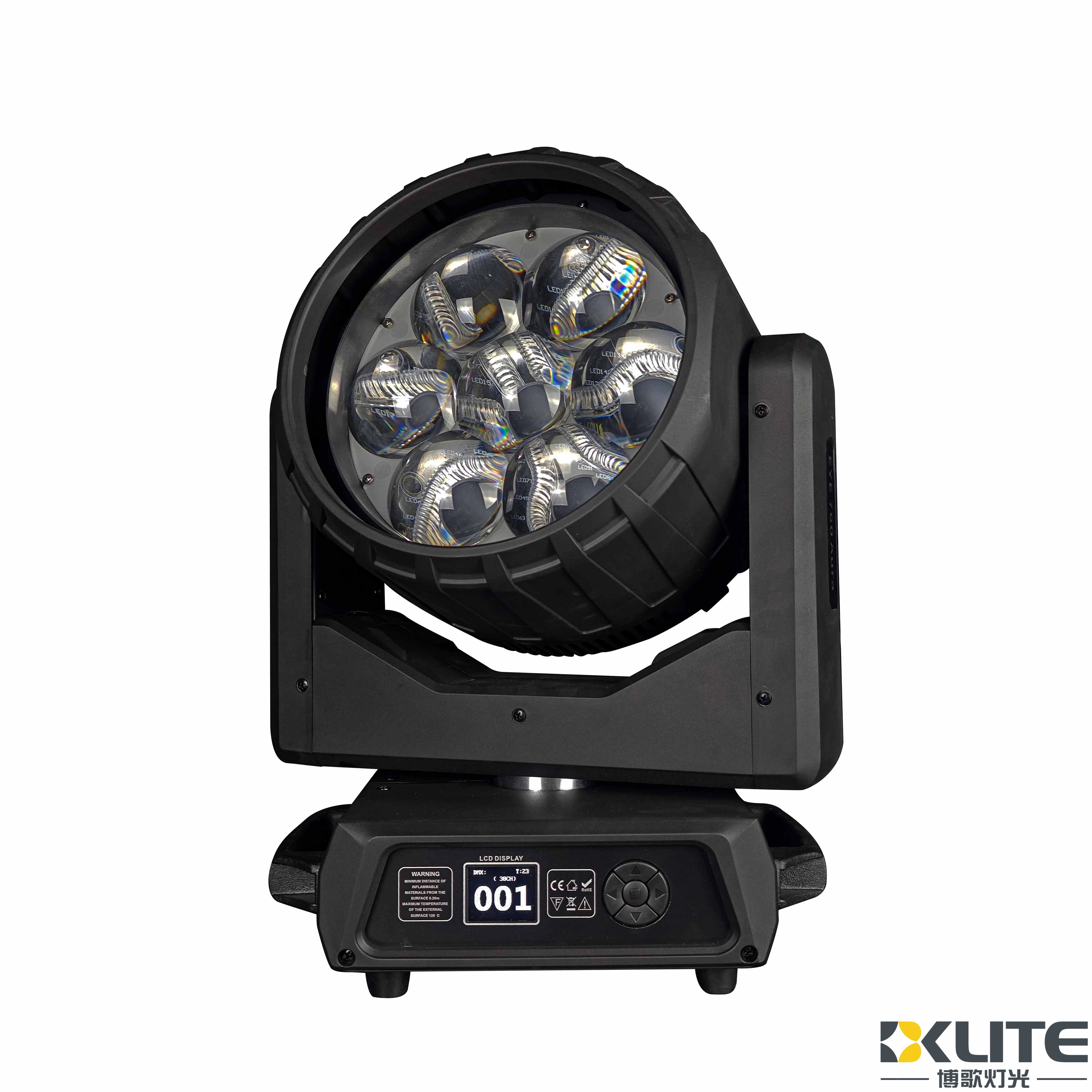

• Each LED can be controlled individually. With unique honeycomb designed lens

• The front lens can rotate without limitation in forward and reverse direction to create amazing effects
• Can be used as beam, wash or effect light use (Kaleido effects)

• Macro effects: Multiple built-in macros with control of foreground color, background color, speed and
direction. 3D video mapping of fixture beam pixels and/or Aura filaments.
• Temperature control: Intelligent temperature control, capable of automatically adjusting the speed of the
cooling fan and overheating protection

Channels

Built-in 6 channel modes 21/30/36/57/78/93CH

Light source

7x 60W (4-in-1 RGBW) high-brightness LEDs

Power

550W

Mode

DMX512,RDM, Master/slave

Scanning system

540° /270°

Excellent color mixing effect

Video

More parameters

Specification	Details
Voltage	AC100-240V 50-60Hz
Power	550W
LED Source	7×60w RGBW high brightness LEDs
Zoom	7° - 45°
Strobe	0-25Hz
Control Mode	DMX512, Sound-activated, Master/Slave
DMX Channels	21/30/36/57/78/93 six channel mode
Dimmer	0-100% linear dimmer with 4 dimmer curves
Pan	540° + 16-bit fine
Tilt	270° + 16-bit fine
Display	LCD display with touch buttons
IP Rate	IP20
Fixture Dimension	356280450mm
Net Weight (N.W.)	14.6KG
Gross Weight (G.W.)	18.5KG (1pc/ctn)
Package Dimension	435360525mm (1pc/ctn)

Product Details

Dimensions Accessores

Photometrics

Light source

•Lighting luminous flux 108,000 lumens
•LED expected lifespan：5000hour

Control and procedure

•Five mechanical keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
