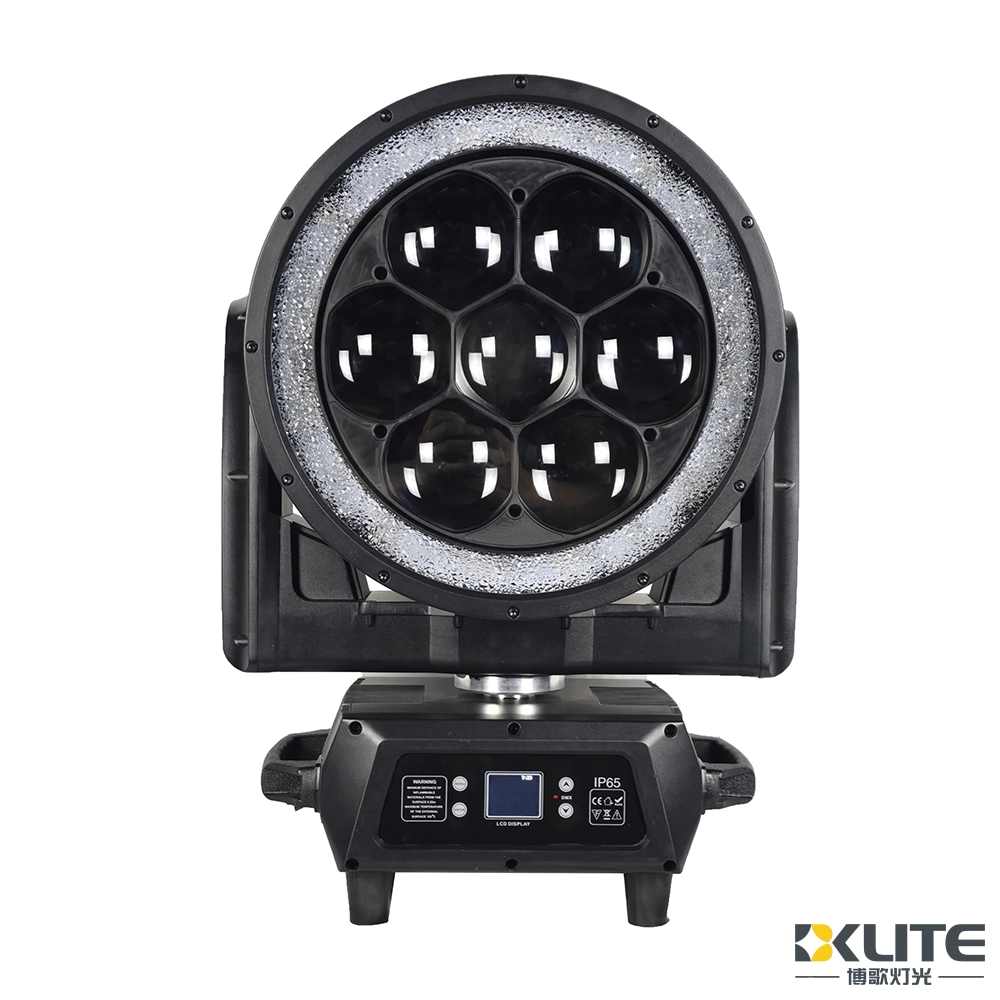

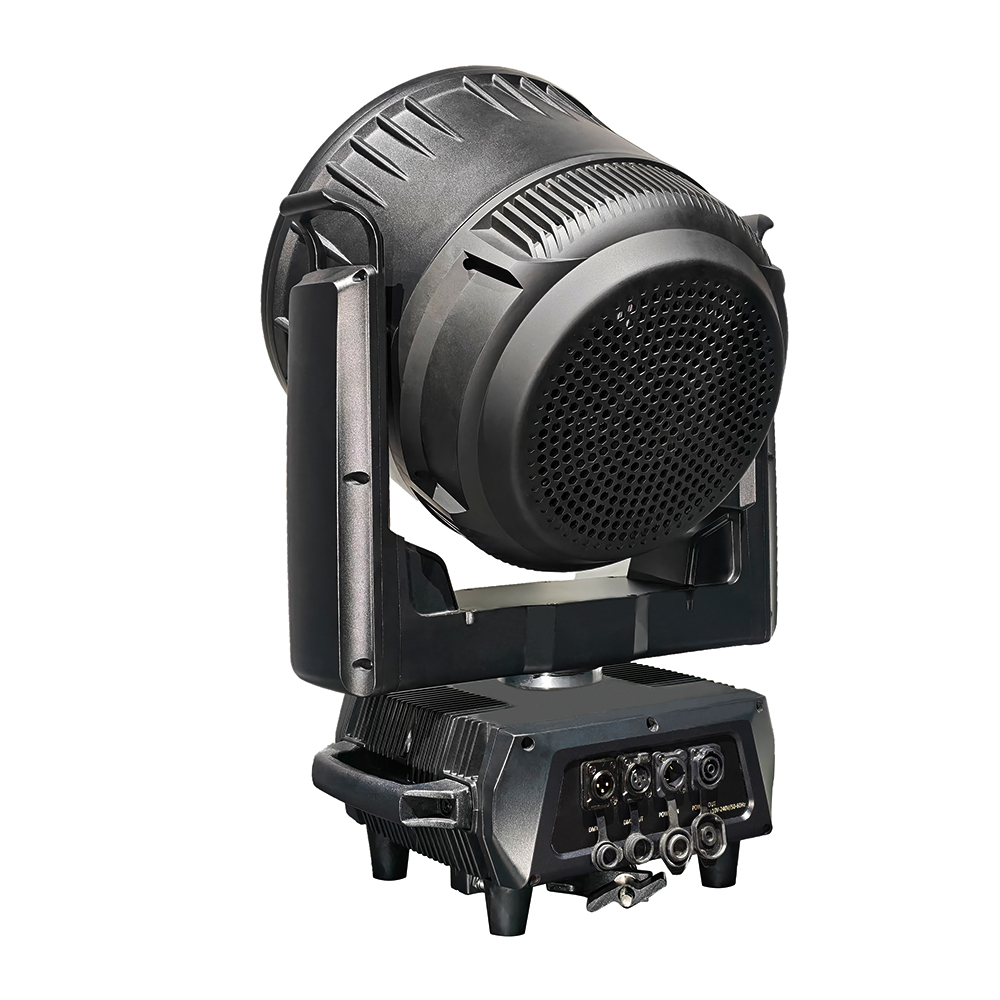

IP65 Waterproof Zoom Bee Eye 7x180W RGBL 4IN1 LED Moving Head Light With LED Ring

With more than 14 years of experience in professional stage lighting, BKLITE is a specialized waterproof stage lighting manufacturer in China.The BKlite 7×180W Bee Eye is a high-output RGBL moving head designed for large concerts, festivals, touring productions and outdoor events. Featuring seven 180W RGBL LED sources, an independent LED ring and motorized zoom, it combines powerful beam effects, wide washes and dynamic pixel-style effects for professional stage applications.

Brand

BKlite

Light source

7x180W high power RGBL 4 in 1 LEDs

Input voltage

AC100-240V 50-60HZ

Waterproof rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

IP65 7x180w bee eye user manual 2026.8.14.pdf

Key features

• Dual high-power LED system with 7×180W 4-in-1 RGBL main LEDs and 60×4W RGBW auxiliary LEDs for powerful, layered color output.

• Individually controllable LEDs with honeycomb lens for precise light shaping and stunning visuals.

• Unlimited forward/reverse rotating front lens for dynamic, eye-catching stage effects.

• Versatile design for use as beam, wash, kaleido effect light.

• LED ring with halo effect, macro modes, diamond & taillight effects for enhanced atmosphere.

• Professional RGBL color mixing for vivid saturated colors, soft pastels, pure whites and dynamic virtual color wheel control.

• Rugged waterproof housing for indoor/outdoor use.

Waterproof rating

IP65

Light source

Main light : 7pcs 180W high power RGBL 4in1 LEDs

Power

1510W

Mode

DMX512, Auto, RDM, Sound-activated, Master/Slave

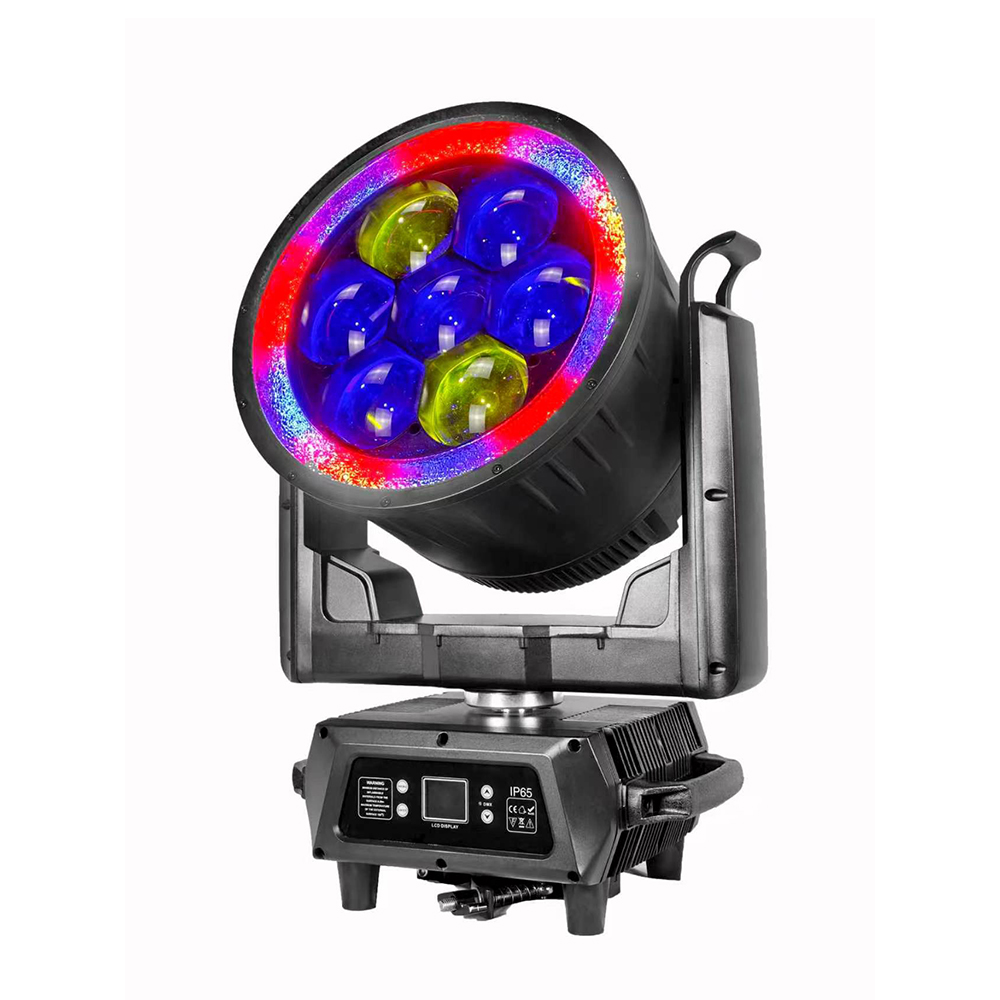

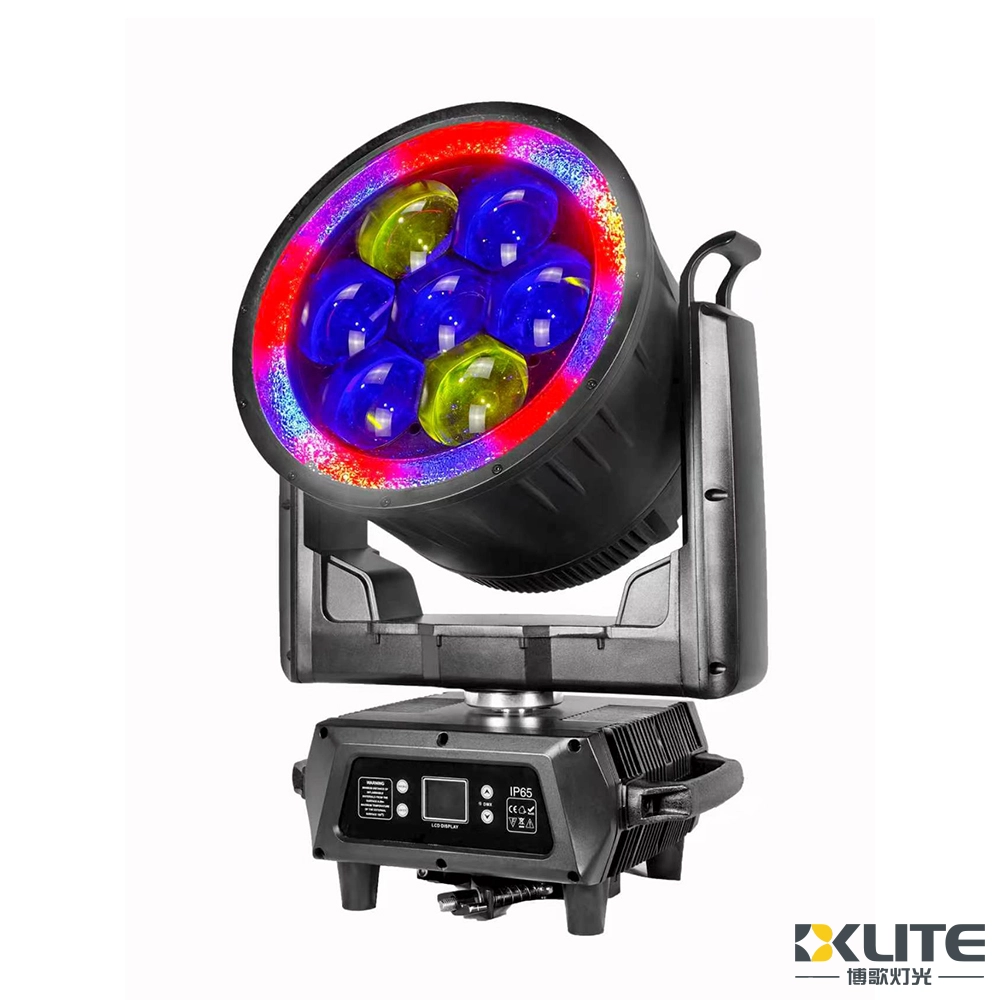

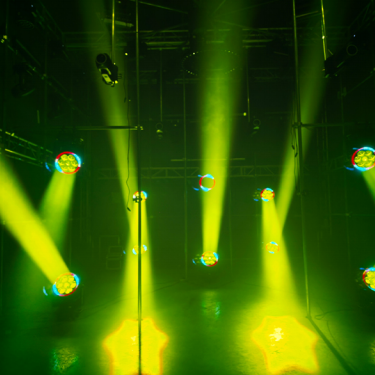

Excellent color mixing effect

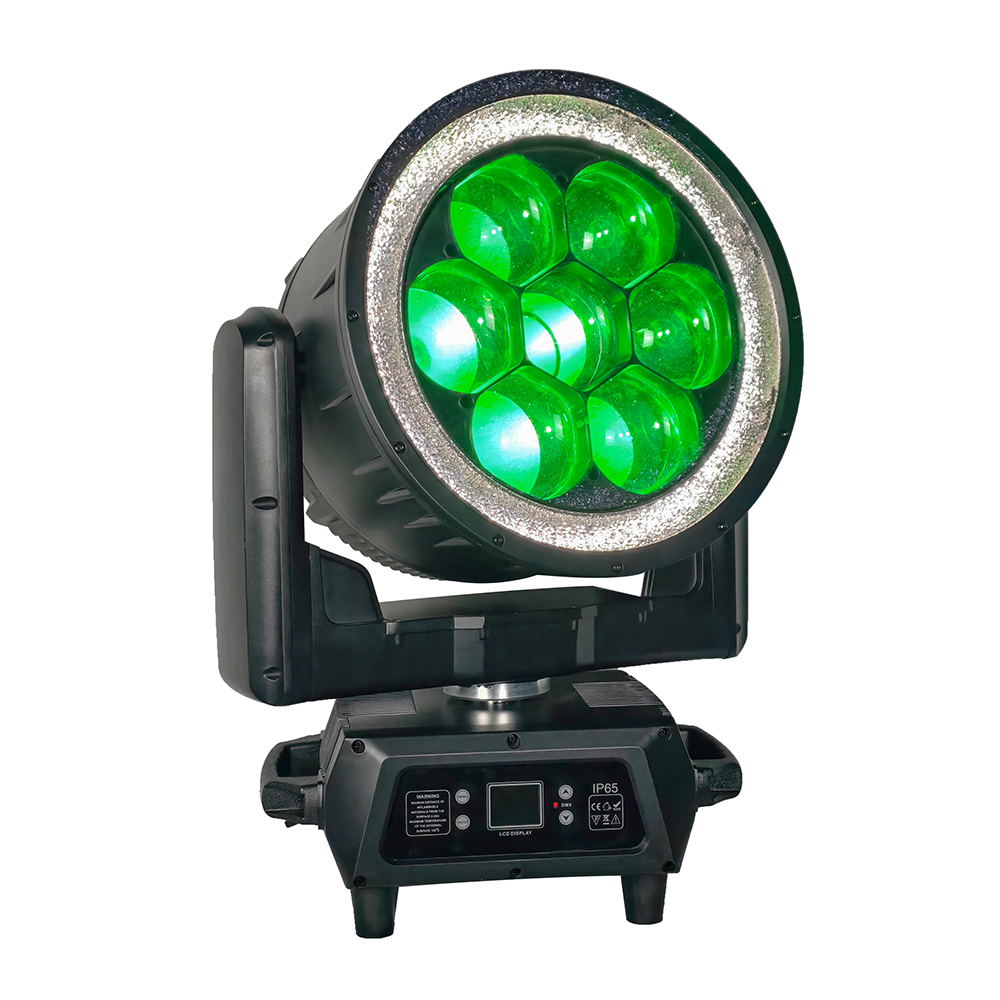

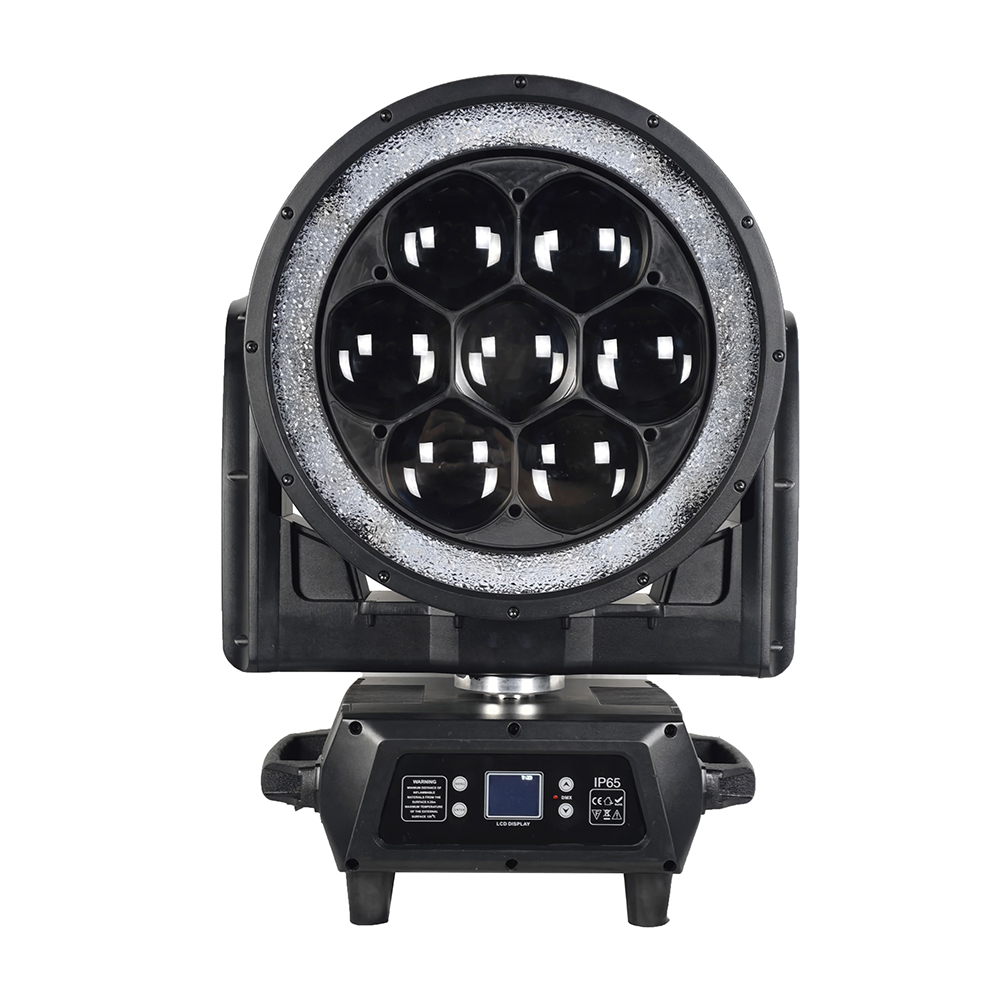

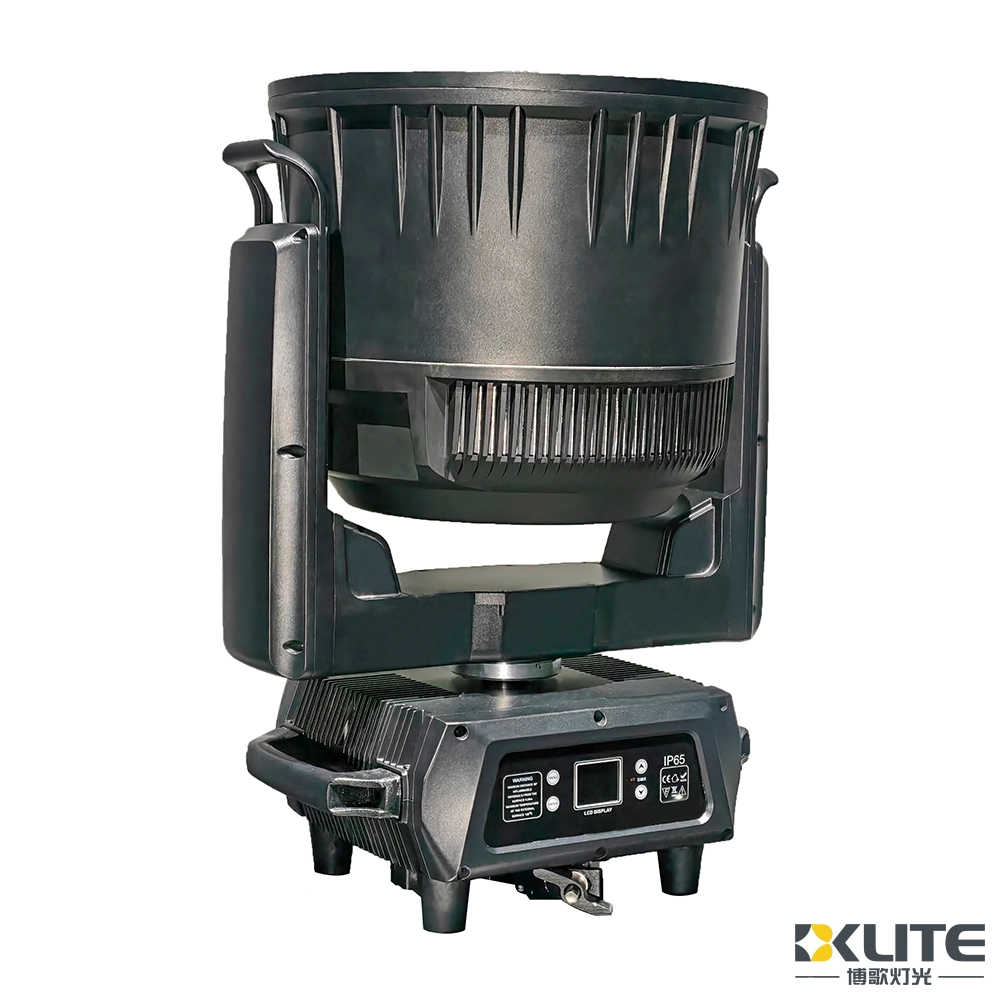

waterproof 7x180w bee eye moving head light

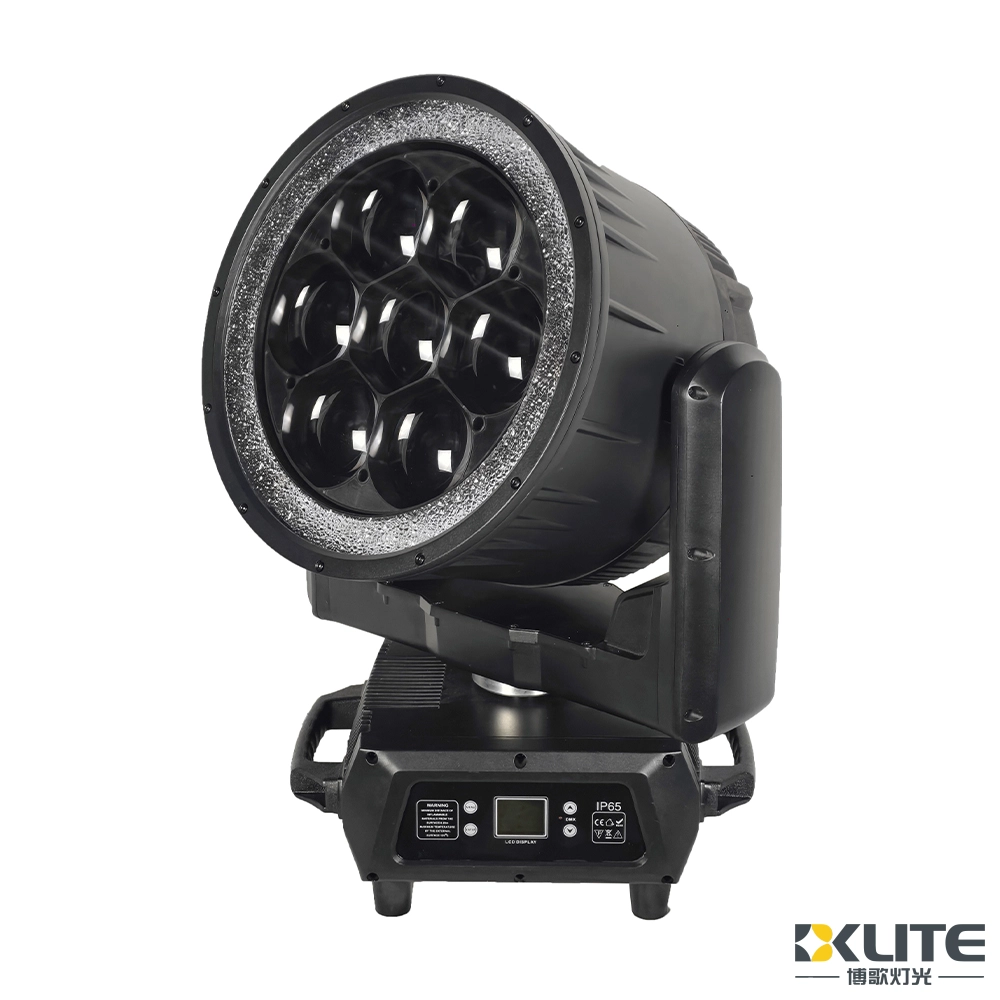

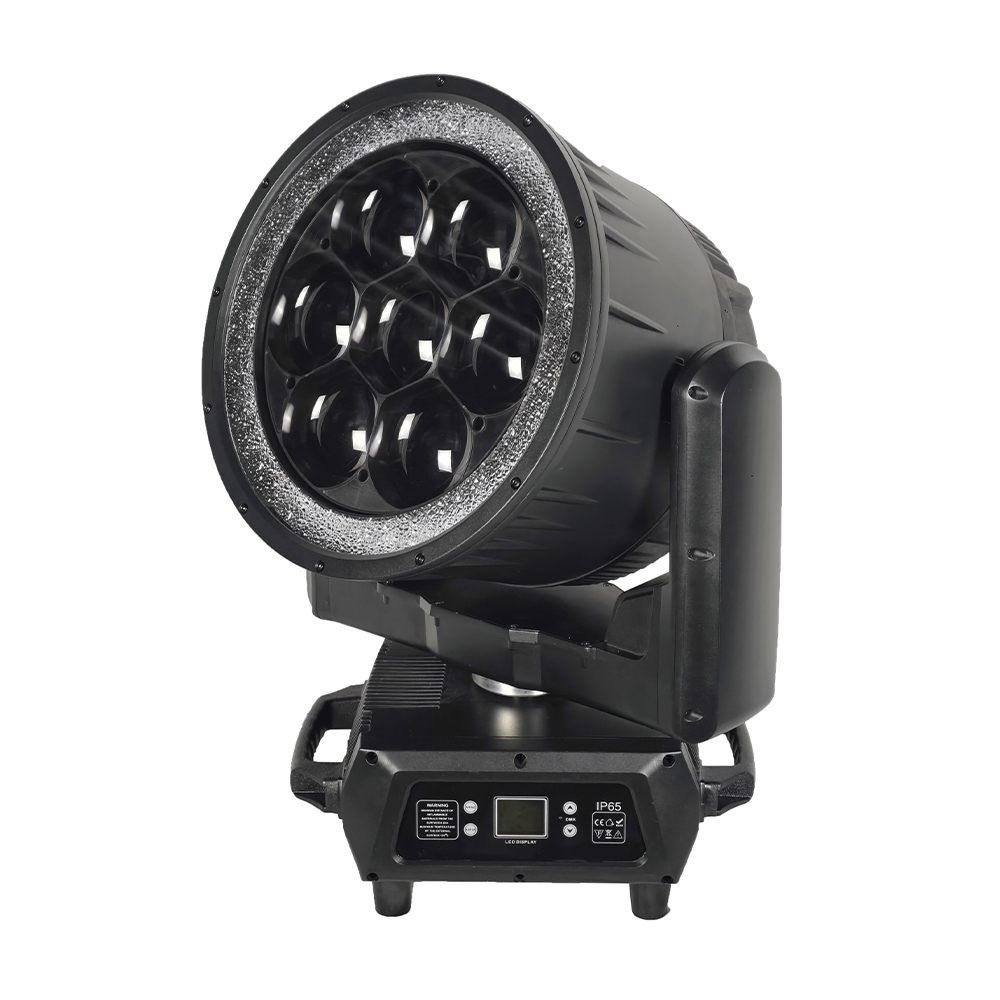

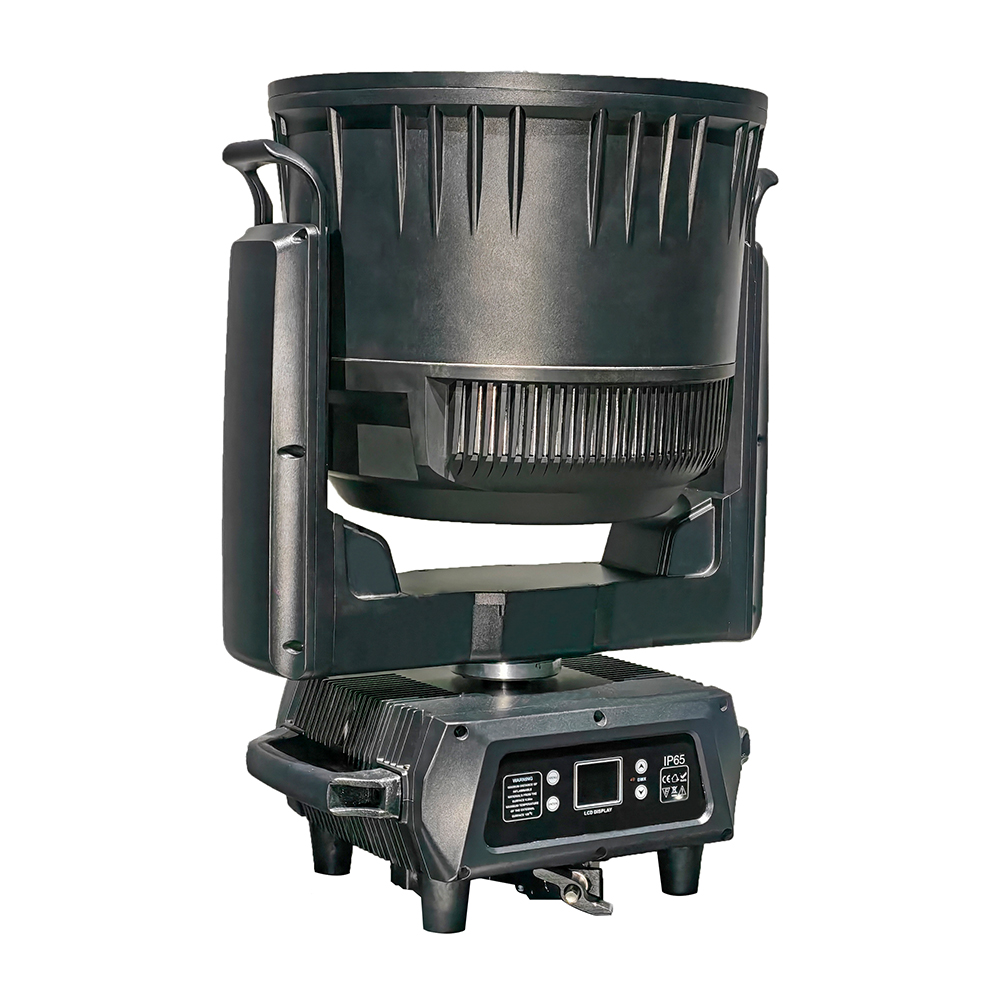

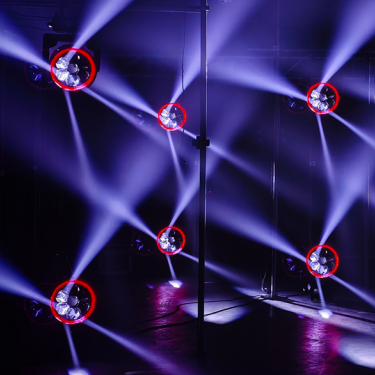

IP65 Outdoor 7pcs 180w superbright moving head light

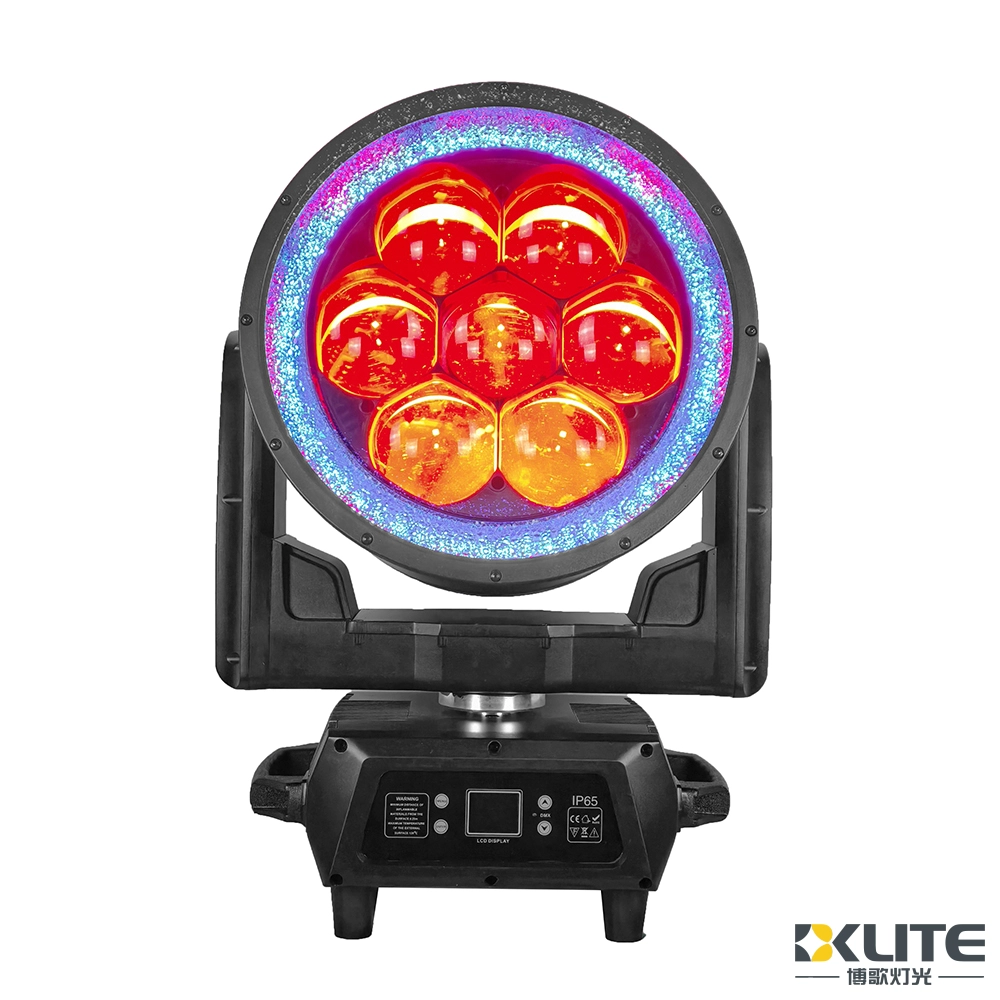

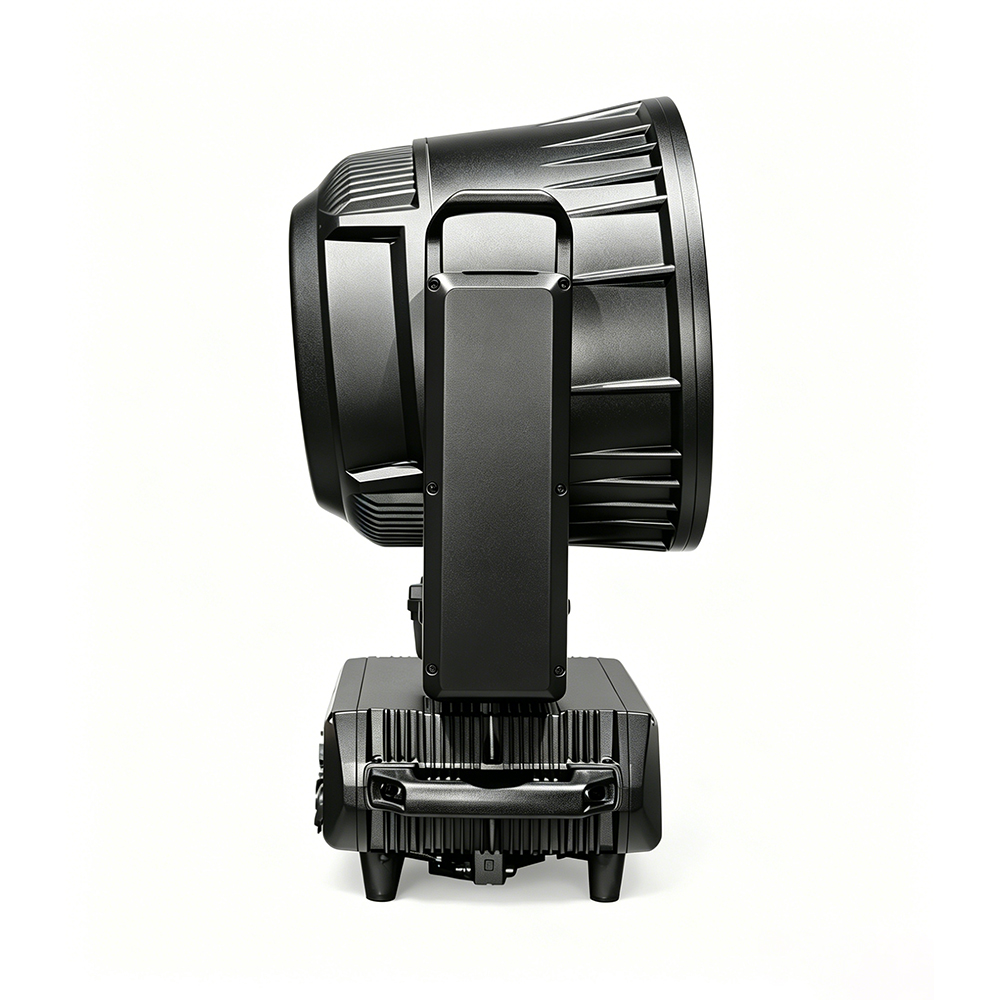

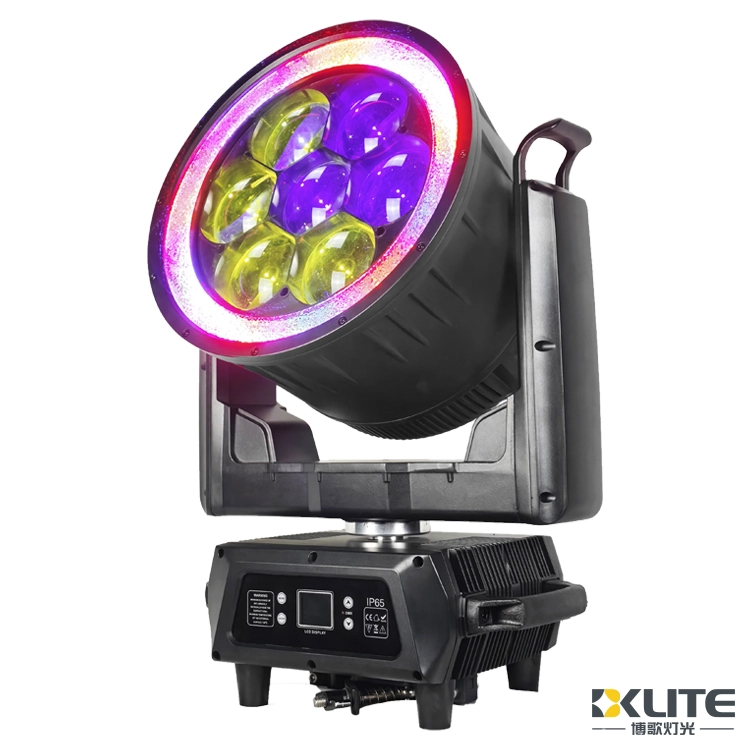

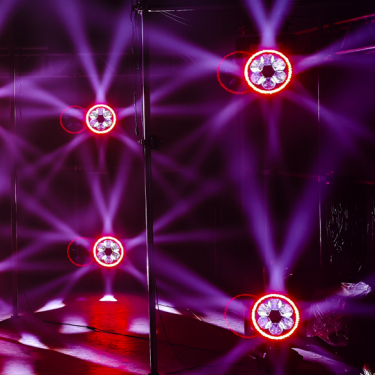

High power 7x180w bee eye moving head light

Video

More parameters

Specification	Details
Voltage	AC100-240V 50-60Hz
Power	1510W
LED Source	Main light : 7pcs 180W RGBL 4-in-1 LEDs Outer circle axiliary light : 60 pcs 4W RGBW LEDs
Bea Angle	5° - 55°
Strobe	1-25Hz with multiple strobe effects
DMX Channels	41CH/ 19CH/ 137CH/137A CH/ 20CH/42CH /29CH/56CH total 8 channels
Dimmer	0-100% linear dimmer with 4 dimmer curves
Control	DMX512，Auto，RDM, W-DMX & Art-Net (optional, extra charge)
Pan	540° + 16-bit fine
Tilt	270° + 16-bit fine
Color	RGBL color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones. Tungsten Emulation Option.Virtual Color Wheel.
Display	LCD display, Chinese and English menu
IP Rating	IP65
Temperature Control	Intelligent temperature control, capable of automatically adjusting the speed of the cooling fan and overheating protection
Body Material	Latest third-generation structural waterproof design, metal die-casting aluminum shell and fire-resistant and UV resistant engineering plastic.
Fixture Dimension	431 × 296 × 592 mm
Carton Size	70x52x40cm(1pc/ctn)
Net Weight	26KG
Gross Weight	29KG

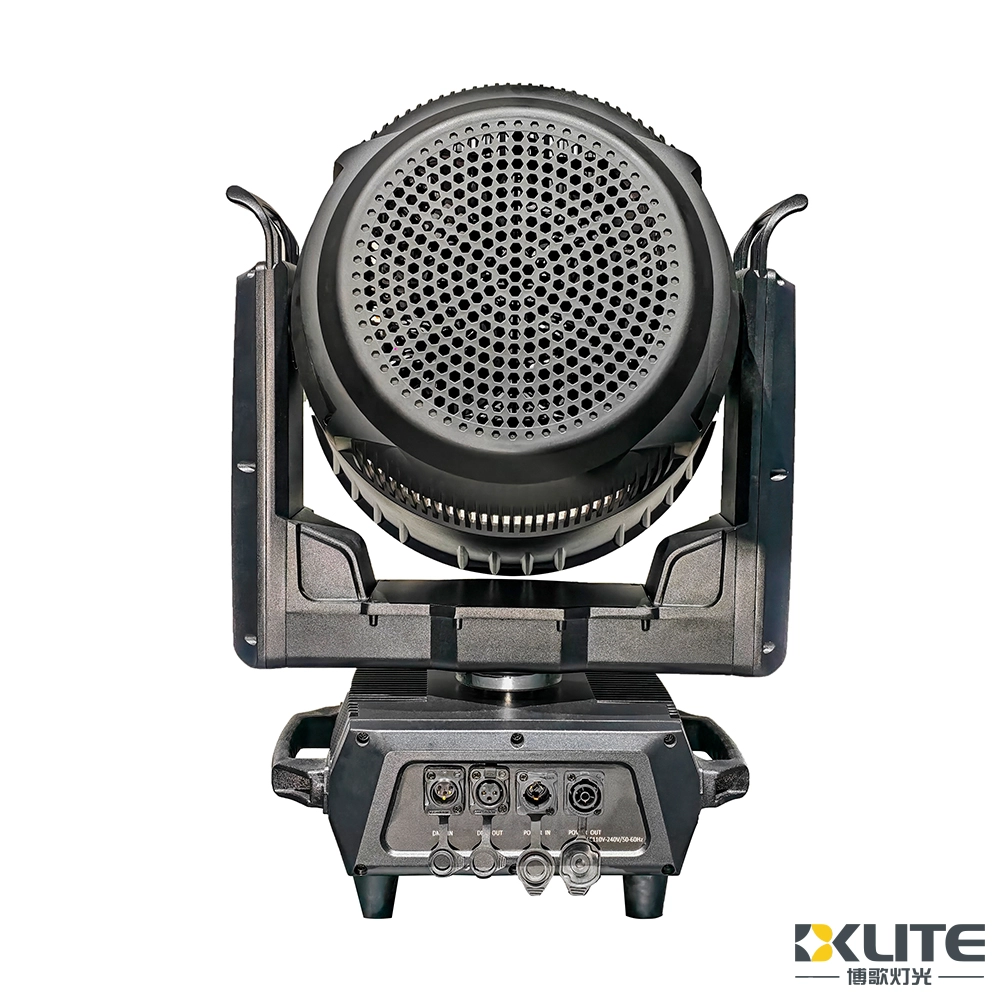

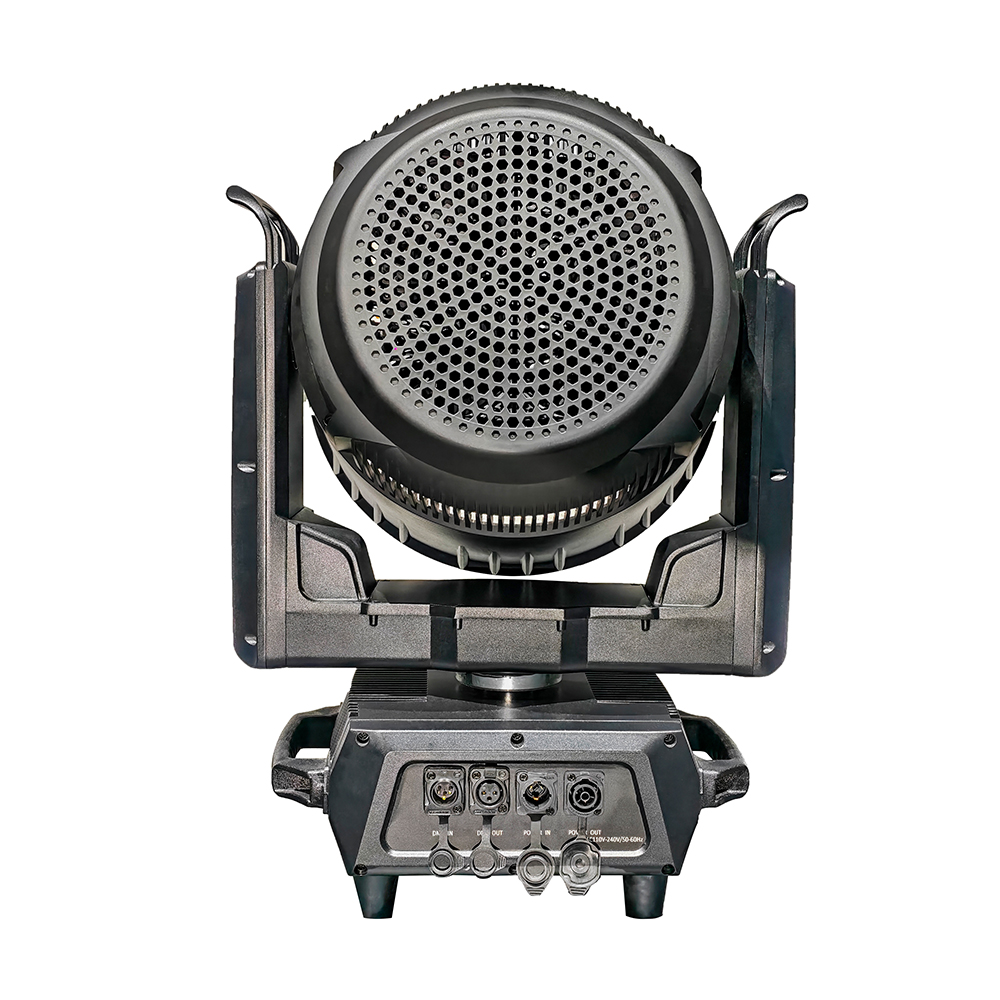

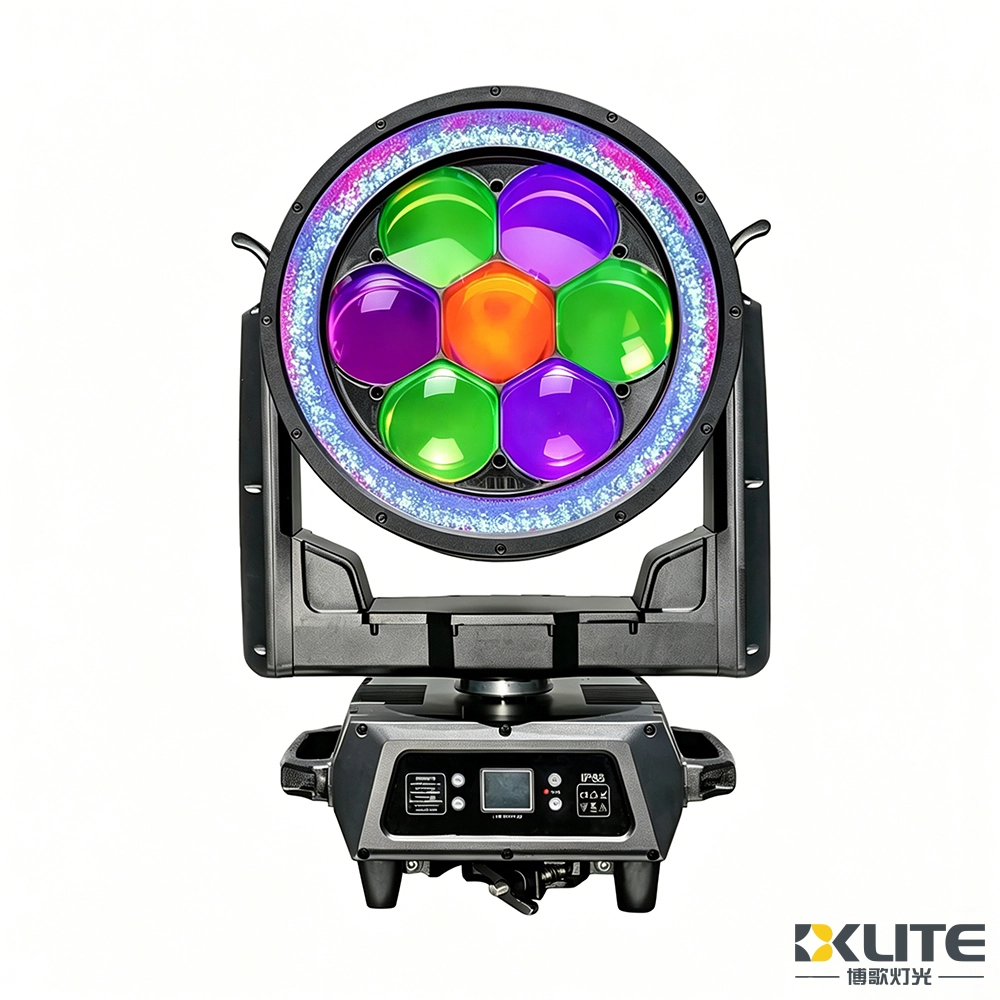

Product Details

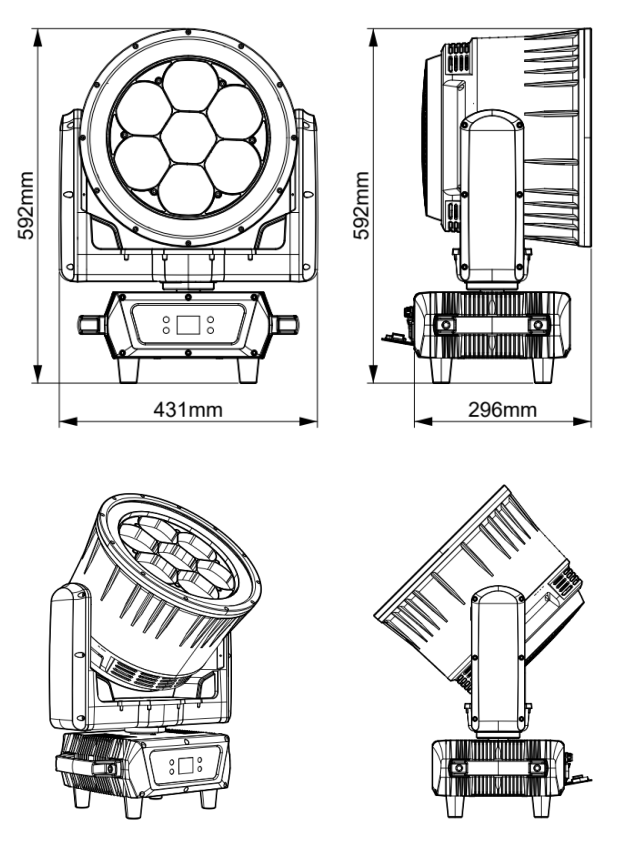

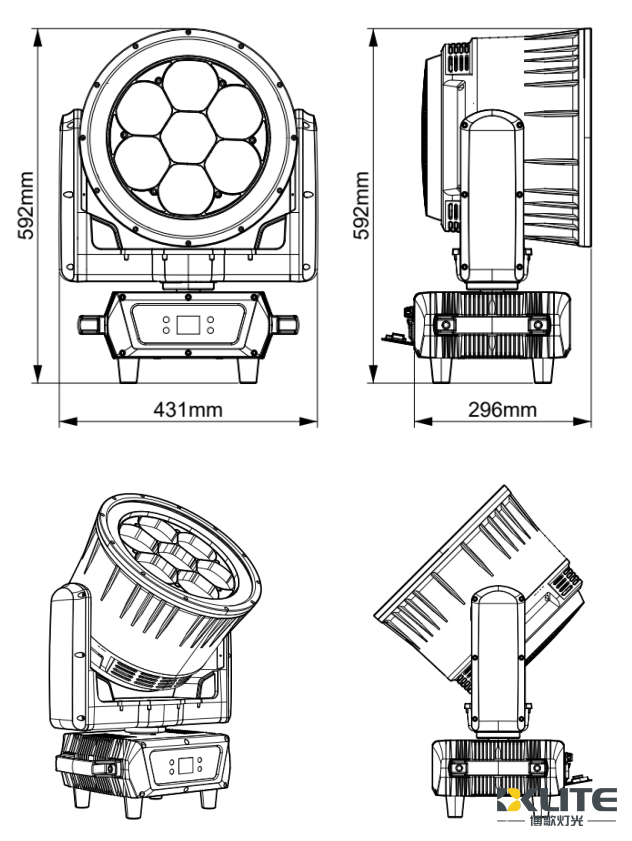

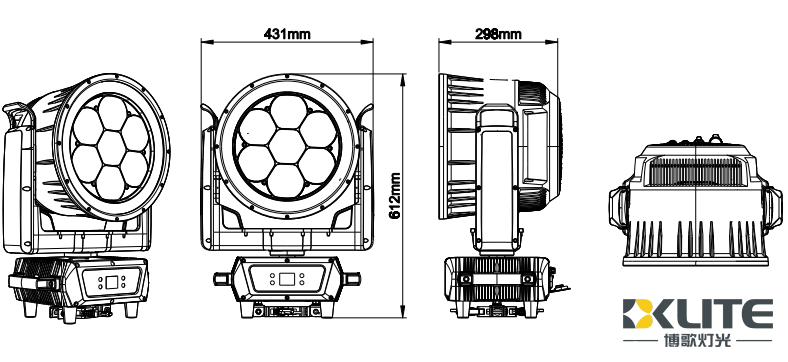

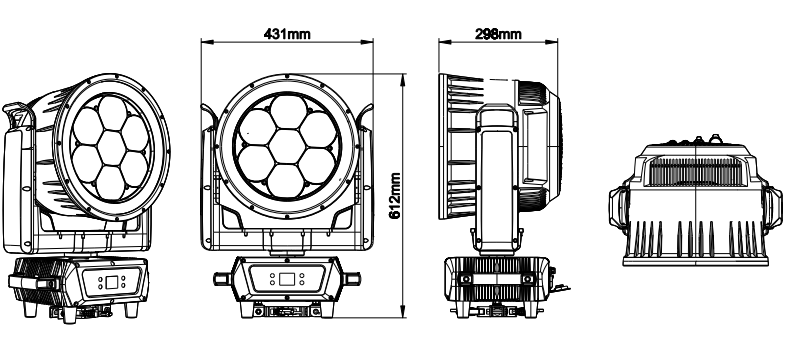

Dimensions

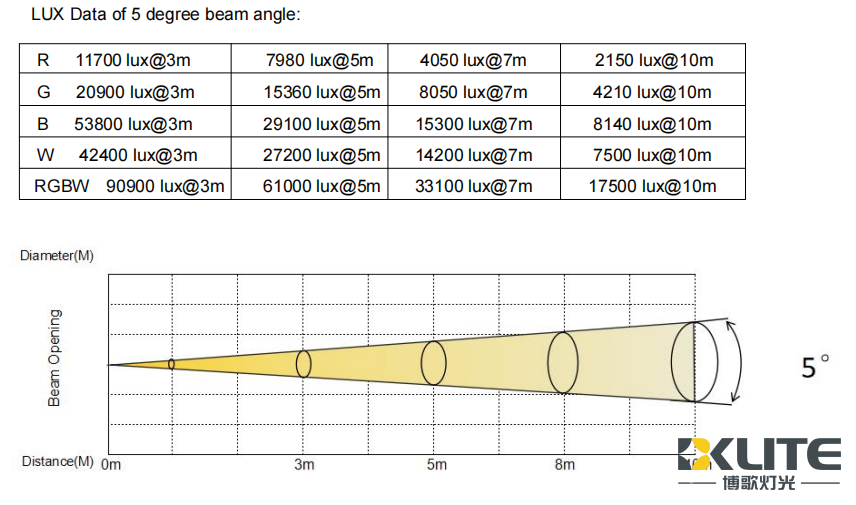

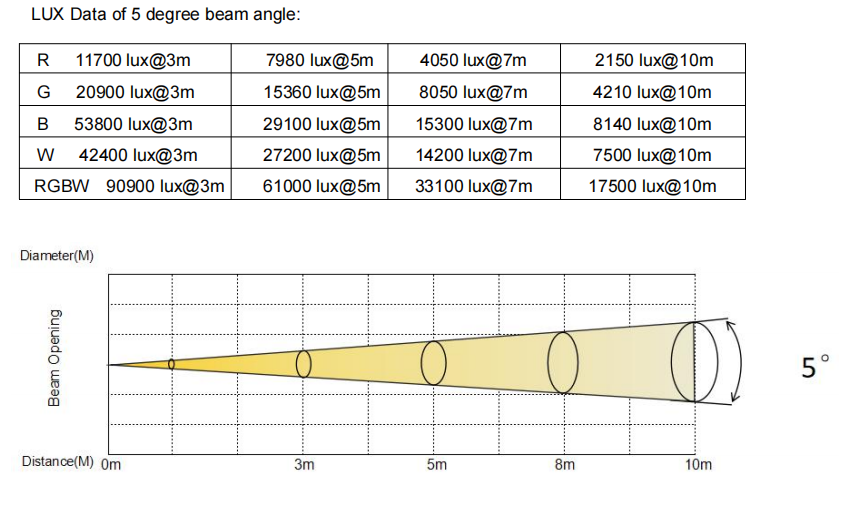

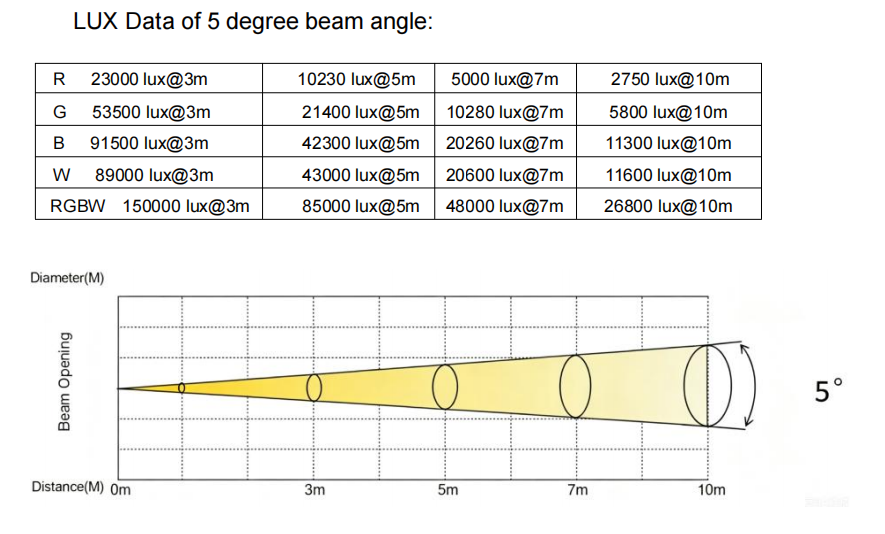

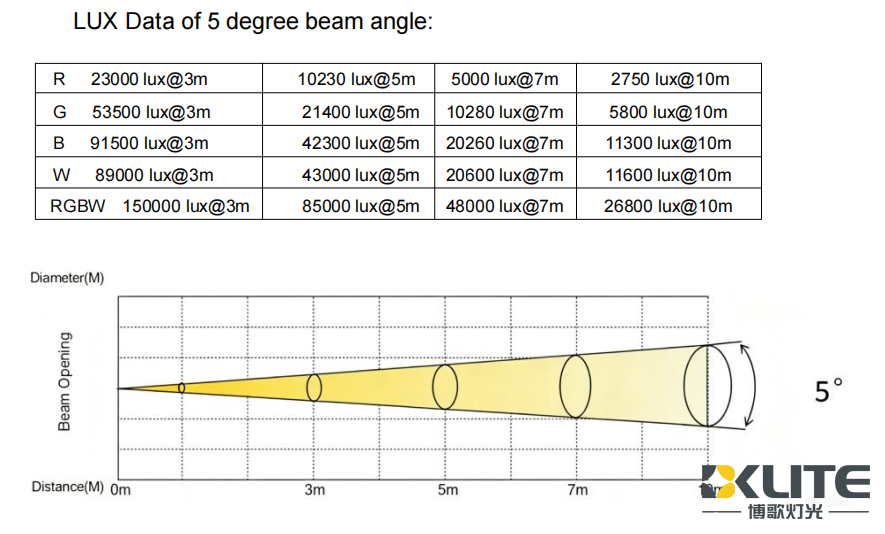

Photometric Data

Waterproof Performance Test

Control and procedure

•Four touch keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
