Excellent color mixing effect

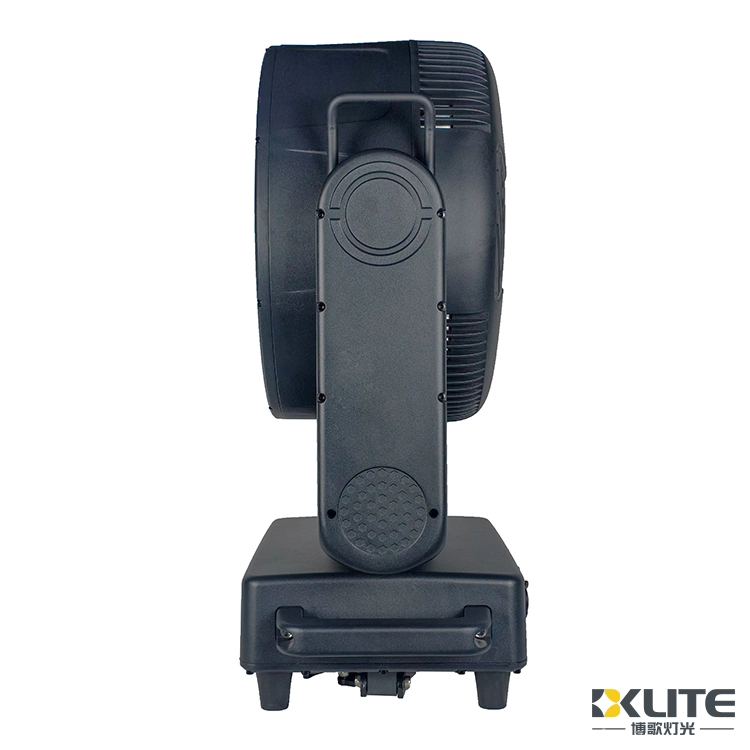

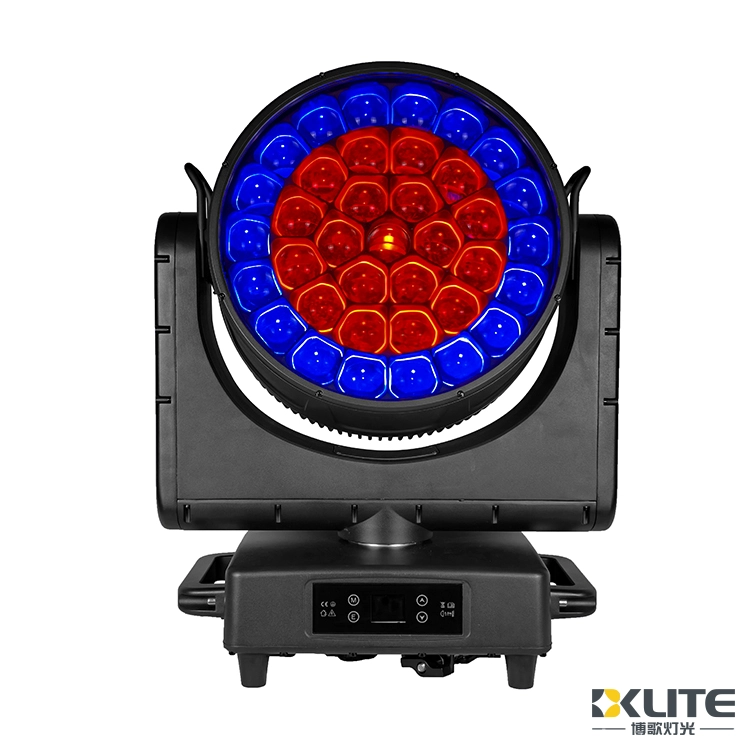

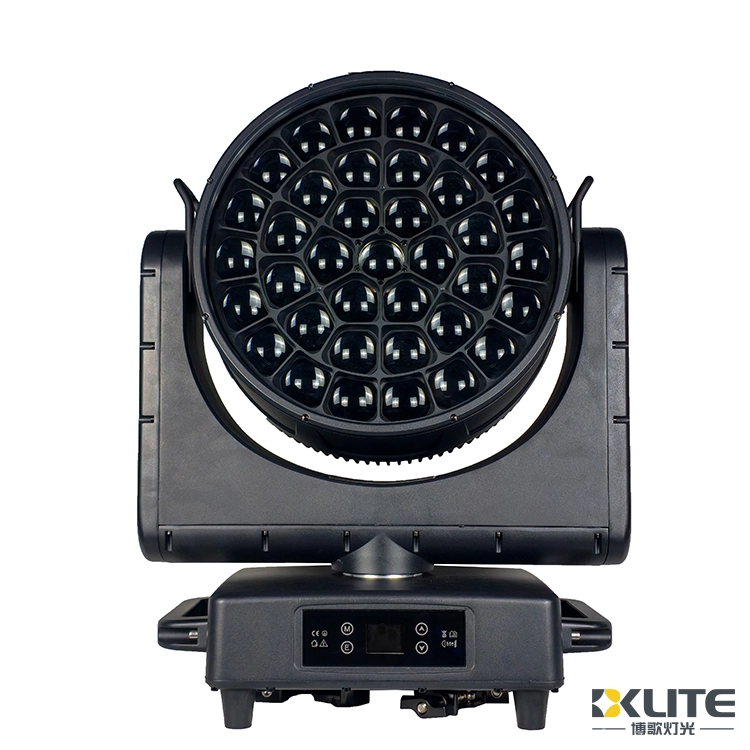

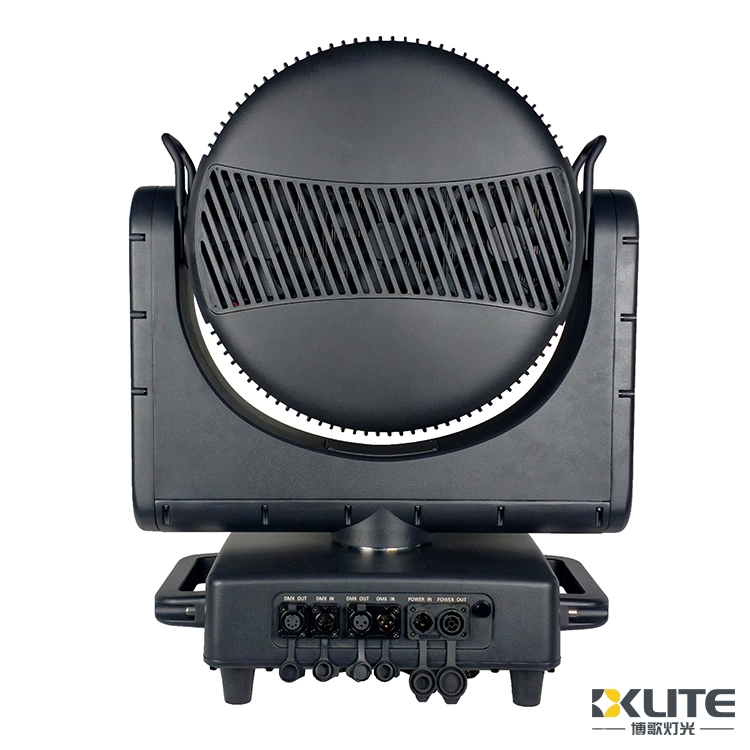

IP65 Waterproof ZOOM Bee Eye 37x40W RGBW 4in1 LED Moving Head Light
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized waterproof stage lighting manufacturer in China. The BKLITE IP65 Waterproof Bee Eye 37x40W Moving Head Light is a high-output K25 bee-eye moving head designed for outdoor concerts, music festivals and touring productions. Featuring 37 individually controllable 40W RGBW 4in1 LEDs, 8°‑48° motorized zoom and rotatable honeycomb lens, it provides powerful beam, wash and kaleidoscope effect lighting for professional stage applications.
Brand
BKlite
Model No.
BK-BY3740Z IP
Power
1450W
Light source
37x40W high power RGBW 4 in 1 LEDs
Input voltage
AC100V～240V 50-60HZ
Waterproof rating
IP65
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
IP65 Manual of 37x40w led moving head light.pdf
IP65 3740W Light library.zip
Key features
• Each LED can be controlled individually. With unique honeycomb designed lens
• The front lens can rotate without limitation in forward and reverse direction to create amazing effects
• Can be used as beam, wash or effect light use (Kaleido effects)
• It is a high-brightness outdoor LED stage light. Suitable for all types of indoor shows, concerts, theater, or outdoor events.
Channels
21/22/35/36/111/148 six channel mode
Light source
37 × 40W high-power RGBW 4-in-1 LEDs
Power
1450W
Mode
DMX512,RDM, Master/slave
Scanning system
540° /250°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 1450W |
| LED Source | 37x40W high power RGBW 4-in-1 LEDs |
| Zoom | 8° - 48° |
| Strobe | 0-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 21/22/35/36/111/148 six channel mode |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Pan | 540° + 16-bit fine |
| Tilt | 250° + 16-bit fine |
| Display | LCD display with touch buttons |
| IP Rate | IP65 |
| Fixture Dimension |
530*279*663mm
|
| Net Weight (N.W.) | 32.7KG |
| Gross Weight (G.W.) | 37.8KG (1pc/ctn) |
| Package Dimension | 79.5*65*42cm(1pc/ctn) |
Product Details
Dimensions Accessores
Photometrics
Light source
•Lighting luminous flux 122,800 lumens
•LED expected lifespan：50,000hour
Control and procedure
•Five mechanical keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Work environment temperature
• -20°C-40°C
Installation
•Can be installed horizontally or vertically
•Universal operating position

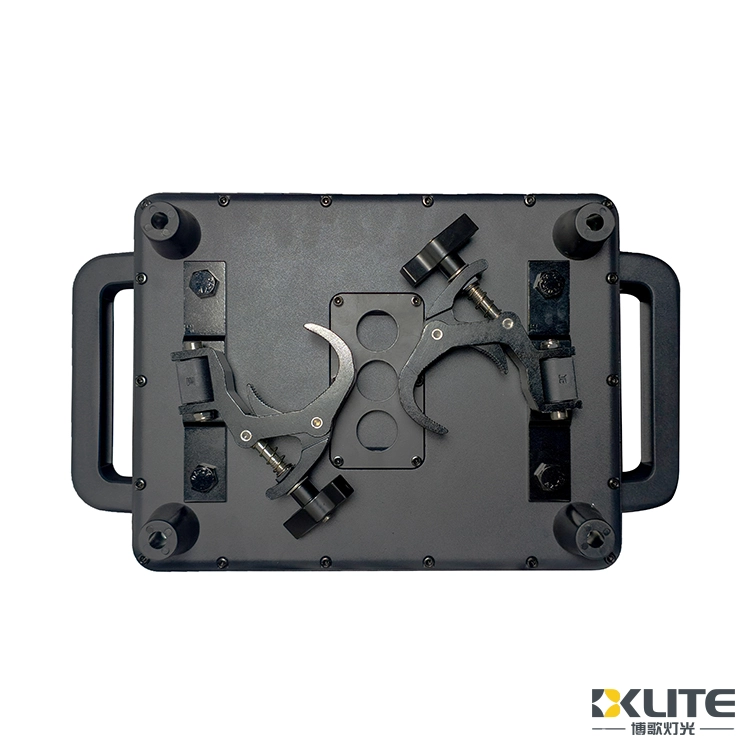

•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
