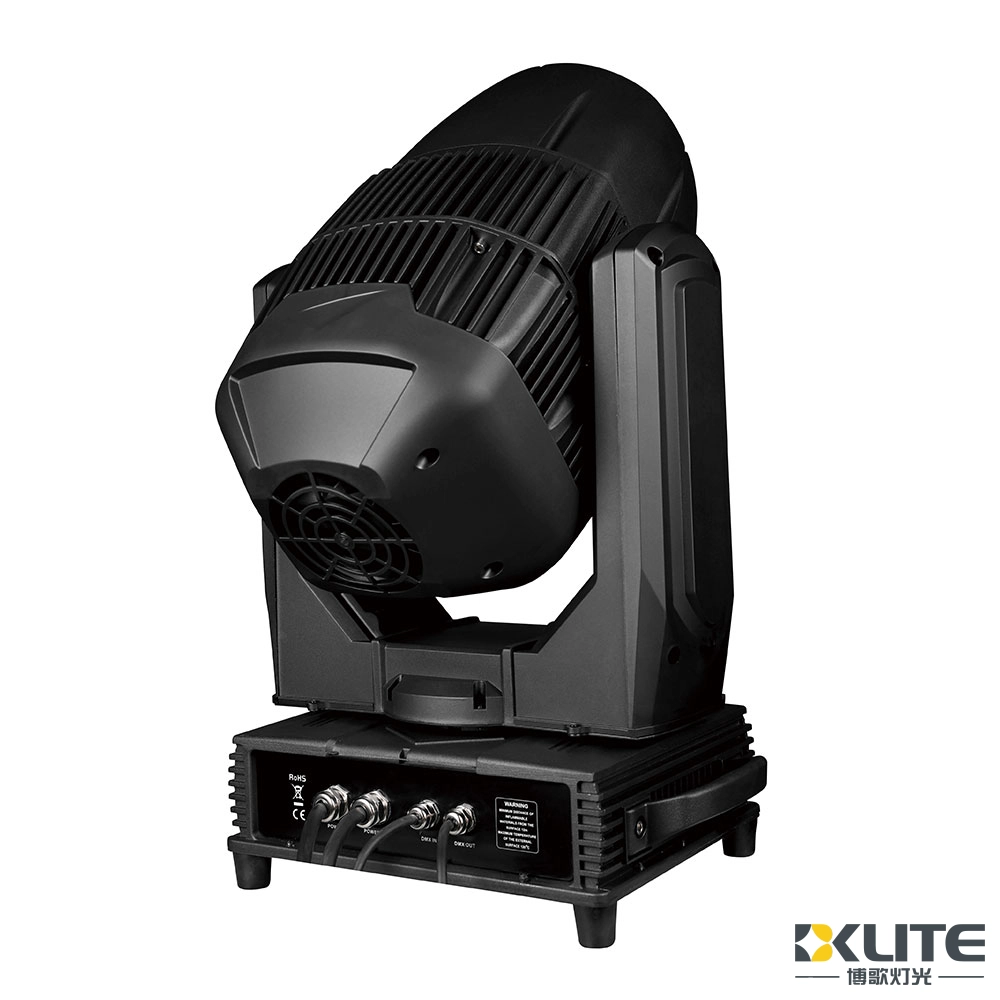

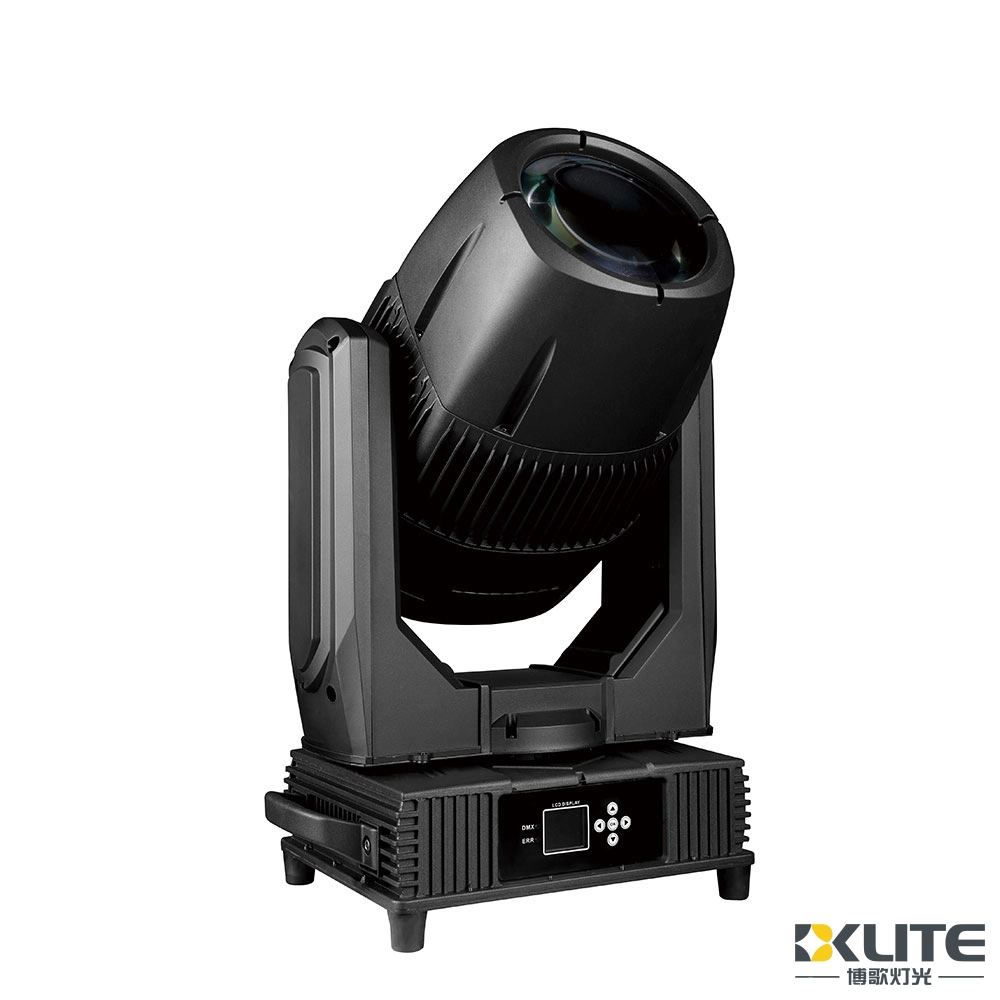

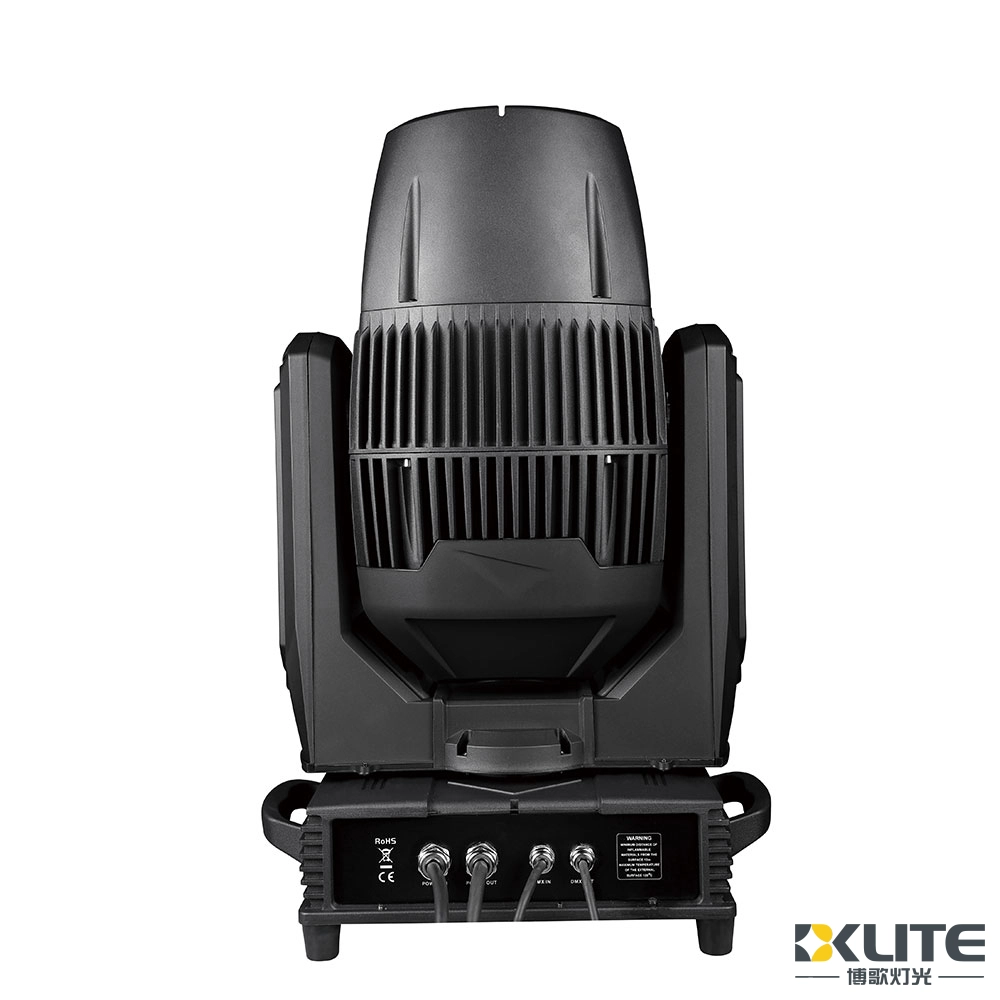

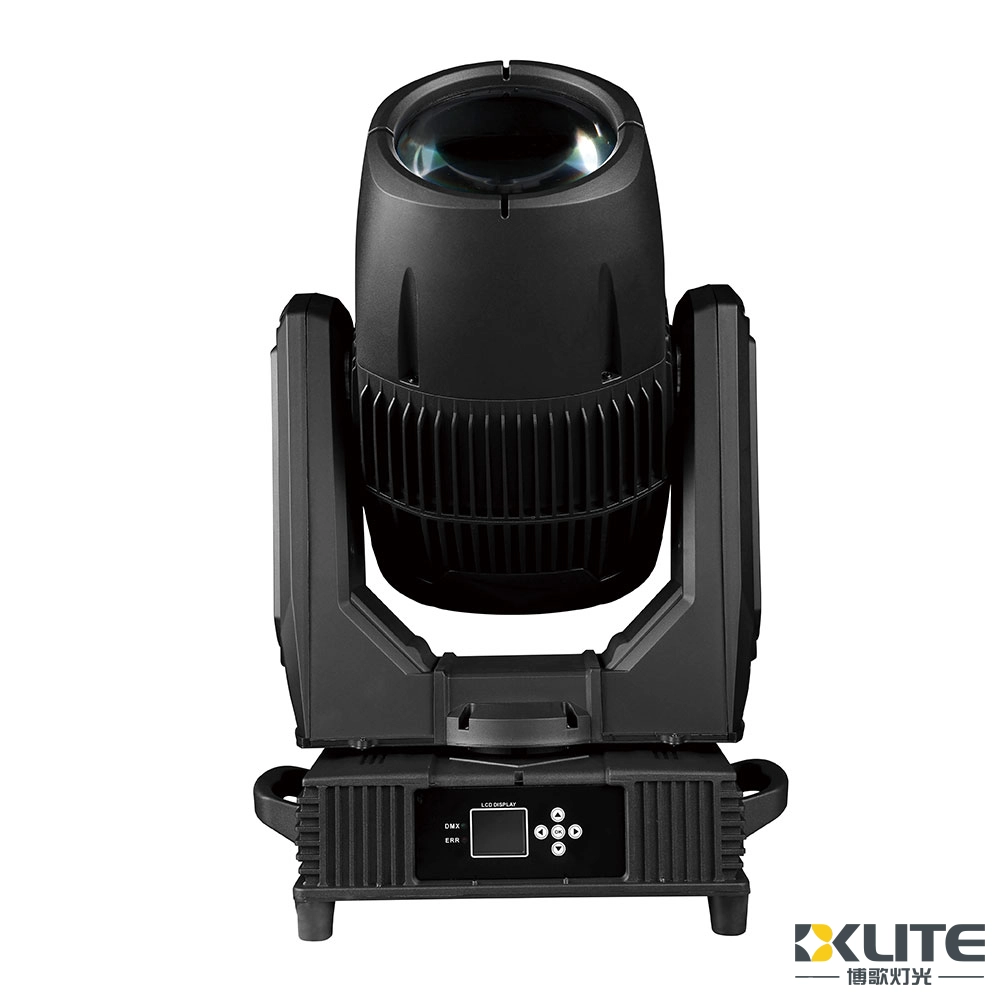

Waterproof IP66 420W beam moving head light
With more than 14 years of experience in professional stage lighting, BKlite is a specialized outdoor waterproof LED stage lighting manufacturer in China. The BKlite 420W IP66 Beam Moving Head is a high-output outdoor beam fixture designed for concerts, festivals, touring productions and other demanding outdoor events. Featuring a 420W LED source, narrow beam angle and IP66-rated protection, it delivers powerful aerial effects while providing enhanced protection against dust and water.
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Video
More parameters
| Specification | Details |
| Input Voltage | AC90V-235V 50-60Hz |
| Power | 600W |
| Light Source | 420W (Philip Lamp) |
| Color Temperature | 7900±500K |
| Color Wheel | 14 colors + colorful rainbow effect + frost |
| Gobo Wheel | 17 fixed gobos + open |
| Focus | Electronic focus |
| Frost | 1 frost lens for soft wash effect |
| Strobe | Double-motor independent strobe, 0.5-20Hz/s, adjustable speed |
| Motor | XY axis uses a three-phase motor for high stability and accurate positioning |
| Dimming Curve | 0%-100% linear dimming, smooth and flicker-free |
| Beam Angle | 0-2° |
| Channel Modes | 24CH / 28CH |
| Lens Diameter | 165mm |
| IP Rate | IP66 |
| Control Mode | DMX512, Auto, Master-Slave, RDM, remote address setting via large controller |
| Prism | 8-facet prism and 8+16-facet prism (customizable) |
| Display | LCD display, rotatable 180° |
| Body Material | Cast aluminum + outdoor engineering plastic shell |
| Pan | 540° + 8/16-bit fine adjustment |
| Tilt | 270° + 8/16-bit fine adjustment |
| Fixture Size | 36 × 31 × 60 cm |
| Net Weight (N.W.) | 20KG |
| Gross Weight (G.W.) | 24KG |
Installation
•Can be installed horizontally or vertically
•Universal operating position
•2 light hook, suitable for a light stand with a diameter of 50mm
•2 quick lock hook
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
