What Is the Difference Between Spot and Beam vs Wash Lights?
When setting up professional stage lighting, understanding the differences between spot, beam, and wash fixtures is essential. These three types of moving head lights serve different purposes and produce dramatically different visual effects. In this article, we’ll break down the key differences in function, appearance, application, and technical features—helping you choose the right light for your event or venue.

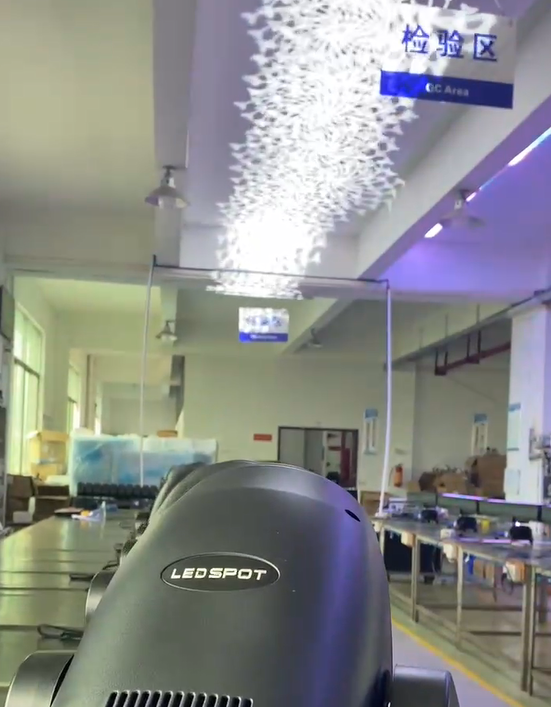

1. What Is a Spot Light?
A spot light (often called a moving head spot) is a versatile lighting fixture that produces a focused, controllable beam of light with sharp edges. It usually includes a range of built-in effects such as gobos, color wheels, and focus control.
Key Features
-
Medium to narrow beam angle (typically 10–30°)
-
Sharp-edged beam, good for projecting patterns
-
Equipped with gobos for texture and shapes
-
Ideal for highlighting performers or objects
-
Typical Applications
-
Concerts and live shows
-
Theatre and drama lighting
-
Events requiring logo or pattern projection
-
Key lighting for performers

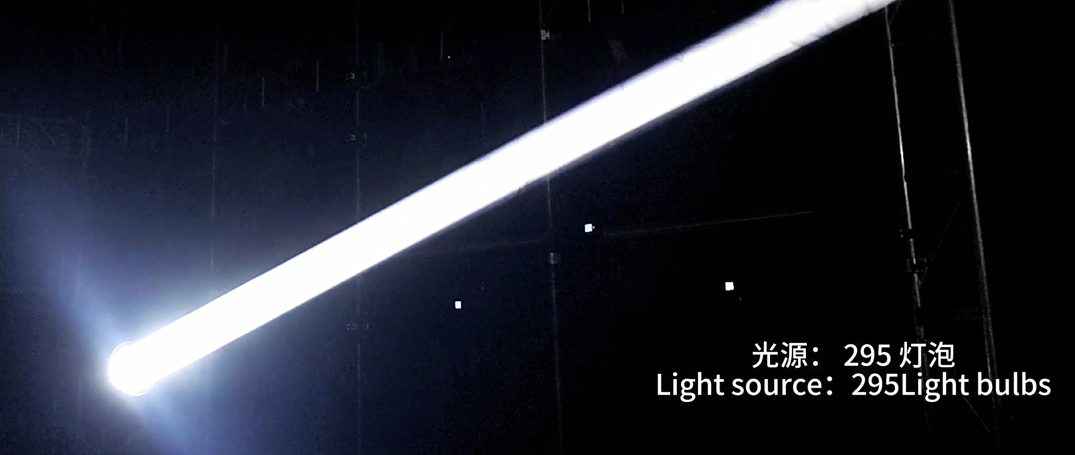

2. What Is a Beam Light?
A beam light is designed to produce an ultra-narrow, intense shaft of light—like a laser sword—cutting through haze or fog. It’s primarily used for creating visual impact rather than for general illumination.
Key Features
-
Very narrow beam angle (usually 2–5°)
-
Sharp and highly concentrated light
-
Long throw distance
-
High output with strong aerial effects
-
Typical Applications
-
Clubs and DJ sets
-
Large-scale concerts and festivals
-
Beam shows and visual spectacles
-
Events with heavy fog or haze

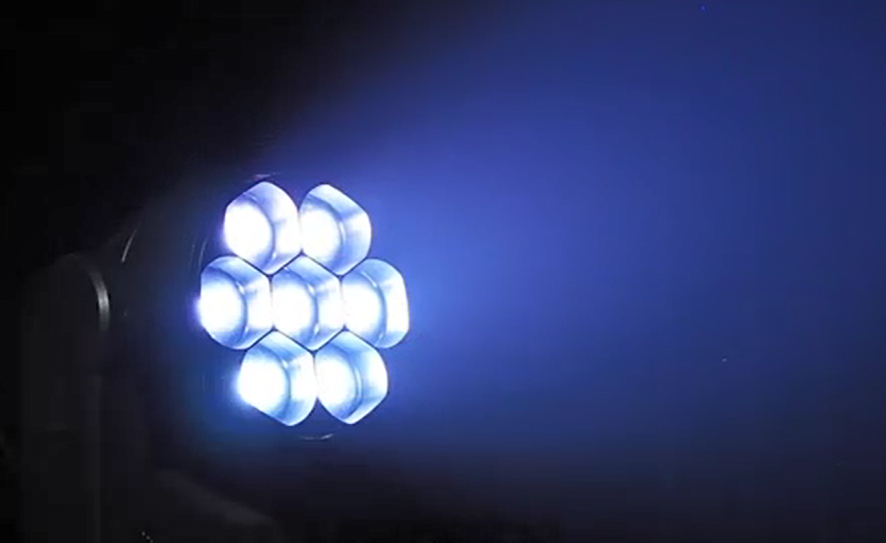

3. What Is a Wash Light?
A wash light provides a wide, soft-edged beam that’s ideal for evenly lighting large surfaces or areas. It’s designed to “wash” the stage with color and is commonly used as background or fill light.
Key Features
-
Wide beam angle (typically 15–60°)
-
Soft, diffused light with no harsh edges
-
Smooth color mixing (often RGBW or CMY)
-
Uniform coverage
-
Typical Applications
-
General stage wash
-
Backdrops and scenic lighting
-
Mood lighting for weddings and events
-
TV studios and film sets
Comparison Table: Spot vs Beam vs Wash
| Feature | Spot Light | Beam Light | Wash Light |
|---|---|---|---|
| Beam Angle | Medium (10–30°) | Narrow (2–5°) | Wide (15–60°) |
| Edge Sharpness | Sharp | Very sharp | Soft |
| Main Function | Pattern projection | Aerial beam effects | Even area coverage |
| Effects | Gobos, colors | Intense beam, prisms | Smooth color mixing |
| Ideal Use Case | Performer focus | Visual punch | Ambient color fill |
How to Choose Between Spot, Beam, and Wash?
-
For concerts and large events: Combine all three types to create dynamic lighting layers.
-
For theater: Use spot for focused acting areas, wash for backdrops, and minimal beam if needed.
-
For clubs/DJs: Beam lights provide maximum visual energy in a smoke-filled environment.
-
For corporate events: Wash lights are best for elegant color fills and brand color consistency.
Spot, beam, and wash lights each have unique characteristics tailored to specific lighting needs. By understanding the differences, you can design a balanced and professional lighting setup that elevates your performance or venue. Whether you're a lighting designer, rental company, or event planner, choosing the right fixture will maximize your impact and enhance the audience experience.
