Excellent color mixing effect
ZOOM 12*40W RGBW 4in1 LED Beam Wash Bar Moving Head Light with RGB 3in1, Warm White, Cool White Effect Light
BK-LB1240Z Aurora powerful 12x40W LEDs deliver stunning washes and beams. Perfect for stage, concert, events, theater, KTV, DJ, dance hall, etc.. Get vibrant, eye-catching illumination with this high-output 12x40w beam wash bar moving head.
Brand
BKlite
Model No.
BK-LB1240Z Aurora
Power
560 W
Light source
12pcs 40W RGBW 4in1 LED
Input voltage
AC110-240V 50/60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
Manual of zoom 12x40w led beam wash bar strobe light.pdf
1240w Bar light library.zip
Product Features
•Dual Focus Control: Allows you to easily adjust the beam width, from precise spotlights to expansive halos, creating stunning visual effects.
•Unparalleled brilliance: 12pcs 40w RGBW 4-in-1 high-quality LED beads, provide unrivaled brightness
• Effect light: 164*0.5w RGB 3in1 LED effect light. It boasts impressive RGBW color mixing and dynamic effects.
Channels
27/30/67 three channel mode
Light source
12pcs 40W RGBW 4in1 LED
164*0.5w RGB 3in1
Power
560W
Mode
DMX512,RDM, Master/slave
Scanning system
Tilt： 220 degree+ 16bit fine
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 560W |
| LED Source |
12pcs 40W RGBW 4in1 LED 164*0.5w RGB 3in1 |
| Zoom | 3°-30° |
| Strobe | 0-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 27/30/67 three channel mode |
| Dimmer | 0-100% linear dimmer |
| Tilt | 220° + 16-bit fine |
| Environment | indoor |
| IP Rate | IP20 |
| Net Weight (N.W.) | 15KG |
| Gross Weight (G.W.) | 17KG (1pc/ctn) |
| Fixture Size | 1000*165*225mm |
| Package Size | 1060*180*360mm |
Product Details

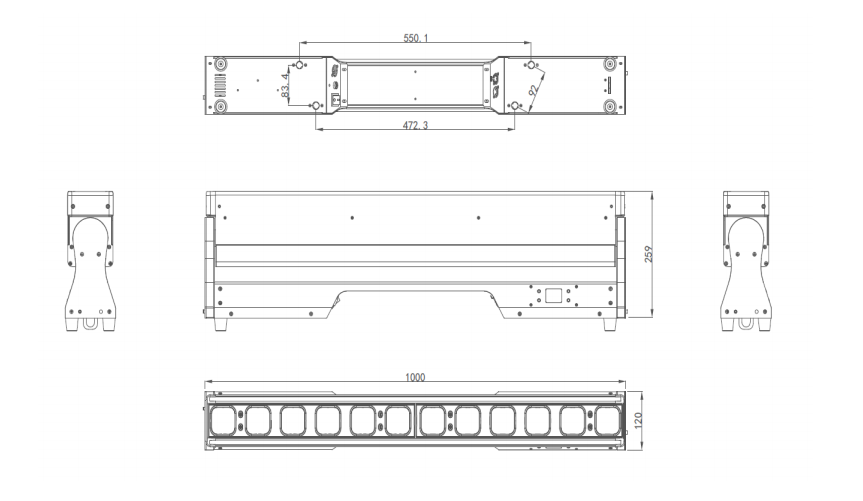

Dimensions Accessores
Light source
•Light source:
12pcs 40W RGBW 4in1 LED
164*0.5w RGB 3in1
•LED expected lifespan：50,000hour
Control and procedure
•Led: pixel control
•Four mechanical keys
•Control protocol:DMX512,RDM
•Display system:2.8 inch touch LCD screen, display in Chinese and English, 180 degree rotation
Work environment
•Maximum ambient temperature: 40°C
•Maximum surface temperature: 65°C
•Lowest working temperature: 0°C
Factory configuration
•Directions for use
•Power cord
•Signal cable
Tags
12x40w moving bar light with effect light
12x40w moving bar light with effect light
12x40w beam wash bar moving head
12x40w beam wash bar moving head
12x40w bar light
12x40w bar light
