Excellent color mixing effect
ZOOM 5x80W RGBL 4IN1 LED Beam Bar Moving Head Light
As a market-leading stage lighting equipment supplier honed by 15+ years of on-site industry practice, BKlite brings you the LED beam moving bar delivers stunning visuals. Ideal for stage, bar, KTV, concert, events, etc.. Contact us – your trusted stage light manufacture and factory.
Brand
BKlite
Model No.
BK-LB580Z
Power
500W
Light source
5x80W RGBL LEDs, Outer Circle:100pcs 5050 lamp beads
Input voltage
AC 110-240V 50 / 60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
5x80W RGBL 4in1 led beam bar moving head light User Manual.pdf
Key Features
• BK-LB580Z featuring a dual - source setup: 5x80W RGBL LEDs for the main light and 100 5050 lamp beads on the outer circle.
• unlimited pan and tilt rotations with 5 independent light heads offer flexible positioning.
• Its linear CTO color temperature adjustment, superior color - mixing, and linear zoom capabilities make it perfect for creating professional lighting effects.
Channels
28 CH / 85 CH
Light source
5x80W RGBL LEDs
Power
500W
Mode
DMX512,RDM, Master/slave
Scanning system
360° /360°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 500W |
| LED Source | 5x80W RGBL LEDs, Outer Circle: 100 pcs 5050 lamp beads |
| LED Lifetime | Average 20000 hours |
| Strobe | 1-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 28 CH / 85 CH can be upgraded through the DMX connection software. |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Pan | Unlimited rotation |
| Tilt | Unlimited rotation |
| Display | LCD display with touch buttons |
| IP Rate | IP20 |
| Fixture Dimension | 1000x169x334mm |
| Carton size(1in1) | 117*44*27cm |
| Net Weight | 22.5KG |
| Gross Weight | 25KG |
Product Details

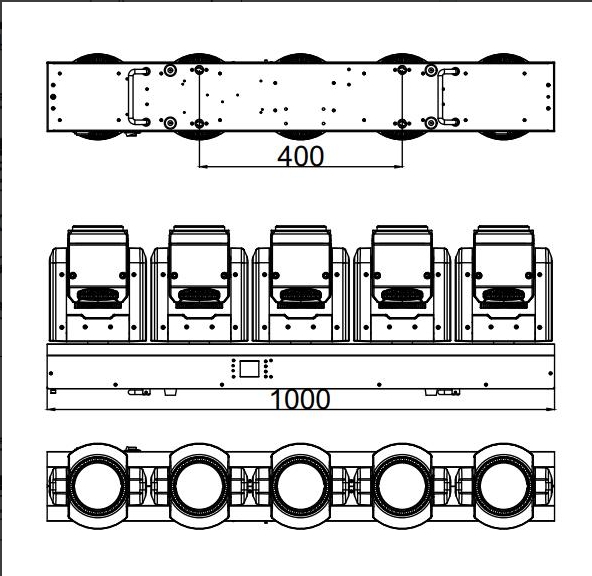

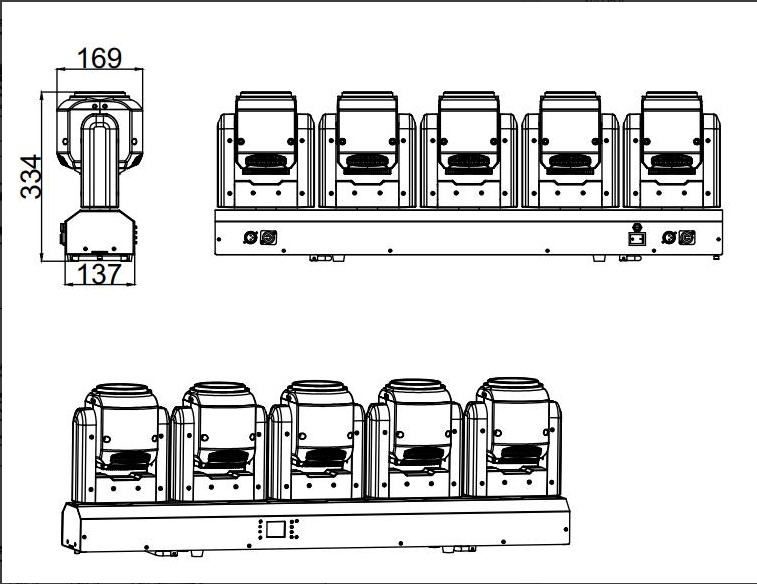

Dimensions Accessores
Control and procedure
•Five mechanical keys
•LCD display
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable clamp at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
