Excellent color mixing effect

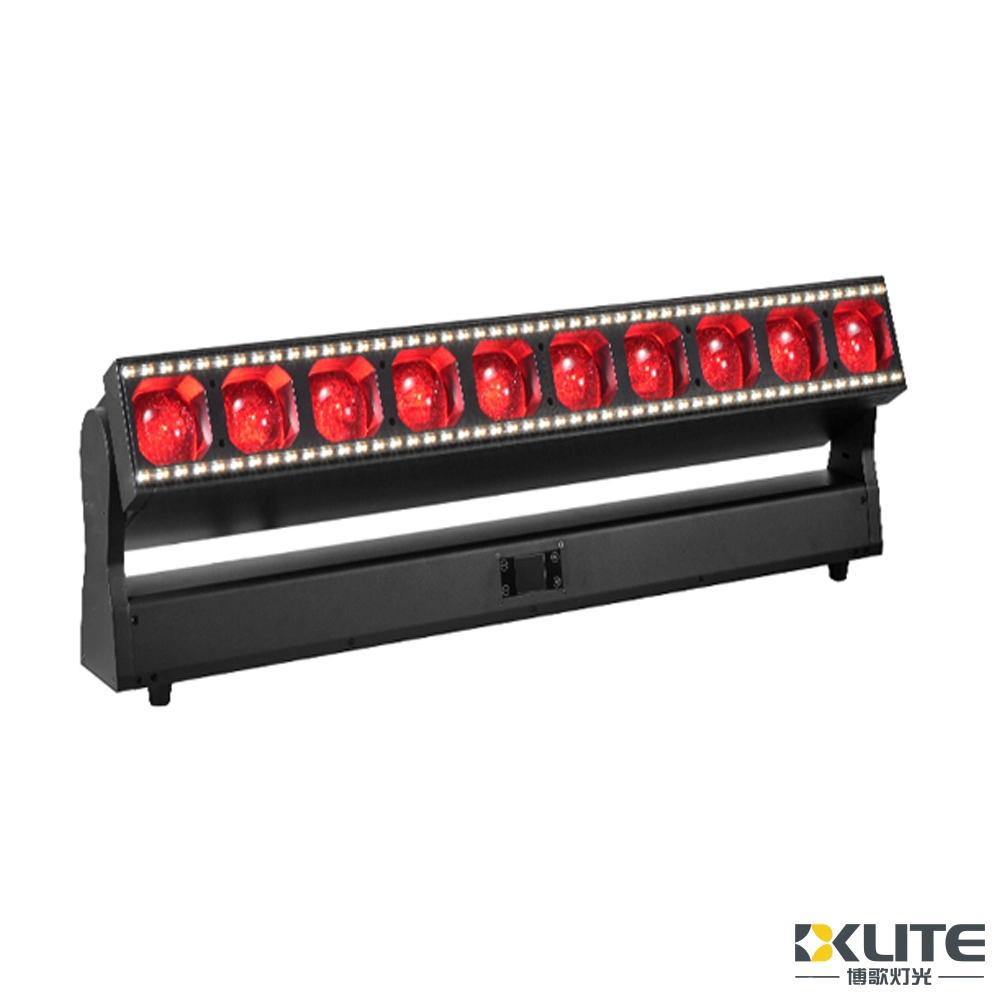

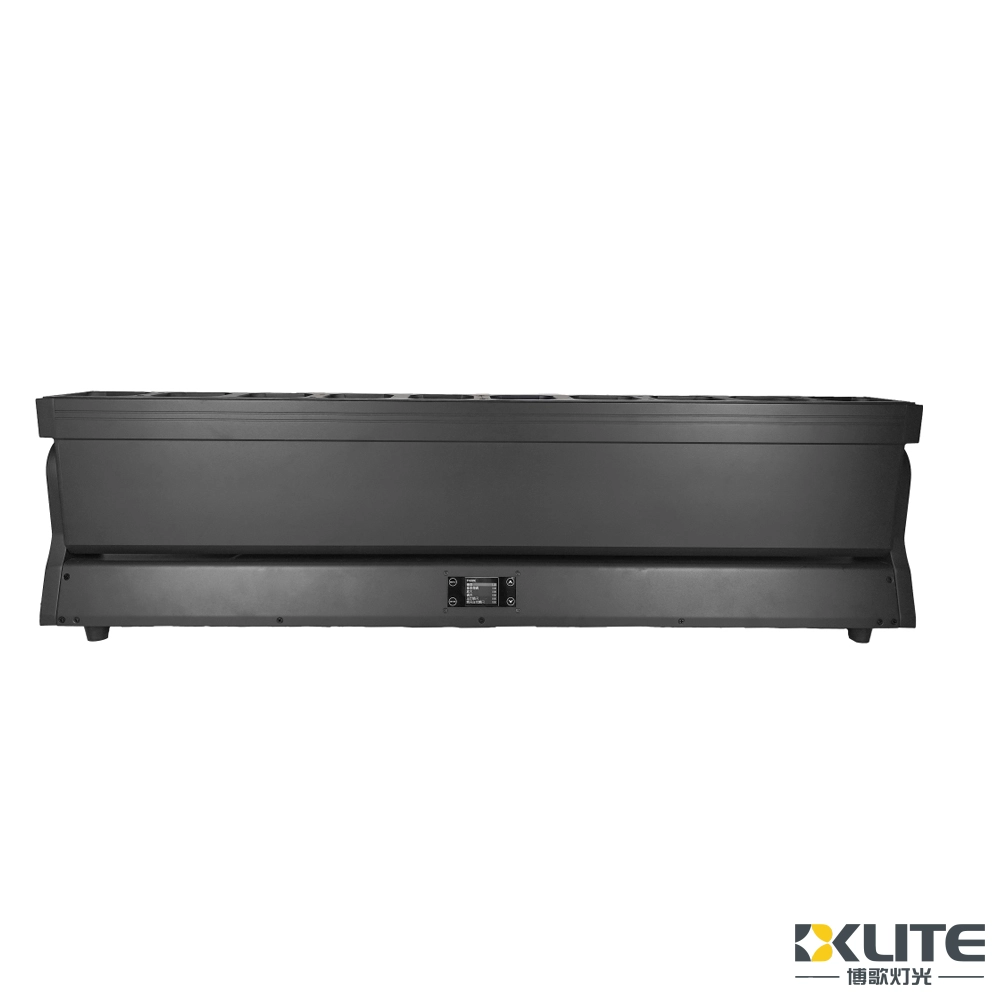

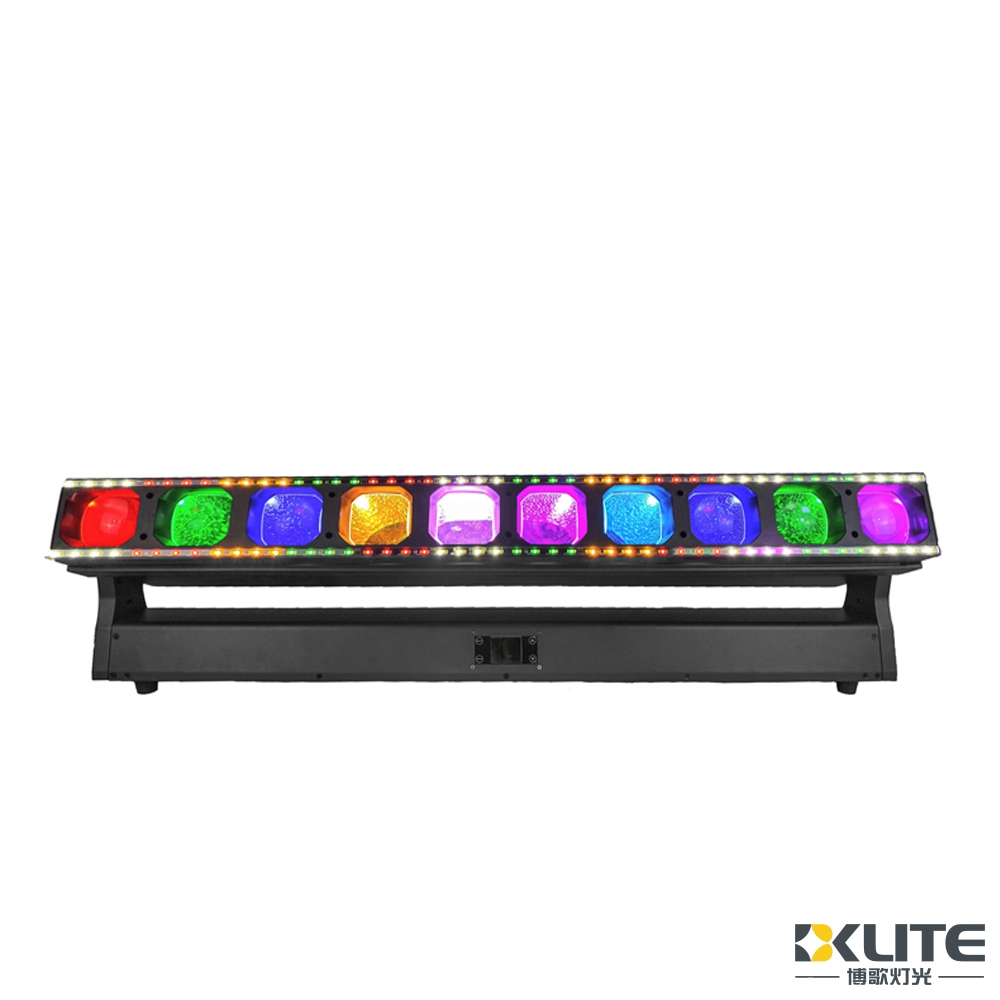

IP20 ZOOM 10x60w RGBW 4IN1 LED Beam Wash Bar Moving Head Light with RGB 3in1, Warm White, Cool White Effect Light
BKLite offering high-quality stage lights. Leading beam wash spot moving head light manufacture and factory. It's suitable for stage, concert, events, theater, KTV, DJ, dance hall, etc..
Brand
BKlite
Power
850 W
Light source
10pcs 60W RGBW 4in1 LED Cool white 96x1w, warm white 96x1w， RGB 3in1 96x1w LED
Input voltage
AC90-240V 50/60Hz
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
Manual of zoom 10x60w led beam wash bar strobe light.pdf
1060Light library.zip
Product Features
• Dual Focus Control: Allows you to easily adjust the beam width, from precise spotlights to expansive halos, creating stunning visual effects.
• Unparalleled brilliance: 10pcs 60w RGBW 4-in-1 high-quality LED beads, provide unrivaled brightness.
• Effect light: Cool white 96x1w, warm white 96x1w, RGB 3in1 96x1w LED. It boasts impressive RGBW color mixing and dynamic effects.
Channels
17/27/99/108/168
Light source
10pcs 60W RGBW 4-in-1 LED
Power
850W
Mode
DMX512,RDM, Master/slave
Scanning system
270 degrees+ fine
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 850W |
| LED Source | 10pcs 60W RGBW 4-in-1 LED Cool white 96x1w, warm white 96x1w, RGB 3in1 96x1w LED |
| Zoom | 4°-60° 39000LUX@5M@minimum angle |
| Strobe | 1-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 17/27/99/108/168 five channel mode |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| LED Lifetime | Average 50,000 hours |
| Tilt | 270 degrees+ fine |
| Display | 1.77--inch color LCD display |
| IP Rate | IP20 |
| Fixture Dimension | 1000*115*290mm |
| Net Weight (N.W.) | 19.2KG |
| Cooling system | fan forced cooling system |
| Working environment | Indoor |
Product Details
Dimensions Accessores
Photometrics
Light source
•Lighting luminous flux 42,000 lumens
•LED expected lifespan：5000hour
Control and procedure
•Five mechanical keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Work environment
•Maximum ambient temperature: 40°C
•Maximum surface temperature: 65°C
•Lowest working temperature: 0°C
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Safety rope connection hole
Factory configuration
•Directions for use
•Power cord
•Signal cable
