Excellent color mixing effect

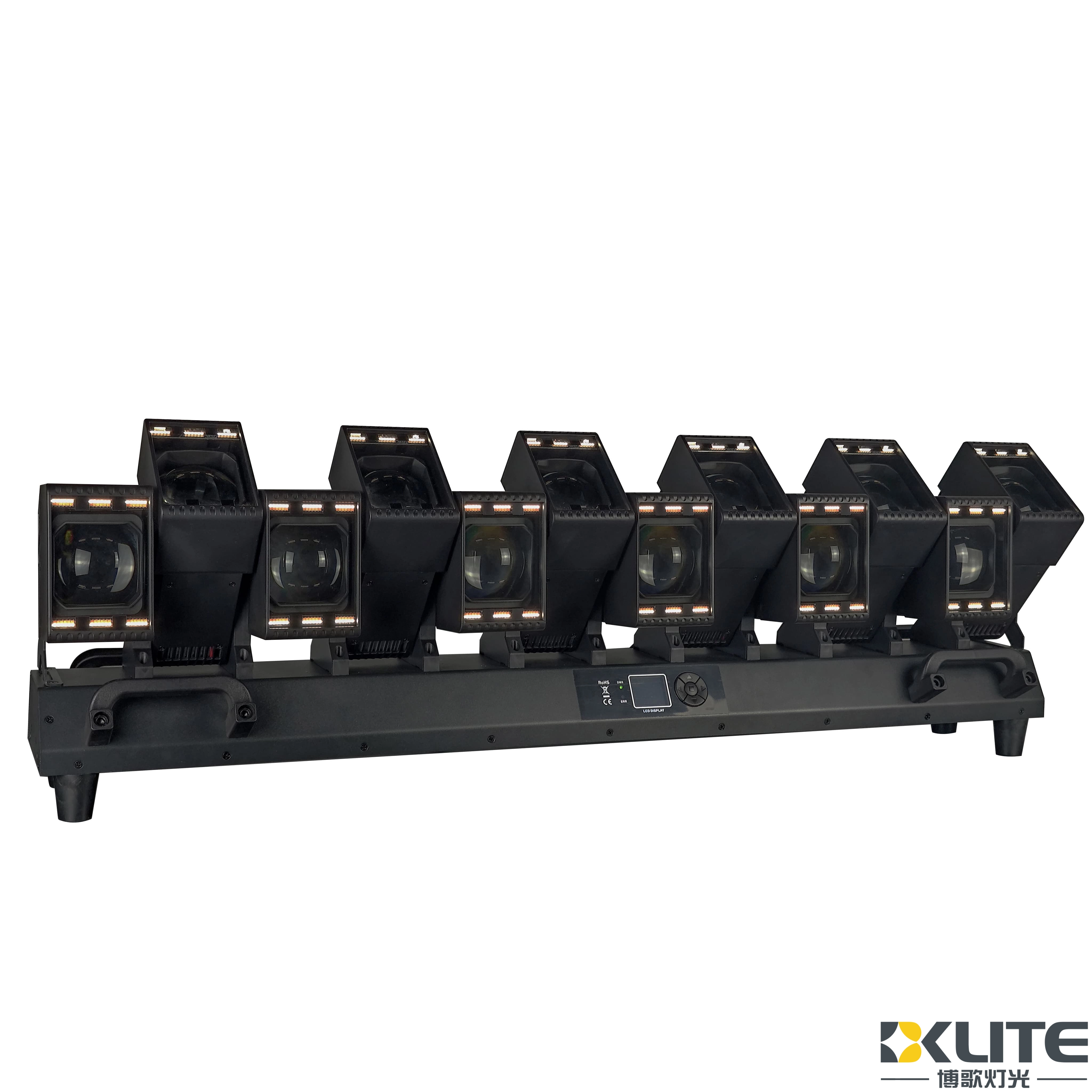

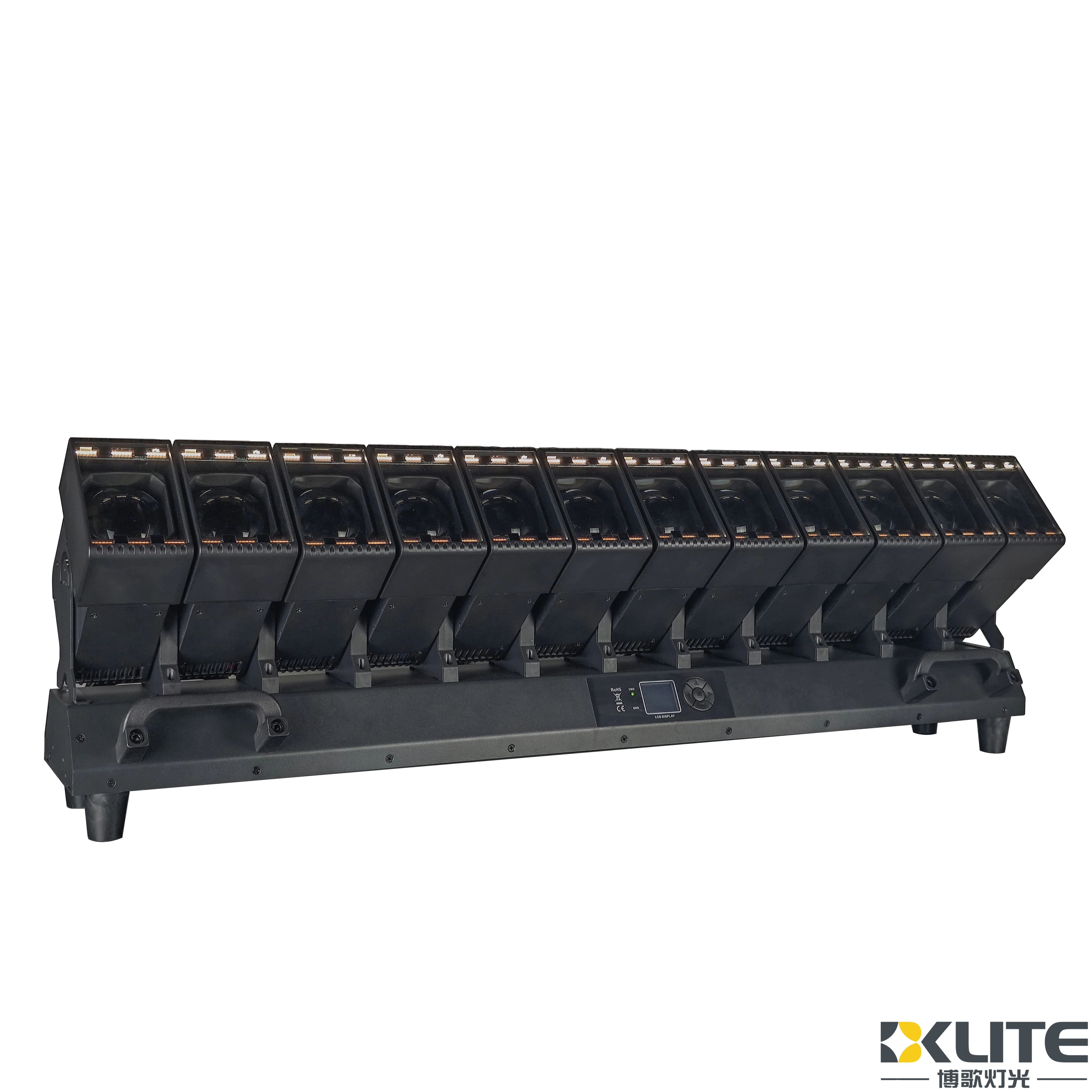

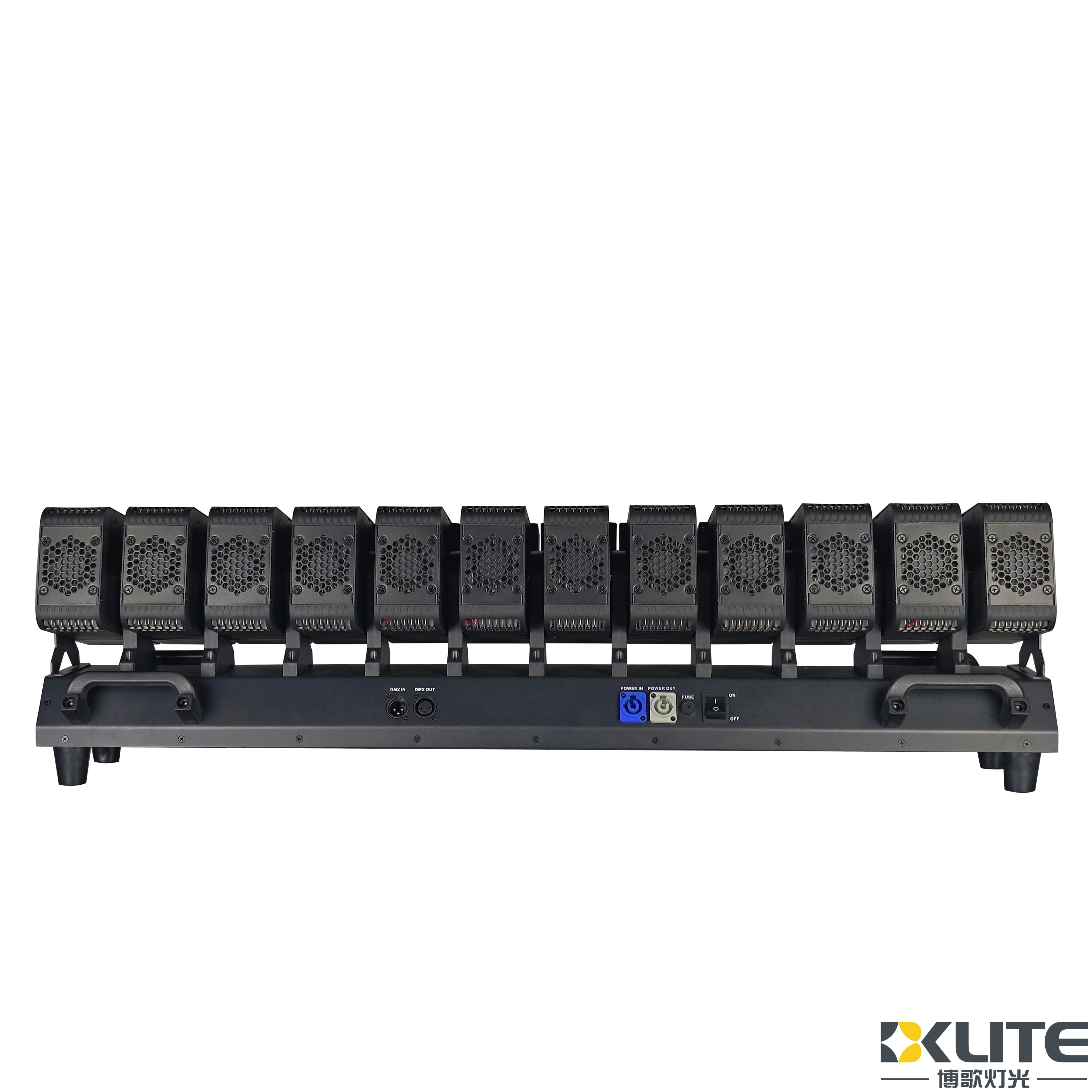

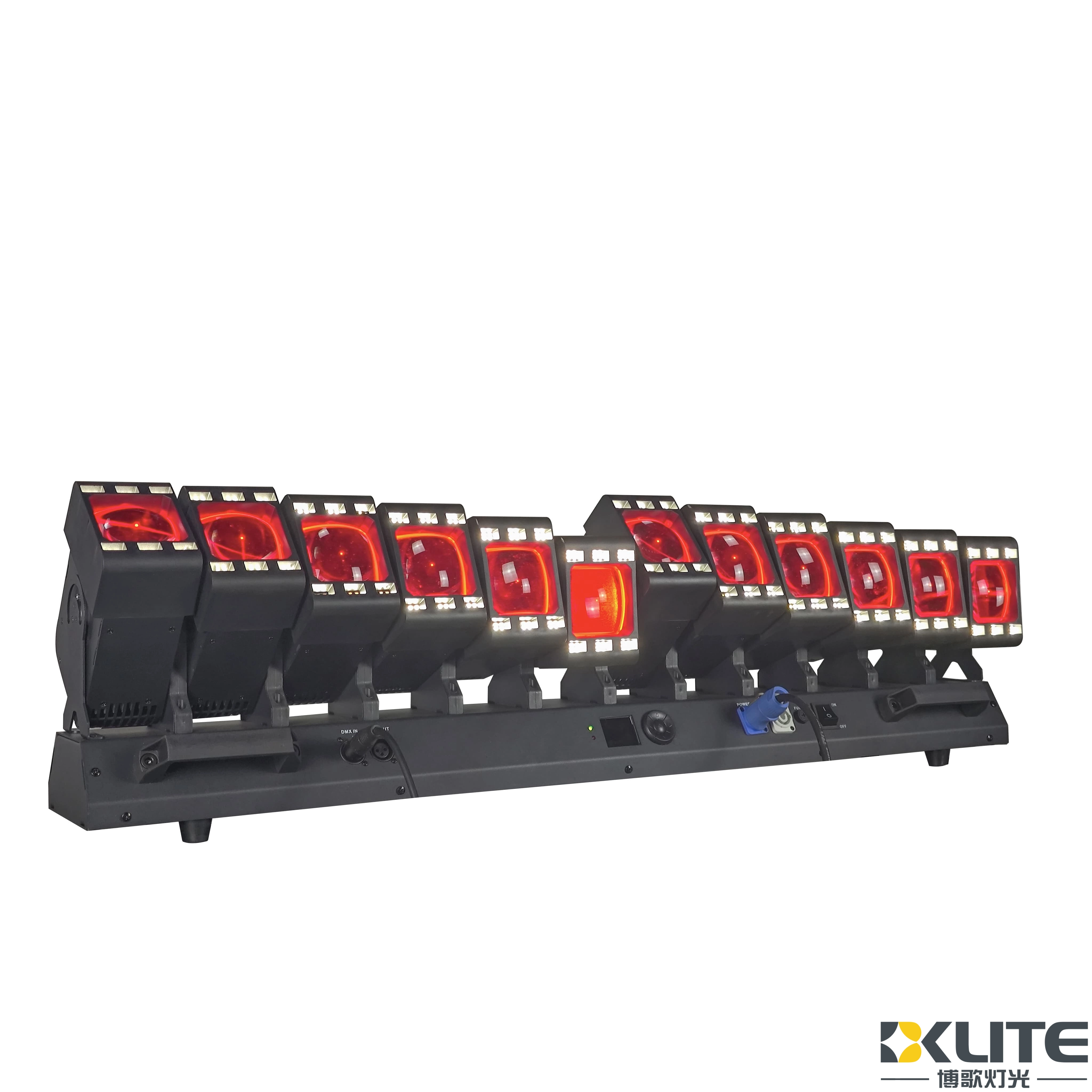

Zoom 12x60W RGBW 4in1 LED Beam Wash Bar Moving Head Light With LED Ring
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKLITE Zoom Beam‑Wash Bar moving head is an IP20 indoor pixel‑mapped bar fixture built for concert halls, TV studios and indoor rental shows. Featuring 12 independently tilt‑controllable 60W RGBW 4in1 LEDs, 4°‑16° motorized zoom and decorative LED ring with macro effects, it supports virtual gobo presets and pixel animation. Equipped with RDM‑compatible multi‑channel DMX control and 32‑bit smooth dimming, it delivers beam, wash and dynamic swing effects for versatile indoor professional stage applications.
Brand
BKlite
Power
800W
Light source
12pcs 60W 4in1 LEDs
Input voltage
AC100~240V 50 / 60 HZ
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
12x60W LED Beam Wash Bar User Manual.pdf
12x60w with led ring library.zip
Key features
• Fully pixel mappable.
• 12 individually controllable tilting heads.
• With a extra LED ring for eye-candy effect,LED ring with macro effect.
• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects.
• Single swing + wash + beam + auto reset + Tilt automatic staggering
Channels
29CH/62CH/170CH/254CH/
308CH/332CH
Light source
12 * 60W 4in1 LEDs
Power
800W
Mode
DMX512,auto, master-slave, sound, with RDM function.
IP Rate
IP20
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 12 * 60W (800W) |
| LED Source | 12 * 60W 4in1 LEDs |
| Beam Angle | 4°-16° |
| Control Mode | DMX512,Auto, Master-slave, Sound, with RDM function. |
| DMX Channels |
20CH / 53CH / 101CH / 155CH / 169ACH /
169BCH / 179CH 7channel modes
|
| Dimmer | 32bit 0~100% Linear dimming |
| Display | LCD display with touch buttons |
| IP Rate | IP20 |
| Fixture Dimension | 100.7*16.5*31.2CM |
| Net Weight (N.W.) | 27KG |
| Gross Weight (G.W.) | 30.3KG (1pc/ctn) |
| Package Dimension | 110*32*40CM (1pc/ctn) |
Product Details
Dimensions
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
