Excellent color mixing effect

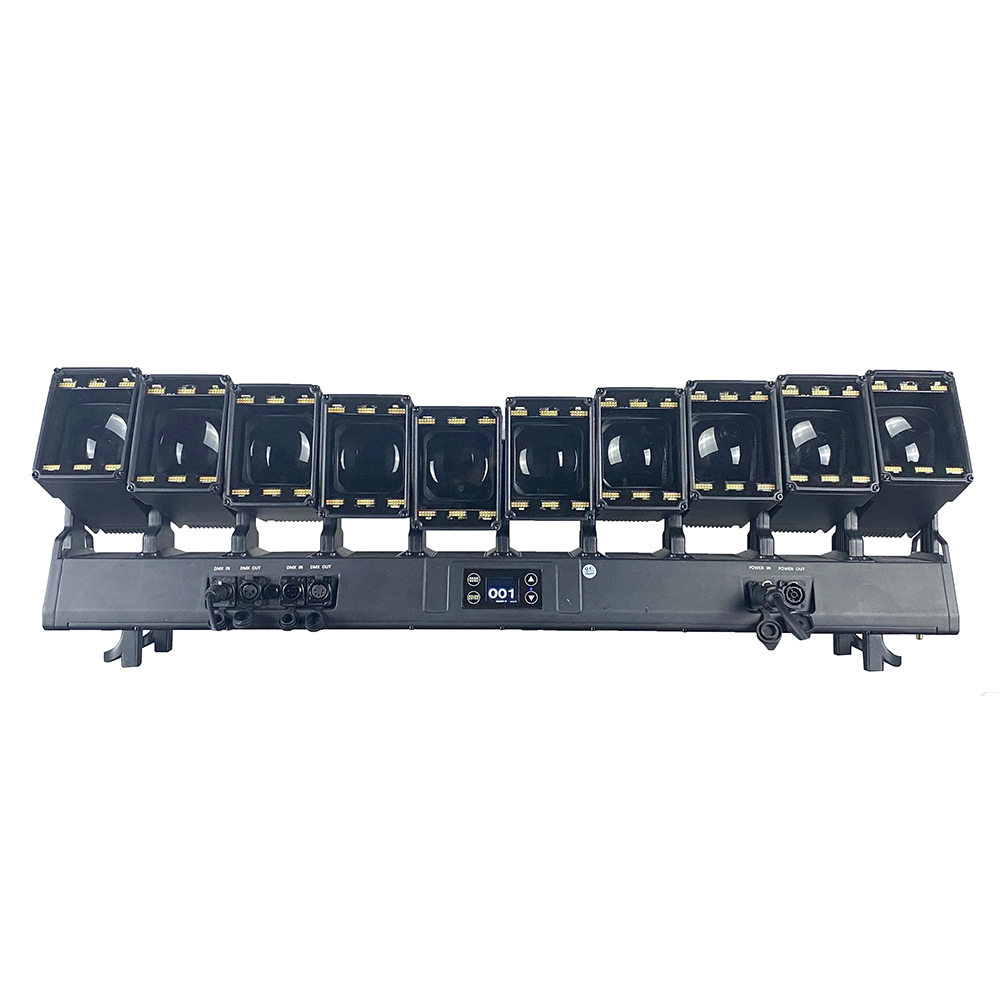

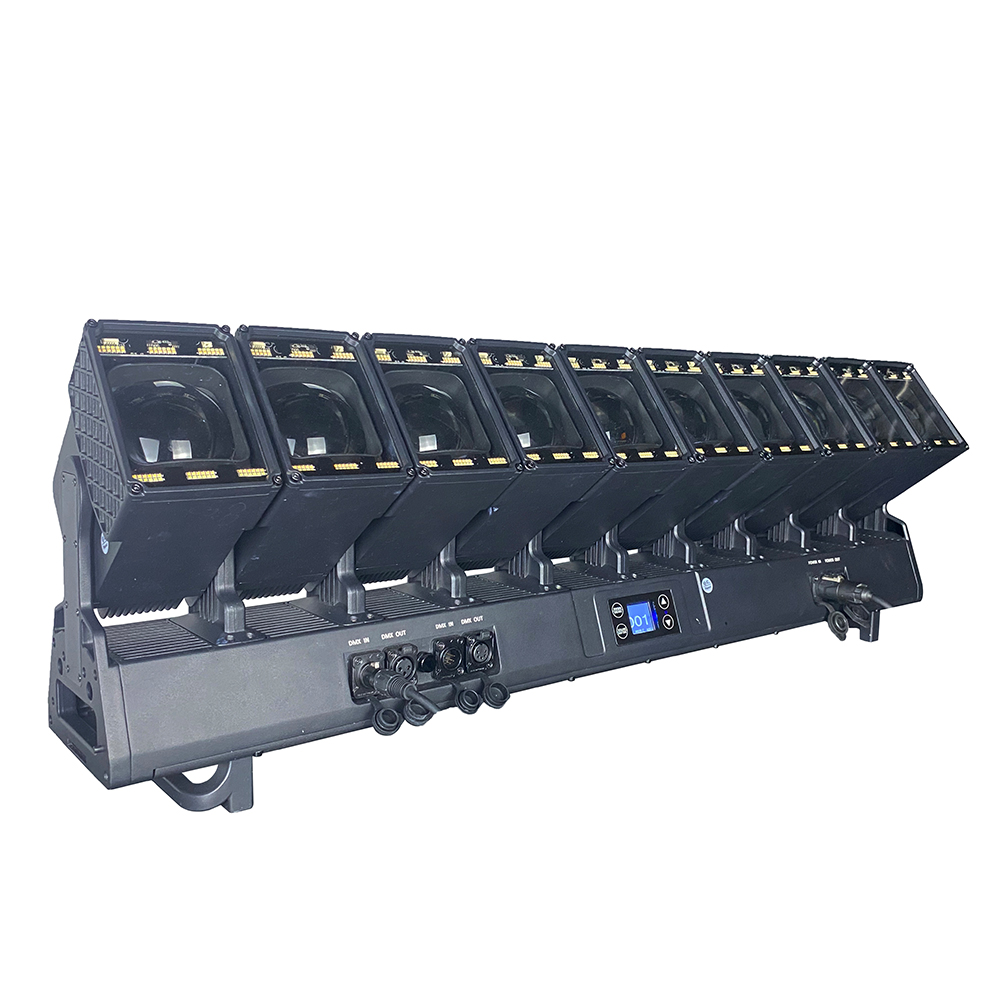

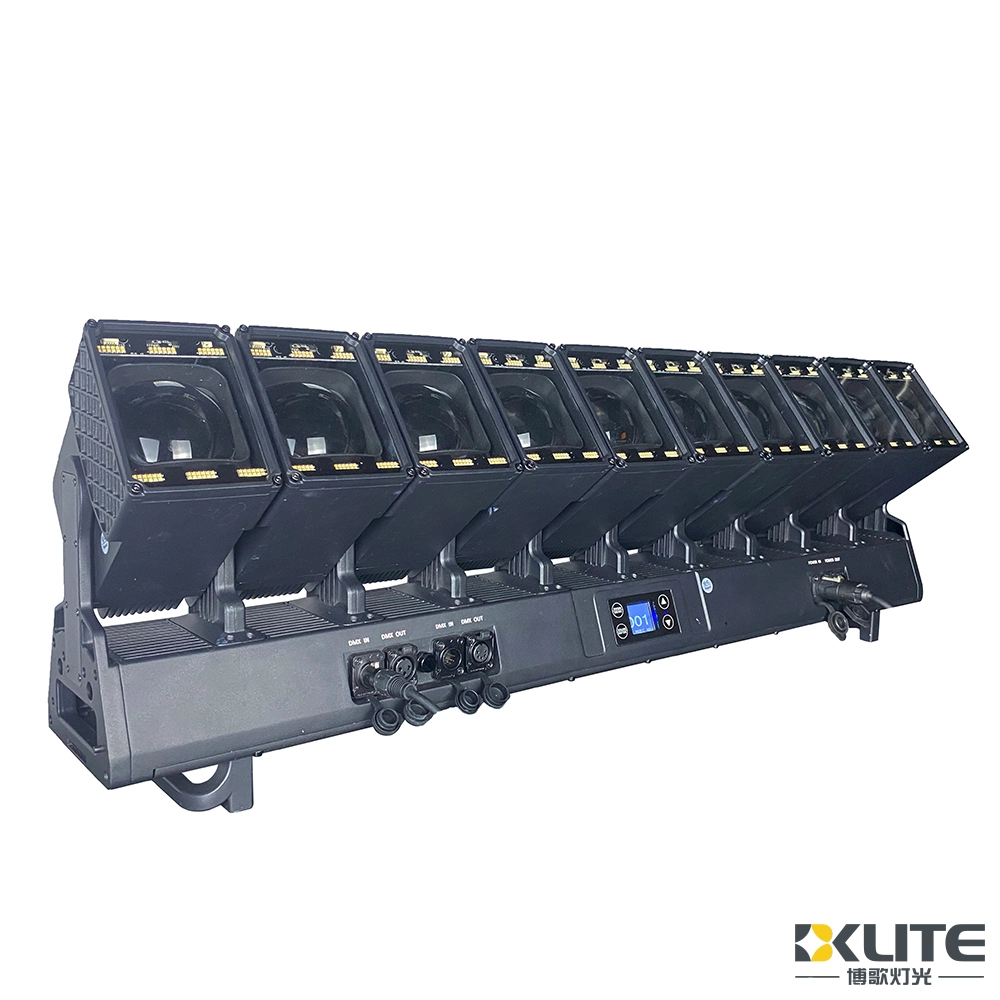

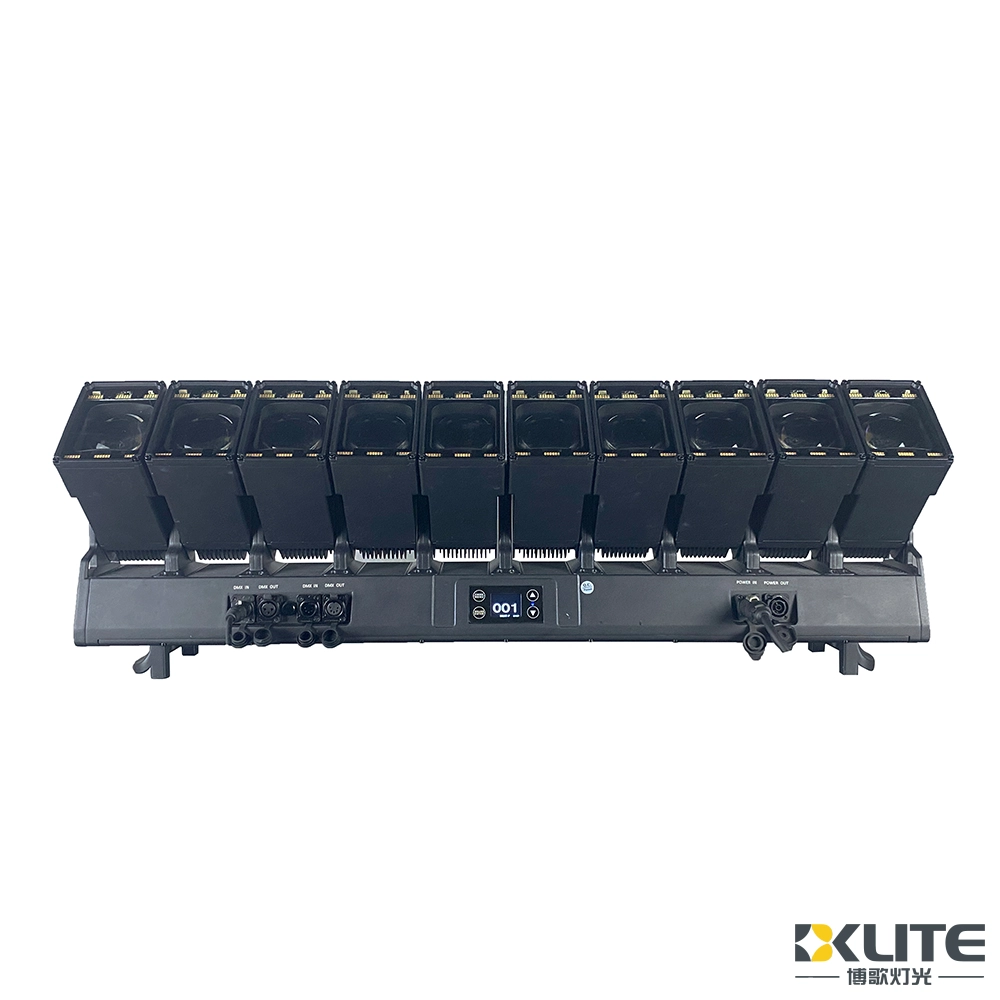

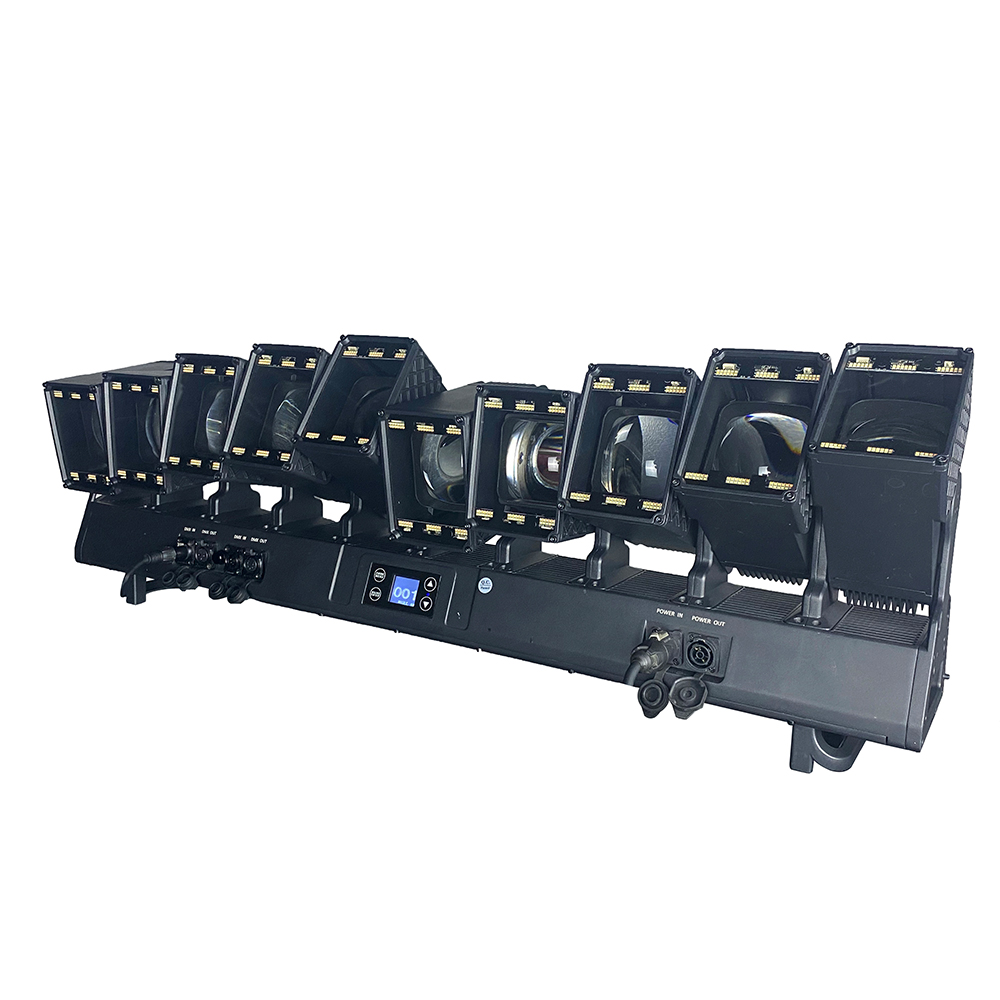

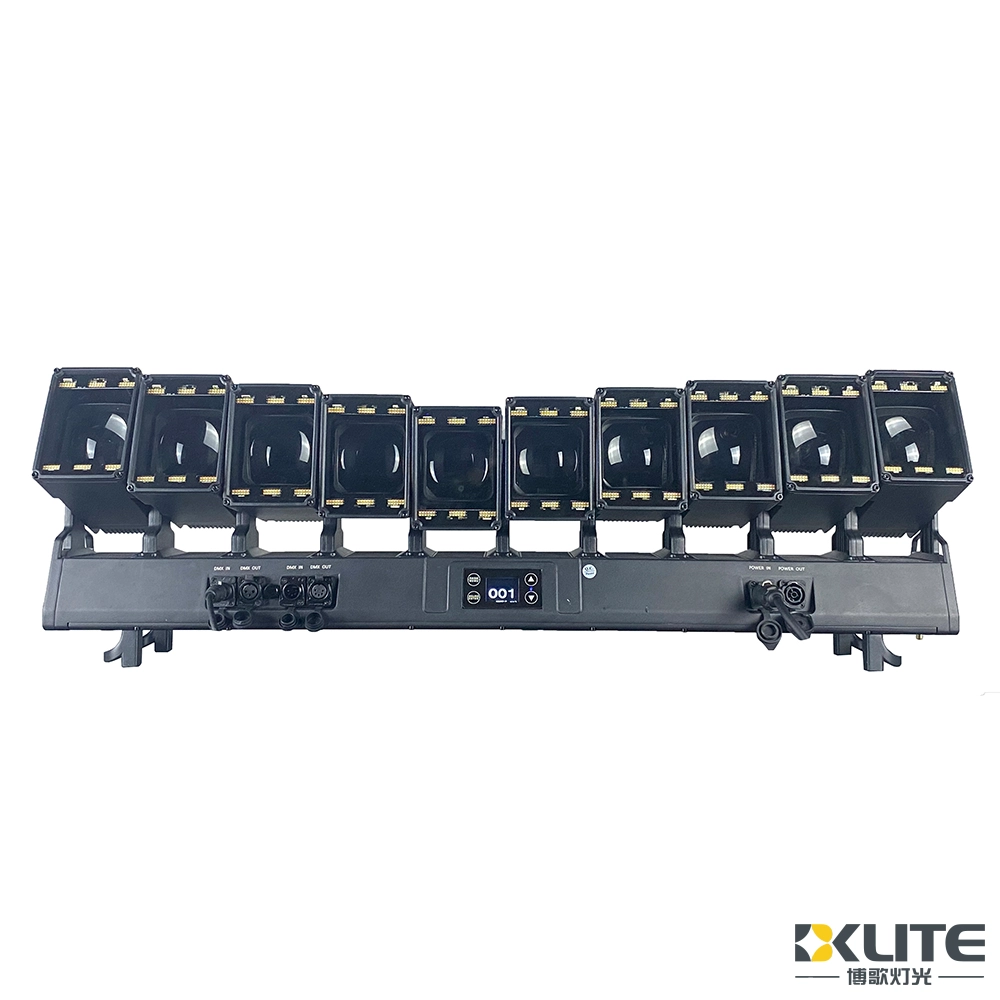

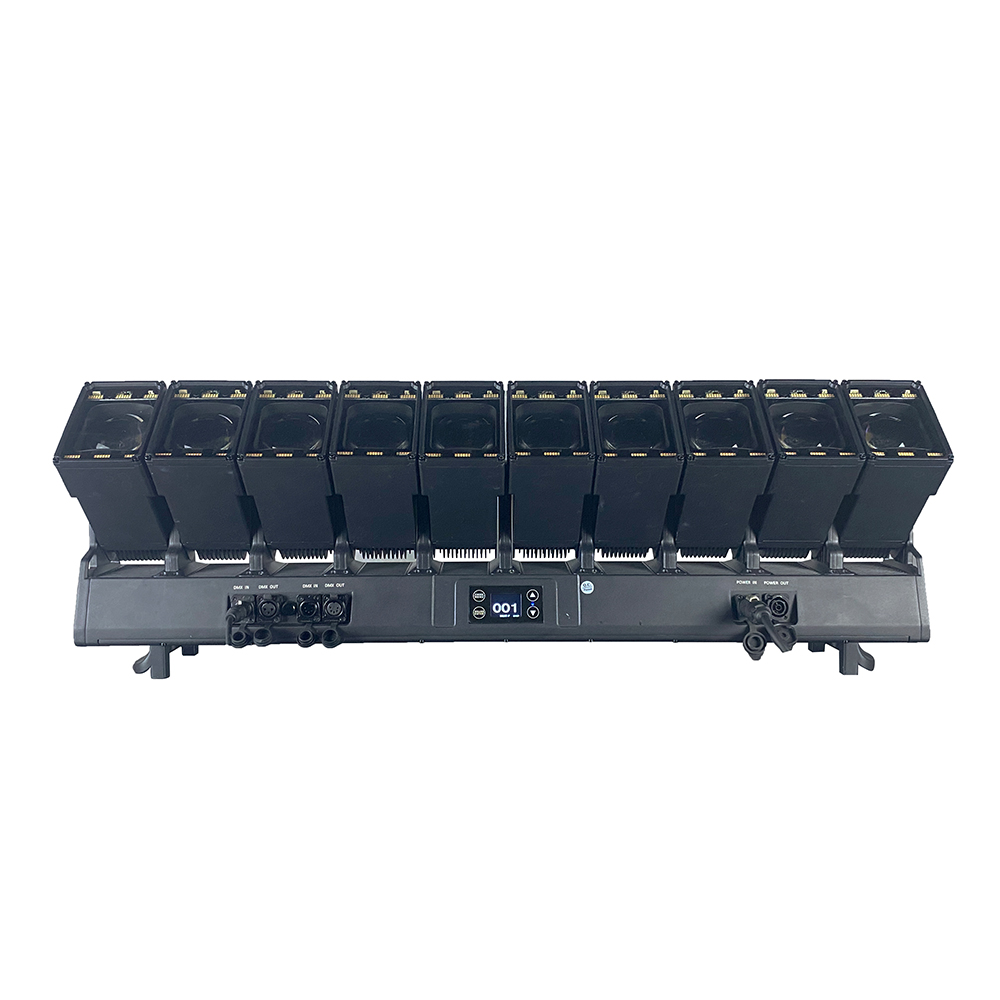

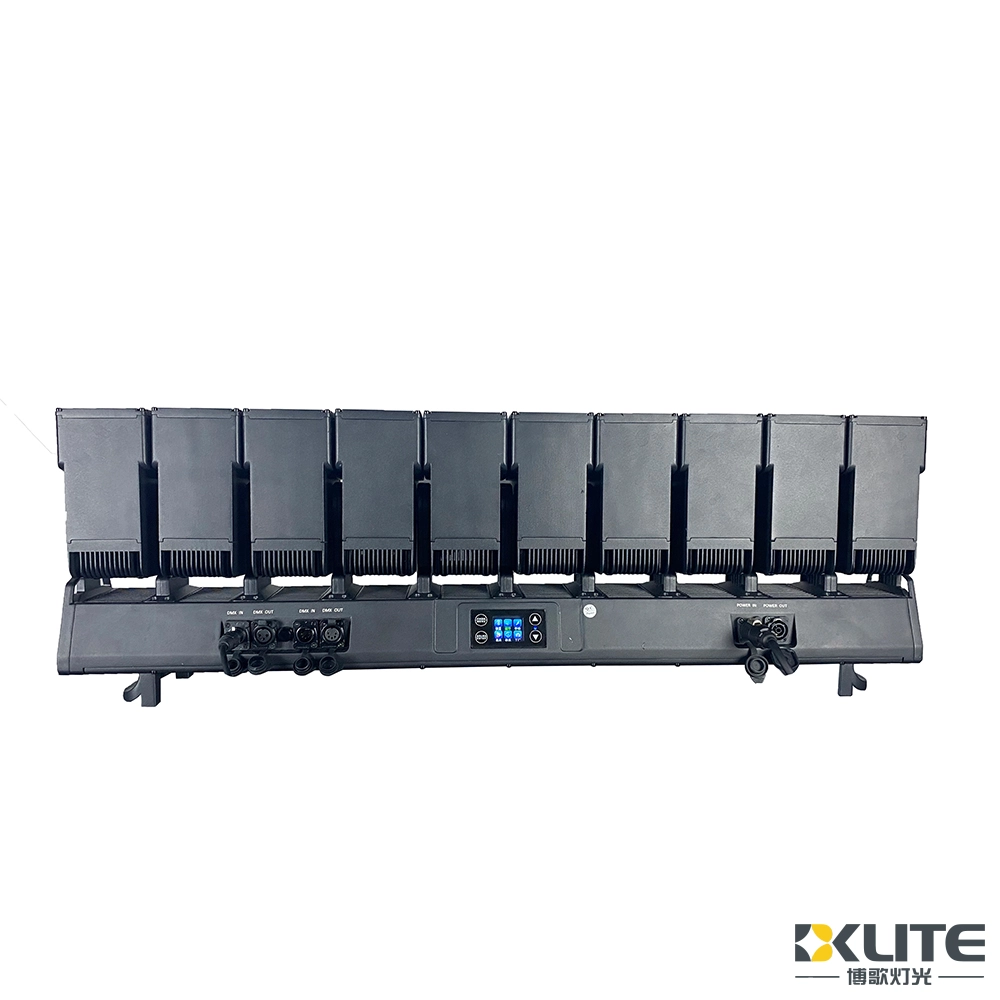

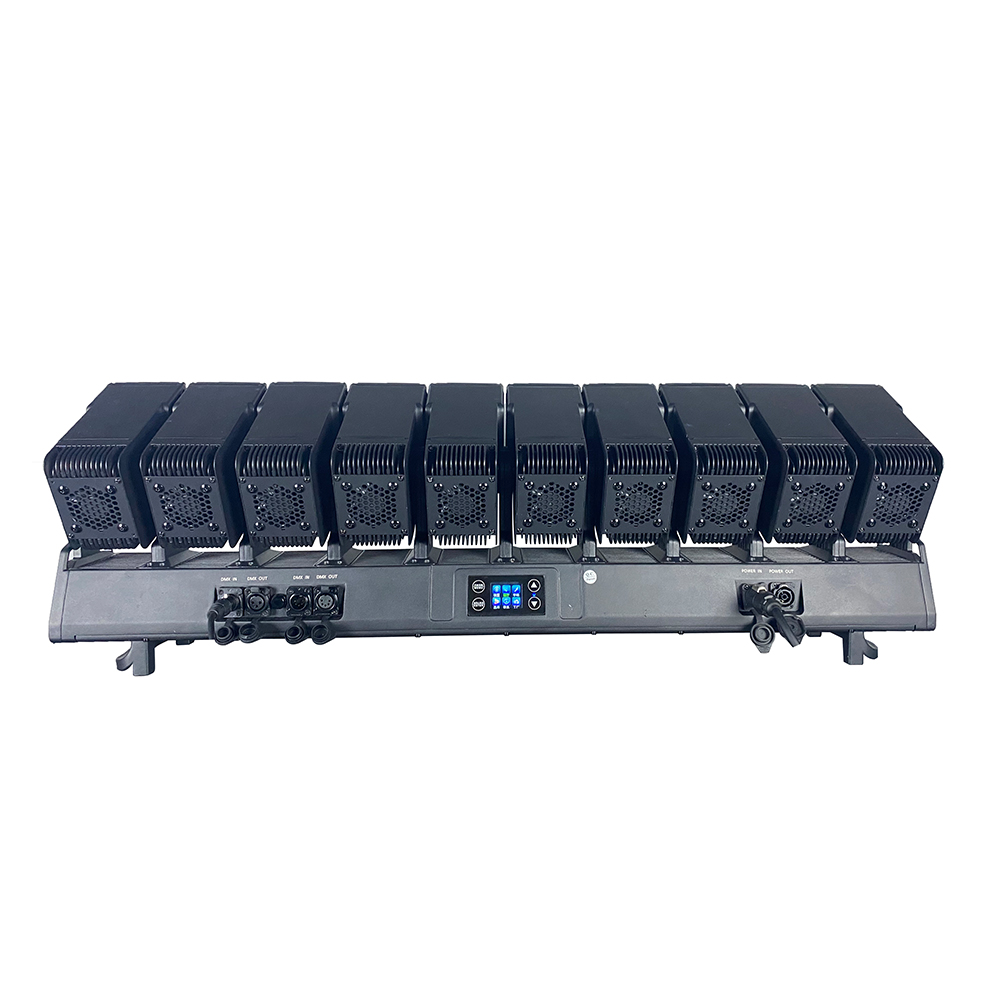

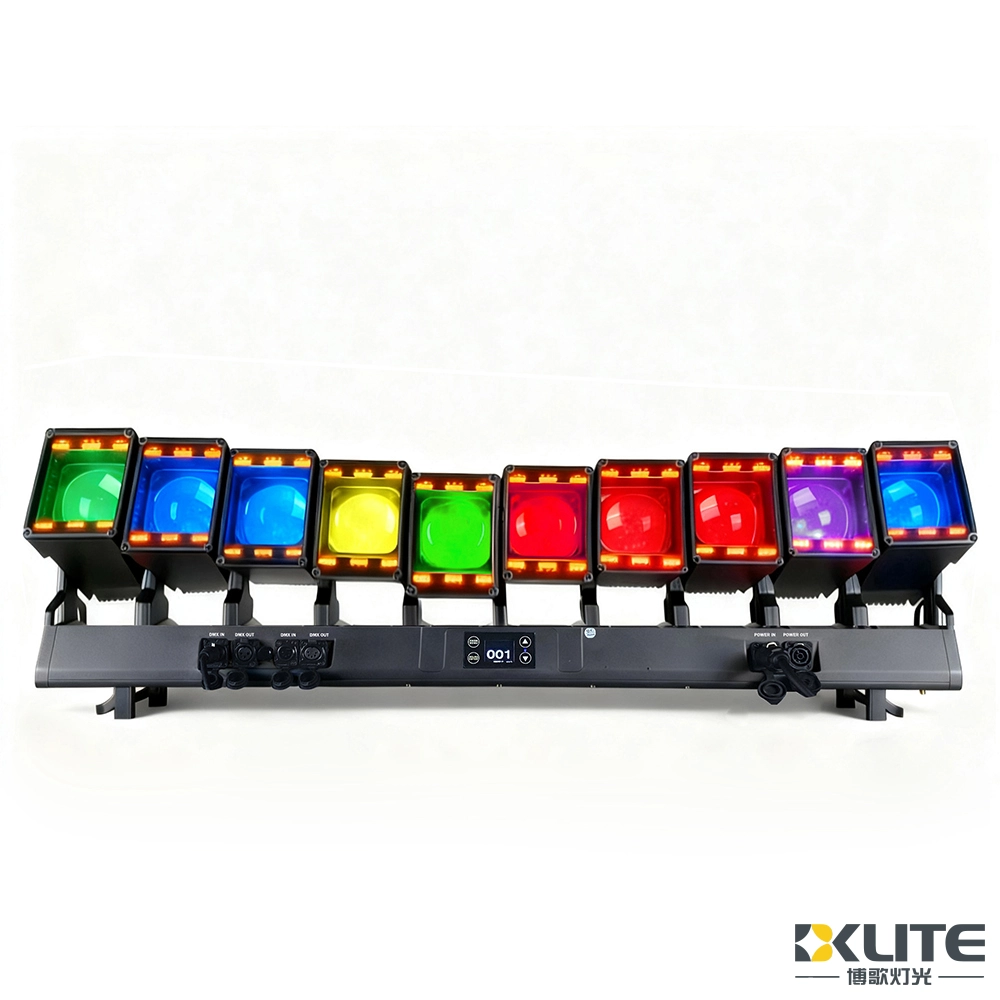

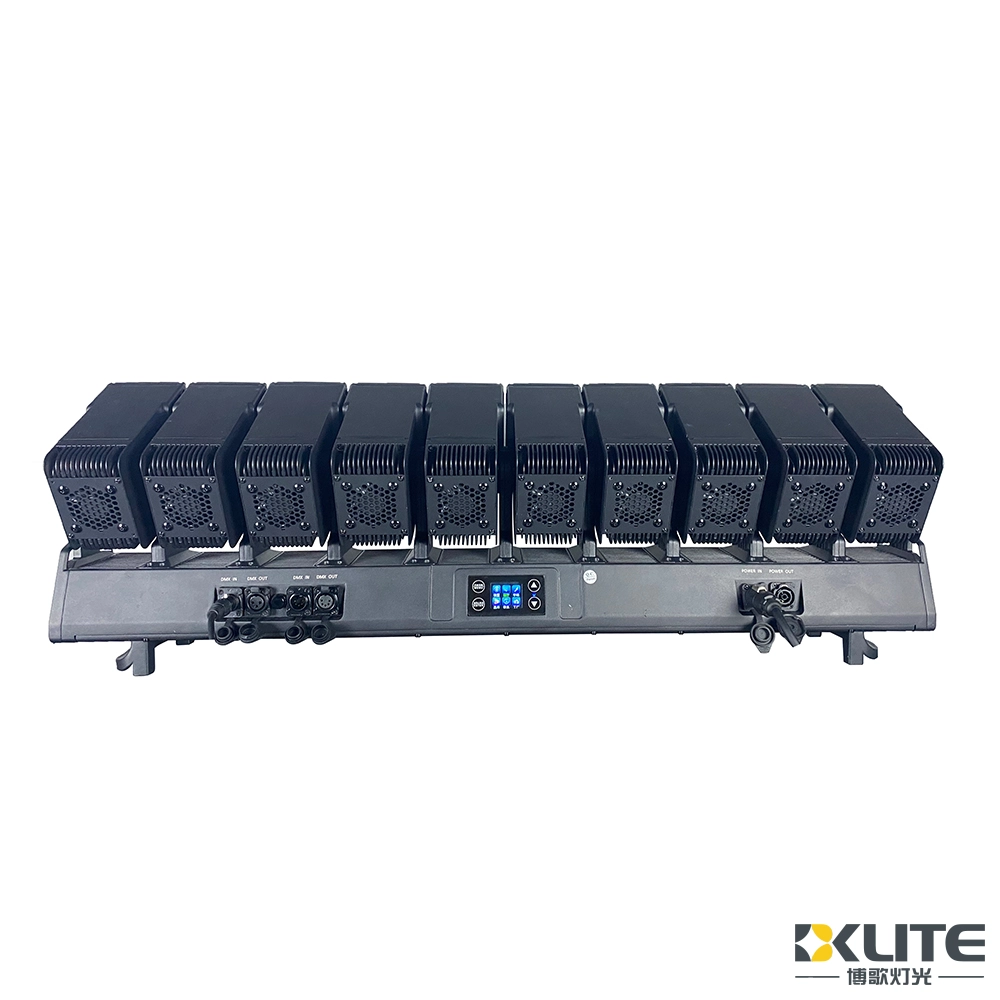

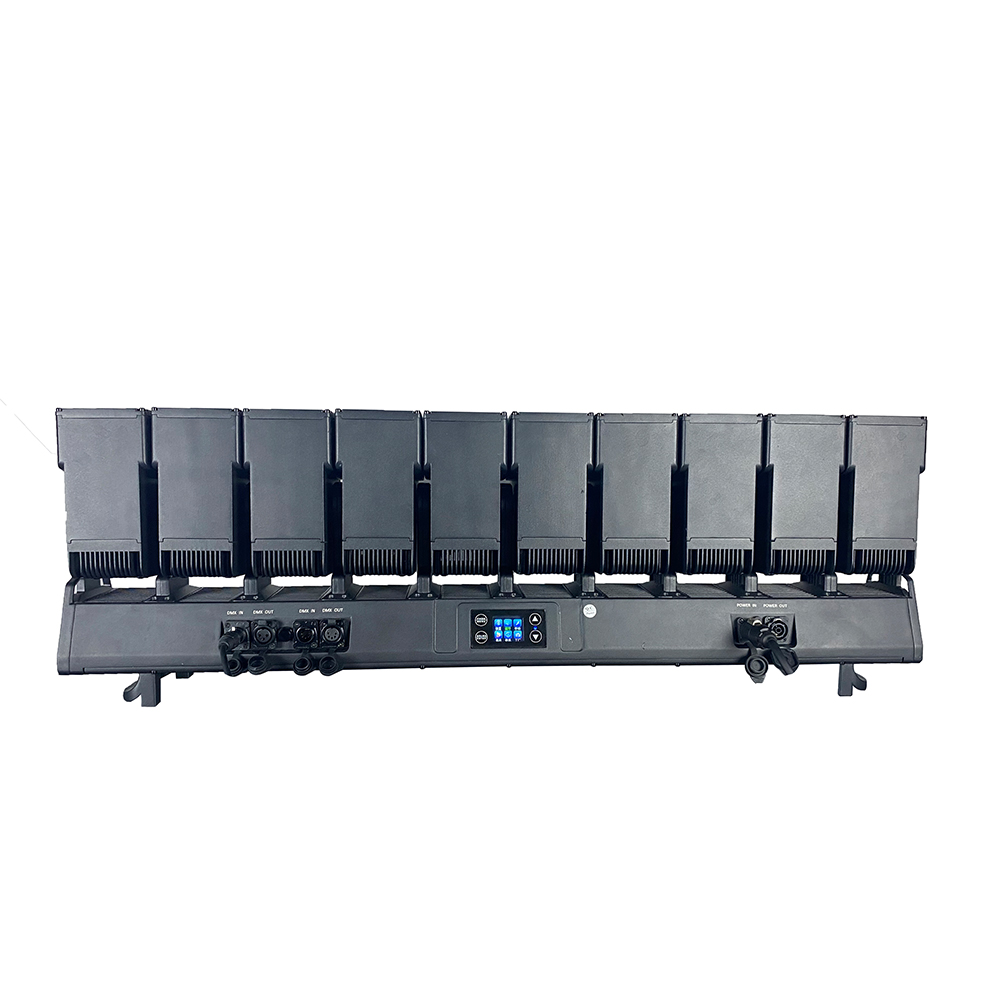

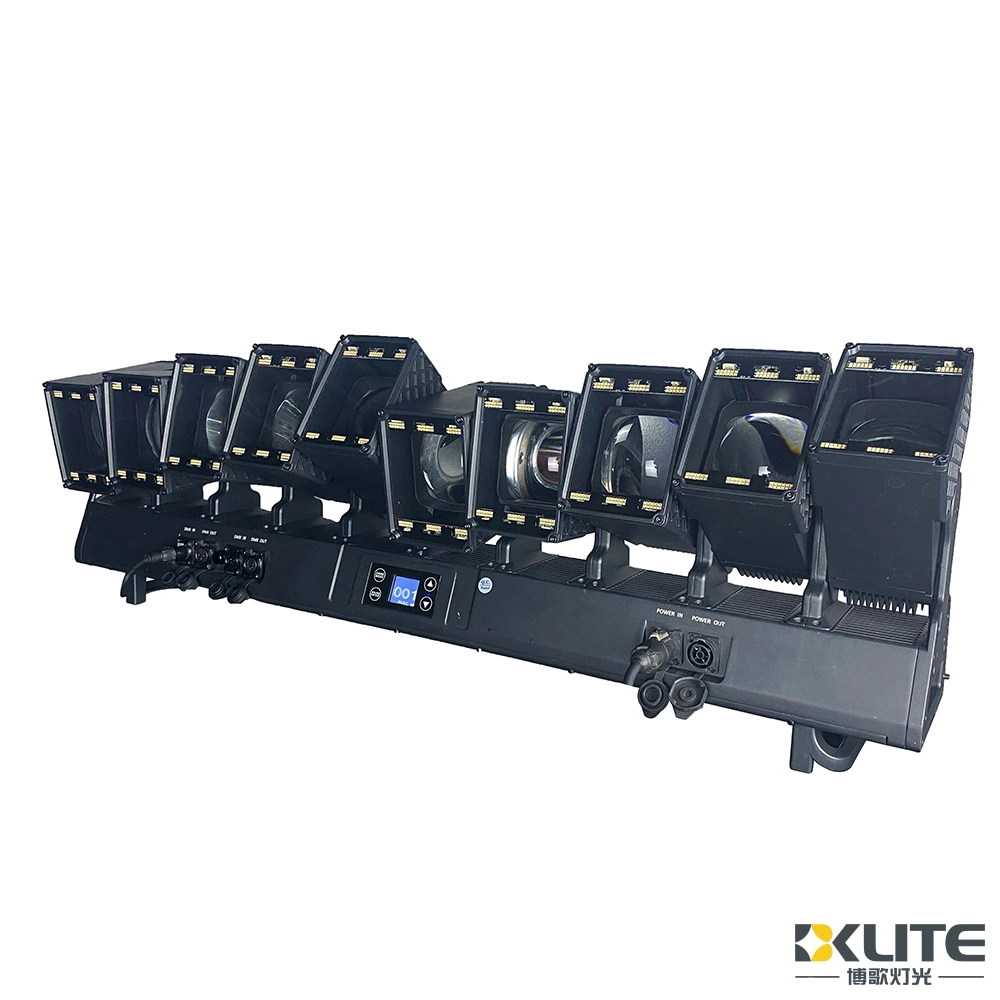

IP65 Waterproof Zoom 10x80W RGBW 4in1 LED Beam Wash Bar Moving Head Light With Golden, Cold White LED Ring
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKLITE IP65 Zoom Beam‑Wash Bar moving head is a high‑power outdoor pixel‑mapping bar fixture built for large‑venue concerts, stadium shows, music festivals and architectural lighting projects. Featuring 10 independently‑controlled 80W RGBW 4in1 heads with individual tilt and zoom, golden‑cool white decorative LED rings and 4°‑20° zoom range, it generates beam, wash and rich macro ring effects for all‑weather professional lighting applications.
Brand
BKlite
Model No.
BK-LB1080IP
Power
880W
Light source
10pcs 80W LEDs (4-in-1),360pcs 2016 golden color LEDs, and 360pcs 2016 cool white LEDs
Input voltage
AC100-240V 50/60Hz
Waterproof rating
IP65
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
IP65 10x80W LED Beam Wash Bar Moving Head Light User Manual(1).pdf
Key features
• Fully pixel mappable.
• 10 individually controllable tilting heads.
• With a extra LED ring for eye-candy effect,LED ring with macro effect.
• Single swing + wash + beam + auto reset + Tilt automatic staggering.
• Waterproof IP65-rated housing is designed for impactful outdoor lighting applications.
Waterproof rating
IP65
Light source
10pcs 80W RGBW 4-in-1 LED
Power
880W
Mode
DMX/ RDM/ Auto/ Master slave
Tilt
270° movement
Video
More parameters
| Specification0 | Details |
| Voltage | AC100-240V 50/60Hz |
| Max Power |
880W
|
| Light Source |
10pcs 80W LEDs (4-in-1),360pcs 2016 golden color LEDs, and 360pcs 2016
cool white LEDs
|
| Tilt | 270 degree+fine |
| LED Lifetime | 50,000 hours |
| Beam Angle |
4°-20
|
|
Working Temperature
|
-30 ° C to 50 ° C
|
| Strobe |
1~30HZ
|
| Dimmer |
32-bit linear dimming from 0% to 100%
|
| Channel Modes |
CH29/CH56/CH144/CH216/CH262/CH282
|
| Control Mode |
DMX/ RDM/ Auto/ Master slave
|
| IP Rate |
IP65
|
| Net Weight |
28.7KG
|
| Gross Weight | 32KG |
| Fixture Size |
1009.5x153.2x331.6mm
|
Product Details

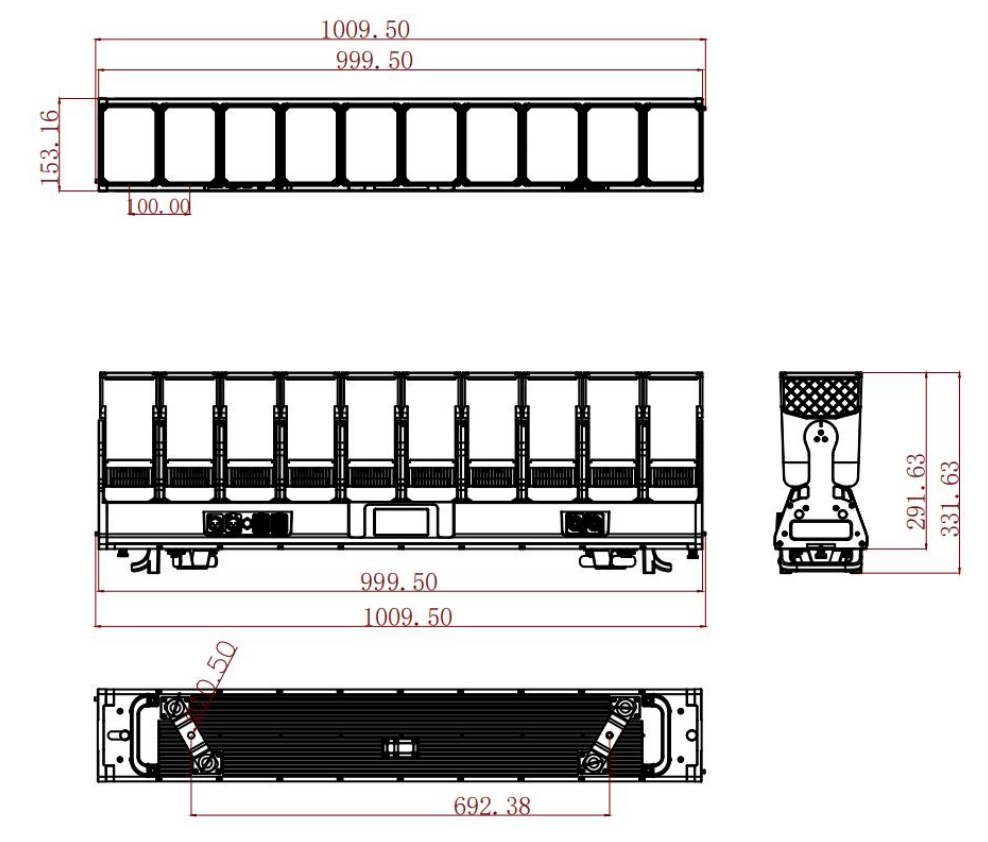

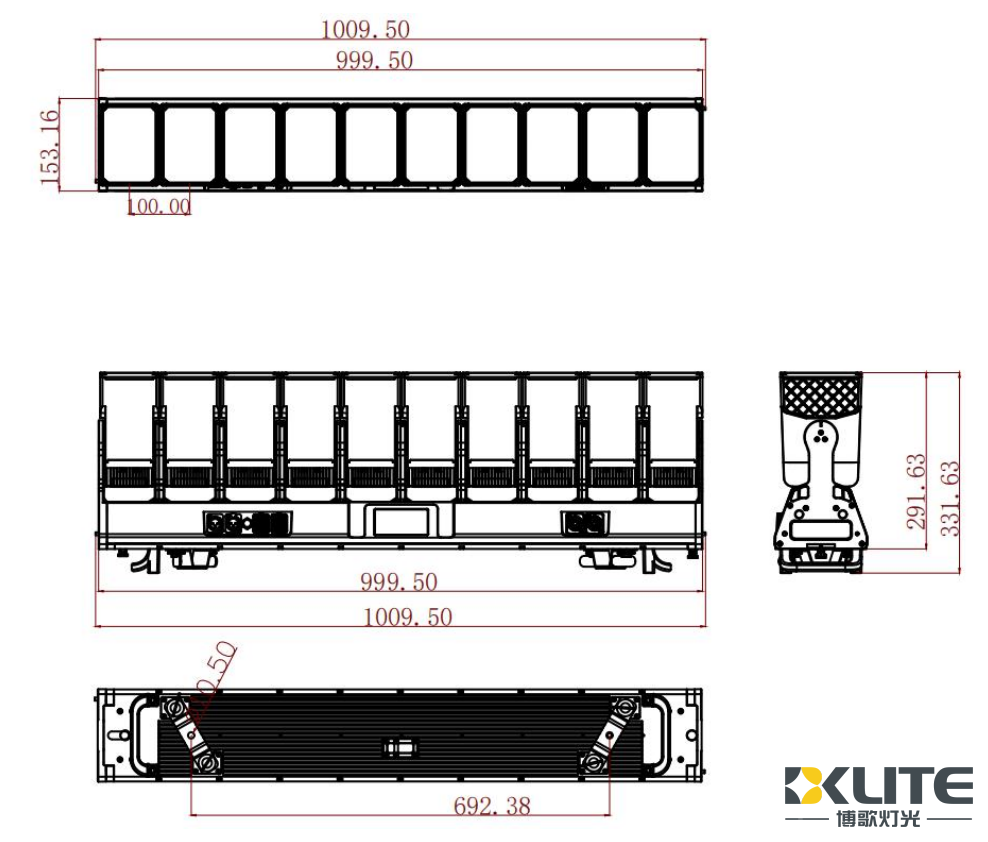

Dimensions

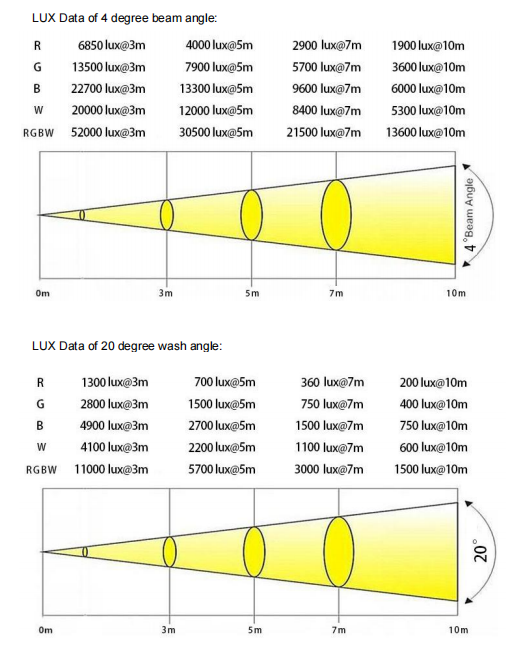

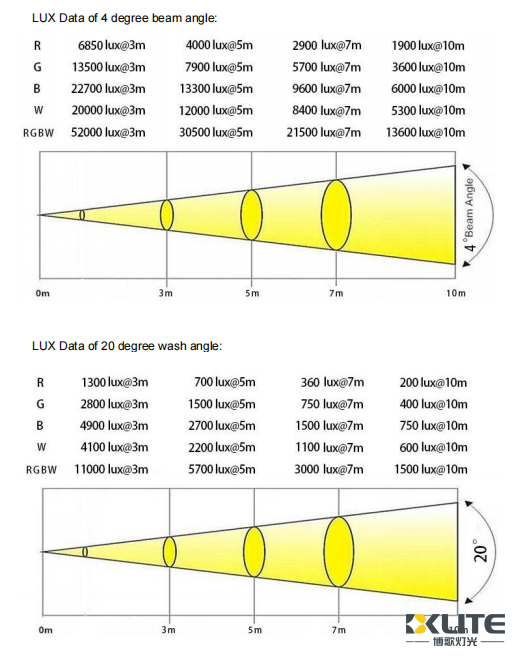

Photometrics
Waterproof Performance Test
Light source
•Lighting luminous flux 52000 lumens
•LED expected lifespan：50,000hour
Control and procedure
•Four touch buttons
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
-
•User manual
•Power cord
•Signal cable•Safety rope
