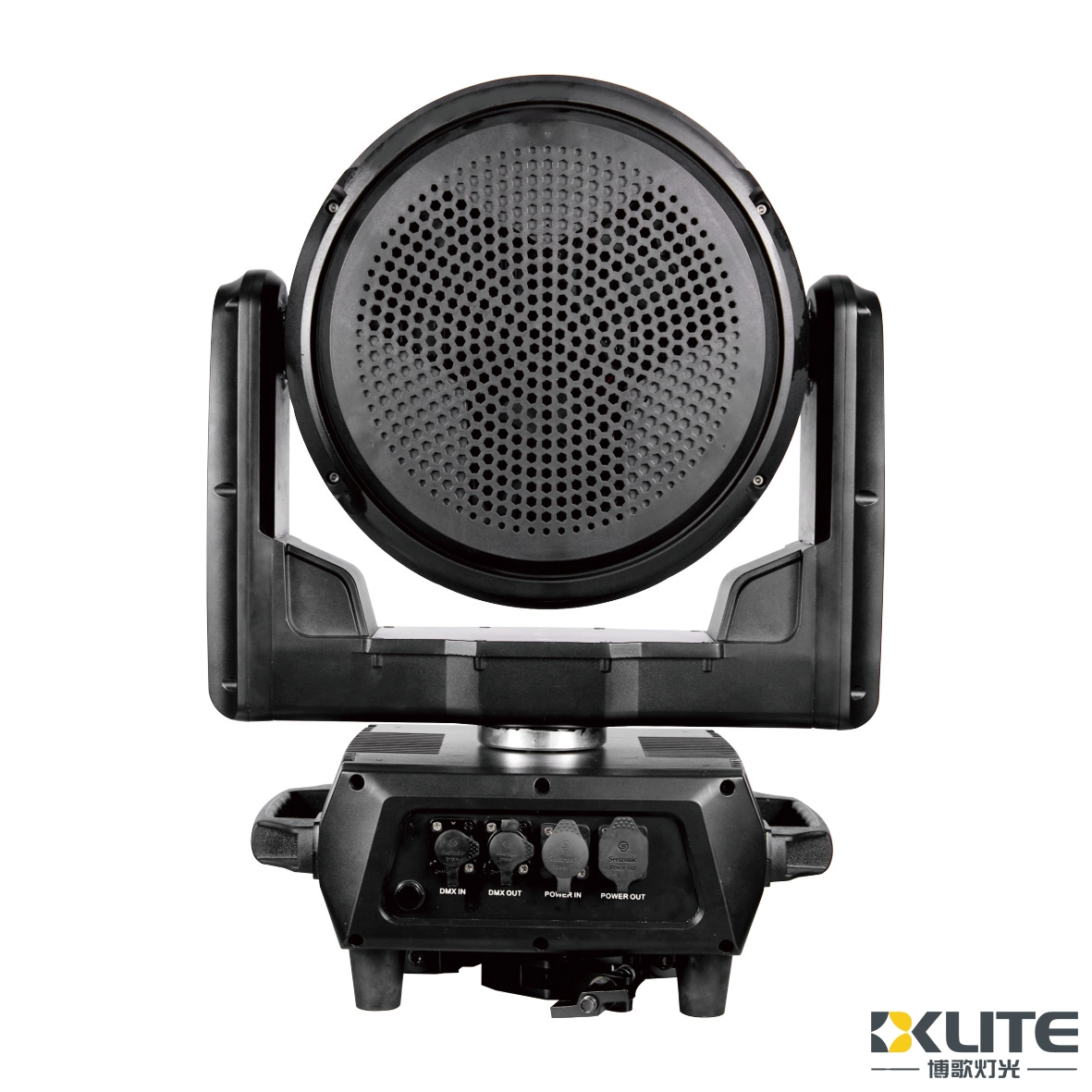

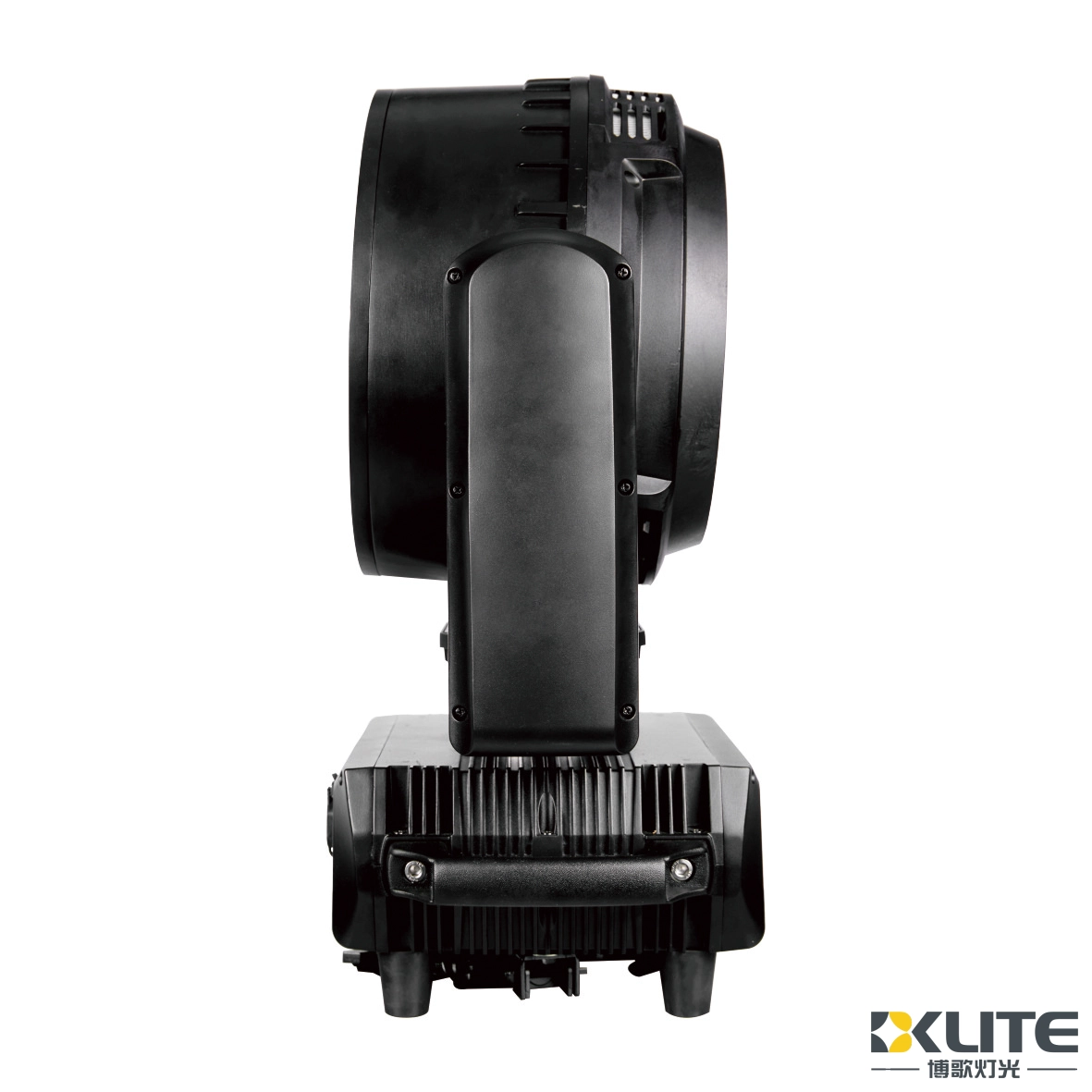

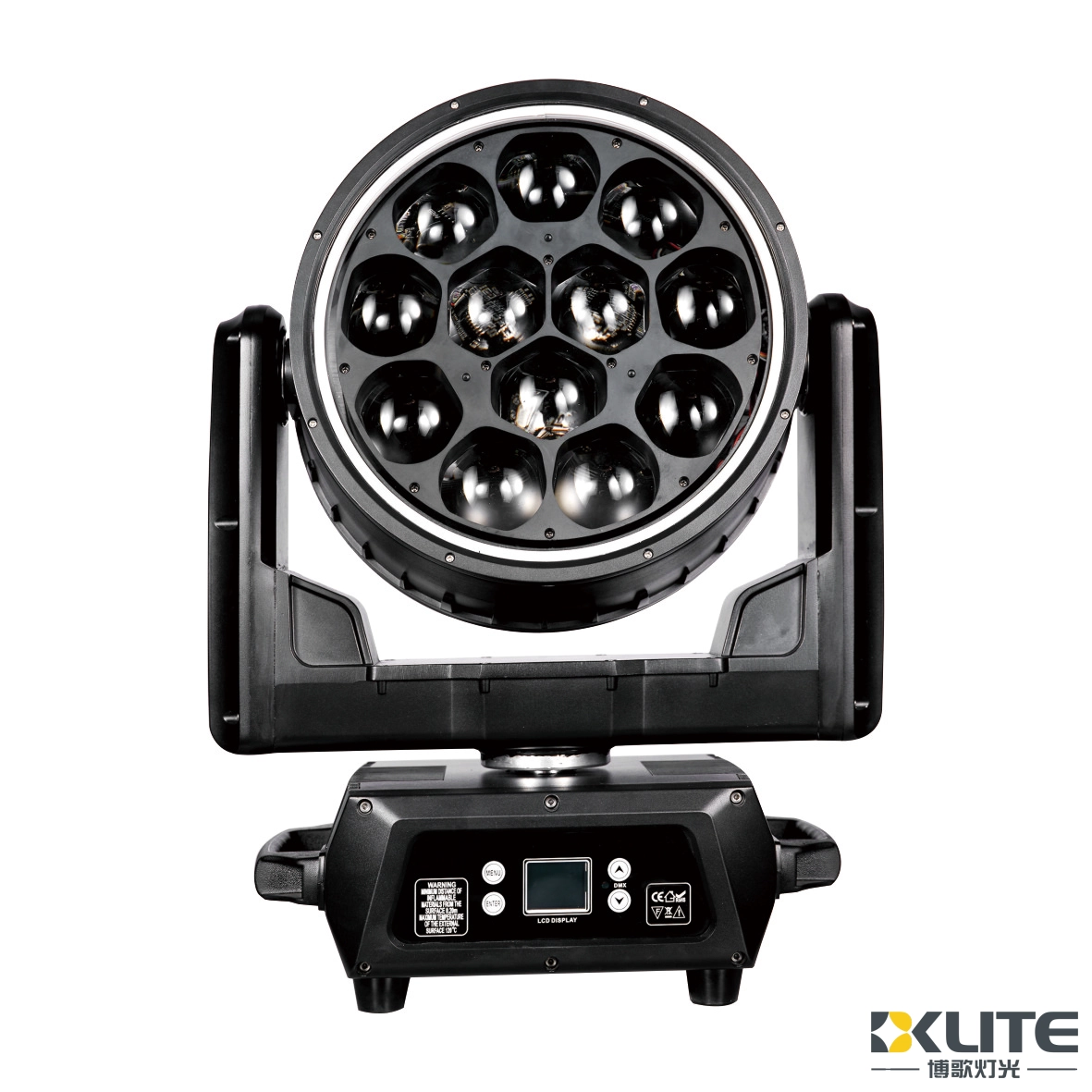

IP65 ZOOM 12*40W RGBW 4in1 LED Wash Moving Head Light

As one of the leading stage lighting equipment suppliers with 14+ years of experience, BKlite launched a new IP65 LED wash light –BK-B1240Z IP .

Designed with a simple and sleek appearance, the WASH moving head light is compact, lightweight, and highly portable.
With multiple color effect macros and dynamic effect macros, our outdoor wash light can be used for versatile lighting options with a marquee effect.

Brand

BKlite

Model No.

BK-1240Z IP

Power

550W

Light source

12pcs 40w high brightness RGBW 4-in-1 leds

Input voltage

AC90-240V 50-60HZ

Waterproof rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

IP65 12x40w LED zoom wash moving head light with LED ring.pdf

IP65 ZOOM 1240 Light library.zip

Key Features

• Intelligent control: the use of the equipment and lighting time through the lighting menu, channel data and software version information, etc

• Temperature control: intelligent temperature control, can automatically adjust the speed of the heat fan and overheating protection • Shell material: the latest second generation structure waterproof design, metal die-cast aluminum shell and fire proof engineering plastics

• Protection grade: IP65, waterproof, dust-proof, anti-oil pollution design, suitable for perennial outdoor all-weather use.

Power

550W

Channels

19CH / 67CH / 26CH / 74CH

Light source

12pcs 40W high-brightness RGBW 4-in-1 LEDs

Mode

DMX 512,Auto, RDM,Master-slave

Excellent color mixing effect

Video

More parameters

Specification	Details
Voltage	AC90-240V 50-60Hz
Power	550W
Light Source	12pcs 40W high-brightness RGBW 4-in-1 LEDs
Dimmer	0-100% linear dimming system
Strobe	1-25 times per second
Pan	540° with 16-bit fine
Tilt	270° with 16-bit fine
Zoom	5-60° smooth and fast zoom system
LED Lifetime	Average 20,000 hours with low power consumption
DMX Channels	19CH / 67CH / 26CH / 74CH four-channel mode
Control Mode	DMX512, Master-Slave, Auto, Sound
Color Mixing	RGBW infinite mixture
Display	LCD display
Fixture Size	432 × 333 × 485 mm
Net Weight (N.W.)	22 KG
Package Dimension	610 × 530 × 450 mm (1pc/ctn)

Product Details

Dimensions Accessores

Photometrics

Light source

•Lighting luminous flux 93,000 lumens
•LED expected lifespan：5000hour

Control and procedure

•Five mechanical keys
•2.8 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
