Ultimate Buyer's Guide: How to Choose the Right LED Spot Moving Head Light for Your Venue

To develop a truly visual experience, it is not only about light but also about accuracy, texture, and dynamics. You are stocking a high-trax night club, a serious house of worship, or a huge outdoor festival, what you use to control lights is the brush of your stage. This resource will take an in-depth look at the technical details of the most profitable tool in the arsenal of lighting designer to make your decision.

What is an LED Spot Moving Head Light and Why Do You Need It?

Before making any investment in new equipment, one must know where this particular fixture will fit in your lighting rig. An LED spot moving head light is used to define and control an area unlike generic wash lights that would flood it with color. It is the utility of the modern stage design, which can provide clear patterns, pierce through haze in the air, and bring out special performers in a manner that is surgical.

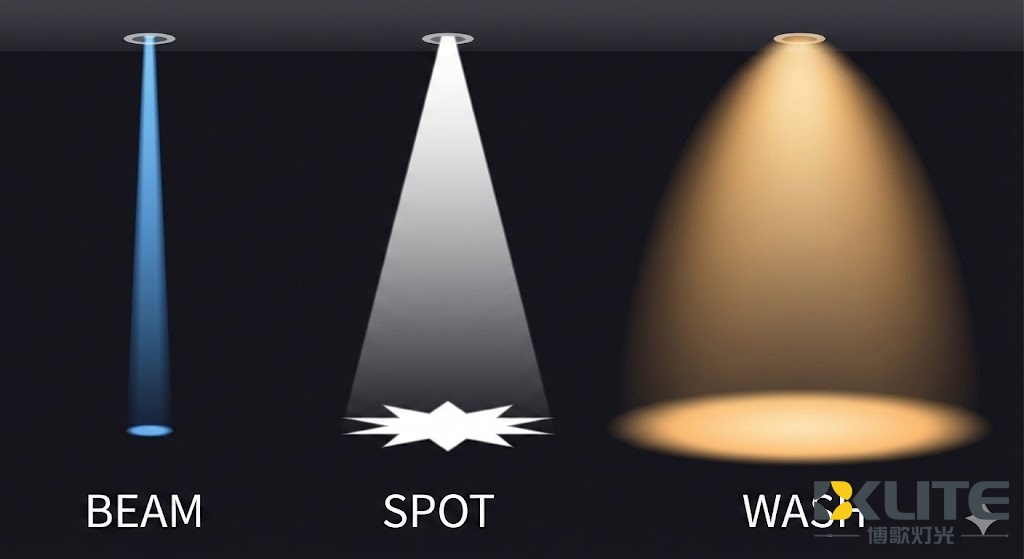

Spot vs. Beam vs. Wash: Understanding the Key Differences

To build a balanced rig, you must understand the "Holy Trinity" of intelligent lighting.

• Beam: Features a very narrow angle (usually under 5 degrees). It produces a tight, pencil-thin shaft of light intended to travel long distances and create mid-air aerial effects.
• Wash: Has a wide angle and soft edges. It is used to bathe the stage in color but lacks the ability to project defined shapes.
• Spot: This is the hybrid master. With a typical beam angle between 10 to 30 degrees, a spot fixture offers a sharp edge that can be focused. This allows for Spot vs Beam vs Wash comparisons to generally favor the Spot when you need to project gobos (patterns), use prisms, or act as a "follow spot" for a lead singer. It offers the versatility to function as a beam (when zoomed in) or a wash (when frosted), making it essential for dynamic shows.

The Shift to LED: Benefits of Energy Efficiency and Longevity

The industry has shifted a lot and is no longer using the old discharge lamps (such as MSD Platinum bulbs) and instead has taken up the LED sources. A White LED engine offers a flatter field of light i.e. the brightness remains the same all the way to the end of the beam. More to the point, LEDs have a life of 20,000-50,000 hours as opposed to life of a discharge bulb 2,000 hours. To the owners of the venue, it means a lot in terms of maintenance expenses and heat emission cutoffs, which is very important in terms of maintaining the other stage equipment and ensuring that the performers are comfortable.

Critical Specs to Consider Before Buying

After arriving at the conclusion that a spot fixtures is needed, you are now left with the task of going through the technical datasheet. Not every single fixture is the same and the light that seems the brightest is not necessarily the best light to fit all situations. You must compromise brute force with sharpness.

Brightness and Power: Determining the Right Wattage for Your Space

The wattage of the LED engine directly correlates to the throw distance.

• Small Venues (Bars/Low Ceilings): A 100W to 150W LED spot moving head light is usually sufficient for throws up to 10 meters.
• Medium Venues (Clubs/Theaters): Look for 200W to 300W engines. These provide enough punch to cut through other stage washes.
• Large Venues (Festivals/Arenas): You will require 600W+ engines to ensure the beam is visible from the back of the house.
• Note: Always check the Lux output at 5 meters, not just the wattage, as optical lens quality plays a huge role in perceived brightness.

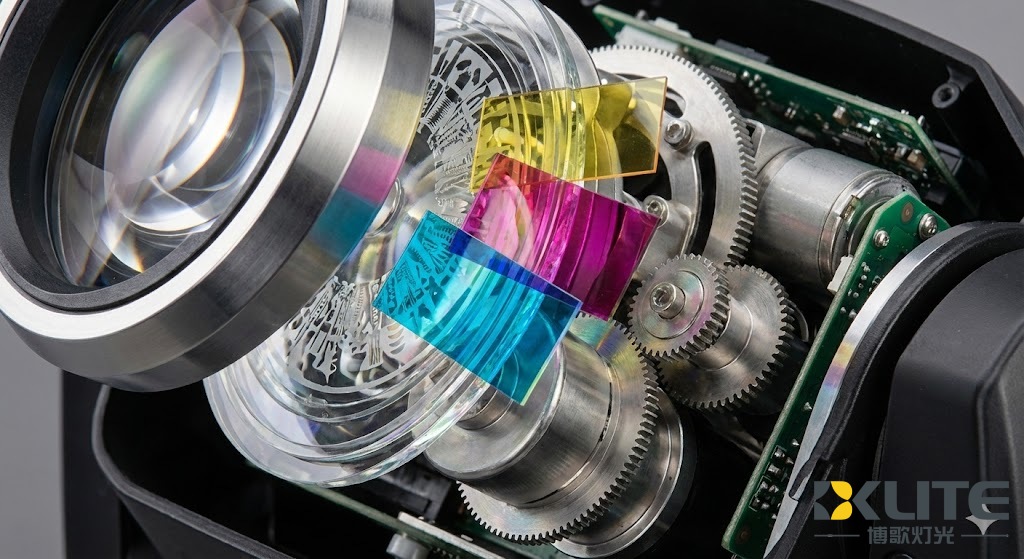

Gobo Wheels and Prism Effects: Creating Visual Textures

A spot fixture is characterized by the capacity to form light. Professional fixtures are generally fitted with two gobo wheels; one stationary (patterned metal) and one rotating (patterned glass which may rotate). When used together with a prism, the rotating wheel enables complicated, flowing effects of water or fire. The Gobo moving head light also gives the designer the option of making patterns of breakup of the stage floor or scenic effects, which could not be added using a wash light.

Zoom Range and Focus: Flexibility for Different Stage Heights

A professional use cannot do without a motorized zoom. The range of zoom is large (e.g., 4 0 to 35 0 ), so that the light can be used at various trim heights. When it is at 4 degrees, it resembles a beam light, whereas, when it is at 35 degrees, it encompasses a large stage. Combined with motorized focus, you can be sure that your gobo patterns will always stay razor-sharp no matter which zoom you use or how many feet away you are to the projection surface.

Color Mixing Systems: CMY vs. Color Wheels

In the case of cheap fixtures, a typical Color Wheel (7-10 fixed colors) is used. But when it comes to theaters and the high-end events, CMY color mixing lights should be preferred. This system works based on the principle of mixing light in a subtractive form, that is, through three colors: Cyan, Magenta, Yellow, which makes it possible to create millions of color nuances and gradual cross-fading of colors. This is critical to the perfect match of skin tones or corporate branding colors.

Choosing the Best Moving Head Light for Your Specific Venue

Paper specifications should be converted into practical performance. The environment presents distinct requirements to the lighting fixtures such as requiring sound-free lighting in a theater or requiring waterproofing in a festival.

Nightclubs and DJ Sets: High Speed and Sound Activation

In the high-energy world, speed is the god. You require motors capable of making fast pan and tilt so as to keep abreast with the BPM of the music. Installation of an LED spot moving head light in a club will require fixtures that have "Sound Active" modes or violent built-in macros. The longevity of the cooling fans is also crucial in this case since these types of venues frequently apply haze and fog fluid which may cause any poor-quality intakes.

Theaters and Churches: Low Noise and Precision

In this case, the value of speed is replaced with the value of silence and quality. Loud cooling fan can spoil a drama or a sermon when it is being quiet. Find fixtures with Theater Mode or which have a variable fan speed control. Also, it is important to have an index of CRI (Color Rendering Index) of more than 90 because it helps to make costumes and skin colors to appear natural and not washed out.

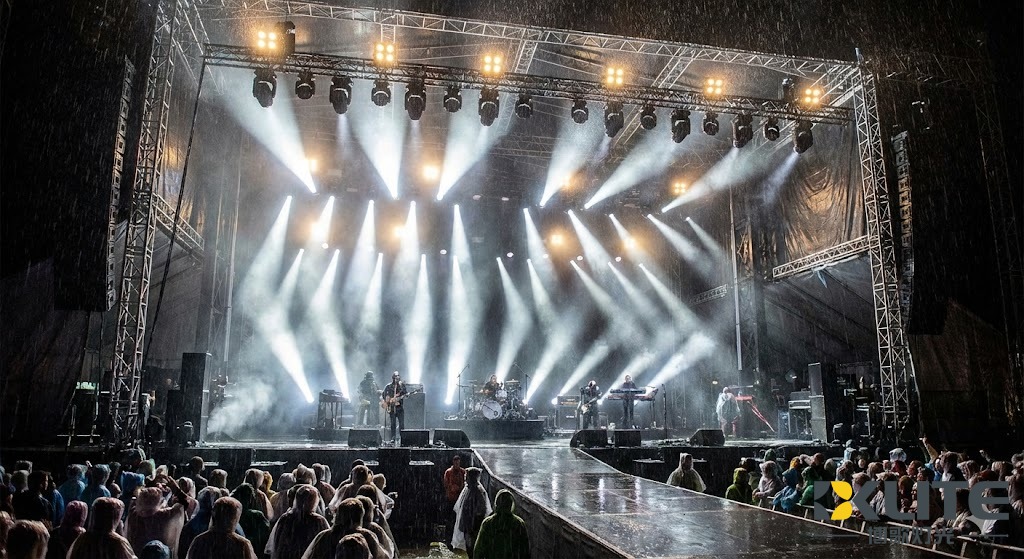

Outdoor Festivals: Why IP65 Rating Is Non-Negotiable

Humidity and rain are the foes of electronics in case your location is outdoor. The general fixtures are IP20 (indoor only). Where there is a festival, theme park or architectural installation, then an IP65 outdoor moving head light should be used. These fixtures also contain closed gaskets and waterproof connectors, which do not allow dust to penetrate or water to damage the fixtures. Although they are a little heavier, they do not require costly and unattractive protecting domes.

Installation, Control, and Maintenance

The process of purchasing the light is not the only one. The correct incorporation into your system means security and convenience during the performance.

Mastering DMX Control for Complex Light Shows

Moving heads used by professionals work through DMX512. A spot fixture may have a number of channels between 16 and 30 or more. Further users must seek fixtures that have RDM (Remote Device Management) which you can adjust the DMX address or monitor the temperature of the fixture remotely without using a ladder to reach the console.

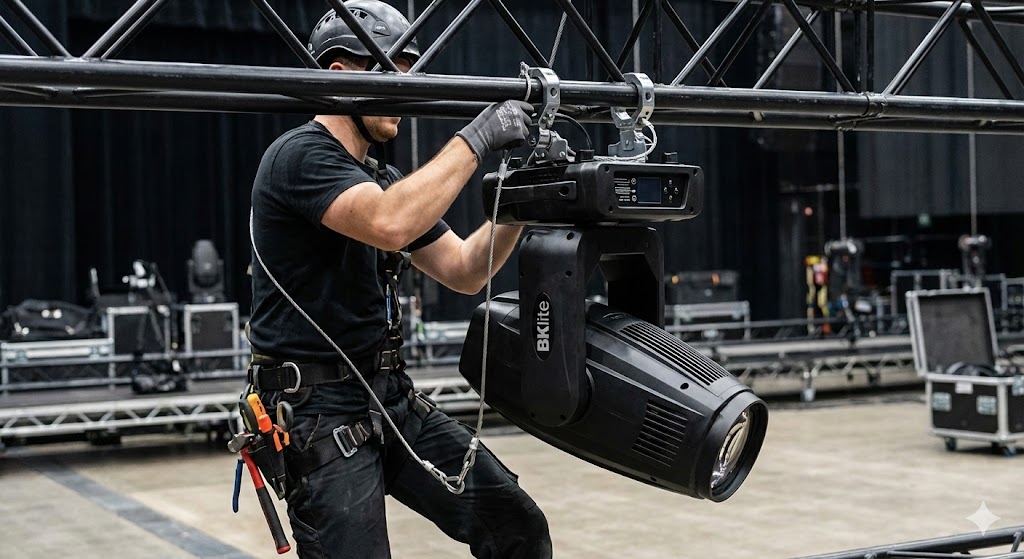

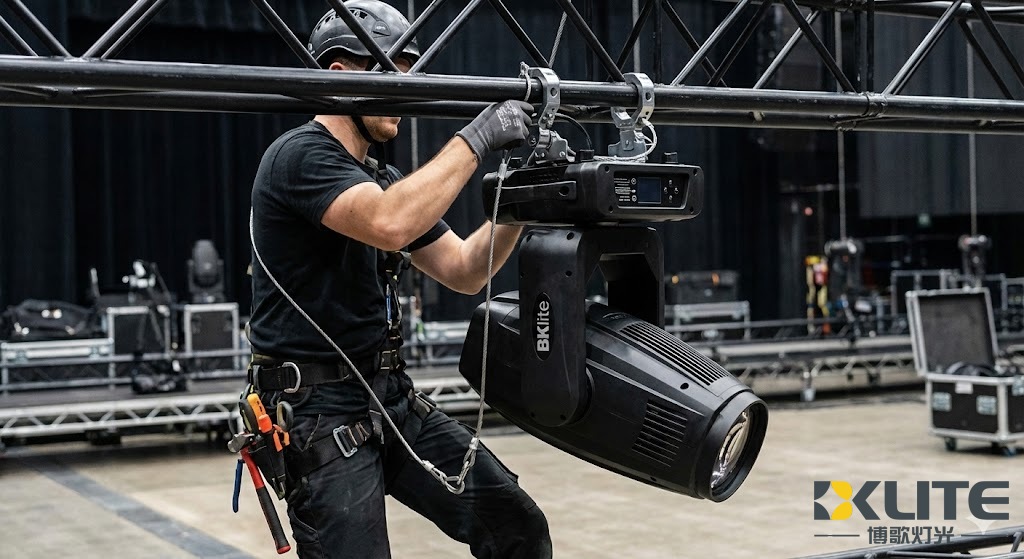

Mounting Options and Rigging Safety Tips

To install an LED spot moving head light by rigging, the fixture must always have quick-lock Omega brackets in order to install it easily. The most important thing is safety: it is recommended to use a safety cable with 10x of the weight of the item on it. When using the totems on the floor (floor-standing applications), it is important to make sure that the rubber feet are not removed to allow the vibration to walk the light out of the stage.

Why BKlite is the Trusted Manufacturer for Professional Stage Lighting

It is difficult to find a supplier who would simultaneously combine the latest technology and quality manufacturing. In BKlite, we have enhanced this balance in more than 14 years in order to become a top choice among lighting professionals throughout the world.

Customization and R&D: Tailored Solutions for Unique Projects

There is also a committed R&D team in BKlite unlike the generic resellers, of which 70 percent of our engineers have worked across big lighting factories. You want a TV studio to run at a certain temperature or you just want a gobo loadout designed to fit a tour we offer OEM and ODM services to produce the light your project is going to need.

Global Reach and Fast Delivery from Our EU/US Warehouses

We realize that the performance has to continue--and frequently within a very short time. We have created a logistic and warehousing network in Europe and the United States. This will enable us to provide 3 day delivery of in stock items thereby removing the long queues that are normally experienced with overseas production.

Our Top Picks: Recommended LED Spot Moving Heads for 2026

In case you would like to have a workhorse, we suggest the series of Bee Eye and high-power Spot. They are the best of the best in our engineering with high-output LED engines that operate quietly like a whisper and are toughly built.

Conclusion

Choosing the appropriate lighting is an investment in the ambiance and production. Whether it is knowing how much wattage you need, which optical attributes such as zoom and gobos, or what your particular requirements of your location are, by knowing all these, you can select an LED spot moving head light that will provide you with brilliant images over the next several years. It is important to remember that the most appropriate is a light not only bright, but also reliable and versatile.

Frequently Asked Questions (FAQ)

1. How many lumens do I need for a 500-seat theater?

A light like that (usually a 300W-400W LED light engine) of at least 15,000 to 20,000 lumens should be used as a venue head (typically a spot moving head light) in order to cut through stage washes.

2. Can I use indoor moving heads outside if it's not raining?

It is risky. Humidity and dust can also destroy internal optics and electronics even in the absence of rainfall. An IP65 rated is the most secure and durable type of light that should be used in any outdoor application.

3. Hybrid vs. Dedicated Spot: Which is better?

Hybrid fixtures are generalistic, yet a specific LED spot moving head light offers a high optical clarity and better gobo definition. When precision is of the essence, then use a dedicated spot.

4. How often is maintenance required?

When in a place where fog and or haze is utilized, wash the lenses and fans once a month to avoid accumulation of residue. In the case of cleaner places such as theaters, a quarterly check is more than enough.

5. Do LED fixtures save money on electricity?

Absolutely. Unlike normal discharge lamps that consume a lot of power and generate a lot of heat, they use much less power and produce less heat, saving you on your lighting and air conditioning bills.
