How to Master Stage Lighting: 7 Pro Techniques Using Only LED Bar Lights (2026 Guide)

Key Takeaways: Mastering Linear Illumination

• Versatility: LED bars can replace washes, blinders, and even low-res video screens.
• Cost-Efficiency: Covering wide areas (like cycloramas) requires fewer linear fixtures than point-source Pars.
• Future-Proofing: Mastering pixel mapping is essential, with this sector driving 65% of recent market growth.

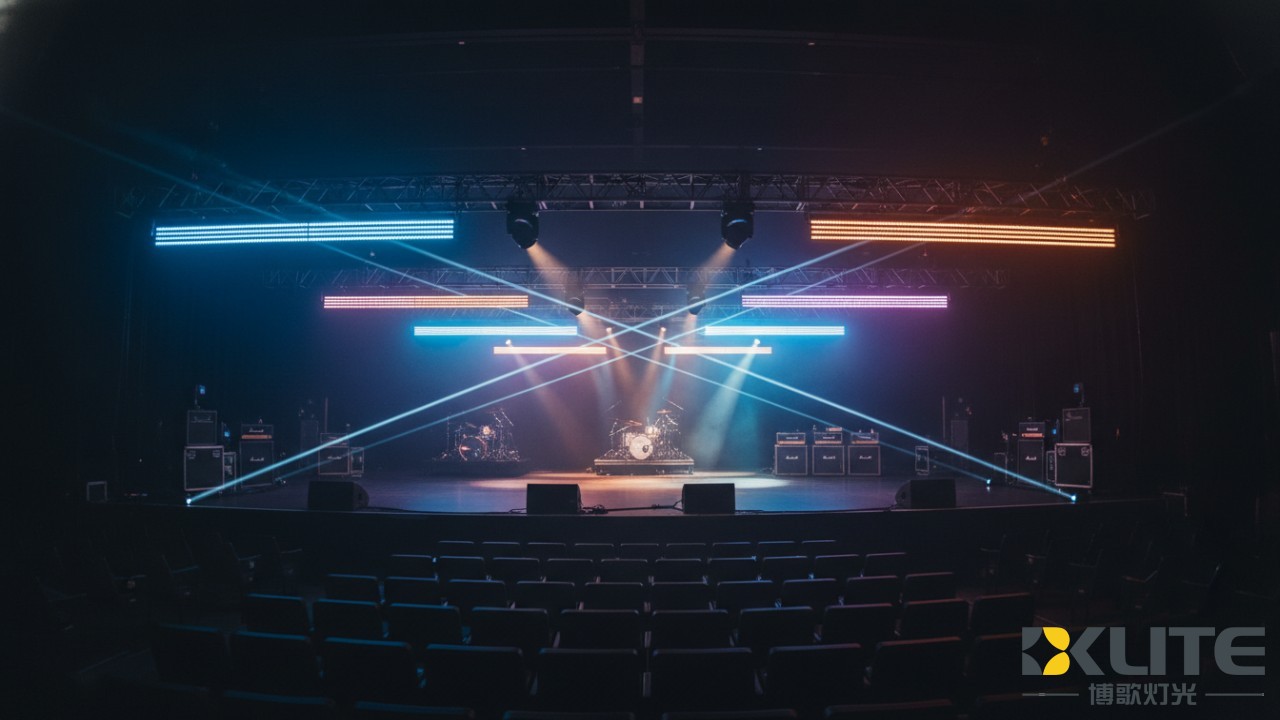

Designing a compelling light show often feels like an arms race for the most expensive moving heads. But constraint breeds creativity. Some of the most visually striking modern tours rely almost exclusively on linear fixtures to create geometric architecture and fluid motion. Whether you are using a high-end led bar light for stage productions or a compact rig for a club, the principles of linear design remain the same.

In this guide, we explore how to build a world-class show using only LED bars, leveraging data-backed trends and specific equipment capabilities from industry leaders like BKLite.

What is a Stage LED Bar Light? (And What It Isn't)

A stage LED bar light (or batten) is a linear lighting fixture capable of DMX512 control, allowing for color mixing, dimming, and individual pixel manipulation.

Unlike standard consumer lights, these fixtures are engineered for the rigorous demands of live entertainment. It is critical to distinguish these from automotive off-road light bars. While an off-road bar offers raw brightness, it lacks the DMX protocols and thermal management required for theatrical use.

Why the distinction matters:

• Control: Stage bars allow you to dim from 0 to 100% smoothly; automotive bars are typically strictly On/Off.

• Color Engine: Professional fixtures use RGB, RGBW, or RGBAUV blending to create millions of colors.

• Safety: Stage fixtures use flame-retardant casings and active cooling systems designed for indoor venues.

Technique 1: The 'Infinite Horizon' Cyclorama Wash

The 'Infinite Horizon' technique involves placing LED bars at the extreme top and bottom of a backdrop to create a seamless, two-tone vertical gradient.

This is the bread and butter of linear fixtures. By using the wide throw of a bar, you can wash a 40-foot-wide curtain with just a handful of units, something that would require dozens of traditional Par cans.

How to execute it:

• Spacing: Place your led batten wash light setup approximately 12-18 inches away from the cyc wall.

• Lenses: Ensure your fixtures have asymmetrical lenses (often included in premium BKLite models) to push light up the wall rather than onto the stage floor.

• Gradients: Program the top bars to a deep blue (e.g., midnight sky) and the bottom bars to a warm amber (e.g., sunset) to create natural depth.

Technique 2: Advanced Pixel Mapping & 'Eye Candy'

Pixel mapping is the process of treating each individual LED cell within a bar as a separate pixel to display low-resolution video content or motion effects.

This technique is transforming the industry. According to industry analysts at Lighting Insights Global, LED pixel lights accounted for over 65% of market growth in the sector recently, proving that granular control is the future of design. Instead of a static wash, your lighting rig becomes a digital canvas.

Mastering dmx pixel mapping techniques:

• The Matrix: Arrange multiple bars in a grid (vertical or horizontal) to create a low-res video screen.

• Liquid Effects: Use software like MadMapper or Resolume to send "fluid" textures across the bars. The light appears to flow like water from one fixture to the next.

• Channel Count: Be prepared for high channel usage. A single meter-long bar in full pixel mode can easily consume 40+ DMX channels.

Technique 3: The 'Light Curtain' Backlight Effect

A light curtain creates a solid wall of light beams behind the performer, achieved by rigging LED bars in a straight line and tilting them toward the audience.

This is a staple of linear stage lighting design. When combined with haze (fog), the individual beams from the LEDs merge to form a cage or a solid sheet of light. It defines the space and separates the artist from the background.

Pro Tips for Light Curtains:

• Narrow Beam Angle: Use bars with tight lenses (10° - 25°) to keep the curtain sharp.

• Movement: If your bars have a motorized tilt (tilt bar), you can sweep this curtain over the audience for a massive immersive effect.

• Chase Effects: Program a left-to-right chase to make the "curtain" look like it is sliding across the stage.

Technique 4: Dramatic Footlighting & Silhouettes

Footlighting involves placing LED bars directly on the downstage edge to cast upward shadows, creating a mysterious or dramatic look on the performer's face.

Classic theater often avoids footlights due to the "scary campfire" look, but in rock and electronic music, this angle is powerful. It disconnects the performer from reality.

The BKLite Advantage: When using footlights, the fixture is inches from the artist. BKLite fixtures are renowned for their silent operation and flicker-free dimming curves, ensuring that even at 1% intensity, the light doesn't "pop" on but fades up smoothly—crucial for dramatic intros.

Technique 5: Architectural Framing & Set Definition

Architectural framing uses linear bars to outline physical structures—trussing, risers, or drum platforms—turning the hardware itself into a glowing set element.

Rather than lighting an object, the object becomes the light source. This is often called "Truss Warming" when done inside metal rigging.

Implementation Steps:

• Safety First: When lining stage stairs, the LED bars serve a dual purpose: aesthetic flair and safety visibility for performers.

• Internal Glow: Place a bar inside a box truss to make the metal framework glow from within.

• Wireless Options: For clean set designs where cables are unsightly, 2026 trends point toward battery-powered bars that can last 12+ hours on a single charge.

Technique 6: The Strobe & Blinder Hybrid Utility

Modern LED bars can be overdriven momentarily to act as high-intensity strobes or audience blinders, replacing dedicated strobe units.

By flashing all pixels simultaneously at cool white (6000K+), a row of LED bars can produce a blinding wall of white light. This versatility saves budget and trucking space.

Programming the Hybrid Effect:

• The Pulse: Use a "Sawtooth" wave generator on your intensity channel to create a throbbing blinder effect.

• Random Strobe: Utilize the dmx pixel mapping techniques to trigger random pixels to flash white. This creates a "sparkle" or "champagne" strobe effect that is less aggressive but visually stunning.

Technique 7: Asymmetrical Rigging for Visual Tension

Asymmetrical rigging breaks the standard horizontal/vertical grid by hanging bars at 45-degree angles or random heights to create visual tension.

Symmetry is safe; asymmetry is interesting. This "chaos" look is popular in techno, industrial, and avant-garde theatre.

Design Concepts:

• The Explosion: Hang bars radiating outward from a center point like an explosion.

• Pick-Up Sticks: Rig bars at completely random angles and heights. When pixel-mapped, the light seems to jump through a chaotic web.

Common Mistakes to Avoid with LED Bars

The most common error is neglecting the refresh rate, leading to strobing or banding artifacts on video recordings.

This is a critical technical consideration. The stage lighting refresh rate for camera sensors must be synchronized.

• The PWM Trap: LEDs dim by turning on and off thousands of times per second (Pulse Width Modulation). If this rate is too slow (e.g., <1000 Hz), cameras will record rolling black lines.
• The Solution: Always set your fixtures to a "High Refresh Rate" mode (typically 3000 Hz or higher) if the event is being filmed.
• Voltage Drop: Daisy-chaining too many bars (e.g., more than 8-10 units) can cause the last lights in the line to look dimmer or flicker. Always use power injection cables for long runs.
•

Future Outlook: LED Bar Technology in 2026

By 2026, the industry is shifting toward AI-integrated control and full-spectrum color engines that go beyond standard RGB.

Data from recent market analysis suggests the Global Stage Lighting Market is on track to reach over $10 billion by 2032, driven largely by the transition to intelligent LED systems (Dataintelo).

What to watch for:

• RGBAL Engines: Adding Lime and Amber chips for high CRI (Color Rendering Index) to make skin tones look natural on camera.

• AI Mapping: Software that listens to the audio feed and automatically generates complex pixel maps without hours of programming.

• Wireless Ecosystems: Battery efficiency is improving, making power cables obsolete for many short-duration events.

Frequently Asked Questions (FAQ)

1. Can I use an automotive LED light bar for stage lighting?

No. Automotive bars lack DMX control, meaning you cannot dim them, change colors, or integrate them into a lighting console. They are also prone to overheating indoors and may cause severe flicker on cameras.

2. How many DMX channels does a pixel-mapped bar need?

It depends on the resolution. A standard mode might use 5-10 channels. However, a "1-pixel-per-cell" mode on a 1-meter bar can easily require 48 to 100+ channels per fixture.

3. What creates the smoothest dimming curve?

Look for fixtures with 16-bit dimming. Standard 8-bit dimming has 256 steps, which can look "steppy" at low levels. 16-bit dimming offers over 65,000 steps for a perfectly smooth fade.

4. How do I stop my LED bars from flickering on video?

Ensure your fixtures have a variable PWM (Pulse Width Modulation) setting. Increase the frequency to at least 1200 Hz for standard video or 3000 Hz+ for high-definition slow-motion footage.
