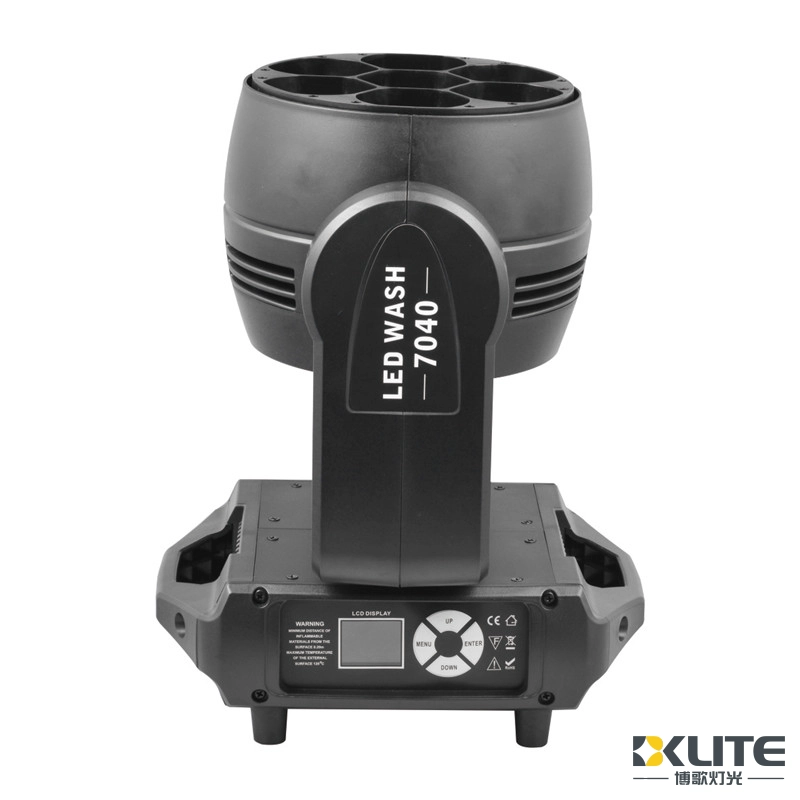

ZOOM 7x40w RGBW 4IN1 LED Wash Moving Head Light

With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKlite BK‑B7040Z is a compact IP20 mini zoom wash moving‑head designed for bars, KTV lounges, small‑scale concerts, banquet halls and private party events. Equipped with 7 individually‑controllable 40W RGBW LEDs and 5°‑60° fast‑response zoom, it casts even blended colour washes, snappy pixel chase movements and dynamic preset macro effects for medium‑to‑small entertainment spaces.

Brand

BKlite

Model No.

BK-B7040Z

Power

AC90-240V 50-60HZ

Light source

Source: 7pcs 40w high brightness RGBW 4-in-1 leds

Input voltage

350W

Waterproof rating

IP20

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Get a free quote

7X40W Pixel Zoom wash user manual.pdf

Key features

• BK-B7040Z Wash produces a wider zoom range, higher output and wide uniform wash field.

• Each led is controllable individually to bring more effects.

• Built-in with macro effects.

• Fast Pan/tilt speed.

Channel

19/47CH

Light source

7pcs 40w high brightness RGBW 4-in-1 leds

Power

350W

Mode

DMX512/master-slave/auto/sound

Tilt

540° + fine/270° +fine

Video

More parameters

Specification	Details
Voltage	AC90-240V 50-60HZ
Power	350W
LED Source	7pcs 40w high brightness RGBW 4-in-1 leds
Dimmer	0-100% linear dimming system
Strobe	1-25 times/second
Pan	540° + fine
Tilt	270° +fine
Zoom	5-60° Smooth and fast zoom system
LED working lifetime	Average 50,000 hours with low power consumption
Channel	19/47CH two DMX channel mode
Control	DMX512/master-slave/auto/sound
Color	RGBW infinite mixture
Display	LCD display
Fixture size	297 mm220 mm374 mm
N.W	8.9KG

Product Details

Voltage: AC90-240V 50-60HZ
Max Power: 350W
Source: pcs 40w high brightness RGBW 4-in-1 leds
Dimmer: 0-100% linear dimming system
Strobe: 1-25 times/second
Pan: 540°+ fine Tilt: 270° + fine
Zoom: 5-60° Smooth and fast zoom system
LED working lifetime: Average 50,000 hours with low power consumption
Channel: 19/47 two DMX channel mode
Control: DMX512/master-slave/auto/sound
Color: RGBW infinite mixture
Display: LCD display
Fixture size: 297 mm * 220 mm * 374 mm
N.W: 8.9
