Excellent color mixing effect

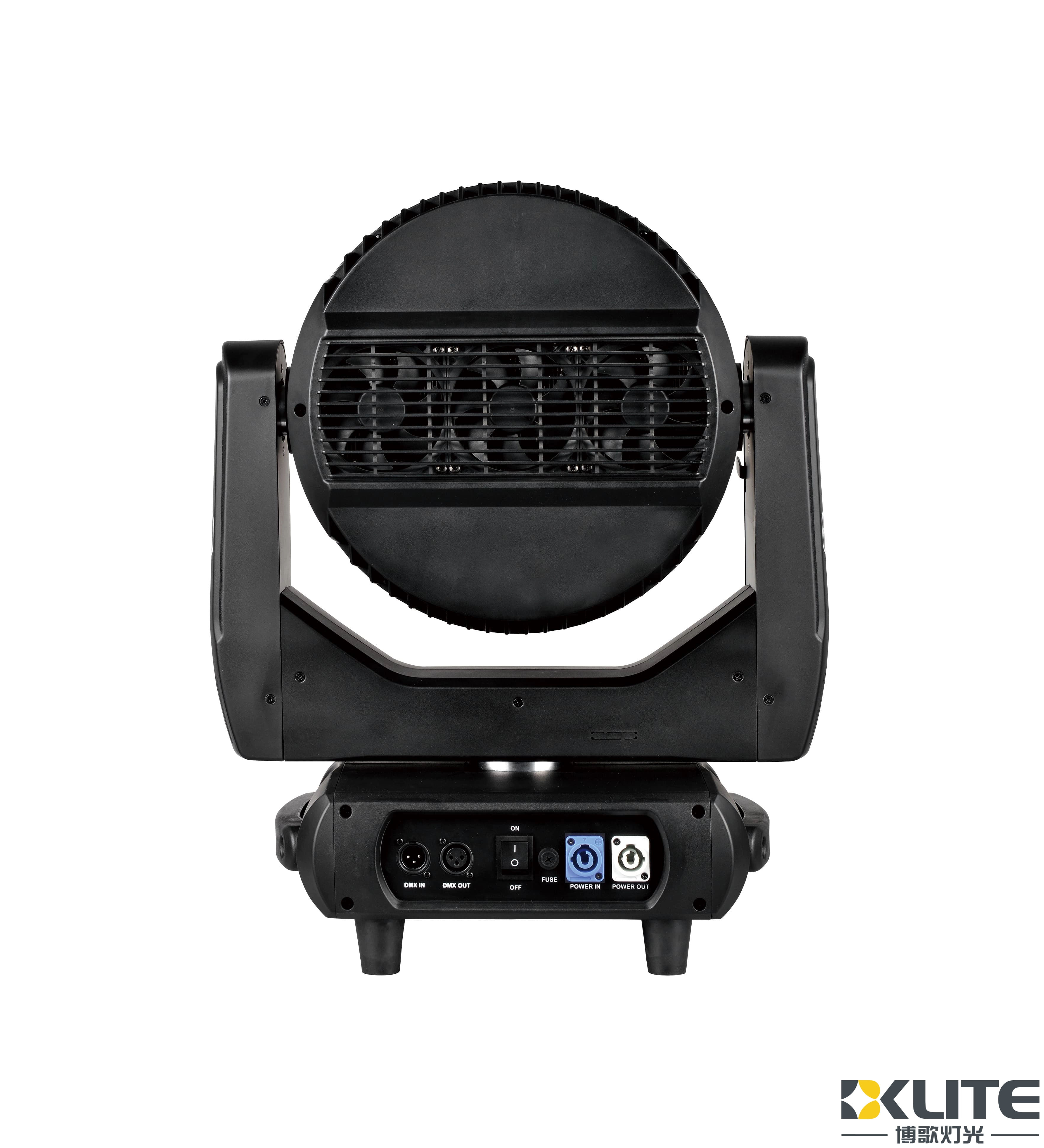

ZOOM Bee Eye 19*60W RGBW 4in1 LED Moving Head Light
The BK-BY1960Z is the perfect choice for stages, concerts, and various events. As a trusted stage light manufacturer, we invite you to get in touch for more details.
Brand
BKlite
Model No.
BK-BY1960Z
Power
1350W
Light source
19x60W high power RGBW 4 in 1 LEDs
Input voltage
AC100-240V 50-60HZ
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
Manual of 19x60w led moving(1).pdf
Key Features
• Each LED can be controlled individually. With unique honeycomb designed lens
• The front lens can rotate without limitation in forward and reverse direction to create amazing effects theaters, studios,
• The display can automatically rotate 180 ° to adapt to different installation angles.
• Can be used as a beam, wash, or effect light to use together.
• The scanning position memory function can automatically reset.
• With a fan heat dissipation and automatic detection function, the system will automatically stop working when the temperature is too high to protect the lamp.
Channels
21/35/78/92/97 five channel mode
Light source
19x60W high power RGBW 4-in-1 LEDs
Power
1350W
Mode
DMX512,RDM, Master/slave
Scanning system
540° /220°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 1350W |
| LED Source | 19x60W high power RGBW 4-in-1 LEDs |
| Zoom | 11°-55° |
| Strobe | 0-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 21/35/78/92/97 five channel mode |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Pan | 540° + 16-bit fine |
| Tilt | 220° + 16-bit fine |
| Display | LCD display with touch buttons |
| IP Rate | IP20 |
| Net Weight (N.W.) | 21.4KG |
| Gross Weight (G.W.) | 25.5KG (1pc/ctn) |
| Fixture dimension | 465*300*510mm |
Product Details
Dimensions Accessores
Photometrics
Light source
•Lighting luminous flux 132100 lumens
•LED expected lifespan：50,000hour
Work environment
•Maximum ambient temperature: 40°C
•Maximum surface temperature: 65°C
•Lowest working temperature: 0°C
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•Directions for use
•Power cord
•Signal cable
