Excellent color mixing effect
ZOOM Bee Eye K10 19×15W RGBW 4in1 LED Moving Head Light
The BK-BY1915Z is the perfect choice for stages, bars, KTV venues, concerts, and various events. As a trusted stage light manufacturer and factory, we invite you to get in touch for more details.
Brand
BKlite
Model No.
BK-BY1915Z
Power
450W
Light source
19x15W high power RGBW 4 in 1 LEDs
Input voltage
AC100V～240V 50-60HZ
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
INQUIRY
ZOOM Bee Eye K10 19×15W RGBW 4in1 LED Moving Head Light.pdf
K10 19×15W Light library.zip
Key Features
• Each LED can be controlled individually. With unique honeycomb designed lens
• The front lens can rotate without limitation in forward and reverse direction to create amazing effects
• Can be used as beam, wash or effect light use (Kaleido effects)
• The scanning position can be memory; it will be automatically reset without expected movement after rotation.
• Fan cooling (the fan will be change the speed with the temperature variation).
Temperature detecting system (If the temperature detected error, the light will stop working to protect the fixture)
• Fast speed with 3 phase motors on Pan and Tilt
Channels
21/23/35/78/92/97/99
Light source
19×15W high-power RGBW 4-in-1 LEDs
Power
450W
Mode
DMX512,RDM, Master/slave
Scanning system
540° /270°
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 450W |
| LED Source | 19x15W high power RGBW 4-in-1 LEDs |
| Zoom | 4° - 60° |
| Strobe | 0-25Hz |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 21/23/35/78/92/97/99 |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Pan | 540° + 16-bit fine |
| Tilt | 270° + 16-bit fine |
| Display | LCD colorful display |
| IP Rate | IP20 |
| Fixture Dimension | 496*293*590mm |
| Net Weight (N.W.) | 15KG |
| Gross Weight (G.W.) | 18KG |
| Package Dimension | 415*275*425mm |
Product Details

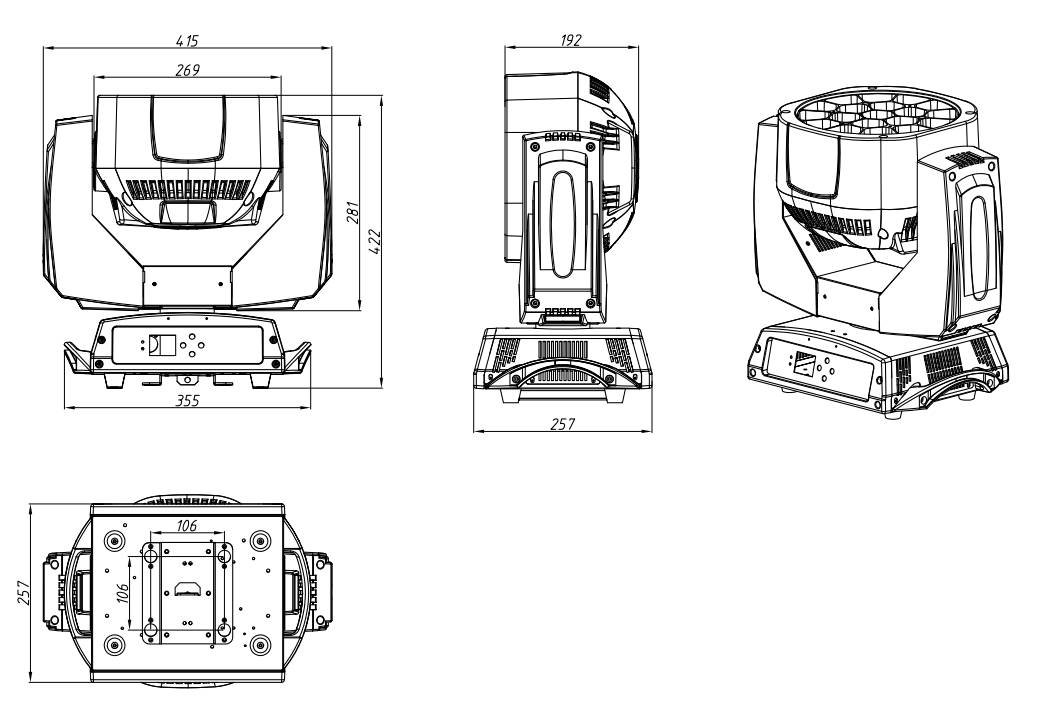

Dimensions Accessores

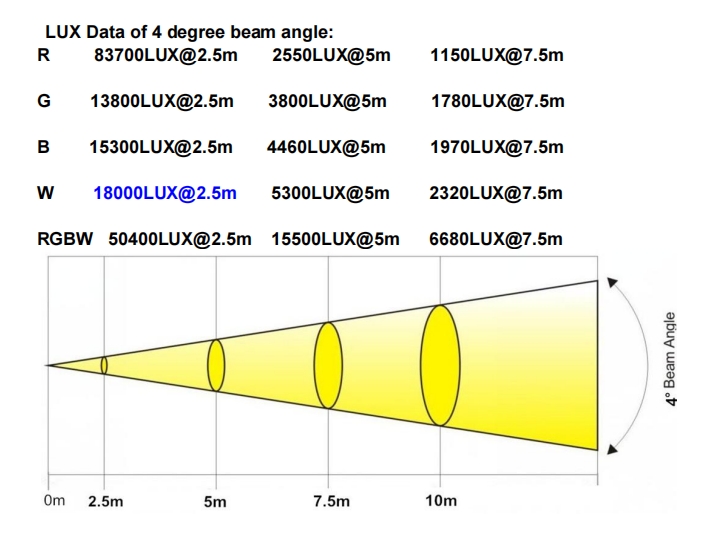

Photometrics
light source
• Lighting luminous flux 50400 lumens
• LED expected lifespan：5000hour
Control and procedure
• Five mechanical keys
• 2.8-inch OLED screen, bilingual Chinese and English menu
• The equipment usage and lighting time, equipment temperature, channel data, and software version information can be queried through the fixture menu.
• Upgrade files can be uploaded via the DMX interface
Work environment
• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Lowest working temperature: 0°C
Installation
• Can be installed horizontally or vertically
• Universal operating position
• Foldable lamp hook at the bottom
• Safety rope connection hole
Factory configuration
• directions for use
• Power cord
• Signal line
