Excellent color mixing effect
150W LED RGBL 4in1 Wash Moving Head Light
The fixture is compatible with various mounting accessories and control systems, enabling flexible integration into all lighting setups and unlocking more creative possibilities for lighting designers. It includes motorized zoom, 16-bit dimming, and vibrant RGBL color mixing. Ideal for concerts, clubs, and theater productions.
Brand
BKlite
Model No.
BK-W150
Power
200W
Light source
Main Light: 150W RGBL LEDs Auxiliary Light Source: 24pcs high-brightness RGB LEDs
Input voltage
AC100-240V 50/60HZ
Waterproof rating
IP20
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
150W LED Wash Moving Head Light User Manual.pdf
BKLite D4 Library for 150W wash 24ch and 36ch.zip
Key Features

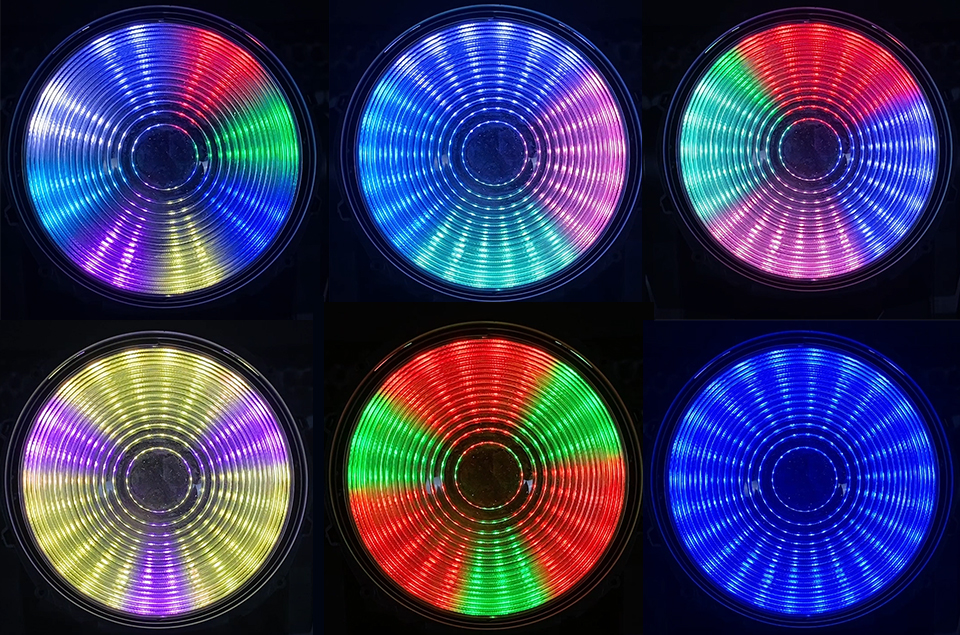

• BK-W150 combines beam, wash, and eye-candy functions in one, featuring a Fresnel lens and an RGBL LEDs, with light effect and quality that outperform other compact fixtures in its class.
• Its ultra-compact and lightweight design breaks limitations, facilitating easy installation and handling while reducing transportation costs and boosting ROI for rental companies.
Light source
Main Light: 150W RGBL LEDs
Auxiliary Light Source: 24pcs high-brightness RGB LEDs
Channels
20CH / 36CH / 108CH / 20aCH / 24CH
Power
200W
Mode
DMX512, Auto-run, Sound-active, Master-Slave, RDM
Video
More parameters
| Specification | Details |
| Voltage |
AC100-240V 50/60HZ
|
| Power | 200W |
| LED Source |
Main Light: 150W RGBL LEDs
Auxiliary Light Source: 24pcs high-brightness RGB LEDs
|
|
Dimming
|
16-bit linear dimming from 0–100%
|
|
Zoom
|
Motorized zoom, 19–27°. The zoom channel features a
continuous dynamic zoom pulse effect
|
|
Channels
|
DMX512, Sound-activated, Master/Slave |
| DMX Channels |
20CH / 36CH / 108CH / 20aCH / 24CH five channels
|
|
Control Modes
|
DMX512, Auto-run, Sound-active, Master-Slave, RDM
|
| Pan | 540° |
| Tilt | 200° |
|
Net Weight
|
4.4KG |
| IP Rate | IP20 |
| Fixture Dimension |
252.8×188.1× 358.4mm
|
Details

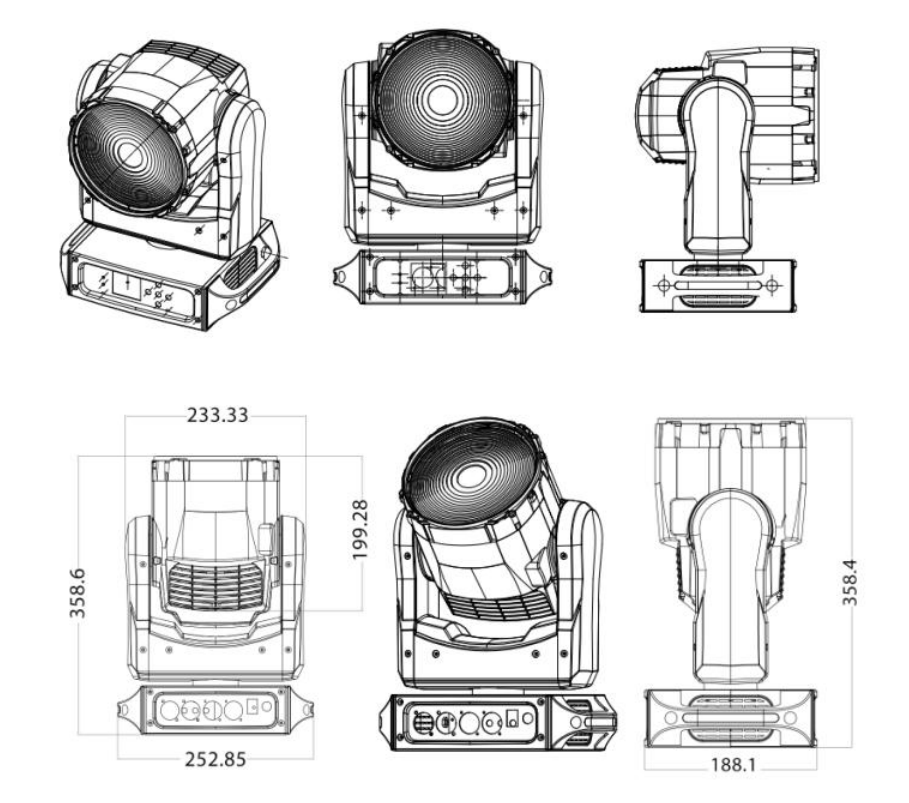

Dimensions Accessores

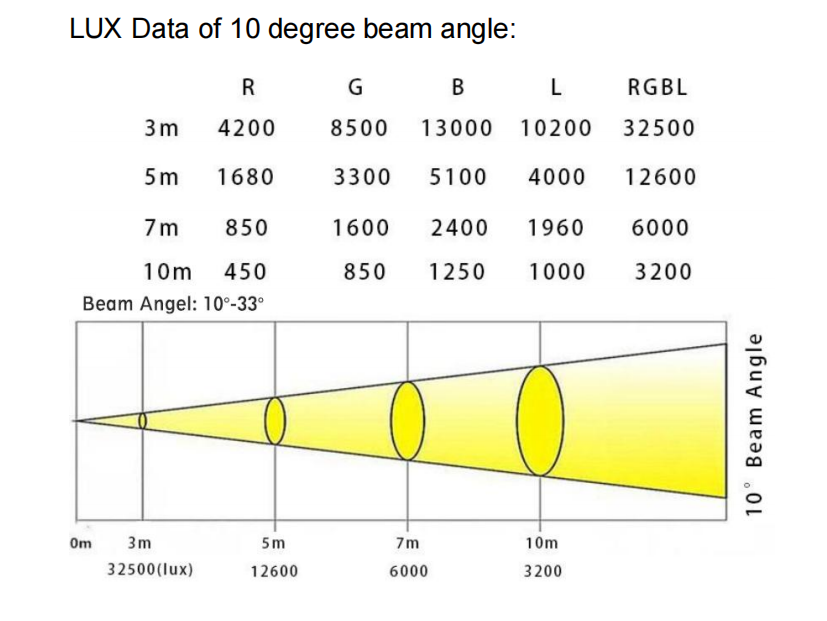

Photometrics
Control and procedure
•Five mechanical keys
•LCD display
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable clamp at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
