Excellent color mixing effect

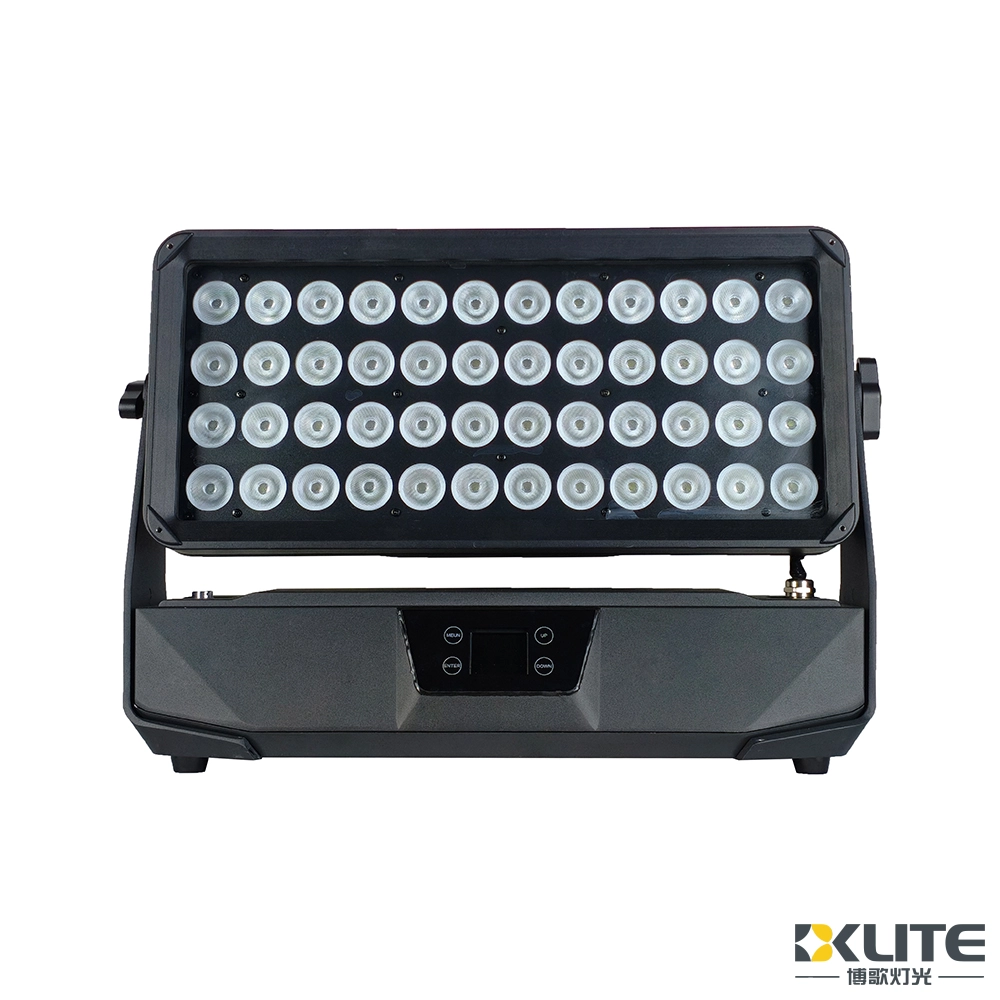

IP65 Waterproof 48pcs 20w RGBL 4in1 LED City Color Light
With more than 14 years of experience in professional stage lighting, BKLITE is a specialized LED stage lighting manufacturer in China. The BKlite IP65 48×20W RGBL wash flood light is a heavy‑duty outdoor fixture designed for building facades, bridge lighting, outdoor stage shows, hotel exteriors and large‑scale architectural lighting projects. Equipped with 48pcs 20W RGBL 4‑in‑1 LEDs and weather‑resistant IP65 housing, it delivers rich saturated colour washes, smooth colour gradients and flicker‑free output to create striking night‑time landscape and outdoor stage visuals.
Brand
BKlite
Power
850W
Light source
48x20W high power RGBL 4 in 1 LEDs
Input voltage
AC100V～240V 50-60HZ
Waterproof rating
IP65
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Get a free quote
Manual of 48x20w rgbl 4in1 led flood light 中性.pdf
Key features
• Excellent Light Performance: Booge RGBL multi-chip LED, featuring 16-bit + 256-level color control, offers a wide color gamut and uniform color distribution, combining vivid saturated colors with theater-grade white light.
• Flexible Control: Supports standalone/DMX/master-slave modes, including W-DMX wireless and RDM protocols, with multiple channels + preset/customizable functions.
• Strong Adaptability: IP65 protection rating, anti-frost design, and corrosion-resistant coating; constructed with die-cast aluminum and three-fan heat dissipation system; wide voltage input + full electrical protection; compatible with magnetic filter lenses and barn doors in multiple beam angles, ensuring stable and durable performance outdoors.
• Easy Operation: 180° rotatable OLED touchscreen; 4 dimming curves/PWM frequencies adjustable; flicker-free design suitable for filming; efficient installation and adjustment.
Channels
8CH/13CH/16CH/21CH/33CH/48CH
Light source
48pcs 20W high power RGBL 4 in 1 LEDs
Power
850W
Mode
DMX512, RDM, Master-slave，Auto, W-DMX(Optional)
Video
More parameters
| Specification | Details |
| Voltage | AC100-240V 50-60Hz |
| Power | 850W |
| LED Source |
48pcs 20W high power RGBL 4 in 1 LEDs
|
| Zoom | 20° |
|
Lens Projection Angle
|
20° |
| Strobe | 0-20Hz |
| Control Mode |
DMX512, RDM, Master-slave，Auto, W-DMX(Optional)
|
| DMX Channels |
8CH/13CH/16CH/21CH/33CH/48CH
six channel mode |
| Dimmer | 0-100% linear dimmer with 4 dimmer curves |
| Display |
LCD colorful display
|
| IP Rate | IP65 |
| Fixture Dimension |
525*172.5*358.5mm
|
| Net Weight (N.W.) | 17.4KG |
Product Details
Dimensions Accessores
Photometrics
Light source
•Lighting luminous flux 16,000 lumens
•LED expected lifespan：50,000hour
Control and procedure
•Four touch keys
•1.77 inch OLED screen, bilingual Chinese and English menu
•The equipment usage and lighting time, equipment temperature, channel data and software version information can be queried through the fixture menu.
•Upgrade files can be uploaded via the DMX interface
Installation
•Can be installed horizontally or vertically
•Universal operating position
•Foldable lamp hook at the bottom
•Safety rope connection hole
Factory configuration
•User manual
•Power cord
•Signal cable
•Safety rope
